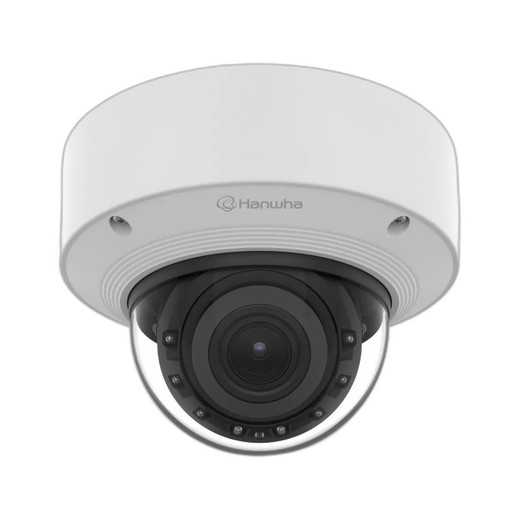

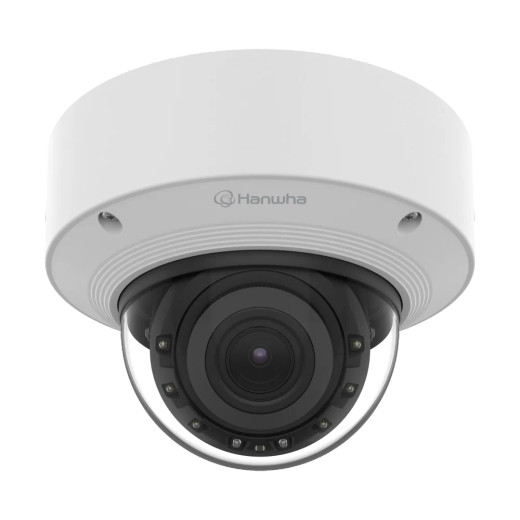

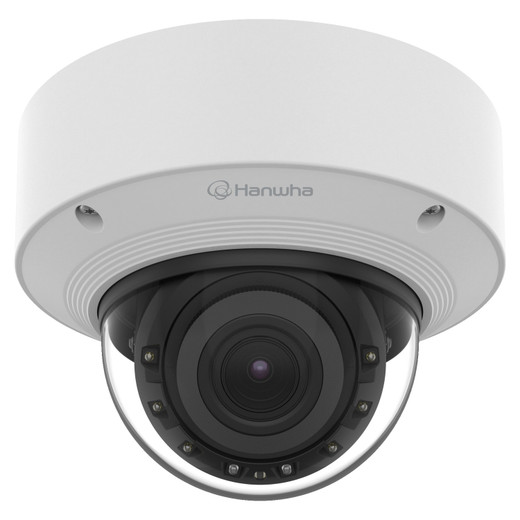

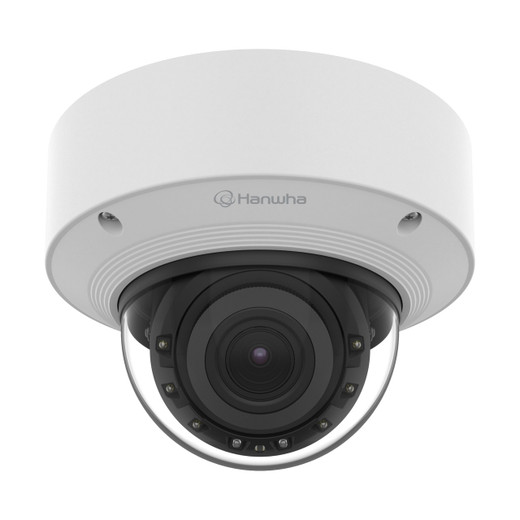

Hanwha XND-A9084RV 8MP Indoor AI IR Dome Camera
The Hanwha XND-A9084RV is an 8MP indoor dome network camera engineered for enterprise surveillance in corporate offices, retail environments, hospitality venues, and access-controlled facilities. It combines high-resolution imaging, integrated AI-powered analytics, and intelligent bandwidth management in a compact vandal-resistant housing. The camera's motorized varifocal lens and advanced low-light performance make it suited to deployments requiring both wide coverage flexibility and fine facial/detail capture without lens swaps during installation.
Key Features
- 8MP Resolution (3840 × 2160) — captures sufficient detail for facial recognition and license plate identification in indoor settings, avoiding the storage penalties of higher megapixel counts while still enabling meaningful zoom-in during forensic review.
- Motorized 4.4–9.3 mm Varifocal Lens — adjustable from 113° horizontal (wide) to 47° (telephoto) without removing or swapping the lens. Reduces installation time and allows you to dial in the exact coverage needed per camera location.
- Low-Light Color Performance to 0.04 Lux — maintains usable color video in dimly lit lobbies and corridors, reducing false-positive alerts and improving identity recognition during off-hours.
- Integrated IR Illumination to 40 m — paired with motorized infrared cut filter, ensures 24/7 visibility without relying on external lighting, and automatically switches to optimized monochrome mode in darkness.
- ExtremeWDR (120 dB) — handles extreme backlighting (e.g., sunlit windows, glass doors) without losing detail in shadows. Useful for lobbies and retail spaces with mixed interior and exterior lighting.
- WiseStream and WiseNR II Codec Technology — H.265 compression with AI-driven region-of-interest (ROI) encoding reduces storage and bandwidth consumption by 40–60% compared to standard H.264, a tangible cost saver on 24/7 multi-camera systems.
- Advanced AI Analytics — onboard object detection, attribute recognition (color, clothing, direction), people counting, heat mapping, and queue management support loss prevention, traffic flow analysis, and operational intelligence without requiring external analytics servers.
- Built-in Gyro-Based Digital Image Stabilization — compensates for vibration in ceiling-mounted installations or mechanically dynamic environments, maintaining image clarity when the mount experiences minor movement.
- IK10-Rated Vandal-Resistant Dome Housing — rated for impact resistance, protecting the camera in areas prone to tampering or accidental contact without requiring additional protective cages.
- PoE Power (802.3af) — draws approximately 13 W, so it operates on standard PoE without requiring a high-power injector, simplifying cabling and reducing power supply footprint.
- USB-C Assisted Installation — streamlines firmware updates and configuration during commissioning, reducing on-site setup time.
- Onboard microSD Storage up to 1 TB — enables local recording and failover if network connectivity is temporarily lost, critical for mission-critical deployments.
Integration & Deployment Context
The XND-A9084RV integrates with IP camera management platforms supporting ONVIF standards and pairs well with network video recorders for centralized recording. The motorized lens and AI analytics reduce reliance on manual camera repositioning or post-installation adjustments, lowering total deployment cost and operational overhead. Its PoE requirement fits standard enterprise network infrastructure; if your network switch lacks sufficient PoE budget, a PoE+ injector can supplement existing power delivery.
Consider this camera for scenarios requiring detailed indoor coverage with flexible framing: corporate lobbies, retail sales floors, office corridors, healthcare facilities, and educational institutions. The combination of varifocal convenience and onboard analytics makes it well-suited to mid-to-large deployments where installer time and operational intelligence matter.
Frequently Asked Questions
Q: What is the maximum IR range on the XND-A9084RV?
A: The integrated IR illumination reaches up to 40 meters (131 feet), ensuring visibility in unlit corridors and nighttime environments without external lighting.
Q: Can I adjust the lens field of view after installation?
A: Yes. The motorized 4.4–9.3 mm varifocal lens is adjustable via the camera's web interface or VMS, allowing zoom and focus tweaks without physical access to the camera.
Q: How much does WiseStream compression actually reduce storage?
A: WiseStream and WiseNR II typically reduce bandwidth and storage consumption by 40–60% compared to standard H.264 on the same scene, depending on motion and detail complexity. Savings are most visible on 24/7 multi-camera systems.
Q: What is the power consumption, and will my PoE switch support it?
A: The XND-A9084RV draws approximately 13 W via 802.3af PoE. Standard PoE (30 W per port) supports this camera without special injectors, though you should verify your switch's total power budget if deploying many cameras.
Q: Does the camera support ONVIF?
A: Yes, the XND-A9084RV supports ONVIF standards, ensuring compatibility with most enterprise VMS platforms and third-party management software.
Q: What happens if my network goes down—does the camera continue recording?
A: The camera has onboard microSD storage up to 1 TB, which enables local recording and buffering if network connectivity is temporarily lost. Video resumes uploading to the recorder when the link is restored.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XND-A9084RV strikes a solid balance between resolution, compression efficiency, and onboard analytics suited to mid-to-large enterprise indoor deployments. The combination of 8MP native resolution and WiseStream codec ensures that operators capture fine detail while controlling bandwidth—a real constraint on systems with dozens of cameras running 24/7. The motorized varifocal lens eliminates field-of-view surprises at installation and reduces the need for post-commissioning adjustments.
Technical Highlights:
- WiseStream + WiseNR II Compression: H.265 encoding with AI-driven ROI prioritization cuts storage and bandwidth by 40–60% versus H.264. Mattering most on large recorder deployments where storage scaling is a real budget line item.
- 120 dB ExtremeWDR: Handles backlit doorways and mixed interior/exterior lighting without blown-out or crushed shadows—common in retail and hospitality lobbies. The motorized ICR filter automatically optimizes for day or night, eliminating manual filter swaps.
- 0.04 Lux Color + 40 m IR: Color sensitivity to 0.04 lux preserves usable facial detail in dim corridors; IR fill to 40 meters covers larger indoor spaces (warehouses, distribution centers, transportation hubs) where external lighting is impractical.
- Motorized 4.4–9.3 mm Varifocal: Adjustable from 113° wide to 47° telephoto without lens swap. Speeds up installation, reduces spares inventory, and allows operators to dial in coverage post-deployment if room use changes.
Deployment Considerations:
- The camera's 8MP resolution is sufficient for facial recognition and license plate capture indoors, but don't expect to read a utility meter across a 100-meter parking lot. It's built for controlled interior spaces—lobbies, retail floors, offices, hospitals.
- The 13 W PoE draw is well within 802.3af budget, but verify your switch's aggregate power capacity if deploying 20+ cameras on a single unit. A single high-port-count PoE switch can max out faster than you'd expect.
- Onboard microSD storage up to 1 TB provides local failover, but don't treat it as a long-term archive. Use it for network outage buffering and rapid incident export—offload to your NVR regularly.
- The IK10 dome housing is genuinely vandal-resistant, but mounting height and lighting matter. A camera at arm's reach in a high-traffic area will still attract intentional impact; physical placement is your first line of defense.
Position the XND-A9084RV for indoor enterprise environments requiring flexible framing (varifocal advantage), decent low-light performance, and onboard analytics without specialist software. Retail floors, corporate campuses, healthcare access points, and educational facilities all benefit from the motorized lens and people-counting intelligence. Skip this if your use case demands extreme telephoto reach or outdoor weather resistance—that's a different product family.
