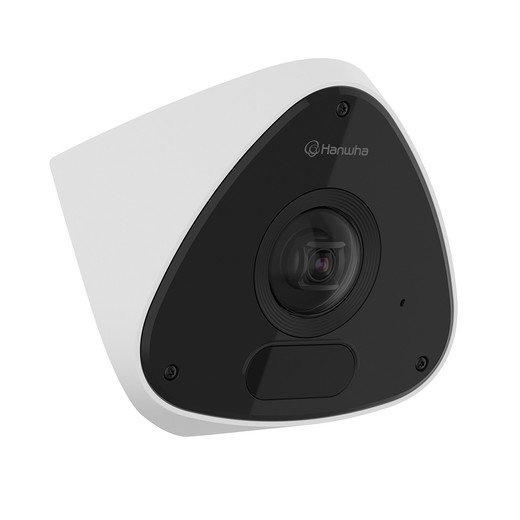

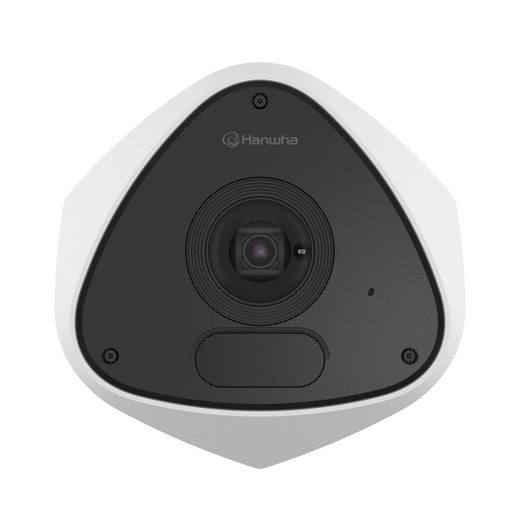

Hanwha TNV-C7013RC 3MP AI IR Anti-Ligature Corner Camera

Hanwha TNV-C7013RC 3MP AI IR Anti-Ligature Corner Camera

The Hanwha TNV-C7013RC is a specialized corner-mount IP camera built for dual-perspective surveillance in high-security institutional environments. This 3MP device combines AI-powered analytics, 15-meter thermal IR, and extreme wide dynamic range (120dB) in a tamper-resistant corner housing—eliminating blind spots while meeting stringent safety requirements in correctional facilities, psychiatric units, and secure detention centers.

Key Features

• 3MP resolution (2048×1536) with 1/1.8" progressive CMOS sensor: Captures fine detail necessary for positive identification in critical incidents without consuming excessive storage bandwidth. The larger sensor size improves low-light performance compared to smaller sensors in the same megapixel class.
• Extreme Wide Dynamic Range (120dB): Handles simultaneous high-glare and shadow conditions—think bright perimeter fence with dark cell interiors visible in one frame. Eliminates the need for separate day/night lighting compromises in mixed-illumination spaces.
• 15-meter Wise IR with 940nm wavelength: Invisible infrared illumination delivers full-color imagery in complete darkness without alerting subjects. Rated range means reliable coverage in cell blocks, outdoor perimeters, and interior corridors without visible red glow.
• 128° horizontal field of view from 2.39mm fixed focal length: Unique corner-mount geometry covers two perpendicular walls simultaneously—eliminates the need for two separate cameras at 90-degree junction points, reducing hardware costs and simplification footprint. This is the defining feature for corner installations.
• AI object detection (Person, Face, Vehicle, License Plate): Real-time classification reduces false alerts triggered by shadows, animals, or weather. In institutional settings, separates genuine threats from routine movement, lowering monitoring burden on security staff.
• Anti-ligature corner housing with IP66 and IK10+ ratings: Removes sharp edges and protrusions where fabric or rope could catch—critical for psychiatric and custodial facilities. IP66 means complete dust sealing and direct water spray resistance; IK10+ withstands 20 joule impacts (vandal-grade). Both certifications support outdoor perimeter and institutional courtyard deployment.
• H.265 and H.264 compression with WiseStreamIII codec: H.265 reduces bandwidth and storage footprint by 40–60% versus baseline H.264 under typical surveillance conditions—a material factor when running 24/7 recording on dozens of cameras. Smart codec adapts compression based on scene complexity, maintaining quality during critical incidents while saving space during static periods.
• PoE (IEEE 802.3af, Class 3) with microSD edge storage to 1TB: Draws under 13W, so it won't strain standard PoE switch power budgets—typical installations don't need separate power infrastructure. Local microSD recording (up to 1TB) provides failsafe backup if network connectivity drops, ensuring no gap in critical footage.
• TPM 2.0 security (FIPS 140-2 Level 2) with 802.1X and HTTPS/SSL: Hardware-trusted platform module prevents firmware tampering. 802.1X authentication integrates with enterprise security infrastructure. Pre-installed Hanwha Root CA certificates reduce initial provisioning overhead in locked-down institutional networks.
• Motion detection with 8 polygonal zones and 32 privacy masks: Define monitoring perimeters precisely—ignore non-critical areas like staff break rooms or administrative zones. Mosaic or color masking blocks sensitive areas from recording while maintaining audit trail of what was masked.
• Virtual line and area analytics: Intrusion detection, crossing alerts, direction tracking, and loitering detection trigger intelligent responses without manual threshold tuning. MQTT and HTTP/HTTPS integration with alarm systems and NAS platforms enable automated escalation.

Integration & Deployment

The TNV-C7013RC (often searched as TNV C7013RC) supports ONVIF, SUNAPI, and MQTT protocols, ensuring compatibility with network video recorders and third-party VMS platforms. Edge analytics run locally on the camera—4GB RAM ensures smooth multi-stream processing without NVR load. Firmware signed and secure boot prevent unauthorized modifications. For institutional environments requiring certified audit trails, this camera's hardware security posture meets compliance expectations.

Minimum illumination of 0.04 Lux in color mode and full IR performance in complete darkness means reliable 24/7 surveillance across cell blocks, corridors, outdoor exercise yards, and perimeter fences. The WiseNRII noise reduction engine maintains clarity while reducing bandwidth, critical when storage retention must span weeks or months.

When to Choose a Different Model

If your deployment doesn't require corner-mount geometry or anti-ligature design, evaluate a standard dome or bullet variant in the Hanwha camera line to reduce cost. If you need higher resolution for wide-area outdoor surveillance, consider a higher-megapixel variant in the same family. For indoor-only applications without extreme WDR demands, entry-level models may suffice—the 120dB extreme WDR and 15m IR are premium features justified by high-security or mixed-lighting scenarios.

Frequently Asked Questions

Q: Can the TNV-C7013RC be recessed or surface-mounted?

A: The TNV-C7013RC is designed specifically for corner mounting where two perpendicular walls meet. The anti-ligature housing and optical alignment are optimized for this geometry. Consult installation documentation for specific mounting bracket options and whether recessed or surface application is supported in your facility.

Q: What's the maximum continuous recording duration on a 1TB microSD card?

A: Recording duration depends on resolution, frame rate, and codec bitrate. At 3MP 30fps with H.265 compression, a 1TB card typically supports 7–10 days of continuous recording, though actual duration varies by scene complexity and WiseStreamIII adaptation. For longer retention, configure event-triggered recording or integrate with a network recorder.

Q: Is the TNV-C7013RC compatible with Milestone XProtect?

A: The camera supports ONVIF Profile S, which enables basic integration with Milestone and other ONVIF-compliant VMS platforms. Verify specific profile compatibility with your VMS vendor and confirm that advanced analytics (AI object detection) are accessible through ONVIF or require direct API integration.

Q: What happens if the PoE connection is interrupted?

A: The camera will lose power. Any local microSD recording stops. To ensure continuous operation during network outages, deploy a backup power solution (UPS or inline battery backup on the PoE circuit) or configure the NVR to trigger alerts when the camera goes offline.

Q: Are the IR LEDs visible to humans or cameras?

A: The TNV-C7013RC uses 940nm wavelength IR, which is invisible to the human eye and largely invisible to standard security cameras. This wavelength is preferred in environments where visible illumination (850nm red glow) would compromise operational security or inmate safety protocols.

Q: What certifications apply to this camera?

A: The TNV-C7013RC meets IP66 (dust/water sealing), IK10+ (vandalism resistance), and includes TPM 2.0 (FIPS 140-2 Level 2) security. Verify specific regulatory certifications (UL, FCC, CE, NDAA compliance) required for your jurisdiction in the product documentation or with your reseller.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNV-C7013RC is engineered specifically for environments requiring both comprehensive coverage and hard-target tamper resistance. Its corner-mount geometry and anti-ligature design address critical safety needs in institutional settings—psychiatric wards, correctional facilities, detention centers—where standard cameras expose ligature points or blind spots. The 120dB extreme WDR combined with 15m thermal IR ensures performance in both high-glare outdoor perimeters and near-total-darkness cell blocks.

Technical Highlights:

• 128° horizontal FOV from 2.39mm fixed lens: One camera covers two perpendicular walls simultaneously—eliminates the need for a second unit at corner junctions, reducing BOM and simplifying cabling. This is the defining geometry advantage; it's not available on standard dome or bullet models.
• 120dB extreme WDR with AI-powered WiseNRII noise reduction: Maintains usable imagery across 1,000:1 illumination ratios without mechanical iris lag. Noise reduction runs on-camera (4GB RAM), so edge recording and local playback remain smooth even during low-light scenes with high compression.
• H.265 codec with WiseStreamIII adaptive bitrate: Real-world deployments see 40–60% bandwidth savings versus H.264. On a 24/7 multi-camera institutional recorder, this difference determines whether you add a second NVR or stay within one appliance.
• TPM 2.0 (FIPS 140-2 Level 2) with signed firmware and secure boot: Prevents unauthorized firmware injection—critical in high-security environments where tampering could disable or redirect surveillance. 802.1X integration supports enterprise authentication policies without manual credential management per camera.
• PoE (802.3af, under 13W) with 1TB microSD failsafe: No separate power supply required—one cable delivers both data and power. Edge storage provides continuous recording backup if network drops, eliminating the blind spot that occurs between camera disconnect and alarm trigger.

Deployment Considerations:

• Corner mounting is non-negotiable—if your architecture doesn't align with 90-degree wall intersections, this geometry advantage evaporates. Evaluate standard domes/bullets for non-corner applications.
• 940nm IR is invisible to the human eye, but facility staff and inmates should be briefed that cameras operate with active IR. Unlike passive thermal imaging, this camera still requires visible light to render colored imagery; IR is night/darkness backup only.
• Edge analytics (AI object detection) run locally, reducing NVR CPU load. However, verify your VMS's ONVIF support for these classes—not all ONVIF platforms expose person/face/vehicle detection through standard APIs. Direct SUNAPI integration may be required for full analytics dashboard integration.
• The anti-ligature housing is optimized for internal institutional spaces (cell blocks, corridors, exercise yards). For external perimeter use, confirm mounting brackets support your specific corner geometry and that drainage doesn't pool against the lens.

This camera is the right fit for secure detention facilities, psychiatric hospitals, and high-security access points where corner coverage and hardware tamper resistance are non-negotiable. It's not a general-purpose option; deploy it where the corner geometry and anti-ligature design directly solve your coverage challenge. For standard perimeter or general surveillance, examine alternatives in the Hanwha catalog that reduce cost by eliminating features you don't need.

Key Specifications:
Field of View: H: 128°, V: 100°
Color: White
