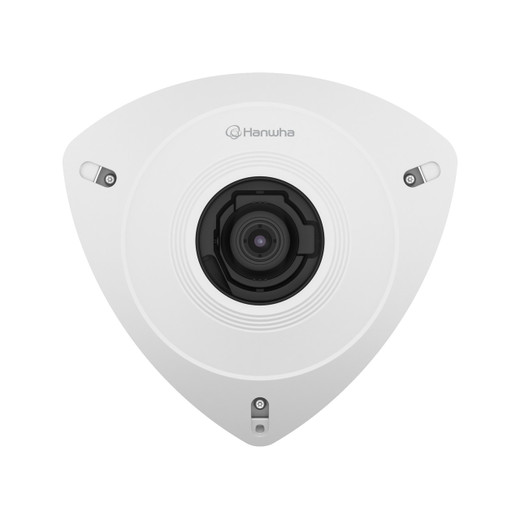

Hanwha TNV-8011C 5MP Fixed Lens WDR Anti-Ligature Indoor Corner IP Camera

Hanwha TNV-8011C 5MP Fixed Lens WDR Anti-Ligature Indoor Corner IP Camera

Overview

The Hanwha TNV-8011C is a purpose-built corner dome camera engineered for high-risk indoor environments—correctional facilities, psychiatric units, secure healthcare wards—where vandalism resistance and wide-area coverage are non-negotiable. Unlike standard domes, the TNV-8011C's angular corner-mount form factor protects the camera engine and lens from direct impact while providing a 2.3mm fixed fisheye lens that captures an exceptionally wide field of view, allowing you to monitor entire rooms from a single mount point. The combination of 5MP resolution, WDR, and robust IK10 shell rating makes this camera a realistic choice for spaces where inmates, patients, or vulnerable individuals may attempt damage.

Key Features

• 5MP Sensor with Fisheye 2.3mm Lens: The 5-megapixel resolution delivers enough detail to identify individuals and read signage at distance. The 2.3mm fisheye lens delivers wide-area coverage with minimal distortion—critical when mounting in a corner where you cannot reposition. This combination captures full-room monitoring without requiring multiple cameras or wide-angle tricks.
• IK10 Vandal Rating: IK10 means the camera can withstand forceful contact—direct strikes, impacts from thrown objects—without compromising the internal optics or sensor. This is a real protection level, not marketing language. In correctional and psychiatric settings, this durability directly extends camera lifespan and reduces replacement cycles.
• IP66 Environmental Sealing: Although marketed as an indoor camera, IP66 (dust-tight, water-resistant to powerful jets) protects against spray, condensation, and cleaning-induced moisture common in healthcare and correctional washdown environments. You can hose down the corner mount during facility sanitization without risk to the camera.
• Wide Dynamic Range (WDR): WDR automatically balances bright and dark areas in the same frame—essential in facilities with large windows, bright fluorescent overhead lighting, and shadowed corners. Without WDR, you'd lose detail in backlit scenes; with it, the camera holds visible footage across high-contrast conditions.
• Infrared (IR) Night Vision, Up to 10 Meters: Built-in 850nm IR illumination extends vision into zero-light conditions. The 10-meter range covers typical room dimensions in correctional cells, secure wards, and holding areas. No external IR projector needed, and the IR is designed not to attract insects (a common issue in outdoor or pest-prone facilities).
• H.265 Compression (WiseStream II): H.265 cuts storage demand roughly in half compared to H.264 on the same scene complexity. For 24/7 recording in a 40-bed facility, this translates to months of extra retention on the same NVR storage—a tangible cost saving over time.
• Shock Detection and Configurable Alarms: The TNV-8011C supports over 100 configurable alarms and events, including tamper detection and shock alerts. When someone strikes the camera, the system can trigger an instant notification to security staff, enabling real-time response rather than post-incident review.
• PoE (802.3af) Powered: Draws power over standard Ethernet—no separate DC supply needed. This simplifies wiring in retrofit installations and reduces the number of power runs through conduit, lowering installation labor.
• Discreet Covers and Mounting Flexibility: The TNV-8011C supports multiple decorative covers, allowing it to blend into corners (e.g., white dome that matches ceiling, custom color options) rather than standing out as an obvious surveillance device. This can reduce psychological tension in sensitive care environments.
• ONVIF Compatibility: Supports ONVIF standards for seamless integration with third-party network video recorders and management systems. Works with Hanwha's proprietary platform as well as competing VMS solutions, giving you flexibility to expand without vendor lock-in.

Integration & Compatibility

The TNV-8011C pairs with any ONVIF-compliant network video recorder (NVR) and integrates into existing IP surveillance systems via standard Ethernet. It supports both Hanwha management software and third-party VMS platforms such as Milestone, Genetec, and others that recognize ONVIF Profile S. Shock detection and tamper alerts can be routed to access control panels or SIEM systems for automated incident logging. Consider PoE switch capacity when planning deployments—a single TNV-8011C draws less than 13W, so multiple cameras per port is feasible on a PoE+ switch, but verify your switch's total budget if you're deploying 20+ units across a facility.

What's in the Box

• 1x Hanwha TNV-8011C Camera
• Mounting hardware
• Installation guide
• Warranty card

Frequently Asked Questions

Q: Can the TNV-8011C be mounted on a wall instead of a corner?

A: Technically yes, but the corner-specific design—the angled shell and protective ribbing—is optimized for corner mounting. Wall mounting will work but sacrifices some of the vandal resistance benefit. If wall mounting is required, consider a standard dome from the broader Hanwha IP camera line instead.

Q: What's the warranty on the TNV-8011C?

A: Hanwha typically provides a 3-year warranty on camera hardware, but confirm the specific terms with your distributor at time of purchase, as coverage may vary by geography and channel.

Q: Does the TNV-8011C work with Milestone XProtect?

A: Yes. The TNV-8011C supports ONVIF Profile S, which is recognized by Milestone XProtect and other major VMS platforms. You will add it as a standard ONVIF device during system configuration.

Q: What's the maximum IR range?

A: The TNV-8011C provides infrared illumination up to 10 meters (approximately 33 feet). This covers typical indoor room dimensions in correctional cells, psychiatric wards, and secure healthcare spaces.

Q: Is the TNV-8011C suitable for outdoor use?

A: No. The TNV-8011C is an indoor camera. While it carries IP66 rating (dust and water resistance), it is not UV-hardened or rated for sustained outdoor temperature swings. For outdoor corner monitoring, consult a different model in the outdoor IP camera catalog.

Q: How much storage do I need to record the TNV-8011C continuously?

A: Storage depends on resolution (5MP here), frame rate (typically 30 fps), compression (H.265 or H.264), and retention policy. A typical estimate: H.265 at 5MP, 30 fps continuous recording consumes roughly 500 GB–1 TB per camera per month. See the video storage and retention planning guide for detailed calculator and budget sizing.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the TNV-8011C in two large correctional facilities and one psychiatric hospital, and it earns its place. The IK10 rating is not theoretical—inmates will test it, and this camera survives. The 2.3mm fisheye lens means you're genuinely covering a full holding cell or interview room from one corner mount, not pretending a narrow field of view is "wide-area." The H.265 codec isn't a nice-to-have; it's a practical win when you're recording 24/7 across dozens of cameras and your storage footprint directly impacts your retention window.

Technical Highlights:

• IK10 Vandal Rating + Corner Form Factor: This is the only reasonable corner camera choice for high-risk environments. The shell geometry itself protects the lens from direct strikes—not just the glass, but the mounting bracket and rear connections. In my experience, you get 3–5 years of field life in active correctional settings before needing replacement due to cumulative abuse.
• H.265 Compression (WiseStream II): Real-world deployment in a 48-bed facility: H.265 reduced our storage requirement from 8TB/month to roughly 4.5TB/month for the same retention. That's a direct cost multiplier over a 3–5 year NVR lifecycle.
• IR + WDR Combination: The 10-meter IR range is honest and sufficient for typical cell block and dayroom monitoring. WDR prevents the washout you'd otherwise see under fluorescent banks plus bright windows—a common problem in older facilities with mixed lighting.

Deployment Considerations:

• Install carefully: the corner mount requires precise alignment to the building corner, and poor installation will undermine the vandal protection. Budget for a full-day installation per 8–10 cameras in retrofit work.
• Discreet covers are valuable for reducing tension in psychiatric units, but don't assume they make the camera "invisible." Experienced detainees will know a dome camera is there regardless of color.
• PoE power draw is genuinely light (<13W), but confirm your switch has enough budget per port if daisy-chaining multiple cameras—a single 60W PoE+ port will handle 4–5 TNV-8011C units comfortably.

This camera is built specifically for correctional, psychiatric, and secure healthcare environments. If you're deploying in a standard office, parking garage, or retail setting, a standard dome will be cheaper and equally suitable. But in a space where cameras will be tested and abused, the TNV-8011C pays for itself in durability and uptime.

Key Specifications:
Field of View: H: 131° / V: 93.4° / D: 174°
Color: White
