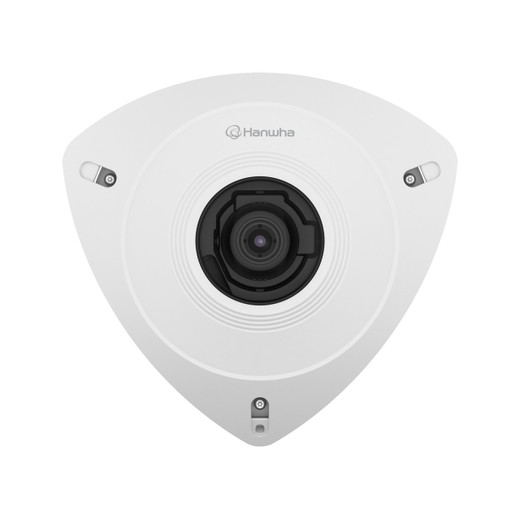

Hanwha TNV-8011C/KEX 5MP Corner Dome Camera
The Hanwha TNV-8011C/KEX is a 5MP fixed corner-mount dome camera purpose-built for institutional and secure indoor environments. Engineered with anti-ligature housing and certified TAA compliant, this camera delivers robust surveillance for correctional facilities, behavioral health centers, and high-security applications where durability and safety standards are non-negotiable.
Key Features
- 5MP resolution at 30 fps with triple codec support (H.265, H.264, MJPEG)
- 2.3mm fixed focal length optimized for hallway and corner coverage
- 120dB WDR for balanced exposure in high-contrast environments
- Exceptional low-light sensitivity: 0.1 lux color / 0.02 lux B&W with auto Day/Night ICR
- IP66 and IP6K9K environmental sealing; IK10 impact resistance
- PoE power (IEEE 802.3af Class 2) at 6.49W max / 4.6W typical
- MicroSD/SDHC/SDxC card slot (up to 128GB) with AES-256 partition encryption
- Anti-ligature design compliant with institutional safety standards
- Dual audio channels (input and output)
- USB and CVBS connectivity options
Video Analytics & Intelligence
Built-in analytics include defocus detection, tampering alerts, audio detection, motion detection, directional tracking, Enter/Exit monitoring, and virtual line crossing. These features enable proactive incident response without external video management platform dependencies.
Edge Storage & Security
Integrated microSD card support with AES-256 encryption provides local storage resilience for mission-critical installations. Capacity up to 128GB ensures extended recording windows and reduces reliance on centralized infrastructure.
Environmental & Operating Conditions
- Operating temperature: -10°C to +55°C (-14°F to +131°F)
- Storage temperature: -50°C to +60°C (-58°F to +140°F)
- Humidity: 0–95% RH (non-condensing)
- IP66/IP6K9K rated for harsh washdown and high-pressure spray environments
- IK10 rated for resistance to vandalism and physical impact
Applications
Ideal for correctional facilities, psychiatric hospitals, behavioral health centers, secure detention areas, and any institutional setting requiring durable, anti-ligature surveillance. The compact corner-mount design integrates seamlessly into confined spaces while meeting stringent safety compliance requirements.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNV-8011C/KEX addresses a critical gap in institutional security: cameras that don't compromise safety for surveillance capability. The anti-ligature housing eliminates improvised weapon potential—a primary concern in correctional and behavioral health deployments. Combined with IK10 impact resistance and IP66 sealing, this camera withstands both the physical and environmental stressors of institutional environments.
The 2.3mm lens is deliberately narrow, optimized for hallway observation and corner placement where wider angles would create security blind spots. WDR at 120dB handles fluorescent lighting and natural light transitions common in institutional corridors. Low-light sensitivity (0.02 lux B&W) ensures visibility during lockdown or emergency scenarios with minimal lighting.
PoE delivery at sub-7W typical power consumption and microSD edge storage eliminate external power and network dependencies—critical in secure facilities where infrastructure simplicity reduces attack surface. AES-256 encryption on local storage protects recorded evidence from tampering or unauthorized access.
TAA compliance confirms domestic sourcing and federal procurement eligibility, essential for GSA Schedule contracts and government institutional buyers. Wisenet platform compatibility ensures integration with Hanwha's broader ecosystem without vendor lock-in constraints.
