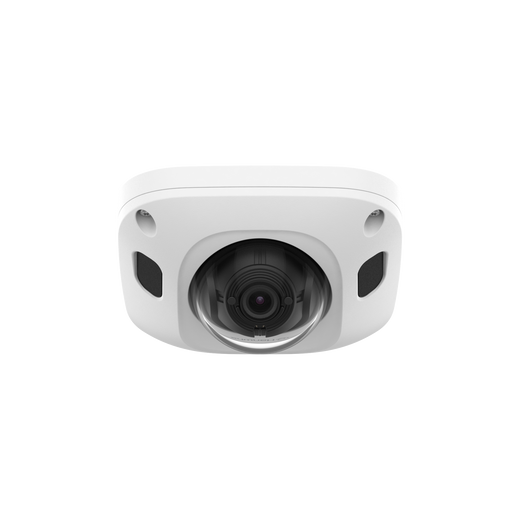

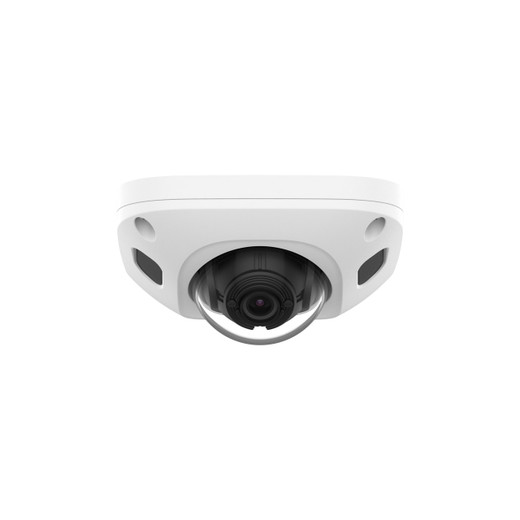

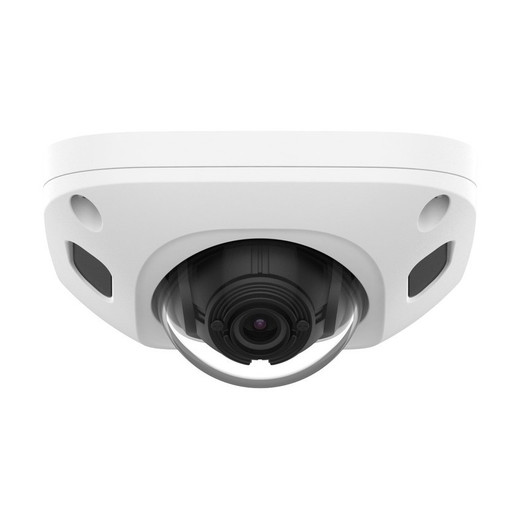

Hanwha TNV-C8034RM 5MP Outdoor AI Mobile Dome Camera
The Hanwha TNV-C8034RM is a rugged 5MP outdoor dome network camera purpose-built for mobile and transportation surveillance in demanding environments. With EN50155 certification and IP66/IK10 ratings, this camera delivers high-resolution video capture and intelligent AI analytics in applications ranging from rail and bus fleets to critical infrastructure monitoring. Its M12 connector ensures vibration-resistant installation, while triple codec support and advanced compression technologies optimize bandwidth across resource-constrained networks.
Key Features
- 5MP resolution at 30fps (2592×1944) with 6mm fixed lens and 50° horizontal field of view
- EN50155 certified for railway and mobile transport compliance
- IP66 water-resistant and IK10 vandal-resistant housing
- M12 connector for secure, vibration-resistant network installation
- Triple codec support: H.265, H.264, and MJPEG
- WiseStream III AI-enhanced bandwidth optimization
- Integrated microphone for audio capture
- 120dB Wide Dynamic Range for high-contrast environments
- WiseNR II noise reduction for clarity in dynamic lighting
- Operational temperature range down to -40°C with heater support
- Up to 256GB edge storage via SD card
Advanced AI Analytics
Onboard AI processing enables intelligent video analytics without dependency on external servers. The camera classifies objects as persons or vehicles, detects vehicle type and color, identifies individual clothing colors, and triggers events including BestShot capture, virtual line crossing detection, and intrusion alerts. Defocus detection and shock sensing provide operational feedback, while dynamic privacy masking and hallway view support flexible deployment scenarios.
Technical Highlights
The TNV-C8034RM combines environmental resilience with advanced imaging technology. Its 120dB WDR and WiseNR II processing ensure clear video in challenging lighting conditions. Digital Image Stabilization with gyro sensor compensation reduces motion blur from vehicle vibration. The camera's robust construction—rated IP66 for dust and water ingress, IK10 for impact resistance—makes it ideal for outdoor mobile installations. Built-in heater support extends operational range to extreme cold environments. M12 connectors provide reliable, vibration-resistant connections critical for transportation deployments.
Applications
- Rail and train fleet surveillance
- Bus and public transportation monitoring
- Mobile surveillance vehicles
- Critical infrastructure perimeter protection
- Port and logistics facility monitoring
- Industrial equipment and asset tracking
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNV-C8034RM represents a specialized solution for operators requiring certified mobile surveillance. Its EN50155 compliance addresses regulatory requirements in rail and transport sectors where standard security cameras are insufficient. The combination of WiseStream III and triple codec support delivers bandwidth efficiency critical for mobile networks with limited connectivity.
The 6mm fixed lens and 50° FOV provide focused, detail-rich coverage suitable for identification tasks in transport environments. AI-driven analytics—particularly vehicle classification and color detection—reduce operational overhead by filtering relevant events. Gyro-based DIS and shock sensing acknowledge the vibration inherent in mobile platforms.
Edge storage capability and onboard processing ensure continuity even during network interruptions, essential for continuous fleet monitoring. The IP66/IK10 ratings and low-temperature heater support reflect durability expectations for outdoor mobile deployment.
