Hanwha QNV-C8012 5MP Outdoor AI Dome Camera

Hanwha QNV-C8012 5MP Outdoor AI Dome Camera

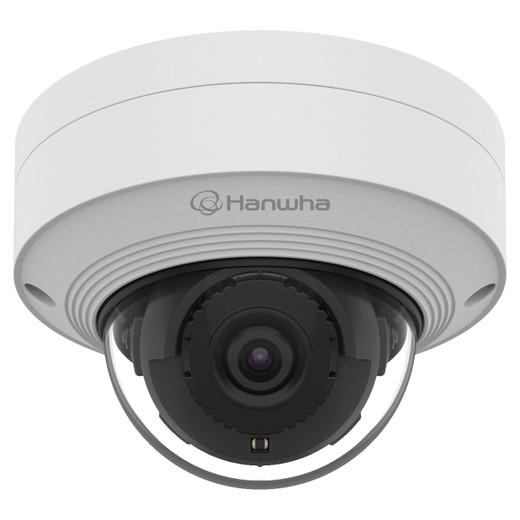

The Hanwha QNV-C8012 is a compact 5MP outdoor mini dome engineered for intelligent surveillance in high-traffic, demanding environments. Built into a vandal-resistant housing with advanced AI analytics onboard, it delivers people counting, vehicle detection, and heatmap generation without offloading processing to a centralized system. The fixed 2.4mm lens (123° horizontal FOV) and PoE power make it straightforward to deploy in existing infrastructure.

Key Features

• 5MP Resolution (2592×1944): Sufficient detail for facial recognition at close range and license plate reading in retail or perimeter settings; the 2.4mm fixed lens keeps the form factor compact, so it won't dominate sightlines in public spaces.
• AI-Powered Analytics: Embedded people counting, vehicle counting (with attribute classification: car, bus, truck, motorcycle, bicycle), virtual line crossing detection, and heatmap generation. Reduces false positives and manual video review overhead — analytics run locally, so you avoid network bandwidth spikes and centralized processing bottlenecks.
• 120dB Wide Dynamic Range (WDR): Handles backlit entryways, storefronts, and loading docks where sun glare or reflective surfaces would wash out standard sensors. Electronic shutter (1/5 to 1/12,000 seconds) adapts to rapid lighting changes without motion blur.
• IP66 / IK10 Ratings: IP66 means dust and direct rain won't compromise performance; IK10 resists 5J impacts (equivalent to a hammer strike from 1.25m height). Suitable for outdoor wall/ceiling mounts where public access or vandalism risk is moderate to high. Not rated for submersion (that requires IP67+).
• PoE Powered (802.3af, 7W max): Runs on standard Class 3 PoE; won't strain a typical switch's power budget even across dozens of cameras. No separate power supply or conduit needed, reducing installation labor and cable routing complexity.
• H.265 + WiseStream III Codec: H.265 cuts file size roughly 40–50% versus H.264 at equivalent quality — meaningful for 24/7 retention on multi-camera NVR systems where storage is a cost driver. Dual-stream architecture lets you record full resolution while streaming lower bitrate feeds to mobile clients.
• Infrared Night Vision (0.005 Lux, B/W): Auto day/night switching with adjustable threshold; see movement in near-total darkness without external lighting. Useful in unmanned outdoor areas (parking lots, loading zones) where ambient light is minimal after dark.
• Onboard Storage: MicroSD card slot (up to 256GB) with partition-level encryption; provides local failover if network connectivity drops. Video doesn't vanish if your NVR is offline.
• ONVIF Profile S/G/T/M: Works with IP cameras management platforms (Milestone XProtect, Genetec, etc.) without proprietary software lock-in. Multi-profile streaming (up to 5 simultaneous streams) supports diverse client bandwidth requirements.
• Enterprise Security: 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP), HTTPS/SRTP encryption, digest authentication with brute-force prevention. Suitable for regulated environments (healthcare, finance, government) where encryption and device-level identity verification are mandatory.

Integration & Deployment

The QNV-C8012 measures ø110×77mm and weighs 1.15 lbs, enabling discreet ceiling or wall mounting via M12 connector. Optional accessories (SBP-120HMW hanging mount, SBV-140BW backbox) accommodate corner installations or architectural constraints. Operating range −40°C to +55°C with active humidity management suits temperate and cold-climate outdoor deployment.

Virtual privacy masking (4 zones) and motion detection (8 zones) let you comply with regional data protection rules (GDPR, state-level camera disclosures) by blocking sensitive areas before recording. Detection Shot functionality auto-captures still images of flagged objects for evidence archives.

Consider this camera when you need local analytics to reduce processing load on your network video recorders or when edge intelligence is a regulatory or operational requirement. For applications requiring pan/tilt/zoom control or longer throw distances, explore higher-megapixel fixed or varifocal variants in the Hanwha outdoor dome line.

When to Choose a Different Model

If your deployment requires motorized zoom (to adjust coverage after installation) or longer standoff distances (beyond ~40 feet for readable detail), a varifocal outdoor camera in the same family may be a better fit. If vandalism risk is extremely high and you need true submersion capability (pond/fountain perimeter), specify IP67 or higher. For pure perimeter intrusion detection without business intelligence, a simpler fixed-dome without onboard AI may reduce cost.

Frequently Asked Questions

Q: Does the QNV-C8012 work with Milestone XProtect or Genetec?

A: Yes. The camera is ONVIF Profile S/G/T/M compliant, meaning it integrates via standard ONVIF protocols with Milestone, Genetec, March Networks, and other enterprise VMS platforms. No proprietary driver required, though vendor integration may vary.

Q: What's the minimum light level for color video?

A: In color mode, the camera requires approximately 0.3 lux (roughly the light from a single candle at arm's length). Below that, it switches to monochrome and engages infrared. True 0.005 lux performance refers to B/W mode with IR active.

Q: Can I use standard PoE injectors, or do I need PoE+?

A: Standard 802.3af PoE is sufficient. The QNV-C8012 draws a maximum of 7W, well within the Class 3 PoE budget (~13W). Any managed or unmanaged PoE switch rated for Class 3 will work.

Q: Does the camera support two-way audio?

A: No. The QNV-C8012 does not include audio input or output. If audio is required, select a different model or deploy a separate audio system.

Q: What happens if network connectivity drops?

A: Video is still recorded locally to the microSD card (up to 256GB). When the network restores, recorded footage can be accessed directly from the card or synced back to your NVR.

Q: Is the lens interchangeable?

A: No. The 2.4mm fixed lens is integral to this model. If you need zoom or a different field of view, choose a varifocal variant from the Hanwha dome family.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNV-C8012 sits at a sweet spot for retail, hospitality, and mid-tier facility operations where you need reliable outdoor AI without overcomplicating your infrastructure. At 5MP with onboard people and vehicle counting, it handles business intelligence and security in one package — no separate analytics appliance required.

Technical Highlights:

• Fixed 2.4mm, 123° FOV: Wide coverage in compact form; ideal for entry vestibules, loading dock overheads, and parking lot ceiling mounts where you can't change the lens after install. Plan your mounting height and angle before deployment.
• 7W PoE draw, 802.3af Class 3: Extremely conservative power profile. A single 48-port PoE switch can handle 80+ units without power exhaustion. Relevant for large deployments (retail chains, warehouses) where PoE consolidation cuts cabling labor.
• H.265 + WiseStream III: The codec pairing delivers approximately 50% file size reduction over H.264 at constant quality bitrate. On a 30-camera 7-day retention NVR, that's meaningful SSD cost avoidance — roughly $200–400 per terabyte saved.
• 0.005 Lux IR night vision: Switchover to monochrome and IR is automatic; no manual tweaking. Effective range in near-total darkness (~20–30m depending on target reflectivity) without external IR supplementation.
• MicroSD failover (up to 256GB): Not a replacement for central NVR storage, but prevents total video loss if your network recorder is briefly offline. Retention on 256GB at H.265, 5MP, 30fps is roughly 8–12 hours depending on scene activity.

Deployment Considerations:

• No audio: If you need two-way talk-down or on-site event audio capture, plan for a separate intercom or audio input module paired to your VMS. Audio-enabled variants exist in the Hanwha line; confirm with your integrator.
• Fixed lens means commit to mounting geometry: Once you bolt it up, you can't zoom tighter or widen coverage without a ladder and a new unit. Validate coverage mockups in advance, especially for license plate or facial recognition standoffs.
• IK10 is good, not armor-grade: A determined attacker with a pry bar or hammer can damage a mounted dome. IK10 stops casual vandalism and weather-related impact — not active malice. For high-risk outdoor locations, consider adding protective housings or Lexan covers.

Deploy the QNV-C8012 in retail traffic-flow monitoring, warehouse people-counting in high-bay areas, and parking facility occupancy tracking. The embedded analytics and low power footprint make it an economical choice for scaling deployments across multiple sites where you can't justify site-specific customization.
