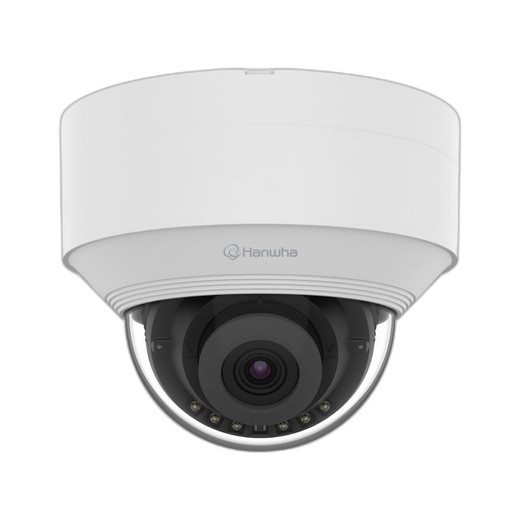

Hanwha QNV-C8013R 5MP Outdoor AI IR Dome Camera
The Hanwha QNV-C8013R is a compact 5MP outdoor surveillance dome built for harsh environments and perimeter security. Operating on the Wisenet Q Mini platform, this camera pairs high-resolution imaging with on-board AI analytics, infrared night vision, and vandal-resistant construction—all without premium pricing. It's engineered for parking facilities, industrial outdoor applications, and access control perimeters where reliable detection matters and bandwidth constraints are real.
Key Features
- 5MP resolution (2592 × 1944): Delivers enough detail to identify people and vehicle types across typical outdoor scenes without consuming excessive storage—roughly 30% less data than 8MP for comparable visual acuity in mid-range deployments.
- Fixed 3mm lens with 100° horizontal field of view: Wide perspective minimizes blind spots on building facades or small perimeter segments; trade-off is reduced detail at distance (validate against your site's required identification range before deployment).
- 30 fps video at full 5MP resolution: Smooth motion capture prevents motion blur on moving vehicles and foot traffic; adequate for most non-motorsport surveillance (racing or high-speed vehicle tracking may require higher frame rates).
- H.265, H.264, and MJPEG codec support with WiseStream III compression: H.265 cuts bandwidth and storage roughly 40–60% versus H.264 at equivalent visual quality—meaningful when recording 24/7 across dozens of cameras. MJPEG remains available for compatibility with older recording systems.
- 25-meter IR illumination range: Covers typical 2–3-story building perimeters and parking lot sections; beyond 25 meters, IR effectiveness drops noticeably. If your site requires longer-range night detection, validate this camera's coverage against your lighting plan or consider supplemental exterior lighting.
- WiseMD AI object detection and classification: On-camera intelligence identifies people, vehicles, buses, and bicycles, reducing false alarms and enabling rule-based alerts (line crossing, intrusion, loitering, object disappearance). Cuts through motion-triggered noise common in windy outdoor environments.
- IP66 and IK10 ratings: IP66 handles direct rainfall and dust ingestion without degradation; IK10 resists impact and vandalism (typical for dome cameras in accessible outdoor areas). Skip this model if your site requires full submersion (IP67) or extreme impact protection above IK10.
- Operating temperature range –30°C to +55°C: Accommodates most continental and subtropical climates; tropical high-humidity environments may require additional environmental enclosures or ventilation to prevent lens fogging.
- 120 dB WDR (wide dynamic range): Handles high-contrast scenes—bright sky behind a person, deep shadows near building eaves—without washout or clipping. Effective for backlit scenarios; WDR is not a substitute for additional fill lighting in extremely dark areas.
- WiseNR II noise reduction: Smooths low-light video without excessive blur; trades fine texture detail for clarity in very dim conditions (0.01 lux with WDR on).
- Built-in SD card support up to 256GB: Local storage for continuity if network recording fails; 256GB at 5MP and H.265 yields roughly 3–5 days of 24/7 footage depending on scene complexity and motion levels.
Integration and Cloud Connectivity
The QNV-C8013R integrates with Hanwha IP cameras and network video recorders through ONVIF-compliant APIs and CloudConnector support. Integration with Hanwha HealthPro, OnCloud, and SightMind cloud platforms simplifies remote management and redundancy. USB connectivity and open platform compatibility reduce installation friction when deploying in multi-vendor environments; however, full feature parity (AI analytics, advanced search) is optimized within Hanwha VMS platforms.
Deployment Considerations for Outdoor IP Cameras
The QNV-C8013R suits mid-scale outdoor surveillance where AI-driven analytics add operational value without large capital expense. Its 5MP resolution balances forensic detail with manageable storage and bandwidth costs—a solid fit for organizations recording 24/7 across 10–50 camera installations. For larger deployments or sites requiring long-range identification, consider higher-megapixel variants in the Hanwha Wisenet family. Confirm ONVIF compliance with your existing VMS before committing if you operate a multi-vendor ecosystem.
Frequently Asked Questions
Q: What is the maximum IR illumination range on the QNV-C8013R?
A: The QNV-C8013R provides infrared illumination up to 25 meters (approximately 82 feet). Beyond that distance, IR effectiveness diminishes. Validate coverage against your site's perimeter layout and existing outdoor lighting to ensure adequate night vision performance.
Q: Does the QNV-C8013R support H.265 compression?
A: Yes. The camera supports H.265, H.264, and MJPEG codecs. H.265 with WiseStream III optimization reduces bandwidth and storage by approximately 40–60% compared to H.264 at equivalent image quality, a significant advantage for 24/7 surveillance deployments.
Q: Is the QNV-C8013R suitable for submersion or heavy water exposure?
A: The QNV-C8013R carries an IP66 rating, which protects against direct rainfall and dust. It is not rated for submersion (IP67). If your site requires underwater or submerged operation, select a higher IP-rated camera or add supplemental environmental protection.
Q: Can the QNV-C8013R detect and classify objects like people and vehicles?
A: Yes. The camera includes WiseMD AI analytics for intelligent detection and classification of people, vehicles, buses, and bicycles. It supports virtual line crossing, intrusion detection, loitering detection, and object disappearance events—enabling proactive alerting and reducing false alarms.
Q: What is the operating temperature range for the QNV-C8013R?
A: The camera operates from –30°C to +55°C (–22°F to +131°F). This range suits most continental and subtropical climates. High-humidity tropical environments may require additional environmental enclosures or ventilation to prevent lens fogging.
Q: Does the QNV-C8013R support local storage?
A: Yes. The camera includes built-in SD card support up to 256GB for local backup storage. At 5MP with H.265 compression, expect approximately 3–5 days of 24/7 recorded footage on a 256GB card, depending on scene complexity and motion levels.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The QNV-C8013R represents solid mid-range outdoor surveillance for organizations requiring AI-driven object detection without premium pricing. Its 5MP resolution balances forensic detail with manageable bandwidth, while WiseMD analytics deliver genuine operational value for access control perimeters and parking facility monitoring. The –30°C to +55°C operating range accommodates most climates outside tropical high-humidity zones.
Technical Highlights:
- H.265 with WiseStream III compression: Expect 40–60% bandwidth savings versus standard H.264 at equivalent quality—real savings across 24/7 multi-camera deployments where recorder and storage budgets are tight.
- 25-meter IR range with 120 dB WDR: Covers typical building facades and parking areas; validate against your site's longest perimeter distance. WDR handles backlit scenes effectively, but not a substitute for supplemental lighting in complete darkness.
- IP66/IK10 environmental rating: Resists rain, dust, and casual vandalism; not waterproof for submersion. Adequate for most outdoor access control and perimeter applications.
- On-board WiseMD AI: Detects and classifies people, vehicles, buses, and bicycles with line crossing, intrusion, loitering, and object disappearance rules—cuts through wind-triggered motion noise common in outdoor environments.
Deployment Considerations:
- The 3mm fixed lens offers wide coverage (100° horizontal) but limits detail at distance. Validate identification range requirements before finalizing camera positions—if your site requires facial or license-plate detail beyond 30 feet, this lens won't deliver it.
- 256GB SD card at 5MP/H.265 yields roughly 3–5 days of continuous local storage—sufficient for backup but not primary archival. Pair with a network video recorder for long-term retention.
- For multi-vendor VMS environments, confirm ONVIF compliance with your integrator. Full AI and advanced search features are optimized within Hanwha platforms.
Deploy the QNV-C8013R where perimeter detection and traffic pattern analysis matter, bandwidth is constrained, and you're already invested in Hanwha infrastructure. For single-camera proof-of-concept or sites requiring long-range facial identification, evaluate higher-megapixel variants or varifocal lens options in the Wisenet family.
