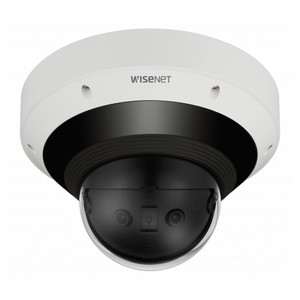

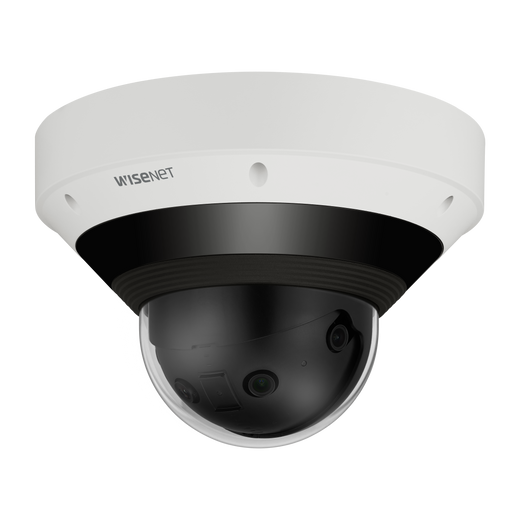

Hanwha PNM-9031RV 15MP 360° Panoramic Outdoor Dome Camera

Hanwha PNM-9031RV 15MP Panoramic Outdoor Dome Camera

The Hanwha PNM-9031RV is a multi-sensor panoramic dome designed to cover large outdoor areas without mechanical pan-tilt movement or optical zoom. Four 5MP sensors stitch together into a single 15MP stream, delivering a native 180-degree horizontal field of view — ideal for parking lots, building perimeters, warehouse exteriors, and campus grounds where you need wide coverage with sufficient resolution to read detail at distance. This is not a replacement for telephoto cameras; it's a structural alternative to multiple narrow-angle domes when budget and cabling are constraints.

Key Features

• Four 5MP Sensors, 180° Panoramic View: Four discrete 1/2.8" sensors capture adjacent fields simultaneously and stitch together in firmware, producing a single 15MP panoramic image. This eliminates the blind spots and frame-rate penalties of mechanical panning, and means you can zoom digitally into the 15MP stream afterward without re-encoding. In practice, this trades optical zoom range for consistent wide coverage — usable when you need to monitor the entire perimeter simultaneously rather than follow a specific target.
• IP66 and IK10 Ratings: IP66 blocks direct rain and dust indefinitely — not submersion-resistant, so avoid installations where standing water reaches the dome. IK10 means the polycarbonate dome withstands vandal strikes and ball impacts up to 20 Joules; tempered by the fact that the unit is still a visible target and not suitable for maximum-security hardened sites. Both ratings are verified and enforceable in your SLA.
• PoE++ (IEEE 802.3bt) Power: Draws enough current to require PoE++ infrastructure (typical Class 4 allocation), but eliminates 12V DC runs to the dome. Budget for a PoE++ switch or injector — standard 802.3af PoE switches will not power this unit. Verify your switch's PoE budget before ordering.
• H.265, H.264, and MJPEG Compression: H.265 typically cuts file size 40–60% versus H.264 at equal quality, meaningful on 24/7 storage. H.264 remains the fallback for older VMS platforms. MJPEG is bandwidth-hungry but useful for motion-heavy scenes or when you need frame-accurate extraction. Configurable per-stream, so you can send H.265 to NVR and MJPEG to a web browser without transcoding.
• 120dB Wide Dynamic Range (WDR): Balances bright and dark areas in a single frame — essential for scenes with both direct sun and deep shadows, such as loading docks or parking structures. At 120dB, this is above-average for outdoor domes; expect clean backlit scenes without blown-out windows or crushed shadows. Frame rate does not drop in WDR mode (30fps sustained).
• Integrated IR, 30m Range: Built-in IR LEDs illuminate to 30 meters (98 feet) in darkness — sufficient for typical 4-lane road monitoring or warehouse apron coverage. Color sensitivity down to 0.15 lux (sunlight-equivalent), and full B&W mode at 0 lux with IR enabled. IR bleed and wash are inherent to wide-angle IR; position the camera to avoid backscatter off nearby structures.
• Advanced Analytics: On-device motion detection, tampering alarm (detects lens occlusion or physical tilt), and loitering detection. These run locally on the camera and can trigger NVR alarms without server overhead. Useful for reducing false-positive alert noise if tuned conservatively.
• Fixed 2.6mm Lens, F2.0: No motorized zoom or focus — the lens is fixed, so deployment location and zoom expectation must align during installation. The 2.6mm focal length yields the 180° horizontal view; this is very wide, meaning nearby subjects are distorted. Plan for detail capture at 20–50 feet; beyond 100 feet, expect small targets.
• -40°C to +55°C Operating Range: Suitable for CONUS climates without enclosure. Above +55°C or in high-altitude UV exposure, verify lens and housing degradation with the integrator; extended heat may accelerate polycarbonate yellowing.

Integration and Compatibility

The PNM-9031RV conforms to ONVIF Profile S and T, meaning it integrates with most third-party VMS (Milestone XProtect, Genetec, Geutebrueck, etc.) without custom drivers. Hanwha's native stack includes Wisenet Series NVRs and SmartVMS management software; if you deploy Hanwha NVRs alongside this camera, you gain additional features like PoE power metering and firmware OTA updates through the management interface. Standard RJ45 PoE++ connection; no special cabling required.

What's in the Box

• Hanwha PNM-9031RV Camera
• Wall Mount Bracket
• Installation Guide and Hardware
• Weatherproof Connector Kit

When to Choose a Different Model

The PNM-9031RV is a panoramic generalist. If you need to zoom into specific areas—a vehicle license plate, an entry gate—select a telephoto lens variant from the Hanwha IP camera lineup. If 180° is too wide and you prefer a single sensor per dome, consider a higher-megapixel fixed-lens outdoor IP camera instead. If your site requires multiple fixed directions or occasional panning, budget for two or three narrow-angle domes rather than one panoramic unit; the math often favors simplicity over stitching complexity.

Frequently Asked Questions

Q: What is the maximum frame rate, and does it change in WDR mode?

A: The PNM-9031RV delivers 30 fps at all resolutions and does not drop frames when WDR is enabled. All four sensors operate in parallel, so you get full 15MP @ 30fps sustained.

Q: Does the camera require PoE++ (802.3bt) or can it work on PoE+ (802.3at)?

A: The PNM-9031RV requires PoE++ (IEEE 802.3bt) because four sensors and IR LEDs exceed the 30W limit of PoE+. Standard 802.3af (15W) or PoE+ (30W) switches will not power this unit. Verify your switch supports Class 4 power delivery before ordering.

Q: Can I adjust the horizontal field of view, or is 180° fixed?

A: The 180° view is fixed and integral to the four-sensor design. The 2.6mm lens cannot be swapped. However, you can digitally zoom into the 15MP stream after capture to focus on a specific region without loss of detail, so while the optics are wide, the recorded resolution supports forensic extraction.

Q: Is the PNM-9031RV compatible with third-party VMS like Milestone XProtect or Genetec?

A: Yes. The camera supports ONVIF Profile S and T, so it integrates with any ONVIF-compliant VMS. You will not have Hanwha-specific analytics dashboards in third-party software, but motion detection, tampering alarm, and loitering detection will trigger standard ONVIF events and alarms.

Q: What is the minimum illumination in color mode, and does IR come on automatically?

A: Color minimum is 0.15 Lux at F2.0 and 1/30 second shutter (typical outdoor twilight). Below that, the camera switches to B&W mode and IR LEDs activate. IR turn-on is configurable (automatic, manual, or scheduled), so you can suppress IR during daylight if it interferes with perimeter lighting.

Q: What is the field of view for each of the four sensors individually?

A: Each 5MP sensor captures approximately 45–50° horizontally and stitches with the others. The exact overlap depends on firmware tuning and mounting angle, but the result is a seamless 180° panoramic view. Vertical coverage is approximately 50° per the 2.6mm F2.0 optics.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-9031RV (often searched as PNM 9031RV) is a pragmatic choice for large-area outdoor monitoring where you need to eliminate blind spots and avoid the complexity of multi-camera stitching in the VMS. Four native 5MP sensors eliminate the frame-synchronization headaches of trying to stitch video from separate cameras, and the 180° horizontal view covers ground that would otherwise require two or three narrow-angle domes. That said, this is a wide-angle specialist — not a substitute for telephoto coverage when detail-at-distance matters.

Technical Highlights:

• 120dB WDR with 30fps Sustained: High dynamic range is maintained across all 15MP resolution without frame-rate drops, crucial for outdoor scenes with sun-facing and shadow-facing regions. Compare this to many entry-level panoramic cameras that drop to 15fps in WDR mode — you maintain forensic-quality recording even in variable light.
• PoE++ Class 4 Power Ceiling: Four sensors and integrated IR consume roughly 25–30W depending on IR intensity and codec bitrate. This mandates a PoE++ switch; older PoE+ infrastructure will not work. Plan your power budget carefully — a single PoE++ port on a managed switch may support 4–6 of these cameras depending on the switch's aggregate power pool.
• H.265 Baseline, 40–60% Storage Reduction: H.265 is the default codec and cuts bitrate significantly versus H.264 without visible quality loss in typical surveillance scenes. On a 24/7 recorder storing 30 days of 4–6 panoramic cameras, this translates to real capex savings on NVR storage and power budgets. H.264 and MJPEG remain available for backward compatibility.
• 180° Native, No Stitching Artifacts: Because the PNM-9031RV stitches at the camera level (in firmware) before sending video, there are no UDP packet loss issues, no VMS-side latency, and no quality degradation in the stitch seams — all common problems with post-camera software stitching. The tradeoff is that you cannot selectively disable stitching to isolate individual sensors.

Deployment Considerations:

• PoE++ Switch Verification: Confirm your network edge device supports IEEE 802.3bt Class 4 before ordering. If you are still running 802.3at PoE+ infrastructure, you must budget for a switch upgrade or external PoE++ injector, adding cost and complexity.
• Wide-Angle Distortion: The 2.6mm F2.0 lens is very wide. Objects near the camera appear distorted; facial recognition and vehicle-plate reading are not practical at close range. Position the dome 15+ feet from targets of forensic interest.
• Panoramic Vs. Telephoto Trade-off: A 15MP panoramic dome does not replace a 2MP telephoto camera. If your site requires both wide coverage AND magnified detail (e.g., parking lot + gate), deploy both camera types — the panoramic for situational awareness and a separate fixed-lens or PTZ camera for the gate.
• PoE++ Budget Impact: A single PoE++ switch port may supply 95W or more, but aggregate switch power is typically 500–1000W across 24 or 48 ports. Deploying 10+ PNM-9031RV units on the same switch requires careful power modeling to avoid oversubscription.

The PNM-9031RV is the right choice for warehouse perimeters, campus grounds, large parking facilities, and building-side coverage where budget or cabling favors a single wide-area dome over multiple narrow-angle units. It is not the right choice if you need to resolve faces at 100+ feet, monitor multiple discrete zones from a single dome, or integrate into legacy PoE+ infrastructure without hardware upgrades.
