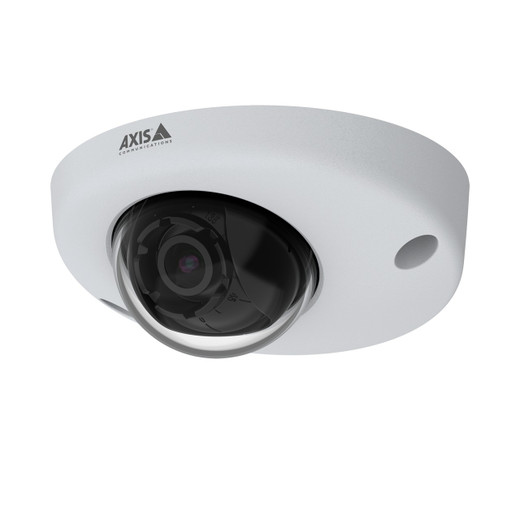

Axis 01920-001 P3925-R 1080p Fixed Dome Camera

The Axis 01920-001 is a purpose-built fixed dome camera engineered for demanding mobile and on-board surveillance in rolling stock, commercial vehicles, and fleet deployments. This 2MP (1920×1080) camera combines forensic-quality video capture with exceptional durability to withstand vibration, moisture, and impact in harsh operational environments where smaller form factors and sealed construction are non-negotiable.

Key Features

• 1920×1080 (2MP) Resolution at Full Motion: Delivers full HDTV video at 25/30 fps across all resolutions, or 45 fps at 720p for high-motion capture and frame-by-frame forensic documentation—meaningful when recording vehicle interior incidents or fleet behavior analysis where motion clarity and frame retention matter.
• Lightfinder Technology with Automatic Day/Night: Captures color video down to 0.06 lux and black-and-white at 0.01 lux via automatic IR-cut filter switching—eliminating guesswork in low-light vehicle interiors, nighttime routes, and tunnels where ambient light is minimal or unpredictable. This matters: you get usable detail when most cameras go dark.
• 2.8mm Fixed Lens, F1.6 Aperture, M12 Mount: Delivers 110° horizontal field of view with consistent optical performance across variable lighting. The wide F1.6 aperture paired with a 1/2.9" image sensor ensures maximum light collection—critical in vehicles where interior brightness changes rapidly with road conditions and weather.
• Forensic WDR (Wide Dynamic Range): Compensates for extreme lighting contrasts—bright windshields against dark cabin shadows—preserving usable detail across the entire frame without overexposure or silhouette loss, a common failure mode in vehicle surveillance.
• H.265 and H.264 Dual Compression with Zipstream: H.265 (HEVC) cuts bandwidth and storage requirements roughly in half compared to H.264—a real factor in fleet deployments where 24/7 recording across dozens of vehicles strains both network and storage budgets. Dual-stream capability allows simultaneous high-quality archival streams to central storage and lower-bitrate streams to mobile clients.
• IP66/IK10 Environmental Protection: Sealed dome construction resists dust and direct moisture spray—washdown, humidity, and road spray won't compromise optics or electronics. IK10 vandal rating withstands mechanical impact and vibration stress inherent to vehicle platforms, reducing warranty claims and unplanned maintenance downtime.
• PoE+ Power (IEEE 802.3at+ Class 5): Powers the camera via standard Ethernet with RJ45 connector, eliminating separate DC cabling. This simplifies vehicle integration, reduces harness complexity, and cuts installation labor—each credential matters when retrofitting existing fleet vehicles.
• microSD Card Local Storage: On-board recording up to microSDXC format provides failsafe incident backup if network connectivity drops or central storage becomes unavailable—a practical safety net for remote routes, tunnels, or areas with unreliable connectivity.
• Digital PTZ with Presets: Pan ±30°, tilt 15–90°, rotation ±175° with configurable preset positions and guard tour functionality. Mechanical PTZ adds complexity and maintenance burden in mobile environments; digital PTZ delivers directional flexibility without moving parts or the reliability exposure.
• ONVIF Standards Compliance: Ensures integration with third-party VMS platforms and security ecosystems—no vendor lock-in to proprietary systems, reducing long-term switching costs and integration headaches.

Integration and Compatibility

The 01920-001 integrates via standard ONVIF Profile S, making it compatible with Axis IP cameras ecosystem and third-party video management systems. PoE+ power simplifies deployment in vehicles where traditional power distribution is constrained. Dual compression streams (H.265/H.264) with Zipstream allow simultaneous bandwidth-optimized delivery to cloud platforms and local VMS instances. The M12 connector provides robust mechanical coupling ideal for vibration-prone environments; standard RJ45 adapters are widely available if vehicle harnesses require conversion.

When to Choose a Different Model

The 01920-001 is purpose-designed for mobile and vehicle-mounted deployments. If you need higher resolution (4MP or above) for facility-based surveillance, or wider area coverage at distance, consider a higher-megapixel variant in the same Axis surveillance line. If full-time color performance is critical (Lightfinder trades monochrome sensitivity for color acuity below ~0.1 lux), evaluate non-Lightfinder dome alternatives. The 2.8mm fixed lens means no optical zoom; if you need zoom flexibility, a varifocal turret or PTZ camera variant becomes necessary, though this adds complexity unsuited to vehicle vibration environments.

Typical Deployments

School and transit bus interior monitoring, commercial fleet incident documentation, armored vehicle security, railway carriage surveillance, and mobile command vehicle recording. The sealed IP66 construction and vibration tolerance make it particularly suited to high-movement platforms where environmental stress is constant.

Sizing and PoE Budget

Before committing, verify your vehicle network supports PoE+ power budgeting. The 01920-001 draws Class 5 power; a single PoE+ injector or switch port can service multiple cameras if harness runs are short. For multi-camera vehicle deployments, a dedicated managed PoE switch with IEEE 802.3at+ support prevents power starvation during simultaneous streaming and recording.

Frequently Asked Questions

Q: Does the 01920-001 support two-way audio?

A: The evidence does not specify audio input or two-way audio capability on this model. Check with the manufacturer directly if audio is a deployment requirement.

Q: What is the maximum microSD card capacity for the 01920-001?

A: The evidence confirms microSDXC support, which supports cards up to 2TB in theory, though practical use typically caps at 512GB. Local storage acts as incident backup, not primary 24/7 archive.

Q: Can the 01920-001 be mounted on walls, or is it ceiling-only?

A: The dome form factor and M12 connector support flexible mounting—wall, ceiling, or vehicle surfaces are all viable depending on your harness routing and FOV. M12 adapter availability varies by integrator.

Q: What is the warranty on the 01920-001?

A: The evidence does not specify warranty duration. Contact your dealer for warranty terms and coverage details.

Q: Does the 01920-001 work with Milestone XProtect or other third-party VMS?

A: Yes, ONVIF Profile S compliance ensures compatibility with Milestone, Genetec, and other ONVIF-compliant VMS platforms. Dual-stream H.264/H.265 support allows flexible bitrate negotiation.

Q: What is the operating temperature range for the 01920-001?

A: The evidence does not include temperature ratings. Confirm with the manufacturer if your deployment involves extreme heat or cold exposure.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 01920-001 is a solid pick for mobile surveillance where environmental stress and vibration are constant design drivers. The combination of Lightfinder (0.06 lux color / 0.01 lux monochrome), F1.6 optics, and forensic WDR means you're actually capturing usable detail in the chaotic lighting of vehicle cabins—something generic consumer domes fail at. The IK10 rating tells me Axis expects this thing to take impacts; pair that with IP66 sealing and you've got a platform built to survive, not just function.

Technical Highlights:

• Lightfinder + Forensic WDR: The 0.06 lux color capture without IR, combined with WDR, handles the extreme contrast between a bright windshield and a dark cabin interior—exactly the failure mode you see in undersized cameras. At 0.01 lux monochrome, IR fallback is solid for complete darkness.
• H.265 with Zipstream: Halving your bitrate footprint matters at scale. A 50-unit fleet running 24/7 H.264 will crush your storage and WAN budget; H.265 makes that economics viable. Dual-stream means you can push compressed footage to the cloud and archive full bitrate locally.
• 45 fps at 720p: High frame rate at reduced resolution gives you options: smooth motion capture for incident analysis without burning your entire bandwidth budget on high-resolution streaming.

Deployment Considerations:

• M12 connectors are robust but less standardized in vehicle harnesses than RJ45; verify your integrator stocks adapters or plan harness conversion upfront.
• The fixed 2.8mm lens and 110° FOV are intentional for vehicle interiors, but you'll lose detail at distance. If you need to read a license plate 30+ feet away, this isn't your camera.
• PoE+ Class 5 power draw is moderate, but confirm your vehicle's network backbone (injector or inline power) actually supports 802.3at+ before assuming it'll work.

Position the 01920-001 where environmental durability and low-light color fidelity are trade-offs worth making—commercial transit, armored transport, and fleet logistics. Skip it if your priority is high-resolution distance identification or non-sealed, climate-controlled indoor facilities.
