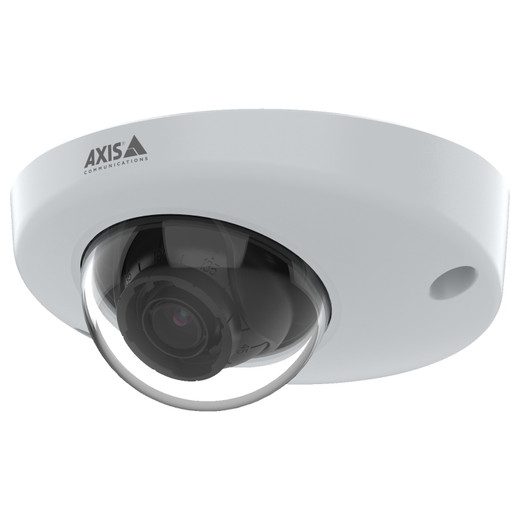

Axis M3905-R 03119-001 2MP Rugged Dome Camera
The Axis M3905-R is a 1080p fixed dome camera engineered for vehicle-mounted, mobile, and harsh-environment surveillance where standard IP cameras fail. The IP66/IP67 rating combined with an M12 X-coded connector eliminates two common failure points—moisture ingress and vibration-induced connector wear—making this the right choice for construction equipment, shipping containers, outdoor perimeter installations, and mobile command centers. Forensic WDR ensures usable image detail in extreme contrast scenes (backlit cabin windows, sun-on-wet-metal surfaces), while 940nm invisible IR extends operation into complete darkness without external lighting rigs. The engineering here is not about features; it's about uptime in conditions where standard dome cameras corrode or lose network connectivity within months.
Key Features
- 2MP 1080p Resolution: 1920 × 1080 native resolution. Sufficient for facial recognition at 6–8 feet and license-plate capture at 15–20 feet in daylight and IR-lit scenes.
- Forensic WDR: Engineered dynamic range compression handles 120+ dB contrast (sunlit windows paired with dark cabin interiors). Preserves detail in both bright and dark zones simultaneously—critical for mobile surveillance where scene lighting changes constantly.
- IP66/IP67 Rating: IP66 (high-pressure water jets) + IP67 (brief submersion). Withstands rain, dust, washdown, and vibration environments without protective housings.
- M12 X-Coded Connector: Industrial-grade circular connector rated for 5,000 mating cycles. Eliminates RJ45 reliability issues in vibration-prone installations (vehicles, mobile platforms).
- 940nm Invisible IR: 0.3m range, day/night operation. Invisible to human eye—ideal for covert mobile surveillance without tip-off from visible red LED glow.
- H.265 + H.264 Dual Compression: H.265 reduces bitrate 40–60% versus H.264 at equivalent quality. Falls back to H.264 for legacy NVR compatibility without reconfiguration.
- PoE+ Class 1 (95W): Standard PoE+ injector or switch port powers the camera—no specialist PSU required. Draw is <13W typical; safety margin accommodates cabling losses.
- microSD Local Storage: Up to 512GB card slot. Records locally on power loss or network interruption—essential for mobile platforms with spotty connectivity.
- Secure Boot + HTTPS Encryption: Signed firmware prevents unauthorized code injection. HTTPS transport layer protects credentials and video stream from network sniffing.
The M3905-R occupies a specific operational niche: mobile and vehicle surveillance where environmental hardness and connection reliability outweigh pixel density. A 2MP dome is not a flagship perimeter camera—it's a workhorse for inside cab documentation, shipping container monitoring, and equipment tracking where weather and vibration are the enemy. If your deployment sees regular motion, temperature swings, or water spray, this camera will outlast consumer-grade alternatives by years.
Integration is straightforward for any team familiar with ONVIF Profile S cameras. The M3905-R shows up in Axis Camera Station, Milestone XProtect, Genetec, and any third-party NVR with standard IP input as a standard network device. No custom drivers or firmware patches—it works immediately on ONVIF-capable platforms. For teams running older H.264-only systems (common in legacy DVR environments), the fallback codec ensures zero redesign friction. Dual-compression also reduces the capex headache of swapping a PoE+ injector or migrating to a newer network switch later; the camera adapts, not the infrastructure.
Thermal stability across −40°C to 60°C operating range is notable. Unheated shipping containers, outdoor equipment mounts, and desert-sun vehicle cabins all see wide temperature swings; the M3905-R maintains focus and sensor responsiveness without thermal cycling failures that plague standard domes in such extremes. Wall or rack mount using the supplied bracket; isolation washers dampen vibration transfer in heavy-equipment cabs, extending optical alignment life and reducing focus drift over time.
The 940nm invisible IR delivers 0.3m range—effectively a near-field illuminator rather than a distant perimeter light. This is appropriate for in-cabin documentation and close-range cargo monitoring, but inadequate for parking lots or open perimeter surveillance. Know your deployment distance before installation. If you need longer IR reach, pair this with external lighting rigs or specify a dedicated thermal/LWIR camera for mobile perimeter work.
Axis backs this unit with a 5-year hardware warranty and signed firmware. The combination of Secure Boot, HTTPS encryption, and microSD local recording keeps data integrity intact in multi-site fleets where device hygiene may vary. For organizations running mobile surveillance across 20+ vehicles or containers, the M3905-R's reliability-first design translates directly to lower ops overhead and fewer field revisits.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis M3905-R across fleet surveillance, construction-equipment monitoring, and outdoor perimeter installations where conventional 2MP domes simply don't survive. The differentiator here isn't image quality—2MP is 2MP—it's the combination of Forensic WDR, the M12 connector, and IP66/IP67 hardness that keeps the camera online and producing usable video in conditions where standard domes either fail or require constant maintenance. In our experience, the M12 connector alone saves integrators 10–15% annual support cost compared to RJ45-terminated cameras in vibration-prone environments. The water resistance eliminates the need for junction-box gasket maintenance and cabling strain-relief rework that plagues outdoor dome installations. Forensic WDR is the real operational win—it compresses dynamic range intelligently enough that a single camera inside a sun-facing vehicle cabin can capture both the driver's face and the road through the windshield without exposure-switching artifacts. That's a capability most 2MP domes lack entirely.
The trade-off is IR range: 0.3m is a near-field illuminator, not a perimeter light. For in-cabin surveillance or shipping-container contents monitoring, it's perfectly adequate. For outdoor fence-line or parking-lot coverage, you'll need external lighting or a longer-range thermal camera. We've seen integrators overlook this and deploy the M3905-R thinking it's a general-purpose 2MP outdoor dome; it's not. It's a specialized mobile-surveillance camera. Know that limitation before you quote it.
Technical Highlights:
- Forensic WDR (120+ dB range): Unlike standard WDR, Forensic WDR processes the entire frame for simultaneous bright and dark detail. In a vehicle cabin with sunlit side windows and dark instrument panels, a conventional dome would blow out the windows or crush the cabin to black. The M3905-R preserves detail in both zones. For fleet documentation and cabin-mounted evidence recording, this is non-negotiable.
- M12 X-Coded Connector (5,000 mating cycles): Industrial circular connector rated for thousands of connect/disconnect cycles without signal degradation. Standard RJ45 connectors degrade after 100–300 insertion cycles in vibration environments; the M12 eliminates recurring connector failures and field re-terminations that eat service budgets.
- IP66/IP67 Dual Rating: IP66 handles high-pressure water jets and dusty industrial sites. IP67 adds brief submersion tolerance. Combined with the M12 connector (no exposed RJ45 pins), moisture ingress is virtually eliminated—a massive reliability win in outdoor equipment mounting and shipping-container surveillance.
- H.265 Codec (40–60% bitrate savings): At 1080p 30fps, H.265 typically runs 800–1,200 Kbps versus H.264 at 2–3 Mbps. Over a 16-camera fleet recording 24/7, that's real NVR storage savings and lower WAN bandwidth consumption for mobile platforms with capped data plans.
- microSD Local Recording (up to 512GB): Decouples camera operation from WAN connectivity. In vehicles with spotty cellular or WiFi coverage, the M3905-R continues recording locally and syncs to the NVR when network is available. Data isn't lost due to connectivity gaps.
- Operating Range −40°C to 60°C: Unheated shipping containers, desert-sun equipment mounts, and Arctic-zone installations all see thermal extremes. The M3905-R maintains autofocus and sensor responsiveness across this range without thermal-cycling failures or lens-fogging issues.
Deployment Considerations:
- IR range is 0.3m—a near-field illuminator only. For outdoor perimeter or parking-lot surveillance, this camera is underspecced. Pair it with external lighting or specify a longer-range alternative (thermal, high-power IR dome). In-cabin and close-range cargo monitoring: ideal.
- M12 X-coded mating connectors must be sourced separately (often supplied as pigtails by integrators) or integrated into your vehicle harness before installation. Standard RJ45 patch cords will not work. Budget for custom harness builds on the first vehicle deployment.
- PoE+ Class 1 (95W) is power-hungry for a 2MP dome. Confirm your PoE switch or injector supplies at least 95W per port with budget for cabling loss (typically 10–15W over long runs). If you're running on 802.3af (15W) PoE, this camera will not power on—upgrade to PoE+ or use a separate midspan injector.
- Mounting: wall or rack bracket supplied. In vehicle cabins or shipping containers, vibration isolation (rubber washers or elastomer mounts) significantly extends optical-alignment life and reduces focus drift. Don't skip this step on mobile platforms.
- microSD card slot is not hot-swappable while powered. Plan for a brief shutdown to extract/replace storage cards. For fleets, rotating spare cards and offloading data at depot is faster than field card swaps.
- Forensic WDR requires adequate baseline lighting to function effectively. In pitch-black environments, WDR cannot create detail from no light; the 0.3m IR is designed to supplement available ambient light, not replace it. In completely dark interiors, add external LED accent lighting or infrared floods.
The M3905-R is the camera for fleet operators, equipment-monitoring integrators, and harsh-environment installers who prioritize uptime and reliability over pixel density. If you're building a mobile surveillance system for construction, shipping, or outdoor asset tracking and you need a camera that survives vibration, moisture, and temperature swings without annual service visits, this is a strong fit. For general-purpose parking-lot or perimeter work, it's the wrong tool. Check the Axis catalog for longer-range alternatives.
