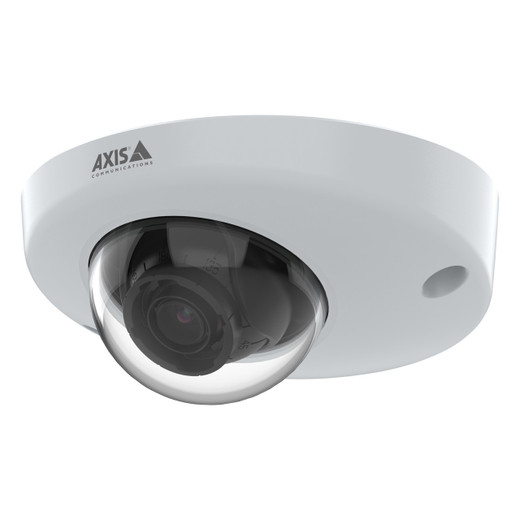

Axis 02502-001 M3905-R 2MP Full HD Indoor Varifocal Dome IP Camera
Overview
The Axis 02502-001 (often searched as 02502 001) is a compact 2MP dome camera engineered for mobile and confined-space surveillance — specifically public transport vehicles like buses. The M3905-R's compact form factor and M12 connector allow flexible installation in spaces where traditional RJ-45 cabling is impractical. It delivers 1080p Full HD resolution with an 88° horizontal field of view, providing comprehensive interior coverage in vehicles where space is at a premium. Built to survive shock and vibration common in transit environments, this camera pairs rugged mechanical design with Axis IP cameras' proven low-light and image-processing capabilities.
Key Features
- 2MP Full HD (1920 × 1080) resolution: Captures sufficient facial detail and license plates in moderate-to-good lighting; more than adequate for interior vehicle coverage where subjects are typically 6–15 feet away. At 2MP, you avoid the storage and bandwidth burden of 4–5MP cameras without sacrificing usable detail for transit security.
- 88° horizontal field of view: Wide enough to cover an entire bus interior aisle or compartment without requiring pan-tilt; reduces the number of cameras needed per vehicle, lowering installed cost and power draw per bay.
- Axis Lightfinder technology: Captures full-color images in near-darkness (0.01 lux range), eliminating the greyscale blur common in low-light transit environments. Particularly valuable on night routes where cabin lighting is dim or spotty.
- Forensic WDR (Wide Dynamic Range): Handles mixed lighting — passengers silhouetted against bright windows, dark corners, overhead fixtures — without loss of detail in either bright or shadow areas. Critical for passenger identification when lighting conditions vary throughout the vehicle.
- Traffic Light mode: Distinguishes traffic light colors even in low-light conditions, a specialized feature relevant to vehicle-based deployments where traffic signal compliance must be logged or audited. Unusual for standard surveillance but purposeful in transit contexts.
- H.264 video compression with Axis Zipstream: Reduces bandwidth and storage footprint 30–50% compared to standard H.264 encoding, without noticeable quality loss. On a fleet of 100 vehicles recording 24/7, this translates to measurable savings in recorder storage and network capacity.
- IP66 and IP67 environmental rating: Dust and water ingress protection sufficient for exterior mounting (when paired with the optional Axis TP3826-E housing) or high-humidity interior transit cabins. Meets fire-safety standards required for public transportation vehicles in most jurisdictions.
- M12 connector (4-pin): Simplifies cabling in vehicles where running traditional RJ-45 infrastructure is impractical. M12 connectors are robust, quick-disconnect, and standard in industrial/mobile installations. Reduces installation labor and improves serviceability.
- Axis Edge Vault and built-in cybersecurity: Protects device credentials and prevents unauthorized access or firmware tampering. Essential for fleet operators managing hundreds of cameras across multiple vehicles; prevents credential compromise at the edge.
- Varifocal lens options: Multiple lens variants allow field-of-view tuning to match specific vehicle types (articulated vs. standard bus, coach vs. minibus). Flexibility to order the right FOV eliminates the need for separate SKUs.
Integration & Compatibility
The 02502-001 is ONVIF-compatible and integrates with any ONVIF-compliant VMS (Video Management System) or network video recorder. It supports standard PoE (802.3af) when used with an M12-to-RJ-45 adapter or PoE injector, though M12-direct PoE injectors simplify deployment in cable-constrained environments. Axis Camera Station and most third-party platforms including network video recorders will recognize and manage the camera without custom drivers.
Deployment Context
This camera is optimized for interior transit applications where compact size, vibration tolerance, and flexible wiring are non-negotiable. It is not a general-purpose outdoor bullet or turret — the "outdoor" IP rating supports external mounting only with the optional housing accessory, and even then, the 2MP resolution and fixed 88° FOV make it less suitable for open-area perimeter work. Choose this model if you are outfitting vehicles, confined cabins, or spaces where cable routing is restricted. If you need higher resolution for distant subjects or broader coverage without additional cameras, consider a higher-megapixel variant in the same family.
Frequently Asked Questions
Q: Does the Axis 02502-001 work with standard PoE switches?
A: Yes, when used with an M12-to-RJ-45 adapter and a standard PoE (802.3af) injector or PoE switch. The camera draws under 13W, well within the 15.4W budget of 802.3af. M12 connectors themselves do not carry power — the adapter bridges M12 to standard PoE infrastructure.
Q: Can the 02502-001 be mounted outside the vehicle?
A: Yes, with the optional Axis TP3826-E outdoor housing. The camera itself is IP66/IP67-rated, but the housing provides additional mechanical protection and is necessary for exposed mounting in rain and direct sunlight.
Q: What is the warranty on the Axis 02502-001?
A: Axis typically provides a 3-year limited hardware warranty on surveillance cameras. Confirm the specific terms with your specialty distributor at time of purchase.
Q: Does the Axis 02502-001 support two-way audio?
A: The M3905-R includes audio input (line-in connector on the M12 housing). Built-in microphone is not documented in the available specifications; consult the detailed datasheet or contact your distributor for audio input/output details.
Q: Is the 02502-001 NDAA Section 889 compliant?
A: Axis cameras are generally compliant with NDAA sourcing requirements. Verify Section 889 compliance status and any export restrictions with your specialty distributor before purchase if this is a procurement requirement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02502-001 M3905-R fills a specific niche that most general-purpose camera lines ignore: compact, shock-resistant surveillance for moving vehicles and confined spaces. The 2MP / 1080p pairing with Lightfinder and Forensic WDR is mature, proven technology — not bleeding-edge, but exactly what you need when the alternative is poor footage of passengers in a bus rolling through a tunnel at night.
Technical Highlights:
- Lightfinder + Forensic WDR tandem: The combination handles near-total darkness with color retention and simultaneous bright/dark zones without washout. In real-world transit cabins where you have a mix of window glare and interior shadows, this matters more than raw megapixels.
- H.264 + Zipstream compression: Reduces bitrate 30–50% versus standard H.264. A 100-vehicle fleet recording 16 hours/day across 24/7 operation easily saves 2–4 TB of monthly storage — material cost reduction at scale.
- M12 connector + PoE <13W: No custom power distribution needed. One M12 cable handles both power and video; connects to any PoE injector with a simple adapter. Installation labor drops sharply compared to running separate power and cabling through vehicle conduit.
- IP66/IP67 rating: Satisfies transit industry fire-safety certifications (typically required in European and North American public transport). Durable enough for high-humidity cabins and vibration without enclosure upgrades unless you mount it externally.
Deployment Considerations:
- The 88° FOV is fixed (though varifocal lens variants exist). If you need significantly wider or narrower coverage, specify the correct lens option at order time; swapping lenses post-deployment is not typical.
- At 2MP, facial identification requires subjects within 6–10 feet. If your threat model includes distant threats or platform surveillance (not just interior cabin), this is the wrong camera — step up to 4MP or higher resolution in the outdoor IP camera line.
- The Traffic Light mode is niche — useful if your fleet management system must log traffic compliance, but add no value for pure occupancy or incident monitoring.
The 02502-001 is not a general-purpose camera; it is a transit specialist. Specify it for vehicle fleets, mobile command centers, or enclosed cabins where space and cabling are constrained and low-light performance is non-negotiable. Pair it with a compact vehicle-rated NVR and M12 connectors throughout the backbone, and you have a solution that tolerates vibration, survives tight routing, and delivers forensically usable color in near-darkness — exactly what bus operators ask for.
