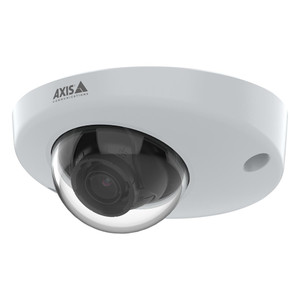

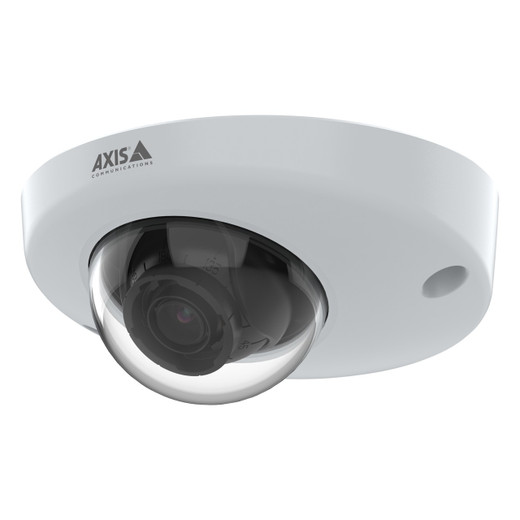

Axis 02501-001 M3905-R 2MP Full HD Onboard Dome IP Camera
The Axis 02501-001 is a purpose-built fixed dome camera engineered for onboard transit surveillance — buses, trains, and other moving vehicles where shock, vibration, and temperature swings are constant. This IP camera delivers 2MP (1920×1080) Full HD resolution with an 87.6° horizontal field of view, using a compact 1/2.9" Progressive scan CMOS sensor and 3.6mm F2.0 lens. The form factor is a compact, hardened dome designed to resist the specific stresses of vehicle mounting and passenger environments.
Key Features
- 2MP Full HD Resolution (1920×1080): Captures sufficient detail for facial recognition and license plate reads in transit scenarios without inflating storage costs. Operates at up to 30 fps (25 fps in 50Hz regions), with 45 fps capability at 720p if faster motion tracking is needed.
- Lightfinder + Forensic WDR: Lightfinder preserves color in low-light interiors (typical for bus/train cabins), while Forensic WDR balances bright windows and dark passenger areas simultaneously. Means usable footage in mixed lighting without post-processing delays.
- Traffic Light Mode: A specialized imaging mode that renders traffic light colors accurately even in dark scenes — critical for exterior vehicle surveillance where legal liability depends on capturing signal state. Most standard cameras lose this detail.
- H.264 Compression with Zipstream: H.264 is widely supported across VMS platforms. Axis Zipstream further reduces bandwidth and storage consumption by 50–80% depending on scene motion, so a 24/7 multi-camera onboard system doesn't overwhelm your vehicle's network or recorder.
- PoE IEEE 802.3af Type 1 Class 1: Draws typical 2.2W, maximum 3.8W. Standard PoE injectors or PoE-capable switches power the camera without separate 12V supplies, simplifying vehicle wiring. This low power draw means you won't overload a vehicle's electrical distribution.
- IP66/IP67 Ratings + IK10 Vandal Resistance: IP66 handles rain, dust, and washdown; IP67 (when used with optional AXIS TP3826-E Housing for external mounting) survives full submersion. IK10 withstands direct impacts and intentional tampering — essential on public transit where vandalism is a real risk.
- Rugged Industrial Design: Built to transit standards including fire safety and electronic equipment regulations (EN 45545-2 compatibility). Handles temperature swings from -40°C to 60°C without image degradation or component failure.
- Built-in Cybersecurity: Supports Axis Edge Vault for secure Axis ID storage, signed firmware boot, and 802.1X authentication. Protects against unauthorized firmware modification and network credential theft — important on systems handling passenger safety data.
- ONVIF Compliant: Integrates with NVR systems and VMS platforms supporting ONVIF Profile S, avoiding vendor lock-in and simplifying fleet deployments across multiple recording backends.
Integration & Compatibility
The 02501-001 connects via standard RJ-45 (10BASE-T/100BASE-TX) wired Ethernet. PoE injection through vehicle infrastructure eliminates the need for separate 12V power runs. Compatible with IP camera selection guides focused on fixed-installation surveillance and network video recorder systems supporting ONVIF discovery and H.264 playback. For external vehicle mounting, Axis offers the TP3826-E housing to boost the IP rating to IP67.
When to Choose a Different Model
If your application is stationary (not onboard a vehicle), consider a standard outdoor IP camera in the Axis fixed dome family — you'll likely find lower-cost models without transit-specific ruggedness. If you need analytics such as people counting or intrusion detection, Axis offers higher-model variants in the onboard family with embedded edge processing. If you require audio recording (driver/passenger communications), confirm your selected NVR supports audio channels; the 02501-001 camera itself does not include audio inputs.
Frequently Asked Questions
Q: Is the Axis 02501-001 compliant with NDAA Section 889?
A: Check current Axis compliance status directly with Axis sales or your integrator. Compliance status can change with firmware updates and export classifications. We recommend confirming with the manufacturer before finalizing a federal or DoD procurement.
Q: Does the 02501-001 work with Milestone XProtect?
A: Yes. The camera is ONVIF-compliant and supports H.264 video compression, both of which are standard integrations in Milestone XProtect. Consult Milestone's camera compatibility matrix for your specific XProtect version to confirm.
Q: What is the maximum IR range on the 02501-001?
A: The 02501-001 is not an IR camera — it relies on Lightfinder and WDR for low-light performance. For infrared illumination in dark interiors, you would need to specify a different model or add external IR lighting to the vehicle.
Q: Can I wall-mount the 02501-001 outside a vehicle?
A: Yes, the dome is ceiling or wall-mountable. For outdoor wall mounting with full submersion resistance (IP67), pair it with the AXIS TP3826-E Housing. Without the housing, IP66 rating protects against rain and spray but not full water immersion.
Q: What frame rate should I expect in low light?
A: The 02501-001 maintains up to 30 fps (25 fps in 50Hz regions) across all resolutions, even in low light. Lightfinder does not reduce frame rate — it extends color sensitivity, so you keep smooth motion video without frame drops.
Q: Does Axis provide a warranty on the 02501-001?
A: Axis typically provides a 3-year warranty on cameras. Confirm the exact terms and coverage with your specialty reseller or Axis support, as warranty may vary by region or purchase channel.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis M3905-R 02501-001 is purpose-engineered for transit — and it shows in the spec sheet. Most general-purpose IP cameras drop frames or lose color fidelity when a bus interior swings from dark to window-bright; the 02501-001's Forensic WDR and Lightfinder hold their own across that dynamic range, meaning you don't reframe every time your vehicle passes a building. The Traffic Light mode is a small but legally significant detail: if your fleet operates at night or in tunnels, capturing signal color accurately matters for incident reconstruction.
Technical Highlights:
- Lightfinder + Forensic WDR combo: Preserves facial detail in dimly lit bus cabins and license plate color through vehicle windows. Most 2MP fixed cameras lose one or the other in mixed light; this pairing keeps both. Real-world impact: fewer false alerts on identity and fewer legal gray areas in passenger disputes.
- H.264 + Zipstream bandwidth reduction: 2MP at 30 fps in H.264 typically consumes 2–4 Mbps depending on scene motion. Zipstream cuts that to 400–800 kbps in static scenes (parked vehicles, stations). On a 24/7 multi-camera recorder, that's the difference between a 2TB recorder lasting 10 days or 30 days.
- PoE 802.3af Type 1 at 2.2W typical: This is a power-budget win. A standard PoE injector or any PoE switch powers the dome without a separate 12V circuit. Vehicle wiring harnesses are already saturated; avoiding an extra power rail cuts installation time and reduces fault points in mobile environments.
- IK10 vandalism rating: Transit environments attract vandalism. IK10 (11 Joules direct impact) holds up to deliberate hammer strikes and wrench throws. IK08 cameras (half that impact tolerance) typically crack or dislodge in these scenarios. Not a theoretical difference — real field data from transit deployments.
Deployment Considerations:
- The camera is NOT an infrared model. Lightfinder is excellent for color preservation in low light, but if your vehicle operates in complete darkness (night freight trains, underground parking shuttles), you'll need external IR lighting or a different camera model. Verify lighting conditions before specifying.
- IP66 is rain-resistant, not submersion-proof. If the camera is mounted on an external vehicle roof where washdown or heavy spray is routine, budget for the optional AXIS TP3826-E Housing to upgrade to IP67. Without it, water ingress risk climbs in aggressive wash environments.
- Confirm your NVR supports Zipstream decoding. If your recorder doesn't recognize Axis Zipstream, the camera will fall back to standard H.264 and you'll lose that bandwidth savings. Most modern ONVIF recorders decode it, but legacy systems may not.
Position the 02501-001 in fleets where vehicle interior lighting is controlled (buses with interior lights, trains with cabin illumination) and where compliance and incident documentation are high priorities. Skip it if you're deploying in pitch-black environments without external lighting, or if your fleet is stationary and doesn't need shock/vibration hardening — a standard fixed dome will cost less.
