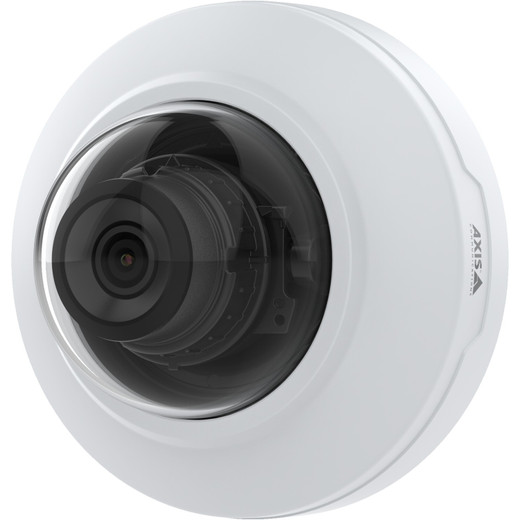

Axis 02676-001 2MP Adaptive IR LED Varifocal Indoor Dome IP Camera
Overview
The Axis 02676-001 is a compact indoor dome camera designed for deployments where field-of-view flexibility and low-light performance matter. At 2MP (1080p), it trades megapixel count for a varifocal lens (3.5–6.6mm) that lets you adjust framing after installation — no need to unmount the camera to change your coverage area. This flexibility makes sense for retail corridors, office lobbies, and warehouse aisles where you cannot predict exact viewing angles during pre-install surveys.
The camera runs on standard PoE (IEEE 802.3af/at), drawing under 13W, so it integrates into existing IP camera networks without adding a separate power supply. H.264 compression keeps bandwidth and storage overhead reasonable for continuous recording across multiple units.
Key Features
- 2MP (1920×1080) resolution: Sufficient for facial recognition and object identification at typical indoor coverage distances (15–25 feet). Trades higher pixel density for wider viewing angles and simpler storage math — a practical choice when you need moderate detail across multiple zones rather than extreme close-up clarity.
- Varifocal 3.5–6.6mm lens with remote zoom and autofocus: Adjust framing from the NVR or management console without physical access to the camera. Widens your angle for broad lobby coverage or tightens it for targeted aisle monitoring — this matters when your deployment footprint changes or when you discover a blind spot mid-project.
- Lightfinder and Wide Dynamic Range (WDR): Lightfinder boosts sensitivity in near-total darkness without requiring IR flood; WDR balances bright skylights or storefront windows against darker interior zones in a single frame. Together, they cut the need for supplementary lighting or separate low-light vs. normal-exposure recordings.
- Adaptive IR LED illumination: Built-in IR adjusts intensity automatically to avoid washout or underexposure. Useful for 24/7 operation without human intervention — IR stays proportional to available ambient light rather than running at full blast all night.
- Object Analytics (Axis Object Analysis): On-camera detection of humans and vehicles reduces false alerts compared to motion-only triggers. Focuses your team's attention on genuine intrusions rather than pets, shadows, or moving curtains. Pairs with any ONVIF-compliant NVR that accepts edge analytics metadata.
- Face Detector: Identifies and flags face-shaped regions in the video stream, useful for retail loss prevention or access-control audit trails. Does not perform recognition — only detection — so no privacy concerns around facial identification databases.
- HDMI output: Connect a local monitor for real-time display without routing through your network. Common in retail where a wall-mounted screen deters shoplifting or in warehouses where a supervisor workstation sits near the camera.
- IK08 impact rating: Withstands moderate physical abuse (e.g., bumps from tall loads or accidental tool strikes) without lens or housing damage. Not vandal-proof — that requires IK10 — but adequate for warehouse floors and customer-accessible indoor spaces.
- IP42 environmental rating: Dust and water spray will not compromise internals, so kitchen mist, cleaning spray, and dust accumulation are manageable. Not rated for direct rain or submersion — keep this indoors or under eaves.
- H.264 compression: Mature, widely supported codec that uses roughly half the bandwidth of Motion JPEG for the same quality. Pairs well with storage-constrained NVRs and networks where bitrate headroom is limited.
- Axis Edge Vault and signed firmware: Protects against unauthorized firmware tampering and provides encrypted storage of analytics metadata on the camera itself. Important if your compliance posture includes authenticated audit trails or tamper-evident surveillance.
Integration & Compatibility
Powers via PoE IEEE 802.3af or 802.3at — standard on any modern network switch or PoE injector. Works with ONVIF-compliant video management systems (Milestone XProtect, AXIS Camera Station, Genetec, etc.) and standalone NVRs that accept H.264 streams and ONVIF metadata. Remote zoom/focus is available through Axis management tools and any VMS that exposes the ONVIF PTZ interface.
The HDMI port bypasses the network entirely — useful for emergency viewing if your network fails or for public display in retail or hospitality settings.
Frequently Asked Questions
Q: What's the maximum infrared range on the 02676-001?
A: Axis does not publish a specific maximum IR distance for this model in the available documentation. The adaptive IR LED is designed for typical indoor spaces (corridors, aisles, rooms up to 30–40 feet deep). For deployments requiring reliable IR coverage beyond that, consult the full datasheet or contact the manufacturer.
Q: Can the 02676-001 be mounted on a wall, or is it ceiling-only?
A: The dome form factor supports both ceiling and wall mounting. Axis dome cameras ship with ceiling bracket hardware as standard; wall brackets are available separately if needed.
Q: Does the 02676-001 work with Milestone XProtect or other third-party VMS platforms?
A: Yes. The camera is ONVIF-compliant and transmits H.264 video streams recognized by any modern VMS. Integration is straightforward — add the camera's IP address to your VMS, enter credentials, and the system will discover video and analytics capabilities automatically.
Q: Is the 02676-001 NDAA Section 889 compliant?
A: Axis is a Swedish manufacturer and does not fall under the NDAA Section 889 restrictions that apply to Hikvision, Dahua, and other Chinese vendors. If NDAA compliance is a procurement requirement, Axis products are generally acceptable for U.S. federal, state, and local government projects.
Q: How much power does the 02676-001 draw?
A: The camera operates at approximately 13W maximum, well within the power budget of a single PoE 802.3af port (15.4W). No high-power PoE+ (95W) switch required — standard 802.3af infrastructure will support it.
Q: Can I adjust the field of view after installation without removing the camera?
A: Yes. The varifocal lens (3.5–6.6mm) and remote autofocus allow you to zoom and refocus from your NVR or management interface. Useful when your actual coverage needs differ from pre-install planning.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02676-001 sits in a practical middle ground for indoor surveillance: 2MP is not flagship resolution, but the varifocal lens and Lightfinder combo make it a smart fit for deployments where you cannot afford the storage overhead of a 5MP camera or the complexity of PTZ repositioning. The 02676-001 (often searched as 02676 001) trades raw megapixels for flexibility in framing and proven low-light handling.
Technical Highlights:
- Varifocal 3.5–6.6mm with remote focus: Eliminates the need to physically access the camera after mounting to tune your field of view. At 2MP, this focal range covers typical indoor spaces (25–50 foot widths) without leaving blind corners — critical when your deployment plan changes mid-project.
- Lightfinder + WDR: Lightfinder increases sensitivity without saturating the sensor; WDR compresses dynamic range to keep bright skylights and dark corners visible in the same frame. Together, they reduce your reliance on supplementary lighting and simplify 24/7 recording without needing separate day/night profiles.
- Adaptive IR LED: Automatically scales infrared intensity based on available ambient light. Prevents the washout you see with always-on fixed IR, extending the useful range of the LED and reducing power spikes at night.
- Object Analytics on-camera: Human and vehicle detection happens at the edge, not on your NVR. Cuts through motion-only false alerts and delivers richer metadata to your VMS — a meaningful efficiency gain if you're managing dozens of cameras across a warehouse or retail chain.
- PoE draw under 13W: Fits comfortably on a single 802.3af port without power contention. If you are retrofitting existing PoE infrastructure, this camera will not force an upgrade to PoE+ switches.
Deployment Considerations:
- IP42 is indoor-only: Do not mount this camera in unprotected outdoor eaves or near exterior doors where rain spray reaches it. If you need outdoor coverage, upgrade to an outdoor-rated variant in the Axis catalog.
- IK08 handles bumps, not vandalism: The dome is durable against accidental impacts (falling tools, tall load strikes), but determined tampering or deliberate strikes will damage it. If your site has a history of vandalism, specify an IK10-rated enclosure or a higher impact rating.
- 2MP is the resolution trade-off: Fine for facial recognition at 15–20 feet and object identification at longer ranges, but not suitable for license plate capture or extreme close-up detail. If you need both wide coverage and high-res detail, consider a dual-camera strategy: this unit for overview, a higher-MP unit for a critical zone.
- H.264 maturity vs. H.265 efficiency: H.264 is universal and storage-efficient for 2MP streams, but if your NVR supports H.265, you could cut bitrate by another 40%. Check your NVR firmware before locking this in.
Deploy the 02676-001 in retail aisles, office lobbies, warehouse corridors, and customer-accessible indoor spaces where field-of-view flexibility and low-light robustness are priorities and megapixel count is secondary. It punches above its weight class in adaptability — that varifocal lens and remote focus eliminate the frustration of fixed-angle domes once your real-world coverage needs diverge from the site survey.
