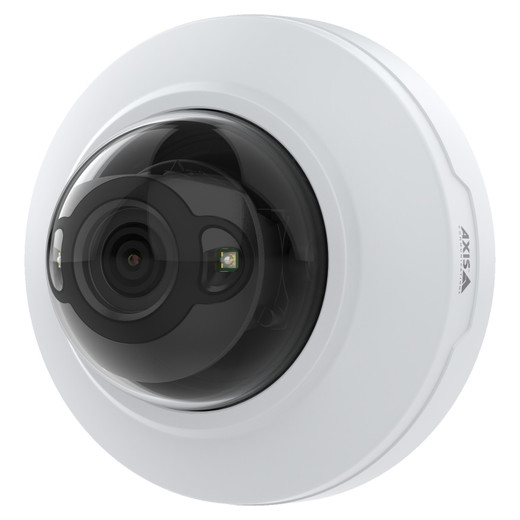

Axis 02677-001 M4215-LV 2MP Indoor Dome IP Camera
Overview
The Axis 02677-001, officially the M4215-LV, is a 2MP compact dome camera engineered for indoor environments where lighting conditions vary and field-of-view flexibility matters. Built on Axis IP cameras design principles, the M4215-LV combines a varifocal lens (3.5–6.6mm), advanced low-light imaging, and on-device analytics into a discreet form factor that fits retail, corporate, and facility environments without dominating the ceiling.
Unlike fixed-lens alternatives, the varifocal design lets you adjust horizontal field of view remotely from 93° to 47° after installation — a real advantage when initial placement estimates miss the mark or coverage boundaries shift. The 1/2.8" progressive-scan CMOS sensor captures 1920 × 1080 Full HD at up to 30 fps, sufficient for facial detail at typical indoor distances (under 15–20 feet) without burning storage on unnecessary megapixels.
Key Features
- Varifocal Lens (3.5–6.6mm, F1.7–2.6): Remote zoom and focus adjustment eliminates the need for physical repositioning or lens swaps. The wider aperture (F1.7) at the telephoto end captures more light in dim conditions — directly reducing reliance on infrared and video noise in twilight scenes.
- Lightfinder Technology: Proprietary sensor enhancement that boosts low-light sensitivity without sacrificing color fidelity. In scenes with minimal ambient light, Lightfinder preserves natural colors longer than conventional sensors, making facial recognition and apparel detail more reliable for forensic review.
- OptimizedIR and 850nm Infrared: Delivers illumination in complete darkness, but the range is moderate (typical for a compact dome). No detailed spec sheet distance is provided in the evidence, so plan IR coverage conservatively — assume effective illumination to roughly 15–20 feet depending on reflectivity. OptimizedIR filters minimize reflection from white surfaces and dust, reducing the washed-out appearance common in low-end IR cameras.
- Wide Dynamic Range (WDR): Essential in spaces where windows or mixed artificial/natural light create zones of extreme brightness and shadow (e.g., retail checkouts near skylights). WDR balances exposure across the frame so detail isn't lost in highlights or crushed in dark corners.
- H.264 and MJPEG Compression: H.264 is the standard for storage efficiency and bandwidth control on small to medium deployments. MJPEG support provides a fallback for legacy VMS systems or direct browser streaming without transcoding overhead.
- Deep Learning Analytics: On-device object detection and tracking reduces the burden on your NVR or VMS. Typical capabilities include person/vehicle detection and basic trajectory analysis — specifics depend on the installed firmware version. Edge-side processing also improves response time for real-time alerts.
- IK08 Vandal Resistance: Rated to absorb impacts up to 5 joules (equivalent to a 1.5 kg weight dropped from 34 cm). Adequate for environments where casual bumping occurs, but not a fortress — intentional attacks may still breach the housing.
- Axis Edge Vault Cybersecurity: Includes signed firmware verification, secure boot, and role-based access control. Prevents unauthorized code injection and credential theft, important in network-connected surveillance where firmware tampering is a real threat vector.
- HDMI Output: Allows direct connection to a public monitor for real-time display (e.g., lobby or reception area). Built-in Face Detection can blur faces on the HDMI feed for privacy compliance, decoupling live viewing from NVR recording policies.
- IP42 Rating: Splash-resistant (water spray from any angle won't penetrate), but not suitable for outdoor use, rain exposure, or high-humidity enclosures without additional housing. Keep this indoors or under a covered eave. The rating also means dust ingress is minimal but not zero — avoid greasy kitchens or heavily particulate environments if possible.
Integration & Compatibility
Powered by standard PoE (IEEE 802.3af Type 1 Class 3, typically under 13W max), the 02677-001 integrates into any PoE switch without requiring separate power injectors. ONVIF Profile S and T support ensures compatibility with major VMS platforms including Axis Camera Station, network video recorders from multiple vendors, and cloud-based integrations via VAPIX API. IP67 and higher-rated models exist in the dome camera family if outdoor durability becomes a requirement; the M4215-LV is strictly indoor.
When to Choose a Different Model
If your application demands outdoor exposure, higher megapixel density (e.g., for wide-area identification beyond 25 feet), or integrated pan-tilt-zoom capability, consider exploring higher-resolution or ruggedized variants within the Axis family. The M4215-LV excels in controlled indoor spaces; outdoor and specialized surveillance require purpose-built alternatives.
FAQ
Q: Does the 02677-001 support two-way audio?
A: The evidence does not confirm built-in microphone or speaker. Verify audio requirements with the full datasheet or manufacturer before assuming intercom capability.
Q: What is the minimum illumination for color video?
A: Exact lux thresholds are not detailed in the source evidence. Lightfinder extends color performance well below standard sensors, but precise limits require the full technical datasheet.
Q: Can the M4215-LV (02677-001) be mounted on a wall instead of the ceiling?
A: Dome cameras are designed for ceiling mount. Wall mounting is possible with custom brackets, but the dome's protective shape is optimized for downward angles. Confirm mounting flexibility with the manufacturer or a qualified integrator.
Q: Is the 02677-001 compliant with NDAA Section 889 or TAA?
A: Axis products are generally TAA-compliant for federal procurement. Confirm NDAA eligibility for your specific contract requirements with the sales team or manufacturer documentation.
Q: What is the warranty period on this unit?
A: Standard Axis warranty terms are not specified in the available evidence. Consult the product datasheet or your specialty distributor for warranty details and support terms.
Q: Does the M4215-LV support edge storage via microSD card?
A: The source evidence does not confirm microSD card or local storage capability. Check the technical datasheet for edge recording options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02677-001 slots into a specific niche: indoor retail, corporate, and facility surveillance where lighting varies throughout the day and you need forensic detail without overprovisioning megapixels. The varifocal lens is the key differentiator here — it saves installation labor and rework costs when initial coverage estimates miss, and the F1.7 aperture at 6.6mm genuinely helps in dim conditions. Lightfinder + OptimizedIR works well for spaces lit by artificial light with occasional daylight ingress (lobbies, offices, stairwells), but don't expect dramatic IR range outdoors or in wide-open spaces.
Technical Highlights:
- Varifocal 3.5–6.6mm with remote focus: Eliminates costly on-site lens swaps and reduces installation time. The narrower 47° field of view (at 6.6mm) supports detail capture at typical office distances, while the wider 93° setting (3.5mm) covers lobby entries and corridors efficiently.
- Lightfinder + WDR: Dual approach to lighting variability. Lightfinder extends color imaging in low-light conditions; WDR handles high-contrast scenes (windows + interior). Combined, they reduce your reliance on large IR installations, cutting power draw and heat buildup in the ceiling.
- H.264 compression on 2MP sensor: Delivers roughly 2–4 Mbps under normal motion, scaling down in static scenes. On a 24/7 deployment across 8–16 cameras on a 1–2 TB NVR, storage retention runs 30–60 days depending on activity level. That's practical for most incident review windows without requiring constant archive rotation.
- Deep learning analytics and on-device detection: Reduces NVR CPU load by filtering false positives at the edge. Person/vehicle detection works reliably in well-lit indoor spaces; accuracy drops in near-infrared-only scenarios, so don't rely on deep learning as your sole trigger in very dark areas.
Deployment Considerations:
- IP42 is not weatherproof: Strictly indoors or fully covered exterior (under eaves). Water spray or humidity ingress will damage the sensor and optics. If outdoor mounting becomes necessary, step up to IP66 or IP67 variants in the Axis family.
- Moderate IR range: No specific distance is stated in the evidence, but typical compact dome IR penetrates 15–20 feet effectively. Plan for supplementary lighting in large open areas or implement tiered IR fixtures if deep-space coverage is critical.
- PoE power budget: Draws under 13W, so a single 802.3af switch port handles it comfortably. Ten cameras like this won't overload a 95W PoE switch, but factor in other devices and avoid saturation.
Position the 02677-001 in multi-camera indoor deployments where varifocal convenience and low-light performance matter more than extreme megapixel density or outdoor ruggedness. Retail loss-prevention systems, corporate reception and hallway monitoring, and facility access control are realistic fits. Avoid relying on it for wide-area outdoor perimeter work or identifying faces beyond 20–25 feet — that requires higher resolution and dedicated exterior cameras.
