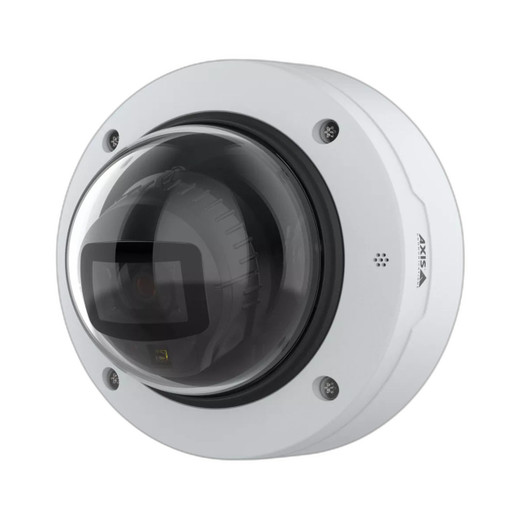

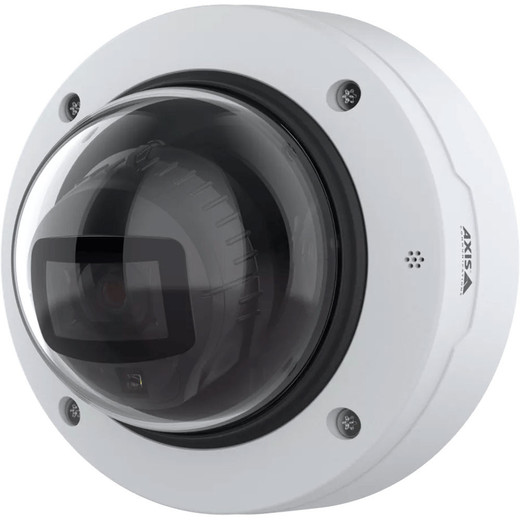

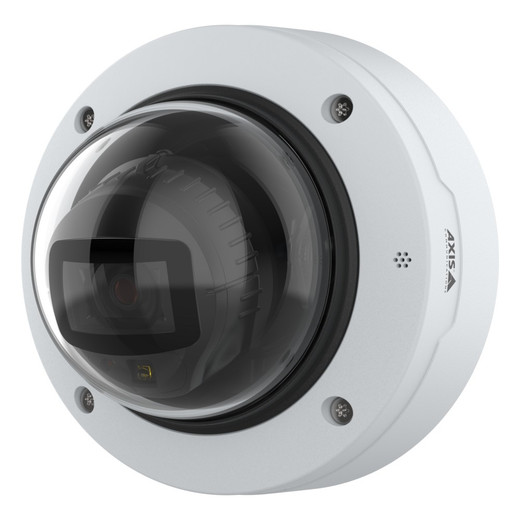

Axis 02980-001 2MP Indoor AI IR Dome Camera
The Axis 02980-001 is a compact indoor dome engineered for surveillance in variable lighting without external IR sources. Built on the ARTPEC-9 processor with a dedicated Deep Learning Processing Unit (DLPU), this 2MP camera integrates on-board analytics, low-light imaging, and bandwidth-efficient compression—eliminating dependency on external analytics servers and reducing infrastructure costs across facility deployments.
Key Features
- 2MP 1080p resolution (1920 x 1080): Sufficient detail for identifying individuals and reading text at moderate distances; maintains legible forensic footage without requiring higher megapixel counts that would increase storage load on 24/7 recorders.
- Lightfinder 2.0 and Forensic WDR: Preserves color and detail across extreme lighting transitions—from near-darkness to bright daylight—ensuring usable footage whether monitoring dimly lit corridors or sun-facing entry points without manual iris adjustment.
- OptimizedIR technology: Delivers forensic-grade monochrome imagery in complete darkness without external infrared illuminators, eliminating the cost and maintenance of supplemental lighting in spaces where IR sources are impractical (e.g., retail floors, office interiors).
- Zipstream with AV1, H.264, and H.265 codec support: Intelligently compresses video based on scene content—maintaining forensic quality in areas of interest while reducing bitrate in static zones. H.265 and AV1 typically cut storage requirements by 40–60% compared to H.264, a significant factor when managing 24/7 multi-camera systems with bandwidth or storage constraints.
- On-board DLPU (Deep Learning Processing Unit): Enables AXIS Object Analytics (human detection, classification, counting) and AXIS Audio Analytics (scream detection, shout detection, acoustic anomalies) directly on the camera, reducing latency and eliminating the need for a separate analytics server for basic threat detection and occupancy monitoring.
- IP54/IK10 polycarbonate vandal-resistant housing: Resists dust ingress and heavy impact—appropriate for facilities with moderate tampering risk. Built-in intrusion switch alerts to unauthorized removal or physical tampering, critical for environments where camera integrity must be logged.
- AXIS Edge Vault hardware-based cybersecurity: FIPS 140-3 Level 3 key storage protects encryption keys from tampering and extraction, meeting enterprise compliance requirements without adding server-side complexity.
Imaging Performance and Low-Light Capability
The combination of Lightfinder 2.0 and Forensic WDR ensures consistent color reproduction from low-light interiors to high-contrast outdoor-facing windows. OptimizedIR eliminates the need to choose between infrared surveillance and visible lighting—the camera delivers usable monochrome detail in total darkness, a practical advantage in warehouses, parking structures, and secured spaces where supplemental lighting is either unwanted or unavailable.
Edge Analytics and Operational Efficiency
The integrated DLPU processes computer vision tasks on-camera, enabling real-time object detection and acoustic event recognition without cloud dependency or external server latency. This reduces system complexity and operational overhead—particularly valuable when deploying dozens of cameras across a facility. AXIS Object Analytics supports occupancy counting and human presence detection for facility management; AXIS Audio Analytics complements visual monitoring in areas where acoustic context (screams, shouting, glass breaking) adds security value.
Bandwidth and Storage Economics
Zipstream's multi-codec approach intelligently adapts compression in real-time. High-motion areas or security-critical zones retain forensic detail while static backgrounds compress aggressively. In large-scale deployments with bandwidth-constrained networks or limited recording storage, this approach often reduces infrastructure investment by 30–50% compared to fixed H.264 encoding.
When to Choose a Different Model
The 02980-001 is optimized for indoor controlled environments with access to power and networking. If outdoor exposure is required, consider an outdoor-rated variant in the same family. If higher resolution is essential for wide-area surveillance or license-plate capture, evaluate higher megapixel options within the Axis IP camera line. For applications requiring no IR and maximum color fidelity in lit spaces, a non-IR compact dome may be more cost-effective.
Integration and Compatibility
The 02980-001 supports ONVIF Profile S/T/G, integrating with standard VMS platforms (Milestone XProtect, Axis Camera Station, and others). Firmware updates and ACAP (Axis Camera Application Platform) support enable custom analytics deployment if needed. PoE power draw is approximately 12.95W maximum, compatible with standard 802.3af switches without dedicated power budgeting.
Frequently Asked Questions
Q: Does the 02980-001 require an external analytics server for object detection?
A: No. The on-board DLPU runs AXIS Object Analytics and AXIS Audio Analytics directly on the camera, eliminating dependency on external servers for basic human detection, counting, and acoustic event recognition.
Q: What is the maximum IR range in total darkness?
A: OptimizedIR provides forensic monochrome detail in complete darkness. Exact range depends on lens angle and scene reflectivity; refer to the datasheet for specific distance specifications under defined lighting conditions.
Q: Is the 02980-001 suitable for outdoor mounting?
A: No. The IP54/IK10 rating protects against dust and vandalism but not sustained rain or submersion. This model is designed for indoor use only. For outdoor exposure, select an outdoor-rated dome variant.
Q: How much bandwidth does Zipstream AV1 save compared to H.264?
A: AV1 and H.265 typically reduce bitrate by 40–60% depending on scene complexity and motion. Exact savings depend on network conditions, scene content, and recorder configuration; testing in your environment is recommended.
Q: What VMS platforms does the 02980-001 support?
A: The camera supports ONVIF Profile S/T/G, compatible with Milestone XProtect, Axis Camera Station, and most enterprise VMS platforms. Verify your specific VMS version with the manufacturer before deployment.
Q: Can I access audio from the 02980-001?
A: The camera includes built-in audio analytics (scream/shout detection, acoustic anomalies) and audio input capability. Two-way audio support depends on your VMS and network infrastructure; consult the datasheet and your VMS administrator.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 02980-001 (often searched as 02980 001) is a pragmatic choice for indoor surveillance where edge analytics and low-light performance matter more than raw megapixel count. The DLPU is genuinely useful—it offloads object detection and audio anomaly detection to the camera itself, which means you can skip the analytics server or keep it lean. That translates to lower capital expense and less operational complexity. For facilities rolling out dozens of cameras, the DLPU inclusion is a cost multiplier.
Technical Highlights:
- Lightfinder 2.0 + Forensic WDR: Maintains usable color from near-darkness to bright daylight without manual iris tuning. This is practical for facilities with mixed lighting (lit offices, dark hallways) where a single camera must handle both without image quality sacrifice.
- OptimizedIR at no additional infrastructure cost: Monochrome IR detail in total darkness eliminates the need for supplemental 850nm infrared emitters. Real savings when retrofitting existing facilities where running additional IR power is impractical.
- Zipstream AV1/H.265 compression: 40–60% bitrate reduction versus H.264 directly lowers your storage and bandwidth footprint. On a 100-camera 24/7 deployment, that difference is measurable in months of archive capacity and recurring network spend.
- PoE power draw ~12.95W: Fits comfortably on 802.3af PoE switches without port blocking. No separate power supply, no cable runs—standard RJ-45 in, no compromise.
- IP54/IK10 + intrusion switch: Vandal-resistant housing with tampering alert. Appropriate for unsecured indoor spaces (retail, warehouses) where camera integrity must be logged.
Deployment Considerations:
- Indoor-only: IP54 is dust and vandalism resistant, not rain-proof. Verify all mounting locations are under roof or eave cover.
- Audio analytics (AXIS Audio Analytics) require two-way audio support in your VMS platform and network infrastructure. Confirm your recorder or management software includes the ACAP app subscription or licensing before relying on scream/shout detection in a security workflow.
- 2MP resolution is sufficient for occupancy counting, hallway monitoring, and facility access—but not for wide-area outdoor license-plate capture. Match lens and mounting height to expected recognition distance before commissioning.
Position the 02980-001 for indoor multi-camera deployments where edge AI, low-light imaging, and bandwidth efficiency reduce total cost of ownership. It's not the highest-resolution option, but the on-board DLPU and Lightfinder performance make it a solid fit for office parks, warehouses, retail interiors, and secure facilities that can leverage continuous analytics without external server overhead.
