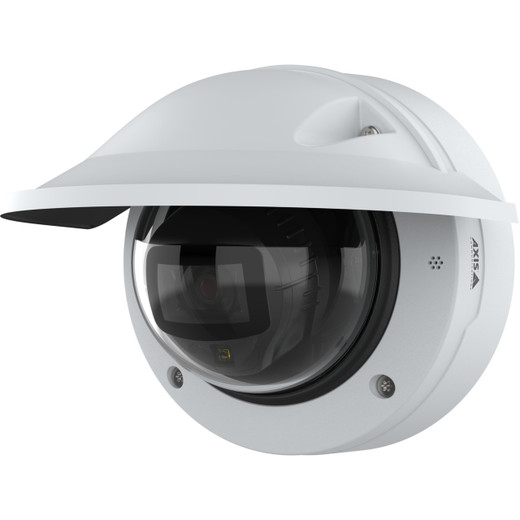

Axis 02981-001 2MP Dome Camera IR Varifocal

The Axis 02981-001 is a 2MP outdoor dome camera engineered for security integrators deploying mid-range surveillance across parking lots, industrial perimeters, and access control points. The varifocal 3.4–9.8 mm P-iris lens lets you adjust zoom and focus remotely after installation—eliminating costly field trips to fine-tune coverage. Paired with forensic WDR and Lightfinder 2.0 IR, the 02981-001 captures usable detail in extreme contrast and near-dark scenes where fixed-lens alternatives fail.

Key Features

• Varifocal 3.4–9.8 mm P-iris lens: Remote zoom and focus adjustment means you dial in the exact field of view from the control room. P-iris maintains depth of field as you zoom, so detail stays sharp at varying distances—critical when you're trying to confirm faces or plate numbers across a 30-meter coverage zone.
• Forensic WDR (Wide Dynamic Range): Recovers facial geometry and license plate texture in scenes where bright sunlight and dark shadows appear in the same frame. This matters for facial recognition workflows and evidence-grade capture in mixed outdoor lighting.
• Lightfinder 2.0 IR (850nm optimized): The built-in infrared extends nighttime coverage to approximately 30 meters without external lighting rigs. Reduces dependency on costly auxiliary illumination in 24/7 parking and perimeter deployments—a real savings when you're covering multiple acres.
• IP66 / IK10 polycarbonate dome with weathershield: Direct rain and dust won't penetrate the lens or housing. The included weathershield extends service intervals in coastal salt spray and high-contamination industrial zones where standard polycarbonate domes corrode. Note: IP66 handles rain jets but not full submersion—if you need underwater deployment, specify IP67 or higher.
• H.265 compression with Zipstream: Cuts storage and bandwidth overhead by 40–60% compared to H.264, depending on scene complexity. Across a 24/7 multi-camera system with 20+ domes recording continuously, that translates to tangible savings in NVR capacity and network utilization.
• PoE+ (IEEE 802.3at): Single cable installation—no separate power supply. The 02981-001 draws approximately 13W at peak load, so it won't strain your switch's power budget or require dedicated power injection at the camera.
• Axis Edge Vault (FIPS 140-3 Level 3): Tamper detection and secure credential storage are built into the camera. The device alerts you to case-open events and protects stored credentials against physical extraction—important for high-security sites where tampering must be logged.
• SD card slot: Local recording backup and edge-based archival. If your NVR goes offline or the network falters, the camera continues storing evidence to the card—a critical safeguard in mission-critical deployments.
• ACAP support: Axis Camera Application Platform lets you deploy custom or third-party analytics directly on the device. Object detection, people counting, or loitering alerts run at the edge without consuming additional bandwidth or server resources.

Video Quality & Coverage

The 2MP sensor (1920 x 1080) paired with the varifocal lens handles mid-range requirements—typical 20–40 meter focal distances in parking and perimeter applications—without resolution waste. Forensic WDR actively compensates for extreme lighting, ensuring usable facial detail and plate text in mixed sunlight and shadow. Lightfinder 2.0 extends nighttime capability via optimized 850nm infrared, reducing reliance on external lighting and lowering total cost of ownership in 24/7 deployments. The combination of H.265 and Zipstream keeps storage scaling manageable as you add cameras to the system.

Durability & Environmental Design

IP66 certification means the housing withstands high-pressure water jets without internal water ingress—suitable for wash-down areas and rain-exposed outdoor mounting, though not full submersion. IK10 polycarbonate dome withstands significant vandal impact without cracking, making the 02981-001 appropriate for semi-secured perimeters and accessible outdoor sites where tempered glass would be impractical. The included weathershield further protects against salt spray and industrial particulate—key in coastal or manufacturing environments where standard domes degrade rapidly.

Security & Edge Capabilities

Edge Vault (FIPS 140-3 Level 3) certifies the on-device tamper detection and credential protection—NIST-validated security for sites requiring forensic evidence integrity. The SD card slot provides local archival independent of network connectivity, ensuring evidence preservation during NVR downtime or network interruptions. ACAP support enables custom analytics deployments without additional hardware or licensing—object detection or behavioral analytics run directly on the camera, reducing server load and network traffic.

Integration & Compatibility

The 02981-001 supports ONVIF Profile S/T/G for broad IP camera platform compatibility. Standard PoE+ power injection means integration into existing switch infrastructure without redesign. Axis Camera Station and third-party VMS platforms (Milestone XProtect, Genetec, etc.) recognize the device via standard protocols. SD card backup and ACAP framework support edge-based workflows independent of central NVR architecture.

When to Choose a Different Model

The 02981-001 targets mid-range coverage in parking and perimeter applications. If you need higher resolution for detailed facial capture at distances exceeding 40 meters, consider a higher-megapixel variant in the Axis outdoor dome family. If your deployment requires full submersion or prolonged underwater operation, specify an IP67-rated camera instead. For indoor applications with limited space constraints, an indoor varifocal dome will reduce mounting complexity.

Frequently Asked Questions

Q: What is the maximum infrared range on the Axis 02981-001?

A: The Lightfinder 2.0 850nm IR extends approximately 30 meters in total darkness. Range varies with scene reflectivity—lighter surfaces and reflective clothing extend effective coverage; darker scenes may reduce it.

Q: Does the 02981-001 support local SD card recording?

A: Yes. The camera includes an SD card slot for edge-based archival and backup recording. This protects against evidence loss during network interruptions or NVR downtime.

Q: What compression formats does the 02981-001 support?

A: H.265 primary with H.264 fallback and Zipstream for bandwidth optimization. H.265 reduces storage roughly 40–60% versus H.264 depending on scene complexity.

Q: Is the 02981-001 suitable for coastal or high-salt-spray environments?

A: Yes. The polycarbonate dome includes a weathershield that extends service life in salt spray and high-contamination industrial zones. Standard unshielded domes corrode much faster in these conditions.

Q: Can I adjust zoom and focus remotely on the 02981-001?

A: Yes. The varifocal 3.4–9.8 mm P-iris lens supports remote focus and zoom adjustment via the VMS or Axis management interface. This eliminates post-install field trips to fine-tune coverage.

Q: What is the power consumption of the 02981-001?

A: Approximately 13W maximum via PoE+ (IEEE 802.3at). This low draw means the camera won't strain typical PoE switch power budgets in multi-camera deployments.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02981-001 is a workable mid-range outdoor dome for integrators deploying 20–40 meter coverage zones in parking and perimeter applications. The varifocal 3.4–9.8 mm lens with P-iris control is the real win here—it lets you dial in focal length after installation without field visits, and the P-iris maintains depth of field across zoom ranges so you don't lose facial detail when adjusting magnification. The 02981-001 isn't a high-res flagship, but for mixed outdoor lighting and nighttime scenes, the combination of forensic WDR and Lightfinder 2.0 850nm IR delivers usable evidence without external lighting infrastructure.

Technical Highlights:

• Varifocal P-iris lens (3.4–9.8 mm): Remote zoom and focus adjustment eliminates post-install site visits. P-iris maintains depth of field across the zoom range, so facial geometry and plate text remain sharp at varying distances—critical for forensic workflows.
• Lightfinder 2.0 850nm IR (~30m range): Optimized infrared extends nighttime capability without external lighting. In 24/7 parking deployments, this reduces auxiliary lighting infrastructure costs and simplifies wiring.
• H.265 + Zipstream compression: Delivers 40–60% storage savings versus H.264. Across multi-camera 24/7 recording, this is tangible—you're talking real NVR capacity and bandwidth reduction at scale.
• Forensic WDR: Recovers facial and plate detail in extreme contrast (bright sunlight + dark shadows in the same frame). Non-negotiable if you're relying on facial recognition or evidence-grade plate capture.
• Edge Vault FIPS 140-3: Tamper detection and credential protection are on-device. Alerts you to case-open events and protects stored credentials against physical extraction.

Deployment Considerations:

• IP66 handles rain jets and dust; it is not submersion-rated. If you need underwater or prolonged wet-environment operation, you'll need IP67 or higher—this is where integrators sometimes stumble.
• The 2MP resolution is adequate for 20–40 meter mid-range coverage, but if you're pushing beyond 40 meters and need detailed facial recognition or license plate OCR, a higher-megapixel variant will deliver better granularity.
• PoE+ draw is roughly 13W max, so you won't have power budget issues on standard switches. But if you're chaining multiple varifocals with IR enabled, verify your switch's total PoE capacity—IR load is modest but non-zero.
• The included weathershield is important in salt-spray or industrial particulate environments. Don't skip it if you're deploying in coastal or manufacturing zones—unshielded domes degrade rapidly.

Position the 02981-001 for parking lot perimeter and access control deployments where you need solid mid-range WDR performance, edge-based tamper protection, and remote lens control. It's not a megapixel flagship and not an indoor dome—it's purpose-built for outdoor 24/7 mixed-lighting scenarios where you want to avoid external lighting infrastructure and need the flexibility to adjust framing after mounting.

Key Specifications:
Color: White
