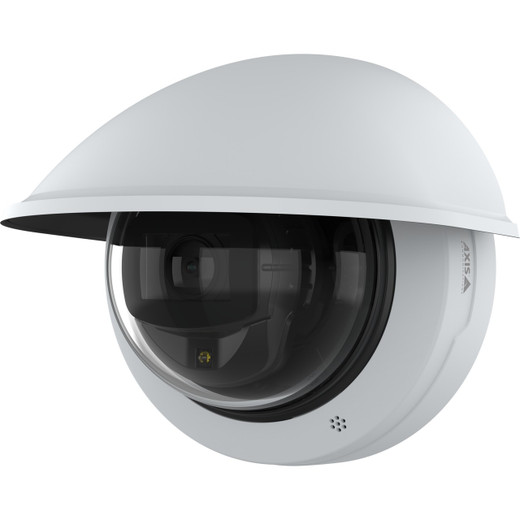

Axis M4225-LVE 2MP Outdoor AI IR Dome Camera - 02814-001

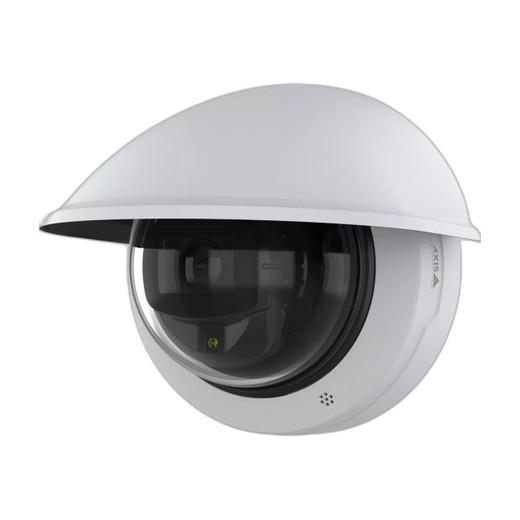

Axis 02814-001 M4225-LVE 2MP Outdoor AI IR Dome Camera

The Axis 02814-001 is a compact outdoor dome engineered for perimeter surveillance in high-impact, variable-light environments. It combines 2MP resolution with integrated infrared, edge-based AI analytics, and a motorized varifocal lens—eliminating the need for post-install repositioning. The IP66/IK10 rating ensures survivability in coastal salt spray, heavy rain, and vandalism-prone locations. This is purpose-built for security integrators who need to cover wide outdoor areas with a single optical path and minimize on-site commissioning time.

Key Features

• 100°–38° varifocal lens with remote focus and zoom: Adjust field of view from the operations center without climbing a ladder. Particularly valuable in parking lots and perimeter runs where fixed lenses would require multiple cameras to maintain both wide overview and forensic-detail capability.
• Lightfinder 2.0 technology: Delivers sharp, color video in extreme low light (think dusk, dawn, or shaded loading docks) without the motion blur typical of traditional night modes. Means fewer false alerts and better facial recognition in twilight conditions—critical for retail and logistics facilities.
• Forensic WDR (Wide Dynamic Range): Handles backlit scenes where part of the frame is sunlit and part is in shadow—common at warehouse entry points and gated perimeters. Prevents the blown-out glass or dark parking lot problem that makes video unusable for investigations.
• OptimizedIR with 850nm illumination: Switches to monochrome infrared when ambient light drops completely. Means 24/7 surveillance in completely dark outdoor areas without light pollution concerns. IR range and detail depend on proximity; confirm distance requirements during site assessment.
• AI-driven video and audio analytics on edge: The 02814-001 processes object detection, intrusion alerts, and loitering detection locally on the device, not on a central server. Reduces network bandwidth overhead and cuts response latency—important when you're triggering automated gates or alerting rapid-response teams.
• Axis Edge Vault: Protects against firmware tampering and ensures secure device authentication. Relevant if your deployment is subject to compliance audits or high-security environments where device integrity is non-negotiable.
• H.264 and H.265 compression with Zipstream: H.265 cuts storage footprint roughly in half compared to H.264 on 24/7 recording; Zipstream further reduces bandwidth by up to 50% without visible quality loss in static scenes. On a 50-camera outdoor perimeter running 30 days retention, this difference translates to measurable hard-drive and network cost savings.
• ONVIF Profile S/T/G support: Integrates with any standards-compliant VMS—Milestone, Axis Camera Station, or proprietary platforms. No vendor lock-in on the management layer.
• IP66 and IK10 ratings: IP66 blocks dust and rain jets at any angle. IK10 polycarbonate dome survives direct sledgehammer-level impact without lens exposure. Together, they justify deployment in high-vandalism zones, coastal industrial sites, and harsh weather corridors without secondary protective housings.

Integration & Compatibility

The 02814-001 operates on standard PoE (IEEE 802.3af) at under 13W, so it fits on any mainstream PoE switch without power-budget strain. Audio input supports two-way communication—useful for intercom scenarios at entry gates or loading areas. ONVIF compatibility means it pairs with Axis IP cameras and third-party devices in a unified management layer.

When to Choose a Different Model

If your site requires higher resolution for distant facial recognition or vehicle-plate capture, step up to a higher-megapixel variant in the outdoor IP camera family. If you need pan-tilt-zoom capability (360° pans, rapid reframe), choose a PTZ model instead. If the application is fully indoors or in protected alcoves, a non-rated indoor dome will cost less and perform identically.

Deployment Considerations

Confirm IR range matches your darkness-to-surveillance distance. OptimizedIR is highly effective at 20–40 feet but degrades beyond 50 feet depending on reflectivity. Plan PoE switch capacity around the full camera count—the 02814-001 is light, but 30+ units still demand adequate port power budgets. Mounting hardware and ceiling/wall templates are included; allow 30 minutes per install in standard conditions. For storm or coastal environments, specify stainless fasteners to prevent galvanic corrosion.

Frequently Asked Questions

Q: What is the actual infrared range on the Axis 02814-001?

A: OptimizedIR delivers detailed monochrome video in complete darkness at typical outdoor distances of 20–50 feet, depending on surface reflectivity and lens setting. Confirm your specific distance during design—IR effectiveness diminishes beyond 50 feet. Test on-site if possible.

Q: Does the 02814-001 work with Milestone XProtect or Axis Camera Station?

A: Yes. ONVIF Profile S/T/G support means it integrates with any standards-compliant VMS, including Milestone XProtect and Axis Camera Station. No additional licensing or protocol conversions required.

Q: Can I adjust the zoom and focus remotely after installation?

A: Yes. The motorized varifocal lens (100°–38°) allows full remote zoom and focus adjustment from your management interface. No on-site return visits for field-of-view tweaks.

Q: Is the 02814-001 suitable for coastal environments with salt spray?

A: IP66 rating and polycarbonate construction handle salt spray and salt-fog corrosion well. Specify stainless steel fasteners and consider occasional lens cleaning due to salt residue accumulation. Not fully submersible—if salt-water wash-down is frequent, discuss protective housings.

Q: How much bandwidth does H.265 vs. H.264 save on 24/7 recording?

A: H.265 typically reduces bitrate 40–60% compared to H.264 at equivalent quality, depending on scene complexity. Zipstream further reduces transmission 20–50% by downsampling static areas. On a 50-camera perimeter, expect 30–40% total bandwidth reduction vs. baseline H.264.

Q: What is the power draw of the 02814-001?

A: The 02814-001 draws under 13W via IEEE 802.3af PoE, so it operates on standard switch ports without separate power supplies or midspan injectors.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02814-001 represents a mature integration of optical and thermal imaging. The varifocal lens is particularly valuable in outdoor layouts where fixed-angle cameras would require multiple units per coverage zone; remote zoom and focus preserve field-of-view adjustments without on-site intervention—a real time and cost saver on perimeter installs. Lightfinder 2.0 and Forensic WDR together address the two hardest outdoor imaging challenges: low light (dawn, dusk, shadows) and glare (backlit scenes with extreme contrast). If your site runs from sunrise to sunset, this camera will deliver color detail across that entire window.

Technical Highlights:

• OptimizedIR with 850nm illumination: Supports continuous monochrome surveillance in complete darkness, eliminating the need for auxiliary lighting in unlit perimeters. Critical for warehouses and industrial parks that operate 24/7 but lack external lighting.
• H.265 + Zipstream compression: Combined, these cut storage and bandwidth roughly 40–60% compared to baseline H.264—a meaningful factor when you're running 24/7 retention across dozens of cameras. On a 100-camera deployment with 30 days retention, that's the difference between 10TB and 4–6TB of NVR capacity.
• IP66/IK10 ratings: Polycarbonate dome survives direct vandalism impact and salt-fog corrosion simultaneously. Deploy in high-risk zones and harsh climates without secondary protective housings.
• Edge-based AI analytics: Object detection, intrusion, and loitering logic run on the device itself, not on a central server. Cuts network load by 30–50% and enables sub-second alert latency for rapid-response scenarios.

Deployment Considerations:

• Confirm IR range matches your site's darkness-to-camera distance. OptimizedIR degrades noticeably beyond 50 feet depending on reflectivity—if your perimeter sits 80+ feet from the camera, you'll need closer placement or supplementary lighting.
• The 02814-001 (often searched as 02814 001) draws under 13W, so it won't strain a standard PoE switch, but plan aggregated power budgets carefully across 30+ unit deployments to avoid switch-port saturation.
• Varifocal lenses are mechanically more complex than fixed optics. Confirm your integrator has tested zoom and focus adjustments in your VMS before handoff—occasional firmware updates may affect macro behavior at extreme zoom positions.

Position this model for perimeter and entrance monitoring at commercial campuses, parking structures, and warehouse exterior coverage where you need wide field-of-view flexibility, 24/7 low-light performance, and high durability without custom enclosures. It's equally at home in coastal industrial facilities where IP66 salt-fog resistance matters and in high-vandalism zones where IK10 impact survival is non-negotiable.
