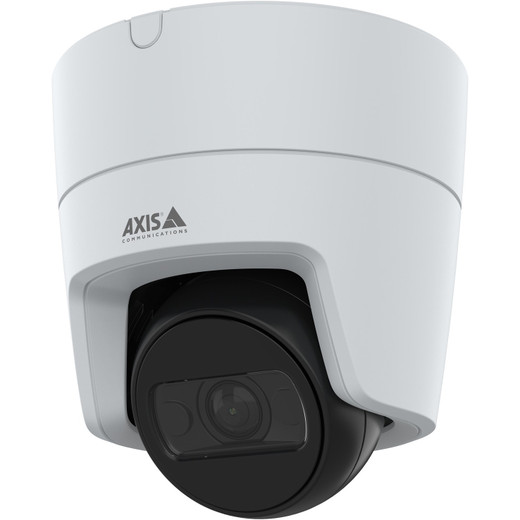

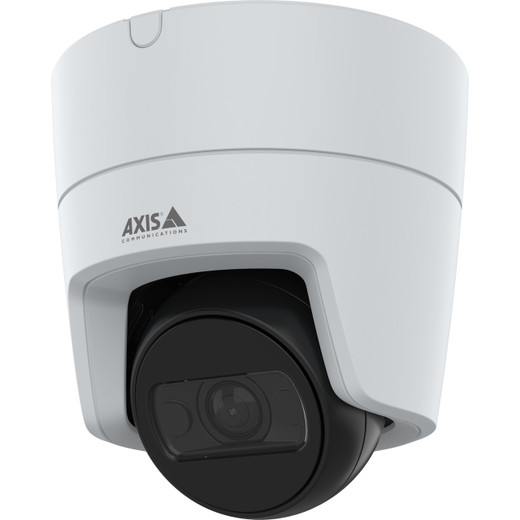

Axis 02918-001 4MP Outdoor AI IR Dome Camera

The Axis 02918-001 is a compact outdoor dome camera that pairs 4MP resolution with integrated AI-powered object analytics and infrared illumination, designed for 24/7 surveillance in harsh weather and high-risk environments. Built for perimeter security, facility monitoring, and entrance surveillance, this model balances intelligent detection with practical durability—no oversized form factor, no premium pricing for features you don't need.

Key Features

• 4MP resolution (2688 × 1520 pixels): Captures sufficient detail for identification and forensic review in most commercial and industrial deployments without requiring premium storage scaling.
• Integrated AI object analytics: Distinguishes humans and vehicles from other motion, reducing false alarms and operator fatigue—critical when you're monitoring dozens of feeds simultaneously.
• Built-in IR illumination (20m range): Clear night vision without external lighting infrastructure; enables round-the-clock monitoring in completely dark environments.
• IP66 and IK08 ratings: IP66 protects against rain and dust jets from any direction; IK08 withstands impact and vandalism attempts. Deploy in loading docks, parking structures, and exposed perimeter positions without reinforced housing.
• Compact dome form factor: Low-profile design blends into ceilings and overhangs; mounts discretely without drawing attention on facilities tours.
• PoE (802.3af): Draws under 13W, so standard PoE switches handle dozens of these cameras without additional power supplies or separate electrical runs—measurable savings in retrofit deployments.
• 30 fps frame rate: Smooth motion capture ensures you won't miss fast-moving subjects during forensic review; sufficient for entrance and perimeter applications.
• H.265 compression: Reduces storage footprint 40–60% compared to H.264 depending on scene complexity—real cost savings when recording 24/7 across a multi-camera system.
• Axis Zipstream technology: Intelligent bandwidth optimization further reduces storage and network load without visible quality loss in static areas.
• Available in White and Black finishes: Match existing dome aesthetics or blend into architectural surfaces.

Why This Camera Works for These Deployments

The M3126-LVE's strength lies in practical outdoor surveillance without feature bloat. The 4MP sensor delivers clear enough video for most identification scenarios. The 20m IR range covers typical facility perimeters and parking areas; if you need 40m+ IR reach, consider a higher-megapixel variant in the Axis IP camera line. The AI object detection meaningfully reduces alert fatigue compared to pixel-based motion detection—operators notice genuine threats faster because the system filters noise.

Power consumption under 13W via PoE (802.3af) is a genuine advantage in sprawling facilities; you avoid dedicated 24V or 110V circuits and don't strain PoE switch power budgets. H.265 + Zipstream combination typically cuts storage costs in half over a 30-day rolling window for 24/7 recording.

Integration and Compatibility

ONVIF Profile S/T/G compliance ensures compatibility with major network video recorders and video management systems. The camera integrates into any ONVIF-capable VMS and pairs with standard PoE-powered switches for simplified network architecture.

When to Choose a Different Model

If you require 40m+ IR range or subject identification at 100+ feet, a higher-resolution variant (5MP or 8MP) in the same outdoor dome family will deliver tighter detail. If vandalism risk is extreme and you're already fortifying the installation, the IK10-rated equivalent offers greater impact resistance. For applications requiring motorized zoom or dynamic pan-tilt capability, switch to a PTZ model in the Axis catalog.

Deployment Considerations

Confirm PoE switch capacity before deploying dozens of units; 13W per camera is low, but a 24-port switch with 95W total budget limits you to ~7 simultaneous feeds. Position IR illuminators to avoid glare on glass or reflective surfaces near the camera. Test object detection thresholds in your specific lighting conditions during commissioning—AI performance can vary in high-glare or low-contrast scenarios.

Frequently Asked Questions

Q: What's the maximum IR range on the 02918-001?

A: 20 meters (approximately 65 feet) with integrated 850nm IR illumination. Effective range depends on reflectivity of the target surface and ambient infrared interference.

Q: Does the 02918-001 support two-way audio?

A: Audio support is not listed in the specification evidence. Verify with the datasheet if two-way audio is required for your deployment.

Q: Can I power the 02918-001 with non-PoE supplies?

A: The camera is designed for PoE (802.3af) deployment. Non-PoE power alternatives are not detailed in the available specifications.

Q: Is the 02918-001 NDAA Section 889 compliant?

A: NDAA compliance status is not listed in the available product specifications. Contact the manufacturer or an authorized integrator for compliance verification if required for federal procurement.

Q: What codec options does the 02918-001 support?

A: H.265 (primary compression standard) and H.264 are supported, along with MJPEG and Axis Zipstream optimization for bandwidth reduction.

Q: Does the camera include a warranty?

A: Warranty terms are not specified in the product data provided. Verify the standard warranty with the manufacturer or specialty retailer at purchase.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02918-001 occupies a practical sweet spot: 4MP resolution is sufficient for most commercial identification scenarios, and the integrated object analytics eliminate a lot of the alert noise that kills 24/7 monitoring programs. The key differentiator here is the AI-powered human and vehicle classification—it's not just motion detection, which means you're not getting paged every time a leaf blows across the perimeter.

Technical Highlights:

• H.265 compression with Zipstream: Combination typically cuts storage 40–60% over H.264 in mixed-activity scenes. On a 90-day retention policy across 20 cameras, that's measurable—either smaller NVR storage or longer retention on the same hardware.
• 20m IR range with 850nm illumination: Covers standard parking and perimeter distances without external IR floods. Works in zero ambient light, which is essential for round-the-clock surveillance in rural or industrial sites.
• PoE draw under 13W: Low enough that a single 24-port managed PoE switch can handle 6–7 simultaneous cameras depending on switch power budget. Avoids separate 24V power infrastructure in retrofit scenarios.
• IP66/IK08 durability: IP66 stops rain and dust jets; IK08 resists impact equivalent to a 5kg steel ball dropped from 1.25m. Deploy in loading docks and exposed structures without reinforced housings.

Deployment Considerations:

• Object detection performance degrades in high-glare or backlit conditions—commission the camera on-site and tune detection thresholds before going live in glass-heavy environments.
• 20m IR is adequate for parking lots and perimeters but insufficient for long approach roads or high-rise monitoring; if you need 40m+ IR and tighter subject detail, step up to a higher-megapixel outdoor variant.
• 30 fps is smooth for forensic playback but doesn't capture ultra-high-speed activity (vehicle pursuits, rapid hand gestures at distance); most commercial deployments accept this tradeoff.

The 02918-001 is well-suited for mid-market warehouse, logistics, and light-industrial facilities where false-alarm reduction and practical durability matter more than premium resolution or exotic form factors. It's a camera that earns its cost through reliable operation and reduced operational burden—not through feature lists.

Key Specifications:
Color: White
