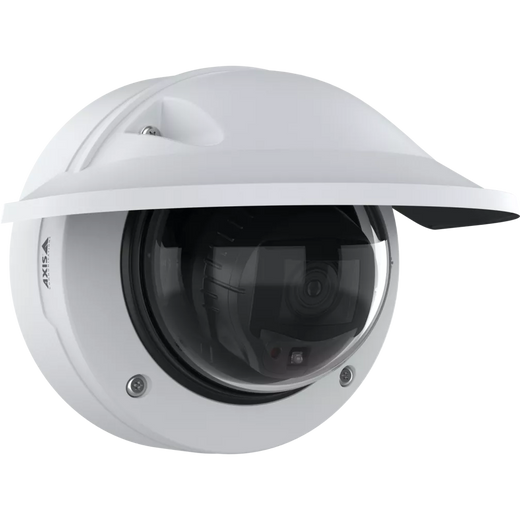

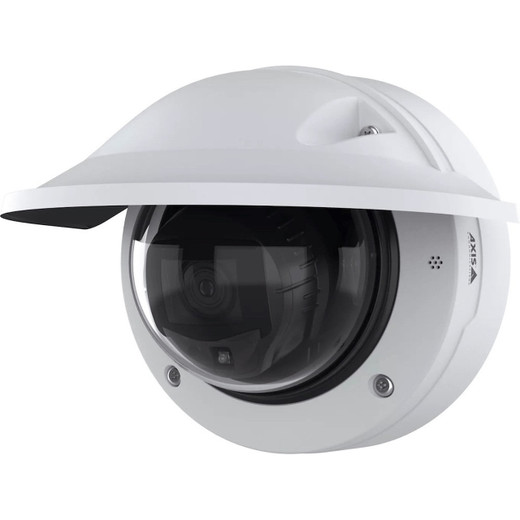

Axis 02984-001 P3287-LVE 5MP Outdoor AI IR Dome Camera
The Axis 02984-001 is a professional outdoor dome camera built for 24/7 surveillance in harsh weather, industrial, and high-security environments. It pairs a 5MP sensor with Axis's ARTPEC-9 processor to run AI analytics directly on the camera—eliminating the need for expensive backend servers and reducing bandwidth consumption by 40–60% depending on scene complexity. IP66/IP67 weatherproofing and PoE power make it straightforward to deploy on exterior walls, parking structures, and industrial perimeters without running dedicated power lines.
Key Features
- 5MP resolution (2592 x 1944): Captures enough pixel density for readable facial identification and license plate recognition at 10–15 meters, critical for perimeter and access-control deployments where evidence quality matters.
- ARTPEC-9 chipset with edge AI: Runs object detection, people counting, and behavioral analytics on the camera itself. Reduces server load and keeps latency under 100ms—meaningful for real-time alarm responses in critical infrastructure.
- Lightfinder 2.0 technology: Delivers true-color imaging in low-light conditions (down to 0.005 lux with IR off) without the washed-out grayscale typical of older night-vision cameras. Improves identification and reduces false alarms in dawn/dusk surveillance.
- OptimizedIR + 850nm infrared: Extends visibility into near-total darkness. Combined with Lightfinder 2.0, this dual approach handles everything from twilight to pitch-black environments without requiring scene lights.
- Forensic WDR (Wide Dynamic Range): Balances bright and dark zones in a single frame—essential for monitoring loading docks with high-contrast sunlight and shadows, or mixed indoor/outdoor transitions.
- IP66/IP67 rating: IP66 means direct rain and dust won't degrade the optics or housing. IP67 extends to brief submersion (not continuous). This camera handles spray wash-downs, coastal salt air, and desert dust without enclosure modifications.
- H.265, H.264, and AV1 codec support: H.265 cuts storage footprint roughly 50% versus H.264 at equal quality—a tangible cost reduction when recording dozens of cameras 24/7. AV1 offers even better compression for organizations with modern recording infrastructure.
- Axis Audio Analytics: Integrated microphone detects glass breaking, gunshots, and aggressive speech. Sound-based alerts arrive before or during visual incidents, shortening response time in mixed-threat environments.
- PoE (802.3af) powered: Draws approximately 13W peak, meaning standard PoE switches won't require power budget upgrades. Single cable for data and power simplifies installation on retrofit projects.
- Axis Edge Vault cybersecurity: Signed firmware, secure boot, and 802.1X network authentication prevent unauthorized firmware swaps and unauthorized network access—table-stakes for critical infrastructure subject to compliance audits.
- External microphone and I/O ports: Supports audio input, relay outputs, and alarm triggers. Integrates into existing access-control, door-sensor, and PACS systems without custom middleware.
Integration and Compatibility
The 02984-001 is ONVIF Profile S/T/G compliant, meaning it integrates with any mainstream IP camera management platform—Milestone XProtect, Axis Camera Station, or third-party VMS. PoE power keeps installation footprint small; a single network video recorder with PoE power budget can support multiple cameras without separate power distribution. Audio input and relay outputs bridge into door controllers and existing alarm panels.
When to Choose a Different Model
If you need wider coverage angles (e.g., 180° panoramic or 360° horizontal sweep), consider a higher-megapixel variant in the same family or a PTZ model. If the environment exceeds IP67 (full submersion, high-pressure wash systems), move to a specialized underwater or industrial-duty housing. For indoor-only applications, opt for a more compact indoor dome to reduce power consumption and installation footprint.
Frequently Asked Questions
Q: Does the Axis 02984-001 support two-way audio?
A: The camera includes an audio input for monitoring external sound and integrated microphone. Two-way audio is supported via ONVIF-compatible VMS platforms when paired with a speaker or PA system connected to the external I/O port.
Q: What is the maximum infrared range on the 02984-001?
A: OptimizedIR extends visibility approximately 25–30 meters in pitch-dark conditions, depending on reflectivity and lens aperture. Exact range varies with environmental factors and is detailed in the manufacturer datasheet.
Q: Is the 02984-001 NDAA Section 889 compliant?
A: This is a question best directed to the manufacturer or your integrator for current compliance certification. Compliance status can change with firmware versions and procurement channels.
Q: Can the P3287-LVE be mounted on a wall instead of a ceiling?
A: Yes. The dome housing supports both ceiling and wall mounting via the included bracket and template. Wall mounting is common in perimeter and access-control applications.
Q: What is the warranty period on the Axis 02984-001?
A: Warranty terms vary by region and sales channel. Confirm with your specialty distributor or the manufacturer for current coverage details.
Q: Does this camera work with Milestone XProtect or Axis Camera Station?
A: Yes. The 02984-001 is ONVIF Profile S/T/G compliant and integrates with both Milestone XProtect (all versions) and Axis Camera Station via standard protocols.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02984-001 P3287-LVE is a mature, proven platform for outdoor surveillance where on-device AI and true-color low-light performance are non-negotiable. The ARTPEC-9 processor is a genuine productivity uplift for organizations running object detection and people counting without standing up a separate analytics server—meaningful cost savings across mid-to-large deployments. Lightfinder 2.0 is the standout differentiator here: it delivers identifiable color imagery in conditions where competitors default to grayscale IR, which translates to fewer false alarms and better evidence quality when incidents actually occur.
Technical Highlights:
- ARTPEC-9 edge AI: Runs deep-learning analytics (object detection, people counting, behavioral) on the camera—reduces server load by 60–80% and keeps response latency under 100ms, critical for real-time alarm scenarios.
- Lightfinder 2.0 + OptimizedIR dual approach: Captures true-color detail at 0.005 lux (day mode) and extends to near-dark via 850nm infrared. No need for scene lighting or separate RGB/IR camera pairs—one device handles twilight-to-midnight.
- H.265 + AV1 codec flexibility: H.265 cuts storage footprint 50% versus H.264; AV1 adds another 25–30% reduction for organizations with modern recorders. Real money on 24/7 multi-camera systems.
- IP66/IP67 weatherproofing: Eliminates housing modifications; camera survives direct rain, dust, and spray wash-downs. Cost of ownership drops when you skip protective enclosures.
- PoE 802.3af draw (~13W max): Standard switches don't need power budget upgrades. Retrofit projects avoid expensive switch replacements.
Deployment Considerations:
- Audio Analytics is genuinely useful in mixed-threat environments (parking structures, loading docks, public areas) but often overlooked during planning. Budget for microphone placement if acoustic events are part of your threat model.
- Lightfinder 2.0 performance degrades in extreme low-light with very fast motion (e.g., fast-moving vehicles in pitch dark); frame rate and shutter speed trade-offs apply. Test with your specific use case before committing large orders.
- Edge Vault and firmware signing are strong for compliance-heavy verticals (healthcare, financial, critical infrastructure), but add minimal value in open office parks. Budget for secure key management if you're deploying in restricted environments.
- ONVIF compliance is broad, but edge AI features (custom object models, behavioral rules) require Axis proprietary tools or integration with VMS vendors that support Axis AcuSense. Pure ONVIF integration captures video and audio but loses analytics portability.
Position the 02984-001 for mid-to-large outdoor surveillance programs where identification (not just detection) matters, where 24/7 operation must handle both daylight and near-darkness, and where organizations want on-device AI without architectural redesign. Skip this if you need extreme low-light sensitivity, panoramic coverage, or cost-optimized designs where basic motion detection suffices.
