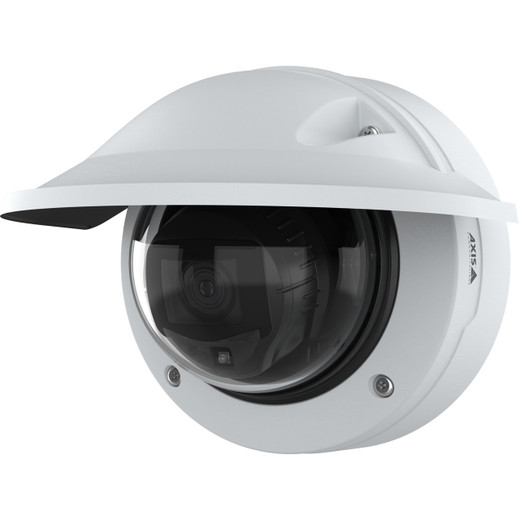

Axis 03153-001 P3277-LVE 5MP Outdoor AI IR Dome Camera

The Axis 03153-001 is a purpose-built outdoor surveillance dome combining 5MP forensic-grade resolution with integrated AI object detection and low-light imaging. Deployed in perimeter security, critical infrastructure, and industrial environments where 24/7 color or thermal visibility matters and external lighting infrastructure is not practical or desirable.

Key Features

• 5MP Resolution (2592 x 1944) at 30 fps: Delivers the pixel density needed for facial and vehicle plate recognition at typical outdoor distances. 30 fps ensures smooth motion playback and reduces forensic blind spots in high-traffic areas.
• Lightfinder 2.0 Technology: Preserves color detail in near-darkness without noise artifacts—critical for identifying vehicle colors or clothing in low-ambient-light perimeter zones. Reduces reliance on supplementary illumination.
• OptimizedIR with 40m (131 ft) Infrared Range: Integrated 850nm IR eliminates the operational cost and complexity of external lighting rigs. At 40m, coverage extends across parking lots and fence lines without dark spots. No separate power supply required.
• Forensic WDR (Wide Dynamic Range): Handles extreme contrast—sunlit reflections on water, vehicle headlights, or backlit entry gates—without washing out shadow detail. Essential for outdoor scenes with mixed lighting.
• H.265 Compression (Multi-Codec Support): H.265 cuts storage and bandwidth consumption by 40–60% versus H.264 on the same quality level, meaningful on 24/7 multi-camera recorder installations. Fallback to H.264 or AV1 ensures codec flexibility across legacy and modern NVR platforms.
• ARTPEC-8 Edge AI Analytics: On-camera object detection and classification (people, vehicles, animals) filter false alarms from wind-blown debris or shadows before alerts reach your NVR. Reduces alert fatigue and storage overhead from irrelevant clips.
• IP66 / IK10 Rating: IP66 blocks direct rain and airborne dust; IK10 withstands vandalism attempts and impact from landscaping equipment. Suitable for fence-top, rooftop, or pole mounting in uncontrolled outdoor environments.
• PoE (IEEE 802.3af) at <13W Max: Draws standard PoE power—no separate 12VDC injector or power supply installation. Won't overload a shared PoE switch serving 20+ cameras.
• 3.4–8.9mm Motorized Lens: Auto-iris and motorized zoom let integrators frame coverage remotely during commissioning and adjust for seasonal foliage or structural changes without site visits.
• Audio and I/O Connectivity: Supports external alarm contacts and audio input—enables integration with buzzer systems, intercoms, or gate controllers in a single cable run.
• Axis Edge Vault: Cryptographic device identity and signed firmware prevent unauthorized firmware injection—relevant for zero-trust security architectures and compliance-heavy deployments (utilities, finance, healthcare).

Integration & Compatibility

The 03153-001 operates as an ONVIF-compliant network camera, integrating with any NVR or video management system supporting RTSP or ONVIF Profile S/T. Edge analytics run locally on the ARTPEC-8 processor, reducing bandwidth load on your core recording infrastructure. Two-way audio and relay outputs enable PoE-powered integration with external sensors and alarm systems without supplementary wiring.

Deployment Contexts

Typical use cases include outdoor perimeter surveillance (fence lines, rooftop monitoring), access control integration (entry gate or parking gate recording), critical infrastructure (utility substations, water treatment plants), and transportation facilities (parking areas, toll plazas, loading docks). The combination of Lightfinder 2.0 and OptimizedIR eliminates the operational burden of maintaining external lighting rigs in large perimeter deployments, directly reducing total cost of ownership.

Frequently Asked Questions

Q: Does the Axis 03153-001 support two-way audio?

A: Yes. The P3277-LVE includes audio input and output connectivity, enabling two-way intercom or alarm notification integration with compatible VMS platforms.

Q: What is the maximum IR range on the 03153-001?

A: The OptimizedIR illumination reaches 40 meters (131 feet), sufficient for most perimeter and facility surveillance. Beyond 40m, IR wash-out occurs; supplementary lighting may be required for longer distances.

Q: Is the 03153-001 suitable for submersion or continuous water spray?

A: The camera is rated IP66, which handles rain, dust, and hose-down scenarios. For full submersion or continuous water jet exposure, an IP67 or higher-rated model is required.

Q: Can the lens zoom be adjusted remotely?

A: Yes. The 3.4–8.9mm motorized lens supports remote focus and zoom adjustment via the VMS or Axis camera interface, allowing commissioning and re-framing without a site visit.

Q: How much PoE power does the 03153-001 consume?

A: Maximum power draw is under 13 watts, fitting within the IEEE 802.3af PoE specification (15.4W per port). This permits deployment on budget PoE switches without power budget concerns when installing 20 or more cameras.

Q: Does the 03153-001 perform object classification at the edge?

A: Yes. The ARTPEC-8 processor runs on-camera AI analytics for people, vehicle, and animal detection, reducing false-positive alerts and unnecessary NVR storage from irrelevant scene motion.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03153-001 is a mature outdoor surveillance workhorse that balances computational intelligence with optical performance. The pairing of Lightfinder 2.0 and OptimizedIR 40m is the real differentiator—it eliminates the operational overhead and capex of external lighting rigs entirely. On a 500-meter perimeter, that translates to zero maintenance on pole-mounted floods and lower total power consumption. ARTPEC-8 edge analytics shrink false-positive alert noise from dynamic outdoor scenes; pair it with a recording policy that filters on detection class, and your NVR storage footprint drops measurably.

Technical Highlights:

• H.265 Compression: Reduces bitrate 40–60% versus H.264 on the same quality—real money on 24/7 recording across 16+ cameras. Multi-codec fallback keeps integration simple on heterogeneous VMS platforms.
• Forensic WDR + Lightfinder 2.0: Handles backlit outdoor scenes (sun reflections, vehicle headlights) and near-darkness without supplementary illumination. Critical for entry gates and parking areas where lighting is poor or uneven.
• PoE (IEEE 802.3af, <13W): Standard PoE eliminates the cost and wiring of separate 12VDC supplies. Scales cleanly on budget PoE switches for 30+ camera sites.
• Edge AI (ARTPEC-8): Object detection and classification run on-camera. Filters wind, shadows, and fauna before alerts reach your NVR, cutting false-positive volume and storage overhead.
• IP66 / IK10: Withstands unattended outdoor mounting—rain, dust, animal contact, and accidental equipment impact. No weatherproof enclosure needed.

Deployment Considerations:

• IR range is 40m—sufficient for parking lots and fence lines, but inadequate for perimeter surveillance beyond 150 feet without supplementary lighting. Know your coverage distance before installation.
• PoE power is tight at <13W; if you're running simultaneous two-way audio or external relay loads, monitor actual draw. Axis specs are conservative, but don't assume headroom.
• Motorized lens adds complexity during commissioning—budget time for remote focus and zoom calibration. Once set, maintenance is minimal.
• Edge Vault signing requires firmware updates through Axis official channels. Plan for regular patching cycles if your deployment is in a zero-trust security architecture.

The 03153-001 is the right choice for outdoor perimeter surveillance where lighting infrastructure is impractical or cost-prohibitive, and where on-camera intelligence can meaningfully reduce false-positive alert load. Utility substations, critical infrastructure, large parking facilities, and industrial compounds all fit. For indoor access control or low-motion environments, consider a lower-cost fixed model in the Axis catalog.

Key Specifications:
Color: White
