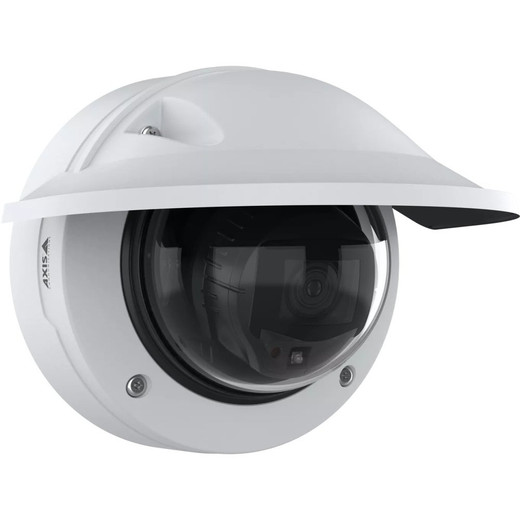

Axis 03213-001 5MP Varifocal Dome Camera

Overview

The Axis 03213-001 is a professional indoor dome camera purpose-built for environments where optical flexibility and forensic-grade image quality are non-negotiable. The 5MP (2592 × 1944) sensor pairs with a motorized varifocal lens spanning 3.0–8.5 mm, delivering horizontal fields of view from 104° down to 34° without dismounting the camera. This alone saves significant labor on repositioning cycles. IP66 sealing and IK10 vandal rating protect against dust and impact; the operating temperature range of −40° to 50°C ensures performance in cold warehouses and hot mechanical rooms alike. This is not an entry-level choice—it's engineering-grade surveillance for critical infrastructure, high-traffic retail, and forensic evidence capture where every pixel matters.

Key Features

• 5MP Resolution with Multi-Stream Output: Captures at 5MP (2592 × 1944) up to 30 fps with support for up to 20 individually configurable video streams. One stream can run at high bitrate for forensic playback, another at low bitrate for motion-triggered archival, and a third as a live monitoring feed—all from a single camera—without forcing network duplication or transcoding overhead.
• Varifocal 3.0–8.5 mm Lens with Remote Control: The motorized varifocal lens adjusts focal length via network commands; no on-site visits to reposition or refocus. P-Iris auto-iris and IR-corrected autofocus compensate for changing ambient light and environmental thermal shifts. In retail or warehouse deployments where camera sight lines may shift with seasonal inventory repositioning, this eliminates expensive service calls.
• Forensic WDR (Wide Dynamic Range, 120 dB): Captures up to 120 dB of dynamic range in a single frame without frame averaging. High-contrast scenes—sunlit glass doors adjacent to shadowed interiors, or bright vehicle windows against dark parking lot surfaces—render facial and license-plate detail simultaneously. This is forensic-grade evidence capture, not just surveillance footage; the image holds detail in both highlights and shadows in ways fixed-exposure cameras cannot.
• Lightfinder 2.0 Low-Light Sensitivity: Delivers full-color video at 0.1 lux and monochrome at 0.03 lux without any infrared. When the built-in 850 nm IR illumination is active (1 meter range), the camera operates at 0 lux—true darkness coverage. The infrared cut filter automates the day/night transition, preventing false color artifacts during twilight transitions that confuse analytics and storage systems.
• H.265 and H.264 Codec Support: H.265 (HEVC) compression reduces stored file size roughly 40–60% compared to H.264 at equivalent quality. On a 24/7 multi-camera system with dozens of cameras, that difference compounds into thousands of gigabytes of annual storage savings and proportional bandwidth relief on constrained WAN links. H.264 fallback ensures backward compatibility with legacy network video recorders and VMS platforms that do not yet support H.265.
• PoE+ Powered (802.3at Class 3): Draws approximately 12.95W via standard PoE+ injectors over a single Ethernet cable—no separate 12V power supplies, no dual conduit runs, no power conditioning complexity. The integrated microSD card slot (capacity dependent on card) provides local failover recording if the network segment experiences an outage, preventing blind spots during infrastructure maintenance or failure recovery.
• Enterprise Security Architecture: Signed firmware, secure boot, HTTPS encryption, and optional 802.1X network authentication prevent unauthorized configuration changes and firmware tampering. Long-term manufacturer support ensures vulnerability patches are available for years after deployment, critical for systems that must remain operational across multi-year procurement cycles.
• ONVIF Profile S/T/G Compliance: Integrates with third-party video management systems including Milestone XProtect, Genetec, Hanwha SmartVMS, and others. You are not locked into proprietary Axis ecosystem software; camera APIs remain standardized and portable.

When to Choose This Model vs. Alternatives

Choose the 03213-001 if you need optical zoom without PTZ mechanical complexity, and the deployment demands both high resolution and forensic-grade low-light performance. The varifocal lens covers wide-to-telephoto framing without motors or gearboxes, reducing wear and maintenance compared to pan-tilt-zoom cameras in cost-constrained environments. Skip this model if you require motion tracking or rapid horizontal pan—that demands a dedicated PTZ unit. If the scene is well-lit and fixed framing is acceptable, a lower-cost fixed-lens dome camera will reduce BOM cost without sacrificing image quality for that specific use case.

Integration & Compatibility

The 03213-001 integrates with any ONVIF-compliant NVR, VMS, or edge storage system. Axis Camera Station supports it natively; third-party platforms consume the camera's RTSP/ONVIF stream for live view and recording. PoE+ power delivery from enterprise-grade switches (48V, 30W minimum per port) ensures stable operation under sustained load. In bandwidth-constrained environments, H.265 streams reduce network overhead by half, often eliminating the need for costly WAN upgrades on multi-site deployments.

Frequently Asked Questions

Q: What is the maximum IR illumination range on the 03213-001?

A: The built-in 850 nm infrared illuminator provides 1 meter of illumination range. Beyond that distance, the camera relies on Lightfinder 2.0 low-light sensitivity (0.03 lux monochrome) to capture grayscale video without IR. For longer-range night coverage, pair this camera with external IR illuminators or select a model with extended IR range.

Q: Does the 03213-001 work with Milestone XProtect and Genetec?

A: Yes. The camera complies with ONVIF Profile S, T, and G, making it compatible with any standards-based VMS. Milestone XProtect and Genetec both consume ONVIF streams natively. No proprietary plugins or drivers are required.

Q: How much does H.265 compression actually reduce storage?

A: H.265 typically delivers 40–60% smaller file sizes than H.264 at equivalent visual quality. On a system recording 24/7 from 16 cameras, that difference often amounts to 2–3 TB annual savings. The exact ratio depends on scene complexity (static backgrounds compress better than moving crowds).

Q: What is the lens field of view range?

A: The 3.0–8.5 mm varifocal lens spans 104° horizontal field of view (wide) to 34° horizontal field of view (telephoto). You adjust the focal length remotely without physically moving the camera.

Q: Can I mount the 03213-001 on a wall, or is it ceiling-only?

A: The dome form factor is suitable for both ceiling and wall mounting. Consult the installation guide for bracket and conduit routing specific to your mount orientation.

Q: What happens to video if the network goes down?

A: The camera includes a microSD card slot for local edge storage. If the network segment fails, the camera continues recording to the card. Once the network restores, footage syncs back to the NVR or VMS. Card capacity limits local buffer duration—typically hours to days depending on resolution and frame rate chosen.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03213-001 is a sharp choice for deployments where lens flexibility matters but space or cost rules out full PTZ. The 3.0–8.8 mm varifocal range gives you genuine optical zoom—104° wide to 34° tight—without gearbox wear or the power draw of continuous-duty pan-tilt motors. Pair this with forensic WDR (120 dB) and Lightfinder 2.0, and you've got a camera that genuinely captures courtroom-ready detail in mixed lighting that would flatten lesser sensors into useless silhouettes.

Technical Highlights:

• Forensic WDR (120 dB): Renders facial and vehicle license-plate detail in high-contrast scenes—sunlit storefronts against dark interiors, bright vehicle windows against parking lots—without frame blending artifacts. This is the difference between evidence you can use and footage that's defensible only in controlled lighting.
• Lightfinder 2.0 (0.1 lux color / 0.03 lux mono / 0 lux IR): True night operation without adding external IR infrastructure. The 850 nm illuminator covers 1 meter; beyond that, Lightfinder preserves monochrome detail in near-total darkness. On warehouse or retail perimeters, this eliminates the cost and maintenance of separate IR floodlights.
• H.265 compression (40–60% file reduction vs. H.264): On a 24/7 multi-camera system, H.265 cuts storage footprint and bandwidth by nearly half. Over a 5-year retention cycle, that's a real cost multiplier—thousands of dollars on large installations. H.264 fallback keeps legacy NVRs in play.
• PoE+ (12.95W): Single Ethernet cable, no power conditioning, no dual conduit runs. Fits neatly within standard 802.3at budgets on modern enterprise switches; doesn't crowd your power budget if you're running a dozen cameras on a single PoE+ switch.

Deployment Considerations:

• The 1 meter IR range is short. If your dark zones extend beyond arm's reach from the camera, budget for external illumination or accept monochrome-only performance via Lightfinder. This is not a limitation—it's an engineering tradeoff. Many indoor retail and warehouse deployments have adequate ambient light or supplemental floodlights already installed.
• At 5MP, framerate and storage footprint scale with scene complexity. A busy retail floor at 30 fps will consume more storage than a static warehouse aisle at 10 fps. Commission your NVR storage with H.265 bitrate modeling, not generic 5MP assumptions.
• The varifocal lens requires network access to adjust focus and zoom. If your camera management network is isolated from operational IT, you'll need to plan remote zoom/focus workflows into your provisioning process. One-time setup cost, ongoing convenience gain.

Best fit: Retail loss prevention, warehouse perimeter monitoring, critical infrastructure entry points, and forensic evidence capture where fixed framing is inadequate but full PTZ complexity is unwarranted. The 03213-001 delivers optical flexibility and forensic image quality at a lower ownership cost than comparable PTZ units, assuming your scenes don't require 360° motion tracking.
