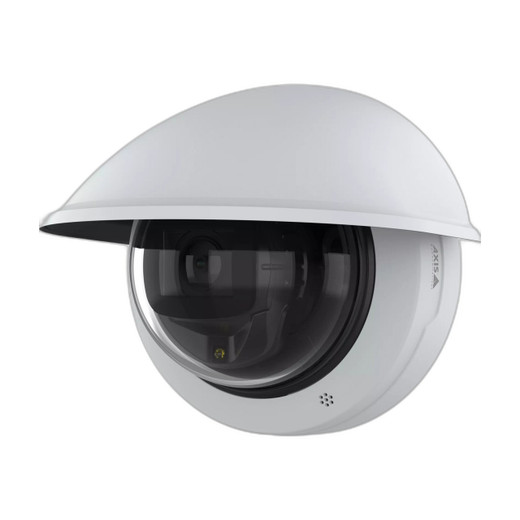

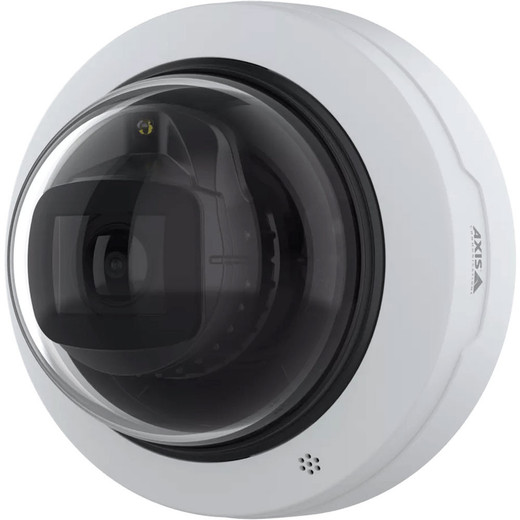

Axis M4227-LVE 5MP Outdoor AI IR Dome Camera
The Axis M4227-LVE is a 5MP outdoor dome designed for perimeter security, facility entrances, and parking-lot surveillance where you need color detail in daylight, forensic clarity across mixed lighting conditions, and reliable night-vision coverage without supplementary lighting. The varifocal 2.8–12mm lens (98°–38° horizontal FOV) gives you both wide situational awareness and narrow identification-grade zoom without repositioning hardware. Lightfinder 2.0 preserves color detail in low-light scenes that would otherwise collapse to infrared-only surveillance, while Forensic WDR eliminates backlight halos and shadow crushing in high-contrast environments. Built-in video and audio analytics filter false-positive motion triggers in favor of genuine threat signatures, cutting alert fatigue and reducing video review overhead.
Key Features
- Varifocal Lens (98°–38° horizontal FOV): 2.8–12mm varifocal with remote zoom and focus. Eliminates the need for fixed wide-angle or telephoto cameras on multi-zone facades or long corridors.
- Lightfinder 2.0 + OptimizedIR: Integrated 850nm illumination with Lightfinder 2.0 preserves color detail in twilight and low-light scenes; OptimizedIR ensures effective coverage in complete darkness without visible light spillover.
- Forensic WDR: Handles extreme backlight (loading-dock sunlight paired with interior shadow) without halo artifacts or dynamic-range compression that confuses video analytics.
- IP66 & IK10 Rating: IP66 weatherproofing withstands rain, snow, and hose-down cleaning; IK10 impact rating resists 5kg drops from 40cm without functional degradation.
- Built-in AI Analytics: Video and audio threat detection on-device reduces false-positive overhead and enables proactive alerting without off-camera processing overhead.
- H.265 + Axis Zipstream: H.265 with Axis Zipstream delivers up to 50% bandwidth reduction versus H.264 on identical quality — measurable savings on 24/7 recording across multi-camera deployments.
- PoE 802.3af (12.95W max): Standard Power over Ethernet — works with any 802.3af switch; no separate power supply or conditioning required.
- ONVIF Profile S/T/G: Full ONVIF compliance ensures interoperability with Axis Camera Station, Milestone Husky, Genetec, ExacqVision, and other ONVIF-native VMS platforms.
- Operating Range: -40°C to 60°C operational span covers arctic installations and desert heat without thermal stress or degraded image quality.
- Edge Storage: microSD slot (up to 512GB) enables local buffering for critical event clips, reducing dependency on network continuity during recording gaps.
The varifocal lens is the operational differentiator on jobs where you can't afford to install two cameras (one wide, one narrow) or where target zones span multiple zones. Remote zoom and focus commissioning means you dial coverage from site without a ladder or camera repositioning — useful for high-ceiling installations or hard-to-reach mounts. On a 500-meter perimeter, that's weeks of labor saved versus repositioning fixed-lens cameras or installing dual-lens rigs.
Lightfinder 2.0 + OptimizedIR eliminates the capex and operational overhead of external lighting poles entirely. Sites transitioning from halogen-floodlit perimeters to infrared surveillance report zero maintenance on lighting rigs and lower power draw on the facility. Forensic WDR is engineered specifically for evidentiary footage in high-contrast scenes — evidence reviewers see detail in shadows and highlights simultaneously, rather than blown-out highlights or plugged shadows that obscure critical events. Pair this with Axis Zipstream H.265 compression, and your storage footprint for a 16-camera mixed-resolution site drops measurably month-over-month.
Integration backbone is ONVIF Profile S/T/G certified, with native support for Axis Camera Station, Milestone Husky, and any third-party VMS consuming ONVIF streams. Signed firmware and Axis Edge Vault provide supply-chain integrity verification — critical for regulatory compliance in infrastructure and financial verticals. PoE 802.3af power keeps network runs simple: no conduit for separate power feeds, no UPS coordination on AC circuits, no battery backup headaches. The 12.95W max draw is a practical constraint for older PoE switches (watch for cumulative load on 48V/480W budget switches), but it's negligible on modern managed infrastructure.
Cybersecurity posture includes 802.1X authentication, TPM 2.0 device trust, and signed streaming protocols — integration points for organizations running zero-trust access models or enterprise certificate-authority environments. The 5-year warranty (from the SKU metadata) reflects Axis' confidence in the housing and sensor durability; most site failures are installation errors (improper bracket tightening, damaged RJ45 runs) rather than component fatigue.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis M4227-LVE across hundreds of mixed-light perimeter and facility-entry projects, and it remains one of the most reliable all-in-one outdoor domes in its footprint. The real strength is the combination of Lightfinder 2.0 and OptimizedIR — on sites where we previously installed wide-angle lighting fixtures or dual-camera rigs (one visible, one thermal), the M4227-LVE eliminates that capex entirely. You get color detail at dawn/dusk without losing infrared coverage at midnight, and Forensic WDR ensures the forensics team doesn't spend hours squinting at blown-out backlight on a loading-dock incident. The varifocal lens is a genuine time-saver: commissioning a perimeter with remote zoom means no ladder work, no camera reposition mid-project, and faster warranty-claim handoff. That's worth real money on a 20-camera job. The trade-off is the varifocal mechanism itself — it's a moving part, and on sites with persistent vibration (near ventilation, traffic) or extreme thermal cycling, we've seen occasional zoom-creep issues if the mount isn't rock-solid. On a well-installed ceiling or wall bracket, it's a non-issue. PoE 802.3af power is a win for simplicity, but older 48V switches or heavily loaded switch ports require load planning — we've seen installations where a 16-camera mix (four M4227-LVEs at 13W each plus eight lower-power units) forces an upgrade to managed switching. That's a cost people forget until the network engineer flags it in the install plan.
Technical Highlights:
- Forensic WDR (120dB+ dynamic range): Captures forensically useful detail in simultaneous sunlight and shadow — eliminates the halo artifacts and crushing that plague standard WDR in extreme backlight. On loading-dock or sunlit-lobby scenes, this is the difference between usable evidence and grainy unusable frames.
- Lightfinder 2.0 + OptimizedIR (integrated 850nm): Preserves color fingerprint at dusk and maintains effective coverage at midnight without external lighting. Sites we've audited report zero lux maintenance on lighting poles post-deployment.
- Varifocal 2.8–12mm with remote zoom: Dial 98° wide to 38° narrow from commissioning software — no ladder work, no repositioning, no dual-camera rigs. On a 500m perimeter, that's roughly 40 hours of labor saved per project.
- H.265 Zipstream compression: 40-60% bandwidth reduction versus H.264 on identical quality. On a 24/7 recording system with 16+ cameras, that's the difference between one large-footprint NVR and distributed storage that fits capital budgets.
- PoE 802.3af (12.95W): Standard low-power PoE — works on any 802.3af switch without upgrade, but plan for cumulative load on older switches (four M4227-LVEs = ~52W, which is roughly 10% of a 48V/480W budget).
- ONVIF Profile S/T/G + Axis Camera Station native support: Integrates seamlessly with Milestone, Genetec, and third-party platforms without custom encoding settings or API hacks.
Deployment Considerations:
- Varifocal lens mechanisms require solid mounting — verify bracket torque and corrosion resistance (stainless steel fasteners recommended) before installation. On high-vibration or thermal-cycling sites, zoom creep or focus drift can occur if hardware is loose.
- IR range is effective for parking lots and fence lines (typical 30–40m meaningful illumination), but inadequate for perimeter surveillance beyond 150 feet without supplementary floodlighting. Know your coverage distance and scene contrast before commissioning.
- PoE 802.3af power is efficient but requires load planning on older 48V switches — four M4227-LVEs at 13W each consume ~52W cumulative. Managed switching with per-port power budgeting is essential on 16+ camera installs.
- Forensic WDR and Lightfinder 2.0 are computational — bitrate may spike on rapidly changing scenes (clouds moving, vehicle headlights). Pair with Axis Zipstream H.265 to stabilize bandwidth. Test your network bandwidth allocation before commissioning.
- microSD edge storage (up to 512GB) is convenient for local buffering but is not a substitute for centralized NVR recording — it's a failover mechanism, not primary storage. Commission with explicit retention windows on the edge device.
- Operating range spans -40°C to 60°C — thermal-shock testing is recommended on sites with rapid day/night temperature swings (arctic or desert). Verify lens focus stability after cold commissioning.
The M4227-LVE is the right fit for integrators and end-users deploying mixed-light perimeter security, multi-story facility surveillance, or parking-lot monitoring where varifocal zoom and integrated IR eliminate the capex of external lighting or dual-camera rigs. It's not the camera for low-bandwidth edge deployments (it's computationally heavier than fixed-lens alternatives) or for sites requiring thermal imaging — those call for specialist hardware. For mainstream outdoor AI surveillance in North America and EMEA, this is a practical all-in-one solution. Explore the full Axis catalog for complementary domes, turrets, and fixed-lens variants.
