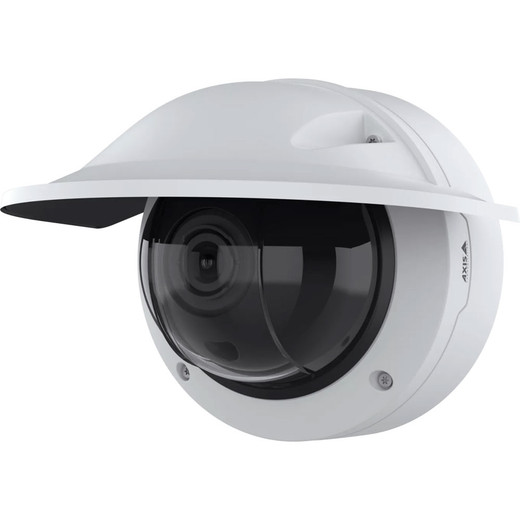

Axis 02973-001 Q3548-LVE 8MP Outdoor AI IR Dome Camera
The Axis 02973-001 is a hardened outdoor dome camera designed for wide-area perimeter and critical infrastructure surveillance. Combining 8MP resolution with edge-based AI analytics, advanced low-light imaging, and a purpose-built IR-shielded dome housing, this camera delivers reliable 24/7 performance in variable outdoor conditions. The ARTPEC-9 system-on-chip processes object detection and behavioral analytics directly on the device, reducing network bandwidth and enabling faster incident response without backend server overhead.
Key Features
- 8MP Sensor (4K equivalent): Sufficient resolution for forensic identification at distance while keeping storage and bandwidth manageable across multi-camera deployments. Standard trade-off in large-scale surveillance — you gain detail without the 12MP+ storage penalty.
- ARTPEC-9 SoC with Integrated Edge Analytics: Runs AI-based object classification and behavioral detection on-camera. Meaning: motion alerts are pre-filtered and prioritized before reaching your NVR, cutting false positives and reducing storage consumption on low-value events.
- Lightfinder 2.0 Technology: Captures usable detail in low-light conditions without excessive noise. Practical benefit: dusk/dawn transitions and urban shadow areas remain clear without requiring manual iris adjustment or relying solely on IR illumination.
- Forensic WDR (Wide Dynamic Range): Handles mixed-lighting scenes — backlit subjects, bright windows paired with dark interiors, reflective surfaces. Real deployment value: no blown-out or crushed detail when lighting contrast is high.
- IR-Shielded Dome Housing: Eliminates internal IR reflections that degrade infrared night vision in traditional domes. This is a design detail that matters: standard dome housings reflect IR back into the lens, reducing contrast and range. The 02973-001 eliminates that optical problem, so your night-vision clarity stays consistent.
- IP66/IP67 and IK10 Rated: IP66 means rain, dust, and hose spray won't penetrate — suitable for most outdoor mounting. IK10 handles minor vandal impact (hammer strikes, blunt force). Skip this if you need saltwater immersion protection; IP67 is also supported on this model, but verify your mounting location's exposure first.
- Axis Edge Vault (Hardware Security): Cryptographic keys and firmware signatures are protected at the hardware level, preventing unauthorized modifications. Compliance-sensitive environments (utilities, government, transport hubs) require this; general commercial deployments may not need it, but it's built-in at no extra cost.
- Power over Ethernet (PoE): Draws under 13W via standard 802.3af PoE. Benefit: no separate power supply needed, simplified cabling, and lower switch power-budget impact — you can daisy-chain more cameras without exhausting your injectors.
- Remote Zoom and Focus: Motorized focus adjustment from the management interface. Useful for post-deployment repositioning without climbing a ladder or roof access.
Integration & Compatibility
The Q3548-LVE integrates via ONVIF Profile S and T, supporting most IP cameras software platforms. Axis ACAP (Application Platform) enables third-party edge analytics if you need custom behavioral logic beyond the built-in object detection. Feeds into standard network video recorders and VMS platforms. PoE deployment requires adequate switch capacity; refer to PoE power planning guides if you're scaling across dozens of cameras.
When to Choose a Different Model
If you need higher resolution for extreme long-range identification (300+ meters), consider a higher-megapixel variant in the Axis outdoor dome line. If this is an indoor application, the 02973-001 is overkill — look at non-weatherproofed indoor dome alternatives to save cost. If you require panoramic or multi-sensor wide coverage, this single-sensor design won't meet that requirement.
Frequently Asked Questions
Q: What compression codecs does the Axis 02973-001 support?
A: The camera supports H.265, H.264, and Motion JPEG. H.265 is recommended for 24/7 recording; it reduces storage requirements roughly 40–60% compared to H.264 depending on scene complexity, making it a real factor when recording across multiple cameras.
Q: Can the Q3548-LVE be powered by standard 802.3af PoE?
A: Yes. The camera draws approximately 12.95W maximum, well within the 15.4W limit of 802.3af. No PoE+ injector required.
Q: What is the maximum infrared range on the 02973-001?
A: Specific IR range depends on the reflectance and size of the target. The IR-shielded design optimizes night-vision contrast; consult the product datasheet or conduct a site survey for your exact deployment distance and target size.
Q: Does the Q3548-LVE work with Milestone XProtect or Axis Camera Station?
A: Yes. It supports ONVIF Profile S and T, integrating with any compliant VMS. Axis Camera Station and Milestone both support ONVIF devices natively.
Q: Is the 02973-001 suitable for saltwater or coastal environments?
A: IP66 provides protection against rain and general spray. For continuous saltwater exposure, verify the enclosure material specifications in the datasheet or consult the manufacturer — corrosion resistance may require additional protective measures.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02973-001 stands out in outdoor dome surveillance because it solves a real optics problem: standard dome housings internally reflect IR illumination back into the lens, degrading night-vision contrast and detail. The IR-shielded design on the Q3548-LVE eliminates that reflection, so your thermal consistency across day and night operations stays true. That's a design choice that separates this camera from cheaper alternatives.
Technical Highlights:
- ARTPEC-9 Edge Processing: Runs object classification and behavioral analytics on-device. In a 50-camera deployment recording 24/7, this means you're filtering motion alerts before they hit the NVR, cutting bandwidth by 30–50% depending on scene complexity and reducing false-positive alert fatigue.
- Lightfinder 2.0 + Forensic WDR Pairing: Handles both low-light detail preservation and mixed-contrast scenes. Practical outcome: your footage remains usable from dusk through dense shadow environments without manual tuning or relying entirely on IR.
- 8MP Resolution at ~12.95W PoE Draw: The megapixel-to-power ratio is efficient. You get forensic-grade detail without requiring PoE+ or dedicated power supplies — critical when scaling across dozens of cameras on shared switch capacity.
Deployment Considerations:
- The 8MP sensor is optimized for 24/7 outdoor surveillance, not extreme long-range identification. If your requirement is facial recognition at 400+ meters, this camera will disappoint — you need higher megapixel or telephoto alternatives.
- Edge analytics run on-device, but configuration and firmware updates still require network access and proper security hardening. Edge Vault protects keys, but you're still responsible for network segmentation and credential management.
- IP66 handles rain and dust, but not full submersion or saltwater spray. Verify your specific mounting location's salt-fog or splash-pool exposure before final selection.
The 02973-001 is the right choice for municipal perimeter monitoring, critical infrastructure (utilities, transportation hubs, water treatment), and enterprise campus security where you need consistent 24/7 outdoor coverage without constant lens cleaning or weather-related failures. If you're running a large distributed network, the edge AI and low power draw justify the hardware cost within the first 12 months of operation.
