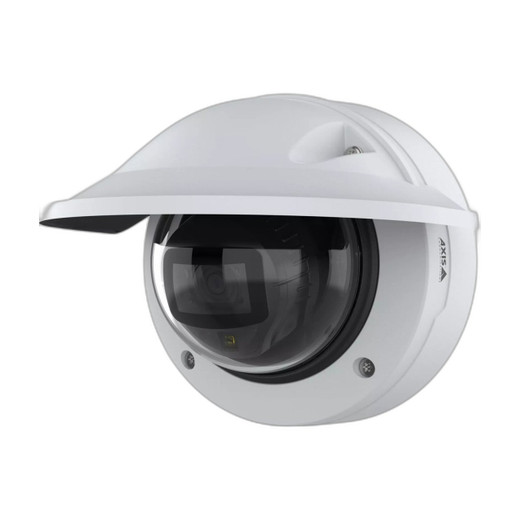

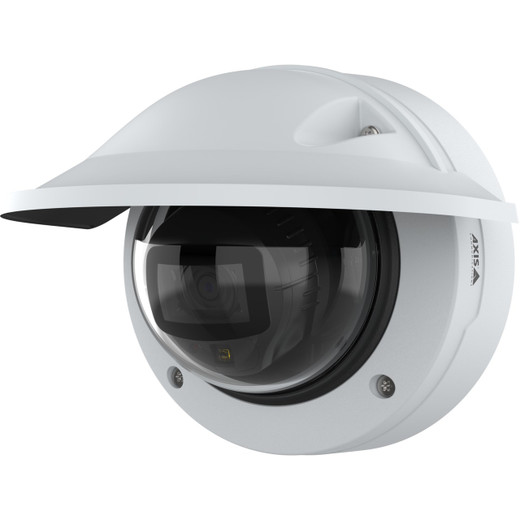

Axis 03155-001 8MP Outdoor AI IR Dome Camera
The Axis 03155-001 (model P3278-LVE) is an enterprise outdoor dome designed for perimeter security, logistics yards, critical infrastructure, and other high-stakes environments where edge-based intelligence and forensic-quality imagery are non-negotiable. Built on the ARTPEC-9 chipset, this 8MP camera executes real-time AI object detection and classification directly at the edge—eliminating latency, reducing bandwidth strain, and removing dependency on external servers or cloud processing.
Key Features
- 8MP resolution (3840 × 2160) at 30 fps — Captures fine detail required for forensic investigation and post-incident analysis. Higher pixel density means readable license plates, facial features, and object identifiers from distance, critical when re-examining incidents weeks later.
- ARTPEC-9 chipset with edge-based AI analytics — Runs object detection and classification on the camera itself, not on a central server. This means real-time alerts with no server roundtrip delay, and no need to stream raw video off-site for processing—a major advantage when bandwidth is limited or when regulatory requirements restrict cloud data transfer.
- Lightfinder 2.0 and Forensic WDR — Handles extreme contrast scenes (bright sunlit areas next to deep shadows) without washing out or losing detail. Lightfinder 2.0 boosts low-light sensitivity; Forensic WDR pulls usable video from scenes with 120+ dB dynamic range. Outdoor deployments often see rapidly changing light; this pairing ensures consistent, usable footage across morning, noon, and dusk.
- OptimizedIR with integrated infrared illumination — Delivers clear monochrome video in complete darkness without relying on external IR floods. Range and clarity depend on ambient IR reflection; in open yards or perimeters, OptimizedIR typically provides 20–40m of usable night vision.
- AV1 codec support — AV1 achieves roughly 40–50% better compression than H.265, and 60–70% better than H.264. On a 24/7 recorder with a dozen cameras, that translates to either storing twice as much footage in the same storage, or cutting storage hardware costs in half. Trade-off: AV1 decoding is CPU-intensive; confirm your VMS or NVR supports it before relying on it.
- IP66/IP67 weatherproof, IK10 impact-resistant enclosure — IP66 handles heavy rain and dust; IP67 adds brief submersion tolerance. IK10 means the dome resists vandalism and accidental impact. Dome form factor sheds water naturally and offers a lower visual profile than bullet cameras.
- Axis Edge Vault hardware-based cybersecurity — Protects video integrity via signed firmware, secure boot, and encrypted storage. For regulated sites (financial, government, utilities), this addresses audit and compliance requirements that demand tamper-proof logging.
- Built-in PoE (802.3af) — Draws under 13W, meaning it won't stress standard PoE switches. No separate 12VDC power supplies or AC runs needed. Simplifies cabling, reduces installation labor, and lowers total cost of ownership on outdoor runs.
- Audio I/O for two-way communication — Built-in microphone and speaker support enable remote audio alerts or live dialogue. Useful for access control integration or remote deterrence at entry points.
Integration & Compatibility
The P3278-LVE supports ONVIF Profile S, T, and G, ensuring compatibility with standards-based VMS platforms (Milestone XProtect, Genetec, VideoOS, etc.). Axis Camera Station also supports native integration. Firmware updates and analytics configuration are delivered via standard AXIS Camera Management tools or REST API, enabling programmatic deployment across large camera fleets.
When to Choose a Different Model
If you need higher megapixel counts for extreme-distance forensics (say, identifying a person 200+ meters away), consider a higher-resolution variant in the Axis outdoor dome family. If your site has stable, consistent lighting and no low-light requirements, a non-IR dome will reduce cost. If you require pan-tilt-zoom capability, switch to a PTZ model—fixed domes trade coverage flexibility for simpler installation and lower bandwidth overhead.
Frequently Asked Questions
Q: Does the Axis 03155-001 work with Milestone XProtect?
A: Yes. The P3278-LVE supports ONVIF Profile S, T, and G, which Milestone XProtect integrates via standard ONVIF drivers. Confirm your XProtect version and decoder support AV1 if you plan to use the AV1 codec; legacy decoders may require H.265 fallback.
Q: What is the infrared range on the Axis 03155-001?
A: OptimizedIR range depends on ambient IR reflection and target reflectivity. Typical usable night vision extends 20–40m in open areas; in low-reflectivity environments (dark asphalt, dense forest), range may be shorter. Test in your specific deployment environment before committing.
Q: Can the P3278-LVE be wall-mounted, or is it ceiling-only?
A: The dome form factor supports both ceiling and wall mounting via optional hardware. Verify the mounting bracket or use a pendant/extension kit if deploying on a vertical surface; gravity and wind load differ from ceiling mounts.
Q: Does the Axis 03155-001 support edge analytics without a server?
A: Yes. The ARTPEC-9 chipset executes object detection and classification on the camera itself. You can configure rules (e.g., 'alert on person detected') and receive alarms via ONVIF events or HTTP callbacks without any external analytics server. This is a core strength of the model.
Q: How much network bandwidth does the P3278-LVE consume?
A: Bandwidth varies with resolution, frame rate, and codec. At 8MP 30 fps using H.265, expect roughly 4–8 Mbps depending on scene complexity. AV1 will reduce this by another 40–50%. Test with your actual network and VMS to confirm available headroom.
Q: What is the warranty period for the Axis 03155-001?
A: Axis typically offers a 3-year manufacturer warranty. Confirm the specific terms with your reseller or Axis support, as extended warranties and service plans may be available.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03155-001 P3278-LVE represents a meaningful shift in outdoor surveillance architecture. The ARTPEC-9 chipset and native edge-based object detection eliminate the need for central analytics servers—a critical advantage for organizations with bandwidth constraints, air-gapped networks, or strict data residency policies. If you're running 24/7 recording across dozens of cameras and storage is a cost center, the AV1 codec support can translate to real hardware savings (though you'll need to validate decoder support in your VMS).
Technical Highlights:
- Lightfinder 2.0 + Forensic WDR: Handles 120+ dB dynamic range scenes without sacrificing detail. In outdoor deployments where lighting shifts from bright morning sun to midday glare to evening backlight, this pairing delivers consistent, forensic-quality video without manual iris or gain tweaking.
- ARTPEC-9 edge analytics: Runs object detection on-camera in real-time, eliminating server dependency and network latency. Alerts arrive instantly; no central system required to trigger an action.
- AV1 codec: Achieves 40–50% better compression than H.265. On a 30-camera 24/7 system, this can halve your storage hardware costs or double your retention window.
- IP66/IP67 + IK10: Dome housing resists rain, dust, and vandalism. Lower visual profile than bullets; water sheds naturally. Trade-off: domes offer fixed forward view; if you need 360° coverage, use multiple units or switch to PTZ.
- Sub-13W PoE draw: Won't consume more than one PoE port's allocated 15W budget on a standard 802.3af switch. Simplifies power planning on large deployments.
Deployment Considerations:
- AV1 decoder support: If your VMS, NVR, or mobile client doesn't support AV1, you'll need to fall back to H.265 or H.264, negating the compression benefit. Verify compatibility before standardizing on AV1 across your fleet.
- IR range variability: OptimizedIR performance is highly dependent on ambient reflectivity and target material. In open industrial yards, expect good 30m+ range; in dense vegetation or low-reflectivity surfaces, range drops. Field-test before finalizing placement.
- Analytics configuration: Edge analytics are powerful but require configuration via AXIS Camera Management or API. Out-of-box, the camera records video; you must actively define detection rules and alert actions. Budget time for rule tuning and testing.
The 03155-001 is the right choice for organizations prioritizing edge intelligence, bandwidth efficiency, and regulatory compliance (audit-grade video integrity via Edge Vault). Ideal for perimeter security at logistics hubs, utilities, and critical infrastructure where server-dependent analytics are a liability.
