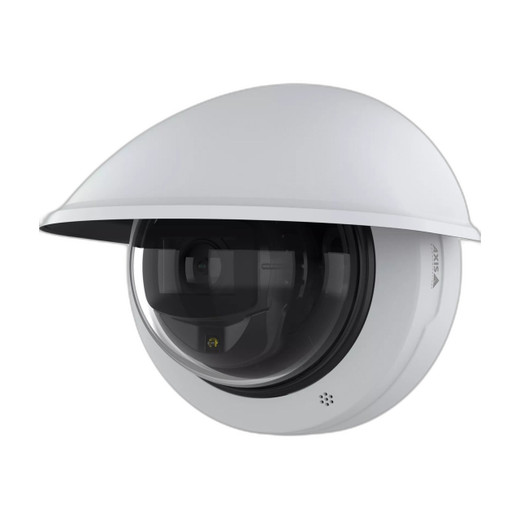

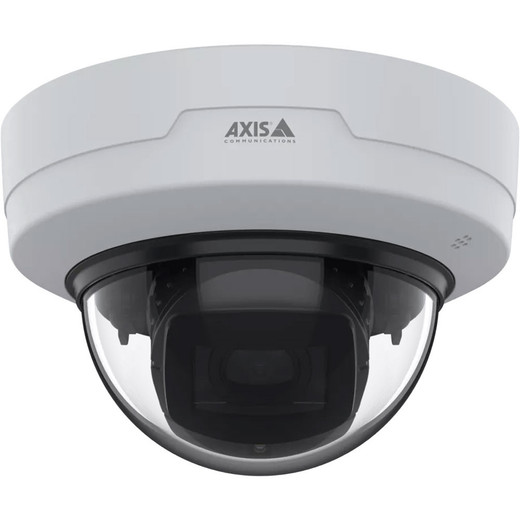

Axis 02816-001 M4228-LVE 8MP Outdoor AI IR Dome Camera
The Axis 02816-001 is a professional outdoor surveillance dome engineered for wide-area perimeter monitoring, parking facilities, and industrial campuses. It delivers 8MP resolution with intelligent on-camera analytics, varifocal optical control, and dual low-light technologies that eliminate common outdoor deployment friction: no separate IR fixtures needed, no guesswork on framing, and no bandwidth bloat from irrelevant footage.
Key Features
- 8MP Resolution (3840 × 2160): Captures forensic-grade detail across expansive outdoor spaces. At this resolution, you preserve license plate and facial features at distance—critical for perimeter and parking applications where evidence quality directly impacts case closure.
- Varifocal Lens (3.4–8.9mm, 100° to 38° horizontal field of view): Remote zoom and focus eliminate on-site ladder work. Frame a loading dock at wide angle or zoom into a fence corner without a technician visit. Motorized focus holds your framing through temperature swings and vibration.
- Lightfinder 2.0: Proprietary low-light sensor technology that delivers usable color or monochrome imagery in twilight and overcast conditions. Scenes that would be murky sludge on a standard 2MP outdoor camera come through clear enough for facial recognition—without cranking IR to maximum and burning out nearby details.
- OptimizedIR with 850nm Illumination: Delivers reliable night vision in complete darkness. The 02816-001 includes integrated IR emitters, so you don't need separate illuminators on every pole. Range and intensity are calibrated for the 8MP sensor's field of view, avoiding the common mistake of underlit or overexposed night footage.
- Forensic WDR (Wide Dynamic Range): Handles extreme contrast—sunlit pavement next to a dark warehouse entrance—without posterization or loss of shadow detail. Real-world outdoor scenes have light ranges that compress standard WDR; Forensic WDR holds shadow and highlight simultaneously, preserving evidence-grade clarity in mixed lighting.
- IK10 Vandal-Resistant Construction: Withstands deliberate impact and tampering. This rating matters in unsecured outdoor environments—parking lots, access roads—where the camera is accessible to the public. You're buying a surveillance tool that survives contact with a pry bar or thrown object.
- IP66 Weatherproofing: Direct rain, dust, and spray won't infiltrate the enclosure. Temperature operating range of –40°C to 60°C (–40°F to 140°F) keeps the optics and sensor stable through seasonal extremes. Skip this if you need full submersion protection; IP66 is splash and direct spray only.
- H.265 and H.264 Codec Support (Axis Zipstream): H.265 cuts file sizes roughly in half compared to H.264 when recording the same scene—massive for 24/7 retention on multi-camera installations. Zipstream further optimizes by preserving detail in regions of interest while compressing static backgrounds. On a 30-camera parking lot recorder, this translates to weeks of extra retention on the same storage footprint.
- Onboard AI Analytics: Embedded object detection and classification run on the camera. Filters out wind-blown trash, shadows, and rain from triggering false alarms. Sends only relevant alerts to your VMS, reducing noise and response overhead.
- Axis Edge Vault: Signed firmware and secure boot prevent unauthorized firmware modification. Device integrity is verified at every startup—a foundational layer for cyber-secure deployments in regulated or high-risk facilities.
Integration & Compatibility
The M4228-LVE (02816-001) is ONVIF Profile S compliant, integrating with standard VMS platforms and edge recording solutions. PoE power draw is under 13W, fitting within standard 802.3af switch budgets—no PoE+ or separate supplies required. Axis ACAP (Application Custom Application Platform) support allows third-party analytics plug-ins if your deployment demands specialized detection (crowd counting, loitering, parking occupancy).
Why Choose This Model
Select the 02816-001 when outdoor coverage must be forensic-grade and you want to eliminate common trade-offs: you get color night performance without supplemental lighting, wide-to-tight framing without site visits, and low bandwidth without quality loss. The varifocal lens and dual low-light engines justify the step up from fixed-lens outdoor domes in any installation where coverage spans 50+ meters or mixed lighting is unavoidable.
When to Choose a Different Model
If your scene is brightly lit and close-range (under 30 meters), a fixed-lens 5MP outdoor dome delivers the same evidence quality at lower cost. If you need active pan-tilt-zoom tracking or 360° endless rotation, move to the PTZ family within Axis's professional outdoor line. For indoor parking or enclosed facilities, consider a non-vandal dome or turret variant in the same Axis catalog.
Frequently Asked Questions
Q: What is the maximum infrared range on the 02816-001?
A: OptimizedIR range depends on scene reflectivity and target size, but the 02816-001 is calibrated for effective night vision across 30–50 meters. Reflective surfaces (parking lot paint, metal) extend this; absorptive surfaces (dark asphalt, shadow areas) reduce it. Consult site-specific lighting analysis if your coverage zone exceeds 60 meters.
Q: Does the 02816-001 work with Milestone XProtect or other major VMS platforms?
A: Yes. ONVIF Profile S compliance enables integration with Milestone, Genetec, Exacq, and other mainstream VMS solutions. Axis also offers AXIS Camera Station for native integration with full analytics support.
Q: How much bandwidth does the 02816-001 consume at full frame rate?
A: At 30 fps, 8MP, and H.265 codec with Zipstream, expect 4–8 Mbps depending on scene complexity and movement. Static scenes compress tighter; busy scenes (traffic, crowds) require more bandwidth. H.264 streams consume roughly double this rate.
Q: Is the lens truly motorized zoom and focus, or fixed?
A: Fully motorized varifocal with remote control via the camera's IP interface. You adjust zoom and focus from your NVR or management interface without physical access to the camera—a real time-saver on pole-mounted or high-ceiling installations.
Q: What power supply do I need for the 02816-001?
A: PoE (IEEE 802.3af standard) is sufficient. The camera draws under 13W, so any compliant PoE switch port will power it. No separate 12VDC supply or PoE+ is required.
Q: Can the 02816-001 be wall-mounted, or is it ceiling-only?
A: Dome form factor supports both ceiling and wall mounting via standard brackets. Verify the bracket matches your mounting surface (concrete, metal, wood) and confirm the viewing angle suits your coverage plan—a wall-mounted dome at eye level may introduce unwanted reflections or require downward tilt adjustment.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02816-001 M4228-LVE is a no-compromise choice for outdoor surveillance where lighting is unpredictable and resolution matters. The combination of Lightfinder 2.0 and OptimizedIR means you're getting usable footage in twilight and complete darkness without the maintenance headache of separate IR fixtures. The varifocal lens eliminates the typical trade-off between field of view and zoom reach—you dial in your framing from the control room, not from a ladder.
Technical Highlights:
- Lightfinder 2.0 + Forensic WDR: Scenes with simultaneous bright and dark zones (loading dock lit by sunlight and interior shadow) retain usable detail in both regions. On a standard 8MP dome, you'd lose shadow data or blow out the bright areas. This matters for perimeter and facility monitoring where mixed lighting is the rule, not the exception.
- Varifocal 3.4–8.9mm with motorized focus: 100° wide-angle captures the entire parking lot entrance; 38° telephoto isolates license plates 40 meters away. Remote focus adjustment keeps the image sharp through seasonal temperature swings without manual refocusing.
- H.265 Zipstream compression: At 8MP, uncompressed bandwidth would choke most network installs. H.265 + Zipstream delivers 4–8 Mbps on busy scenes—a 50% improvement over H.264 on identical footage. Retention on a 24-camera recorder extends from 30 days to 45+ days on the same disk.
- IK10 + IP66 durability: Handles both deliberate tampering (pry bars, thrown objects) and environmental extremes (rain, dust, –40°C freezing). Outdoor surveillance that doesn't require replacement every two years.
Deployment Considerations:
- OptimizedIR is effective to ~50 meters on reflective surfaces; expect degradation on absorptive scenes (dark pavement, shadow). If your site has few reflective cues and coverage exceeds 70 meters, validate IR range with the manufacturer before ordering.
- PoE at under 13W fits 802.3af budgets, but confirm your switch ports are genuine PoE-enabled—some budget switches label ports PoE without consistent delivery. A single bad port can cause intermittent outages.
- The dome form factor is elegant but collects dust and condensation on the clear cover in high-humidity or dusty environments. Plan for periodic cleaning to maintain optical clarity.
The 02816-001 is purpose-built for perimeter and parking surveillance where you need forensic-grade evidence and can't afford IR maintenance or on-site framing adjustments. Industrial campuses, municipal facilities, and multi-tenant parking lots justify the investment in the varifocal lens and dual low-light stack. For fixed-angle deployments in well-lit environments, a lower-cost alternative may suffice.
