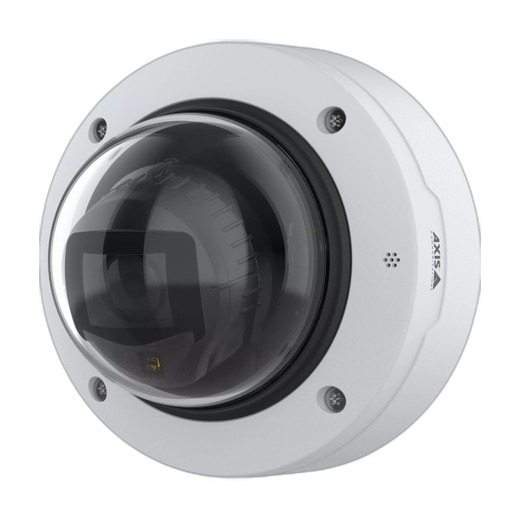

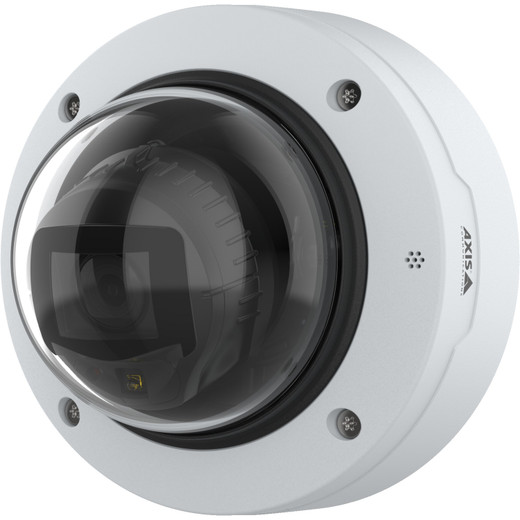

Axis 02983-001 P3287-LV 5MP Indoor AI IR Dome Camera

The Axis 02983-001 is a 5MP indoor dome camera built to deliver forensic-quality imaging and real-time AI-driven threat detection in retail, banking, education, and institutional environments. This camera combines optical low-light performance with integrated audio intelligence, eliminating the need to choose between visual and acoustic situational awareness. It addresses a concrete deployment gap: indoor spaces with variable lighting and unpredictable sound hazards require both advanced imaging and anomaly detection—the P3287-LV handles both natively.

Key Features

• Lightfinder 2.0 technology: Captures sharp, usable video in low-light indoor scenes without heavy reliance on infrared. Matters because it reduces false triggers from IR reflection off glass, metal, or glossy surfaces—a common problem in retail and office environments where you need clean daytime and twilight footage without toggling between day and night modes.
• Forensic WDR: Balances exposure in scenes with extreme contrast—bright windows against dark interiors, for example. Preserves detail in both the bright and shadowed areas simultaneously, eliminating the tradeoff between blown-out windows and crushed shadows that plague standard WDR cameras.
• OptimizedIR with 850nm illumination: Provides covert infrared for night surveillance without the visible glow of standard IR LEDs. Useful in upscale retail or corporate lobbies where a camera with visible red IR can feel intrusive, but you still need solid night coverage for after-hours investigations.
• AXIS Audio Analytics: On-camera microphone detects audio signatures—glass breaking, aggressive voices, alarms—in real-time. Means you don't need a separate audio sensor or external sound detection layer; incidents like break-ins or confrontations trigger alerts before video review is necessary.
• Multi-codec support (AV1, H.265, H.264, MJPEG): AV1 compression cuts bandwidth and storage 40% compared to H.264 on complex scenes. On a 24/7 multi-camera installation, this directly lowers your NVR storage cost and network congestion, especially critical if you're recording dozens of cameras on shared infrastructure.
• Axis Zipstream technology: Maintains forensic quality in regions of interest (faces, entry points) while reducing bitrate in static zones (walls, empty hallways). On bandwidth-constrained sites, this is the difference between recording all cameras at full resolution or settling for lower frame rates across the board.
• Hardware-based security (Axis Edge Vault): Cryptographically signs video at capture, protecting against tampering or unauthorized access. Required for regulatory compliance in high-security environments and eases chain-of-custody documentation for legal proceedings.
• PoE (802.3af) powered: Draws under 13W, so it won't stress standard PoE switches. Simplifies cabling—one Cat5e/Cat6 run handles both power and data, reducing installation time and eliminating the need for separate 12VDC runs.
• Compact dome form factor: Low-profile design for sensitive environments where turrets or bullet cameras feel too obvious. Mounts flush to ceilings or walls without drawing attention in retail showrooms, bank teller areas, or corporate offices.
• Built-in microphone: Captures ambient audio for incident correlation. Useful for linking visual evidence with audio context—arguing voices, vehicle sounds, or alarms—without deploying separate audio sensors.

Why Choose This Camera

The 02983-001 is purpose-built for indoor spaces where lighting is inconsistent and threat detection must extend beyond video alone. Lightfinder 2.0 and Forensic WDR eliminate the operational burden of manual scene optimization—the camera adapts to dawn, dusk, and mixed lighting without re-tuning. Audio analytics add a second detection layer without requiring external appliances. Modern compression codecs lower the total cost of ownership on systems recording dozens of cameras 24/7. The dome form factor fits professional environments where turrets would be out of place. If you're deploying indoor IP cameras in a retail, financial, or corporate setting and need both strong low-light performance and audio event detection, this model reduces integration complexity.

Integration & Compatibility

The P3287-LV supports ONVIF Profile S and T, integrating with standard network video recorders and VMS platforms. Audio Analytics and Edge Vault require compatible recording software; check your VMS or NVR vendor for support. PoE power requires a switch with available budget—standard 802.3af PoE ports are sufficient. Before installation, confirm your network supports AV1 codec decoding if bandwidth optimization is a priority; some legacy VMS platforms require H.265 or H.264 fallback.

When to Choose a Different Model

If your environment requires outdoor mounting or IP67 submersion rating, select an outdoor-rated variant from the Axis dome family. If you need longer IR range (beyond 30m in total darkness), evaluate higher-spec models with more powerful illumination. If your site exclusively records in well-lit conditions and audio detection is not a requirement, a simpler, lower-cost fixed dome may suffice. If you need PTZ functionality, step up to a PTZ camera platform instead of a fixed dome.

Frequently Asked Questions

Q: What's the maximum IR range on the 02983-001?

A: The camera provides OptimizedIR illumination optimized for indoor spaces. Exact range varies by scene reflectivity, but it is designed for hallways, retail floors, and office interiors—not long-distance outdoor surveillance. Refer to the manufacturer datasheet for specific performance curves in your lighting condition.

Q: Does the P3287-LV work with Milestone XProtect or Axis Camera Station?

A: Yes, the camera supports ONVIF Profile S and T, compatible with most major VMS platforms. AXIS Audio Analytics and Edge Vault features require platform-specific support; confirm with your VMS vendor before deployment to ensure full feature enablement.

Q: What's the power consumption of the 02983-001?

A: The camera draws under 13W via standard 802.3af PoE. No separate power supply is required, and it will not strain a typical managed PoE switch.

Q: Can I use the audio analytics without storing audio on the NVR?

A: Yes. AXIS Audio Analytics can trigger alerts and events based on sound detection without recording the audio stream itself, reducing privacy concerns in sensitive environments while maintaining acoustic threat detection.

Q: How much bandwidth does the P3287-LV use with AV1 compression?

A: AV1 compression achieves roughly 40% bitrate reduction compared to H.264 on complex indoor scenes. Exact bandwidth depends on frame rate, resolution, and scene complexity. Budget 2-4 Mbps for high-motion retail footage; static hallways may consume 0.5-1 Mbps.

Q: Is the 02983-001 suitable for outdoor use?

A: No. This is an indoor-only camera. The dome is not rated for rain, snow, or UV exposure. For outdoor deployments, select an outdoor-rated dome or bullet camera from the Axis catalog.

Buying and Deployment Guidance

Before ordering, confirm that your network infrastructure supports PoE—standard 802.3af ports are adequate, but budget planning matters if you're deploying multiple cameras. If bandwidth is constrained, enable AV1 and Zipstream on your NVR or VMS to maximize compression. Verify that your VMS or NVR planning guide includes support for the audio analytics and Edge Vault features; some older platforms may require firmware updates. For ceiling or wall mounting in tight spaces, test the dome's profile against your installation templates—the low-profile design helps, but measure twice. For PoE power planning, a single 802.3af port per camera is sufficient; no special considerations beyond standard network switch capacity planning.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02983-001 represents a mature engineering decision: combine low-light optical performance with audio intelligence to eliminate the need for a separate audio sensor. Lightfinder 2.0 is the real differentiator here—it pulls usable detail from dim indoor scenes without forcing you to choose between visible IR noise and image quality. For integrators deploying in retail or banking, this cuts on-site optimization time significantly.

Technical Highlights:

• Lightfinder 2.0 + Forensic WDR: Handles mixed indoor lighting without manual scene tuning. Forensic WDR specifically addresses the retail problem—bright storefront windows against dark shelving—by preserving detail across the full dynamic range in a single frame.
• AV1 codec: 40% bitrate reduction versus H.264 is material on 24/7 recording. On a 16-camera retail installation, that translates to 2-3 TB/month storage savings—real dollars on NVR capacity or cloud retention.
• Audio Analytics: Detects glass breaking, aggressive voices, alarms natively. Eliminates the need to pair the camera with external audio appliances or additional microphone runs. Privacy-respecting because you can trigger alerts on sound events without recording audio itself.
• PoE at 13W max: Doesn't require a dedicated PoE+ switch. A managed 802.3af switch with proper power budget handles dozens of these cameras without upgrade.

Deployment Considerations:

• Audio Analytics and Edge Vault require compatible VMS/NVR firmware. Legacy platforms may not expose these features—test in your lab environment before committing to a large rollout.
• AV1 codec support varies by recorder. If your NVR doesn't decode AV1, fall back to H.265 or H.264; the camera supports all three, but you won't see the 40% bandwidth gain without downstream support.
• OptimizedIR is designed for indoor range (roughly 15-25m in typical retail). Don't expect long-distance outdoor performance—this is not a mistake the 02983-001 makes gracefully.

Deploy the 02983-001 in retail flagship stores, bank teller areas, and corporate lobbies where low-light performance and audio event correlation matter equally. The combination of Lightfinder 2.0, audio analytics, and modern compression makes this a solid fit for high-touch customer environments where video quality and incident detection drive ROI.
