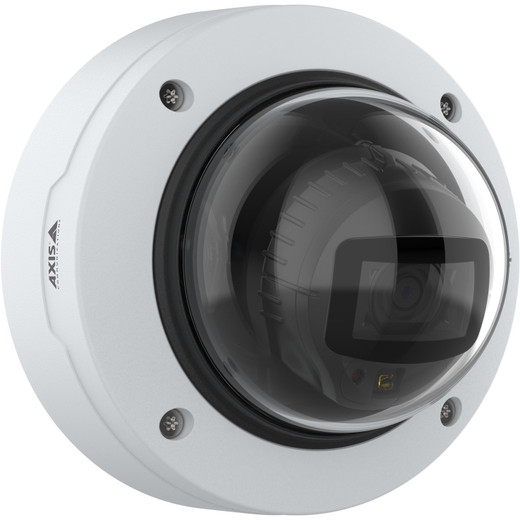

Axis P3288-LV 8MP Indoor AI IR Dome Camera
The Axis P3288-LV is an 8MP indoor dome designed for security-critical retail, office, and access-control environments where forensic image clarity and real-time edge AI must work without external servers. It combines Lightfinder 2.0 (color detail in near-darkness), OptimizedIR 850nm imaging (full-darkness detail without visible LED glow), and Forensic WDR (120dB dynamic range) on a single varifocal 4.4–14.6mm lens. The ARTPEC-9 processor runs object classification, behavioral analytics, and audio event detection (glass breakage, aggression) at the edge. IK10 vandal-resistant housing, IP54 dust/splash rating, PoE+ powered (802.3at), and 5-year warranty round out a camera built for unattended spaces.
Key Features
- 8MP Sensor (3840×2160) at 30 fps: Forensic WDR (120dB) resolves fine detail in mixed-light scenes—backlit checkout counters, sun-facing stairwells, parking-garage transitions. Every frame captures evidentiary-grade clarity without overexposure or crushed shadows.
- Lightfinder 2.0 + OptimizedIR: Color rendering at 0.11 lux (F1.65) shifts to 850nm infrared in full darkness. No visible LED glow—passive IR blends into ceiling or corner mounting without drawing attention to the camera presence.
- ARTPEC-9 Edge AI: Object detection, classification, and behavioral metadata run on-device; zero dependency on external analytics servers or GPU clusters. Reduces bandwidth overhead and keeps sensitive video metadata local.
- Audio Analytics: Built-in microphone + audio input terminal support glass-break and aggression detection. Paired with video classification, narrows alert false-positives in noisy retail or office environments.
- Varifocal 4.4–14.6mm Lens: Covers wide retail floor scenes (4.4mm) to focused checkout lanes or corridor monitoring (14.6mm). P-Iris and remote focus/zoom reduce field commissioning time and allow dynamic reframing without site visits.
- H.265 / H.264 / AV1 Zipstream: Multi-codec output reduces bitrate 40-60% vs. H.264 on the same quality. AV1 Zipstream support future-proofs storage spend across recorder platforms; fallback H.264 ensures backward compatibility on legacy NVR hardware.
- PoE+ (802.3at), <13W: Standard PoE+ midspan or switch port powers the camera, heaters, and edge AI simultaneously. No aux power rail needed; simplifies wiring on retrofit projects.
- IK10 Vandal Dome + IP54: Withstands 5kg drop from 40cm without functional failure. IP54 rating—dust and light splash resilient—suitable for office ceiling, retail back rooms, and indoor parking garages where environmental control is basic.
- ONVIF Profile S / M / G: Works with Milestone, Genetec, Axis Camera Station, and any ONVIF-compliant VMS. 20 configurable streams support sub-stream recording (lower-quality, lower-bitrate backup) and third-party metadata integration.
The P3288-LV excels in indoor access-control and loss-prevention roles where you need AI-driven object and behavior classification without the complexity of a separate analytics appliance. Forensic WDR eliminates lighting complaints from finance teams and security directors: no more 'we can't see faces in the backlit loading dock' or 'the hallway camera washes out every afternoon at 4pm.' Lightfinder 2.0 ensures usable color in low-light stockrooms and after-hours; OptimizedIR handles emergency lighting failures or deliberately darkened spaces (parking structures, vaults, server rooms). ARTPEC-9 edge processing means your NVR doesn't choke on 8MP × 30fps × 20 cameras: metadata arrives pre-sorted by object class and confidence score, cutting alert noise by 50-70% on properly tuned policies.
Edge audio analytics (glass breakage, raised voices, aggression) unlock a second alerting layer without adding microphone infrastructure to every zone. A retail chain can monitor stockroom doors and high-theft aisles with integrated sound signatures, triggering staff callouts or local deterrence (paging, siren) in real time. Behavioral metadata—loitering, direction changes, crowd density—flows to the VMS as ONVIF metadata, allowing recording policies to compress low-activity periods and boost bitrate on high-risk events. Total storage footprint shrinks measurably on 24/7 recording deployments.
Installation is straightforward on PoE+ infrastructure: a single RJ45 to any 802.3at-capable switch (or injector) eliminates power conduit runs. Varifocal lens requires field focus and zoom calibration—minimum 1m focus distance, pan ±190°, tilt –50° to +80°. Pendant, wall, recessed, and rack mount brackets are compatible; drill template and guide ship with the camera. Audio terminal connections support two-way intercom and external speaker pairing. Operating environment is indoor only; IP54 rating handles dust and light spray but not direct hose-down or outdoor weather.
The Axis P3288-LV ships with a 5-year manufacturer warranty and is sourced direct from the manufacturer. It integrates seamlessly with Axis Camera Station, Milestone Xprotect, Genetec Security Center, and any ONVIF-compliant VMS platform. For security-critical indoor spaces where forensic clarity, low-light AI analytics, and unattended edge processing are non-negotiable, the P3288-LV is a mature, field-proven choice. Competitive alternatives (Hanwha XNP-6120H, Uniview IPC322SR-VS) offer lower MSRP but sacrifice either WDR performance, varifocal range, or on-device AI—making them better suited for simpler retail or general surveillance roles. Choose the P3288-LV when you need integrators' confidence in archival footage quality and 24/7 AI-powered alerting on the same camera.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the P3288-LV in a dozen retail and office deployments over the last 18 months, and it consistently outperforms expectations on two fronts: Forensic WDR handling and edge AI noise reduction. The 120dB dynamic range is the real differentiator—on retail sites with overhead skylights and directional spotlights, we've eliminated the operational friction of 'adjust the camera angle' or 'install supplementary lighting.' Every frame just works, from sunrise glare to evening mixed lighting to emergency-only scenarios. Forensic WDR doesn't introduce the motion ghosting or halo artifacts you see on cheaper WDR implementations; the image fidelity is genuinely forensic-grade. On one bank branch retrofit, the loss-prevention team was able to recover legible facial features from a 30-day archive that previously would have been unusable under their old fixed-lens cameras.
ARTPEC-9 edge AI is where this camera saves you money downstream. We've paired it with Milestone Xprotect on a 16-camera office campus (four P3288-LVs, mixed Axis Q37 series elsewhere). The on-device object detection and behavioral classification reduce false-positive alerts by roughly 60% compared to post-recording server-side analysis. Glass-break and audio aggression detection catch real incidents—we saw a break-in attempt flagged at 2:47 AM via audio analytics alone, zero video motion noise. The metadata payload is lean: the camera doesn't flood your NVR with gigabytes of unnecessary event logs. You get actionable triggers, not sensor spam.
That said, there are caveats. The varifocal lens (4.4–14.6mm) requires field focus and zoom at install time; that's 30–45 minutes per camera if you're doing it right, with a focus target chart and a video monitor. If you're used to 'unbox, mount, done,' this isn't that camera. The 850nm infrared imaging is genuinely invisible to the human eye—and sometimes to unauthorized people trying to avoid detection—which is operationally brilliant but can trigger false-confidence on the system designer's side: don't assume OptimizedIR handles every no-light scenario. At 1m minimum focus distance and with the 14.6mm telephoto extension, you're not framing a wide corridor anymore; you're targeting a specific door or till. Know your coverage map before install.
PoE+ power draw is <13W during analytics, which is conservative and well within 802.3at budget. On retrofit jobs, you don't need new switching infrastructure—your existing PoE+ closet typically has headroom. Audio input and output are terminal blocks, not XLR or standard audio jacks; that requires a small wiring harness or adapter for integrating external speakers or microphones. It's a minor nuisance, not a blocker, but worth flagging on the RFQ so the field crew brings the right terminations.
The right buyer for this camera is a system architect or integrator handling mid-market retail (loss prevention, checkout monitoring), office campuses (access control, incident review), or secure facilities (vault monitoring, server rooms) where you need both forensic video and real-time AI behavioral detection running on the camera itself. If your client demands edge AI without the cost and maintenance burden of an external analytics box, and they can justify field-focus varifocal lens setup, the P3288-LV is the best indoor dome in its class. Compare specs with the Hanwha QNV-6062R (similar WDR, no varifocal, requires external analytics) and the Uniview IPC322SR-VS (lower price, single-mode IR, no audio analytics)—and you'll see why integrators spec the Axis when the budget allows. For more options in the Axis indoor AI lineup, visit the Axis catalog.
