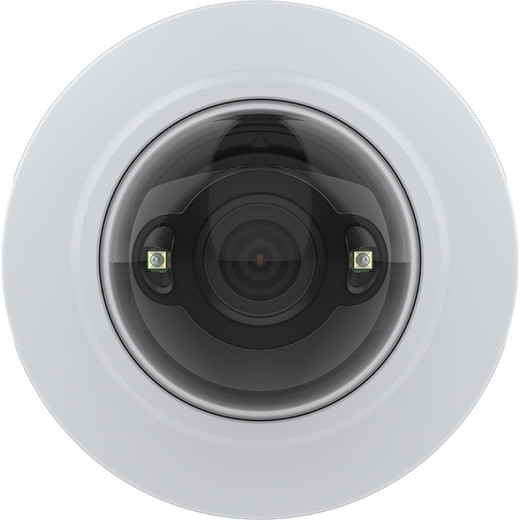

Axis 02679-001 M4218-LV 8MP Varifocal Indoor Dome IP Camera
Overview
The Axis M4218-LV (model 02679-001) is an 8MP indoor dome designed for environments where flexible framing and detail recovery matter — retail, banking, logistics facilities, and multi-level indoor spaces. The 1/2.8" progressive-scan CMOS sensor paired with a 3.5–6.6 mm varifocal lens gives you remote zoom and focus adjustment without physically touching the camera. That flexibility trades off against fixed-lens domes; you'll invest more upfront but avoid the cost of mounting multiple cameras to cover a single area. The M4218-LV is wired-only (PoE), rated IP42 for indoor dust and splash, and includes H.264 compression with edge-based deep learning analytics — meaning object detection and classification happen on the camera itself, not in a back-end system. This is the Axis IP camera to choose when you need adaptability, strong detail, and edge intelligence in a compact, ceiling-mountable form.
Key Features
- 8MP Sensor (3840 × 2160): Delivers twice the pixel count of a 4MP dome, which means you can crop or zoom into recorded video without losing forensic detail — critical when license plates or faces are far from the lens.
- Varifocal Lens (3.5–6.6 mm, F1.7–2.6): Adjust focal length and focus remotely via the camera's web interface or VMS. No ladder work; field of view ranges from 93° (wide) down to 49° (tighter) on the horizontal axis, so one camera can cover a corridor or a specific entry point depending on your needs.
- Wide Dynamic Range (WDR): Handles mixed lighting — sunlit windows alongside dark interior zones — without clipping highlights or crushing shadows. Essential in retail checkout areas, warehouse loading docks, or lobbies with skylights.
- OptimizedIR Technology: On-board 850 nm infrared illumination produces clear grayscale video in complete darkness. The IR is efficient and doesn't wash out nearby reflective surfaces, keeping usable detail even in no-light scenarios.
- Deep Learning Processing Unit (DLPU): Edge-based AI object detection identifies humans, vehicles, and other categories without streaming raw video to a central analytics server. Reduces bandwidth load and latency; critical if you're recording at full 8MP resolution 24/7 across many cameras.
- H.264 Compression: Proven codec supported by every major VMS and NVR. Bitrate scales intelligently based on scene motion, so a static hallway uses less storage than an active retail floor. Pair with network video recorders that support hardware decoding for smooth playback under load.
- PoE Powered (802.3af, ~13W max): Standard Power over Ethernet means a single network cable delivers both data and power. No 12VDC brick, no separate conduit — simplifies wall runs and reduces installation cost.
- IP42 Rating: Protects against dust and water spray but is not submersible. Fine for indoor spaces; do not mount outdoors without a housing or radome.
- IK08 Vandal Rating: Withstands minor impacts (5 J) — enough to deter casual tampering, but not designed for high-abuse environments. Wall-mount or ceiling-mount in secured areas.
- HDMI Output: Connect a local display for real-time or recorded playback without relying on network infrastructure. Useful for lobby monitors, control rooms, or emergency response stations.
- Compact Dome Enclosure: Low-profile design allows ceiling mounting in drop-tile environments. The housing can be repainted to blend into your décor.
Integration & Compatibility
The 02679-001 supports ONVIF for vendor-neutral integration with any ONVIF-compliant VMS — Milestone XProtect, Genetec, Axis Camera Station, and dozens of others. Firmware is signed and boots securely, meeting Axis Cybersecurity standards. Audio input is available if you need environmental sound capture (e.g., store ambience or alarm detection). Metadata support allows VMS systems to filter and search recordings by object type, improving incident review speed.
When to Choose a Different Model
If you need outdoor durability, consider an outdoor-rated outdoor IP camera variant with higher IP and IK ratings. If WDR is not a priority and your lighting is consistent, a fixed-lens 8MP dome is more affordable and simpler to commission. If you require higher zoom range (e.g., identifying detail across a large warehouse floor), a PTZ or higher-magnification fixed-lens model may be more cost-effective than mounting multiple varifocal cameras.
Frequently Asked Questions
Q: Is the Axis 02679-001 suitable for outdoor mounting?
A: No. The IP42 rating protects against light dust and spray but not direct rain or high-pressure wash. Mount indoors only, or use a weatherproof housing and pole mount for covered areas like eaves or canopies.
Q: What is the minimum light level for usable video?
A: In daylight or artificial lighting, the M4218-LV performs at 0.04 lux (F1.7). In total darkness, OptimizedIR activates and produces usable monochrome video. If IR is off, the image becomes too dark for practical use below ~0.01 lux.
Q: Does the varifocal lens require manual focus adjustment?
A: The lens is motorized; zoom and focus are controlled remotely via web interface or VMS API. Some VMS platforms offer auto-focus modes. Manual focus adjustment is not required after commissioning.
Q: What's the maximum PoE power consumption?
A: The 02679-001 draws approximately 13W at full load (IR on, maximum zoom). Standard 802.3af PoE injectors supply up to 15.4W per port, so a single camera per port is safe. Budget accordingly if daisy-chaining multiple cameras on a PoE switch.
Q: Is there a microSD card slot for local backup?
A: The M4218-LV does not include local storage. Recording is centralized on an NVR or NAS. Ensure your network video recorder has adequate capacity for 24/7 8MP capture, or enable motion-triggered recording to reduce storage overhead.
Q: What compression formats are supported?
A: H.264 is the primary codec. The camera also supports motion JPEG (MJPEG) for compatibility with older systems, but H.264 is recommended for storage efficiency on 24/7 deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02679-001 sits in a sweet spot for indoor multi-level deployments where you need both detail and flexibility. Eight megapixels lets you capture facial features or license-plate characters at distance, and the varifocal lens (3.5–6.6 mm) means you're not locked into a single field of view. The deep learning processing unit on the camera itself is the real efficiency win — object detection happens at the edge, so you're not hauling raw 8MP streams to a central server 24/7. That bandwidth and latency benefit adds up fast across a 20-camera retail chain or a three-floor office complex.
Technical Highlights:
- Varifocal 3.5–6.6 mm lens with motorized zoom/focus: Horizontal field of view ranges from 93° (wide, for corridors) to 49° (narrow, for entry points). Adjust remotely via API or web UI — no remounting required if framing needs change after commissioning.
- 8MP sensor (3840 × 2160) with 1/2.8" CMOS: Pixel density supports detail extraction in post-incident review; zoom into recorded footage without significant quality loss. Critical for retail, banking, or logistics where facial ID or object tracking is a use case.
- WDR + OptimizedIR: Wide dynamic range handles mixed bright/dark zones (e.g., retail with skylights and back-wall shadows). OptimizedIR provides monochrome usable video in complete darkness without requiring separate IR floodlights in most indoor scenarios.
- H.264 codec with motion-based bitrate control: Static scenes (hallways, parking booths) consume far less storage than live retail floors. On a 2 TB NVR running 24/7 across 8 cameras, intelligent bitrate can extend retention from 7 to 10+ days depending on motion profile.
- PoE 802.3af, ~13W max: Single network cable; no 12VDC supply needed. Budget 1–2 cameras per PoE port on a 48-port switch without power negotiation headaches.
Deployment Considerations:
- IP42 is indoor-only — do not mount in weather-exposed locations without a protective housing. High-humidity environments (locker rooms, car washes) will cause condensation and fogging on the lens within weeks.
- IK08 (5 J vandal resistance) is light; mount in secured or low-access areas. A determined tamperer can disable it. Pair with PoE switches that support port PoE-out control for remote reboot capability during lockdown incidents.
- Deep learning analytics on the camera require sufficient edge processing power. If you're running custom ACAP (Axis Camera Application Platform) analytics, test performance in the lab first — heavy workloads can impact frame rate or introduce latency.
- No local microSD slot means all video is centralized. If your NVR or NAS goes offline, you lose live and recorded streams. Implement dual recording (NVR + NAS failover) or cloud backup if regulatory or incident-response requirements demand it.
Best suited for mid-market retail, financial services, and warehouse operations where you need adaptable framing and do not want to deploy multiple fixed-lens cameras per zone. The varifocal saves install time and cost; the edge analytics save bandwidth. Avoid this model for outdoor sites, extreme-abuse environments, or scenarios requiring >50m IR range.
