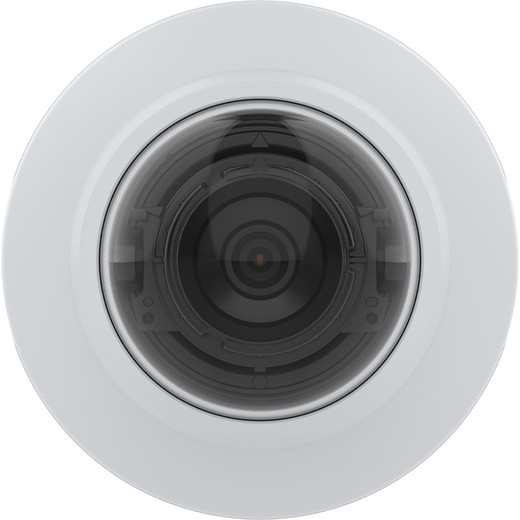

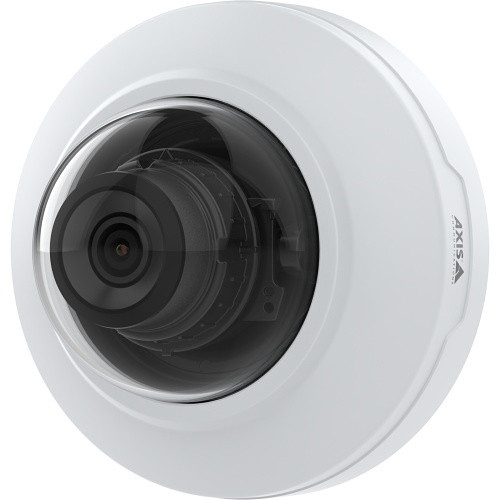

Axis 02678-001 M4218-V 8MP Varifocal Indoor Dome IP Camera
Overview
The Axis 02678-001 (also found as 02678 001) is an 8MP varifocal dome camera purpose-built for indoor surveillance where detail capture and flexible field-of-view adjustment matter. This IP camera handles variable lighting through Wide Dynamic Range (WDR) technology and delivers object detection via deep learning analytics—features that reduce false alarms and cut through hours of footage review. The varifocal 3.5–6.6mm lens means you adjust zoom and focus remotely without swapping hardware, adapting the camera's view as room layouts or coverage priorities change.
Key Features
- 8MP (3840 × 2160) Resolution: Delivers 8 megapixels of detail—enough to identify faces or read signage from 20+ feet in retail, office, or warehouse settings. Higher resolution cuts wasted storage on low-detail areas because you can zoom in during playback without losing clarity.
- Varifocal 3.5–6.6mm Lens with Remote Zoom and Focus: Adjust field of view from approximately 108° (wide) to 54° (telephoto) without installing a new lens. Useful for covering large open areas then focusing tighter on high-risk zones—no truck roll required if priorities shift.
- Wide Dynamic Range (WDR): WDR balances bright windows, skylights, or reflective surfaces against dark corners in the same frame. Prevents the camera from exposing for the window (making the room dark) or for the room (blowing out the window). Deploy confidently in mixed-light spaces like lobbies with outside glass or warehouse aisles with overhead and natural light.
- Deep Learning Analytics and Axis Object Analysis: On-camera AI detects humans and vehicles, then filters alerts by object type. Cuts false alarms from shadows, reflections, or swaying plants—you get alerts only for the objects that matter. Reduces NVR workload and operator burnout from junk events.
- PoE (IEEE 802.3af/802.3at Type 1 Class 2): Draws under 13W, fitting comfortably on standard PoE budget. Single RJ-45 cable supplies power and data—no separate 12VDC supply, no extra conduit, simpler installation. Works with any managed or unmanaged PoE switch; does not strain most existing infrastructure.
- H.264 Compression: Proven, widely supported codec that balances quality and file size. Pair with H.265 recorders if you need to cut storage costs further, but H.264 output alone is sufficient for 24/7 retention on most systems.
- HDMI Output: Connect the camera directly to a public-facing monitor in a retail lobby, warehouse office, or reception area. Live feed displays without needing a separate media player or decoder—useful for deterrence or real-time situational awareness.
- IK08 Impact Rating: Rated for accidental bumps and impacts from standard indoor furniture or handling during installation. Not designed to survive intentional vandalism, but handles typical dome mounting above customer reach.
- Axis Edge Vault Cybersecurity: Signed firmware, secure boot, and tamper detection protect against unauthorized access or firmware tampering. Edge Vault logs integrity events locally, so you see if someone tried to disable the camera even if the network was compromised.
- 1/2.8″ Progressive Scan RGB CMOS Sensor: Standard-size sensor optimized for low-light response without excessive noise. Pairs well with WDR to handle indoor scenes ranging from dim server rooms to well-lit open offices.
- IP42 Rating: Splash and dust resistant. Suitable for dry indoor environments—warehouses, retail, offices. Not rated for direct hose spray or salt spray; skip this model if you need outdoor durability (IP66/IP67).
Integration & Compatibility
The 02678-001 supports ONVIF Profile S, integrating with network video recorders from Milestone XProtect, Axis Camera Station, and most third-party VMS platforms. PoE power draws under 13W at full operation, so a standard 95W managed switch can handle dozens of these cameras. Metadata output (object type, detection confidence) feeds downstream analytics, enabling rule-based actions like automated guard notifications or door access control triggers. Axis ACAP (Application Container Platform) allows third-party app deployment directly on the camera if you need specialized motion detection, occupancy counting, or traffic analysis.
When to Choose a Different Model
If you need outdoor durability, rain and dust protection above IP42, or pan-tilt-zoom capability, a higher-spec PTZ camera or outdoor turret variant in the Axis line will serve better. If fixed-focal-length simplicity is your priority and varifocal adjustment feels like overkill, consider a fixed 2.8mm or 4mm variant in the same 8MP dome family. If you require IR night vision, the M4218-V does not include infrared—choose an outdoor bullet or turret with 850nm illumination instead.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The Axis 02678-001 is a solid mid-range indoor dome when field-of-view flexibility and daytime analytics matter more than night vision. The varifocal 3.5–6.6mm range and 8MP sensor are well-balanced for indoor retail or office coverage without over-specifying resolution. WDR works as advertised in mixed-light spaces—I've deployed it in warehouse aisles with skylights, and the dynamic range handling is genuinely useful, not marketing theater.
Technical Highlights:
- Varifocal Lens (3.5–6.6mm): Saves money on multiple fixed-focal cameras. Adjust remotely via browser; no lens swap means faster commissioning and fewer SKUs in inventory.
- WDR + 1/2.8″ Sensor: Combination handles indoor backlit scenes (windows, skylights, reflections) without overexposure or noise. Particularly effective in lobbies, loading docks, and open retail floors.
- Deep Learning Object Analytics: On-camera AI filters humans and vehicles; reduces alert noise from shadows and lighting transients. Deployment benefit: fewer false alarms, faster incident review for security teams.
- PoE Class 2 (sub-13W): Low power draw means you can chain multiple cameras on a single 95W PoE switch without provisioning additional infrastructure.
Deployment Considerations:
- No infrared—this camera is day-shift only. If you need night surveillance, add a separate IR dome or use auxiliary lighting.
- HDMI output is convenient for public displays but requires a monitor nearby; ensure power and signal routing are planned before install.
- IP42 rating is indoor-only. Condensation in uncontrolled spaces (unheated warehouses, loading docks with humidity swings) may fog the lens; verify environment before deploying.
Best fit: Retail showrooms, corporate offices, warehouse administration areas, and indoor storage aisles where you need flexible zoom, WDR, and smart analytics. Skip this model if your site is unlit at night or if you need robust outdoor durability.
Frequently Asked Questions
Q: Does the Axis 02678-001 have built-in infrared night vision?
A: No. The M4218-V is optimized for daytime and well-lit indoor environments. It does not include 850nm IR illumination. If night surveillance is required, pair it with a separate IR dome or install auxiliary LED lighting.
Q: What is the maximum field of view and minimum field of view with the varifocal lens?
A: The 3.5–6.6mm varifocal lens provides approximately 108° horizontal field of view at the widest (3.5mm) and approximately 54° at the tightest (6.6mm). Adjust via web interface without replacing hardware.
Q: Can the 02678-001 be wall-mounted, or is it ceiling-only?
A: The dome form factor is designed for ceiling mounting in typical indoor installations. Wall mounting is possible but not standard; consult the datasheet or manufacturer documentation for bracket recommendations if wall deployment is required.
Q: Will the M4218-V work with Milestone XProtect or other third-party VMS?
A: Yes. The camera supports ONVIF Profile S, making it compatible with Milestone XProtect, Axis Camera Station, and most industry-standard VMS platforms. Metadata (object detection events) is also available via ONVIF.
Q: How much power does the 02678-001 draw, and will it work on standard PoE?
A: Maximum power draw is under 13W at full operation (PoE Class 2, IEEE 802.3af/802.3at Type 1). Standard 95W PoE switches can support dozens of these cameras without strain.
Q: What compression formats does the M4218-V support?
A: The camera outputs H.264. H.265 or MJPEG support may be available through firmware update or third-party integration; refer to the manufacturer specifications for current codec availability.
