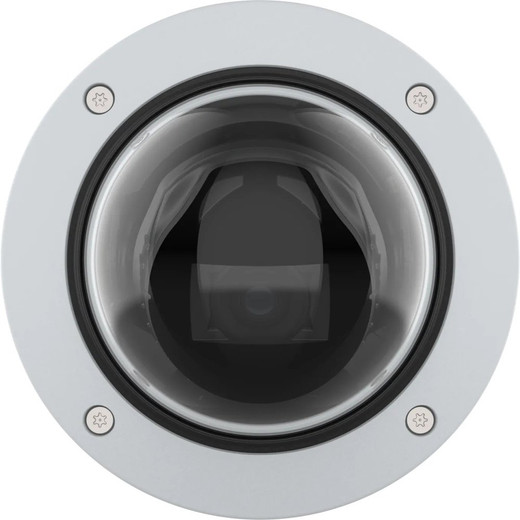

Axis 03501-001 2MP Indoor Dome Camera with Varifocal Lens
The Axis 03501-001 is a compact 2MP dome camera purpose-built for controlled indoor environments where flexible optics and vandalism resistance matter. Its motorized varifocal lens (2.8–10.5mm equivalent range) lets you adjust the field of view after installation—valuable during retrofits or when ceiling heights and mounting positions shift. The camera delivers sharp, usable detail at 2MP resolution, sufficient for facial recognition at typical indoor distances (10–15 feet) and loss-prevention documentation in retail or office settings.
Key Features
- Motorized Varifocal Lens (2.8–10.5mm): Adjust field of view from your desk after installation without climbing a ladder or re-mounting the dome. On multi-camera jobs, this remote focus capability saves hours of site revisits and reduces labor costs during commissioning. You can tighten coverage to monitor a specific area (like a checkout counter) or widen it to cover an entire section (like a stockroom).
- 2MP Resolution (1920 × 1080): Provides adequate detail for facial identification and asset documentation at 10–15 foot mounting heights, typical in offices, retail floors, and warehouse interiors. Not suitable for distant perimeter monitoring or large open spaces—consider higher-megapixel variants in the Axis IP camera line if you need detail at 30+ feet.
- Integrated IR Illumination (1.0m Range): Near-infrared LEDs handle complete darkness indoors. Effective for typical 8–12 foot ceiling heights in offices, retail, and stairwells; adequate for back-of-house areas where ambient light is absent. At 1 meter, IR won't reach across a warehouse floor—position the camera accordingly or rely on existing facility lighting for those wider spaces.
- IK10 Vandalism Rating: Withstands impact and deliberate tampering. Reduces unplanned replacement costs in high-traffic public areas (shopping centers, libraries, schools) where accidental or intentional damage is a real risk. The dome housing absorbs blows that would shatter a bullet camera lens.
- IP54 Dust and Splash Protection: Suitable for semi-harsh indoor environments—warehouses, loading docks, kitchens, humid storage areas. Dust won't enter the housing; splashing water (not directed spray) is tolerated. Skip this model if you need IP67 (direct washdown) or IP66 (heavy rain/hose)—those require outdoor-rated variants.
- PoE+ Power (IEEE 802.3at, ~12W): Draws approximately 12 watts via standard PoE+ injection. No separate power supply needed; existing PoE+ switches and injectors supply adequate current. Simplifies cabling on retrofit deployments where running separate DC lines is impractical.
- H.265 and H.264 Compression: H.265 cuts storage requirements roughly 40–60% versus H.264 on typical indoor scenes. Meaningful on 24/7 multi-camera recording where storage is a cost driver. H.264 fallback ensures compatibility with older VMS platforms that haven't upgraded to H.265 decoding.
- microSD Local Storage (up to 512GB): On-board edge storage buffers video during network interruptions or VMS downtime. Prevents footage loss on intermittent connectivity—common in older buildings with unstable Ethernet runs. Pull the card if the NVR fails and transfer it to another recorder.
- Wide Dynamic Range (WDR): Processes mixed lighting conditions—common in retail spaces with windows, skylights, and overhead fixtures. Reduces washout on bright glass, signage, or reflective surfaces while preserving shadow detail in darker zones. Improves usability for loss-prevention review.
- Day/Night Switching: Automatic IR cutoff filter transition ensures natural color rendering in daylight and full-spectrum IR sensitivity when ambient light drops. No manual tuning required—the camera adapts on its own.
- ONVIF Compliance: Integrates with any ONVIF-compliant VMS (Milestone XProtect, Hanwha SmartVMS, Axis Camera Station, etc.). Future-proofs your system if you migrate software platforms or add different camera brands later.
Integration and Deployment Context
The 03501-001 operates across 0°–50°C, suitable for climate-controlled indoor spaces (offices, retail, libraries, healthcare facilities). The compact dome form factor mounts flush to ceilings or walls, blending into finished spaces more discretely than bullet or turret designs. Firmware updates deploy over the network, allowing security patches and feature additions without physical access to the camera. Pair with a network video recorder or edge storage system for 24/7 recording. On larger deployments, verify your PoE+ switch has sufficient per-port wattage budgeting—12W per camera adds up quickly across 20+ units.
When to Choose a Different Model
If you need outdoor weatherproofing (rain, direct sun, temperature extremes), step up to a higher IP-rated Axis outdoor dome variant (IP66 or IP67). If facial recognition or asset detail at 25+ feet is critical, consider a 4MP or 5MP variant in the same family for sharper distant capture. If you need a fixed lens to reduce cost and complexity, Axis offers fixed-focal 2MP dome options without motorized optics.
Frequently Asked Questions
Q: Can I adjust the 03501-001 lens focus and zoom after it's mounted on the ceiling?
A: Yes. The motorized varifocal lens (2.8–10.5mm) allows remote adjustment via the camera's web interface or your VMS. No need to climb a ladder or re-mount the camera.
Q: What's the maximum distance the 03501-001 can see at night with IR on?
A: The integrated IR illumination reaches approximately 1.0 meter (3.3 feet). It's designed for typical 8–12 foot indoor ceiling heights where reflected IR bounces off walls and objects. Beyond 1 meter, IR falloff is significant; supplement with facility ambient lighting for wider coverage.
Q: Does the 03501-001 work with Milestone XProtect and other third-party VMS platforms?
A: Yes. The camera is ONVIF-compliant and integrates with any ONVIF Profile S-compatible VMS, including Milestone, Hanwha SmartVMS, Genetec, and others. Verify your VMS version supports H.265 decoding if you plan to use that codec; H.264 is universally supported.
Q: Is the 03501-001 rated for washdown or wet environments like commercial kitchens?
A: The IP54 rating tolerates splashing and humidity but not directed spray or submersion. Commercial kitchens with hose-down protocols require IP66 or IP67. For semi-harsh indoor environments (warehouses, loading docks with splash potential), the 03501-001 is adequate.
Q: What's the power consumption, and will a standard PoE switch handle it?
A: The camera draws approximately 12 watts via PoE+ (IEEE 802.3at). Most modern PoE+ switches supply 30W per port, so the 03501-001 won't strain the budget. Verify your switch specifications if you're deploying 20+ cameras; total power draw of 240W requires a robust PoE+ infrastructure.
Q: Can I store video locally on the camera if my NVR goes down?
A: Yes. The camera supports microSD cards up to 512GB. Insert a card and enable local edge recording in the camera settings. When network connectivity is restored, you can transfer buffered video to your NVR. This prevents gaps in footage on unstable network links.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03501-001 is a solid workhorse for medium-density indoor surveillance—retail floors, office corridors, warehouse back-of-house. The motorized 2.8–10.5mm varifocal lens is its strongest differentiator. On retrofit jobs where you can't predict exact mounting geometry, remote focus saves real time and money. The IK10 vandal rating and IP54 dust tolerance make it harder than fixed-lens budget domes, and the H.265 codec brings measurable storage savings when recording 24/7 across multiple units.
Technical Highlights:
- Motorized Varifocal 2.8–10.5mm Lens: No fixed-lens compromise. Adjust field of view remotely after installation. On a 20-camera retail retrofit, this feature alone can eliminate 4–6 site revisits, saving 40–60 labor hours.
- H.265 + H.264 Dual Codec: H.265 delivers 40–60% storage reduction versus H.264 on typical indoor motion patterns. At 12W PoE+ draw per camera, a 30-camera system consumes 360W total—well within a dual PoE+ switch budget (90W minimum per switch).
- 1.0m IR + WDR Combo: IR handles darkness; WDR handles mixed daylight/shadow zones. Together they reduce the need for additional facility lighting retrofits. The 1m IR range is effective only out to 8–12 feet in typical indoor environments—don't overestimate reach in large open spaces.
- Edge Storage (microSD to 512GB): Network interruptions won't orphan footage. Local buffering via microSD card gives you a safety net on unreliable Ethernet runs or aging building wiring.
Deployment Considerations:
- IP54 is not washdown-rated. If you're planning a food-service or chemical storage deployment with hose-down requirements, this camera will fail. Step up to IP66/IP67.
- The 1.0m IR range is honest but limited. In a warehouse with 16-foot ceilings and no ambient light, the 03501-001 won't illuminate the floor. Position it for reflected light or augment with facility lighting.
- PoE+ power is approximately 12W—low enough that older PoE+ switches may supply it, but verify your infrastructure before adding 20 cameras to a switch rated for only 15W per port average.
Deploy the 03501-001 where you need flexible field-of-view adjustment, moderate detail capture (10–15 feet), and vandal resistance without outdoor weather ratings. It excels in retail loss-prevention, office entry corridors, and warehouse perimeter documentation. Skip it if you need outdoor durability, long-range IR, or high-resolution detail; other indoor dome variants in the Axis family address those gaps.
