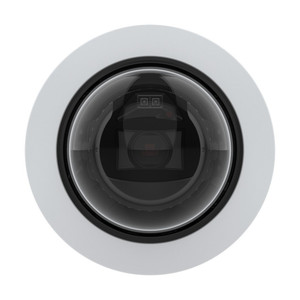

Axis P3275-LV 2MP Indoor AI Dome Camera - 03149-001

Axis 03149-001 P3275-LV 2MP Indoor AI Dome Camera

The Axis 03149-001 is a compact, edge-intelligent dome designed for commercial indoor surveillance where forensic image quality and real-time analytics matter. Built on the ARTPEC-9 processor, it delivers 2MP resolution with varifocal optics (3.4–9.8 mm, F1.4–2.7) capable of spanning 100° wide to 32° telephoto fields of view in a single deployment. The combination of 120 dB forensic wide dynamic range, IR illumination to 40 m, and integrated AI object analytics makes this camera suitable for retail checkouts, corporate access points, healthcare waiting areas, and warehouse monitoring where lighting conditions vary and motion classification is important.

Key Features

• 2MP progressive scan CMOS sensor (1/2.8"): Delivers sufficient pixel density for facial recognition at typical indoor distances (14 m optimal identification range) while keeping bandwidth and storage modest—meaningful when deploying dozens of cameras across a facility.
• 3.4–9.8 mm varifocal lens with motorized focus: Wide position (100° HFOV) suits open retail floors and lobbies for situational awareness; tele position (32° HFOV) concentrates pixels on access points and high-value zones without requiring a second camera. Field of view adjustment is manual and persists after power cycling.
• 120 dB forensic WDR: Preserves shadow and highlight detail simultaneously in extreme contrast scenes—entrance areas with backlit windows, checkouts under mixed lighting, or transitions between sunlit retail floors and dimly lit storage areas. This eliminates the need for repositioning or supplemental lighting in many indoor mixed-light scenarios.
• IR illumination to 40 m: Built-in 850 nm LED extends night vision into enclosed spaces like warehouse aisles, server rooms, and after-hours retail floors without visible light spillover. Range is measurable indoors; outdoor range depends heavily on reflective surfaces and ambient IR.
• AXIS Object Analytics with deep learning: Classifies motion as people, vehicles, or objects at the edge, reducing false alerts from shadows, HVAC movement, or reflections. Enables rule-based triggering (record only on person detection) and reduces VMS CPU load when handling dozens of simultaneous streams.
• Live Privacy Shield: Masks sensitive zones in real-time without post-processing—useful for compliance with GDPR, HIPAA, or workplace privacy policies while maintaining perimeter and asset monitoring on unmasked areas.
• Scene Metadata: Embeds contextual video data for intelligent search and forensic review—supports timestamp-based filtering and reduces review time when investigating specific incident windows.
• Two-way audio with built-in microphone: Enables active facility announcements or interactive security responses (retail customer service, warehouse safety alerts) over the same IP connection as video.
• PoE power (IEEE 802.3af): Draws under 13W typical, so standard PoE switches suffice—no separate power supplies or electrical runs needed. Simplifies cabling in retrofit installations and reduces installation cost per camera.
• IK10-rated dome enclosure: Withstands moderate physical impact typical of retail and educational environments; not intended for high-vandalism or outdoor weathering.
• Operating temperature 0°C to 50°C: Suitable for climate-controlled indoor spaces (offices, retail, healthcare); not rated for unheated storage facilities or outdoor mounting.

Imaging Performance and Coverage

Detection range at tele setting reaches 135 m (444 ft) theoretical, but effective indoor recognition requires 14–27 m depending on facial orientation and lighting. At standard ceiling heights (3–4 m), the varifocal range allows a single camera to cover both a wide lobby entrance and a focused view of a specific access door or checkout by adjusting focus post-installation. The progressive scan sensor eliminates motion artifacting, critical for accurate object classification and forensic clarity during fast-moving retail floor activity or emergency response scenarios.

Integration and Compatibility

The 03149-001 supports ONVIF standards for VMS interoperability and integrates with video management platforms supporting RTSP or MJPEG playback. H.265 and H.264 compression options reduce bandwidth by 30–50% compared to motion JPEG, a real saving on PoE switch bandwidth when managing 10+ cameras on shared infrastructure. Edge analytics offload intelligence processing to the camera itself, reducing backend server CPU and allowing smaller or distributed NVR deployments.

Typical Deployment Scenarios

• Retail stores: checkout areas with mixed lighting and high-value SKU zones
• Corporate offices: lobbies, meeting room entrances, access corridors
• Healthcare: waiting areas, administrative zones (HIPAA-compatible with privacy masking)
• Education: classroom entrances, hallway intersections, cafeteria monitoring
• Warehouses: inventory aisles, receiving areas, after-hours perimeter watch

Frequently Asked Questions

Q: What is the maximum detection distance of the Axis 03149-001?

A: At tele (32° HFOV), detection range is up to 135 m. Recognition distance extends to 27 m, with identification optimized at 14 m for typical indoor ceiling heights of 3–4 meters. These are theoretical maximums; actual performance depends on target contrast, lighting, and facial orientation.

Q: Can the 03149-001 be wall-mounted or only ceiling-mounted?

A: The dome form factor accommodates both ceiling and wall mounting. Orientation and field of view angle depend on physical installation position; mounting hardware is not detailed in the specification evidence.

Q: Does the 03149-001 work with Milestone XProtect or Axis Camera Station?

A: The camera supports ONVIF standards, enabling integration with most major VMS platforms including Milestone XProtect. Direct integration with Axis Camera Station is confirmed as a native option. Consult your VMS vendor for specific profile support (S, T, or G).

Q: What is the IR range in an outdoor environment?

A: The 03149-001 is rated for indoor deployment only (0–50°C operating temperature) and is not designed for outdoor weathering. IR range of 40 m applies to enclosed spaces with typical wall reflectance; outdoor range is not specified and outdoor use is not supported.

Q: How much bandwidth does the 03149-001 consume?

A: Bandwidth depends on resolution, frame rate, compression (H.265 vs H.264), and scene complexity. H.265 typically reduces data by 40–60% versus H.264 for the same quality. Consult the full datasheet or contact the manufacturer for bitrate tables at your intended settings.

Q: Is the 03149-001 NDAA Section 889 compliant?

A: Compliance information is not present in the available specification evidence. Contact the manufacturer or your specialty distributor for current NDAA and TAA certification status.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03149-001 hits a practical sweet spot for mixed-lighting indoor deployments where edge analytics matter but hardware constraints exist. The 120 dB forensic WDR is a real differentiator—it genuinely eliminates lighting compensation problems at retail checkouts and lobby entrances where backlit windows and overhead fixtures create harsh contrast. Pair that with AXIS Object Analytics running locally on the ARTPEC-9 processor, and false-alert fatigue drops sharply compared to basic motion detection.

Technical Highlights:

• 120 dB Forensic WDR: Simultaneous shadow and highlight preservation in extreme-contrast indoor scenes (e.g., sunlit entrance + dark corridor interior) without post-processing or dual-exposure compositing. This alone justifies the 03149-001 in high-variance lighting environments.
• Varifocal 3.4–9.8 mm lens (100° to 32° HFOV): Single-camera solution for both situational awareness and detail capture. At tele, detection reaches 135 m; identification optimized at 14 m. Avoids multi-camera redundancy on access-point monitoring.
• Edge analytics (AXIS Object Analytics + Scene Metadata): Deep learning classification (people/vehicle/object) reduces VMS CPU load and rule-triggered recording overhead. Privacy Shield masking runs on-device, supporting GDPR/HIPAA without external processing.
• PoE sub-13W draw: Standard 802.3af switches suffice; no PoE+ or ++ required. Meaningful cost saving and power-budget simplicity on retrofit installations with limited PoE headroom.

Deployment Considerations:

• The 0–50°C operating temperature is strict: unheated warehouse aisles or outdoor loading zones exceed spec. Verify facility climate before committing.
• IR 40 m range is indoor-optimized; reflective properties of your specific space (drywall vs. concrete vs. metal racks) significantly affect actual reach. Test in situ before relying on IR for after-hours perimeter coverage.
• Varifocal adjustment is manual post-install; if frequent FOV changes are needed, consider a motorized option instead.

Position the 03149-001 for retail loss-prevention, corporate access-control augmentation, and healthcare facility monitoring where privacy compliance and WDR-heavy scenes are the norm. It will not replace outdoor PTZ for parking lots or perimeter work, nor will it excel in extremely low-light vaults without IR; it is purpose-built for the middle ground—controlled indoor environments where forensic clarity and on-edge intelligence drive decisions.
