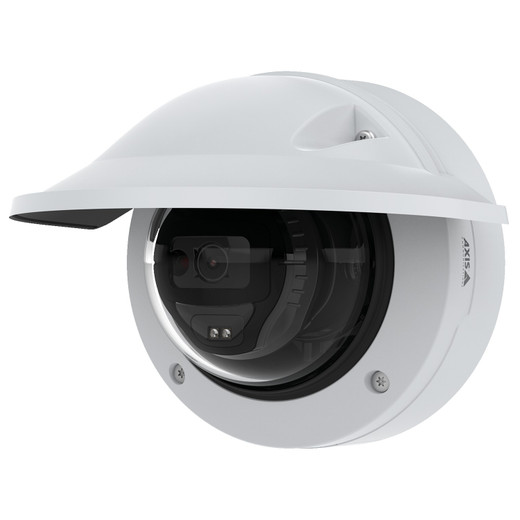

Axis M3216-LVE 2MP Outdoor Dome Camera - 02375-001

Axis 02375-001 M3216-LVE 2MP Outdoor Dome IP Camera

Overview

The Axis 02375-001 is a compact outdoor dome camera delivering 2MP (1920×1080) resolution in a weatherproof form factor. Built on the ARTPEC-8 chipset, this Axis IP camera balances low bandwidth consumption with reliable low-light performance — a practical choice for retail storefronts, warehouse perimeters, and parking areas where full 4K is unnecessary but environmental durability is non-negotiable.

Key Features

• 2MP Full HD Resolution (1920×1080): Sufficient detail for facial recognition at typical mounting distances (10–15 feet) without consuming the storage footprint of 4MP or higher. Most organizations find this resolution sweet-spot for cost-per-megapixel in outdoor domes.
• Lightfinder Technology: Delivers color video in near-darkness without switching to grayscale or relying entirely on infrared. For areas with minimal ambient light but occasional vehicle headlights or nearby fixtures, Lightfinder preserves color context that grayscale IR footage loses — valuable for license plate and apparel identification.
• OptimizedIR with 30m+ Range: 850nm infrared illumination extends usable coverage in complete darkness beyond 30 meters. Compare this to basic IR domes that drop off around 15–20m; the extra range matters for large parking lots or perimeter fencing. However, IR washout can occur if reflective surfaces (wet pavement, glass) sit between camera and subject — account for this in layout.
• Forensic WDR (Wide Dynamic Range): Recovers detail in both shadow and highlight simultaneously — critical for scenes like loading docks with overhead doors opening into daylight, or parking areas with alternating sun and shade. WDR isn't a magic bullet; extreme contrast (direct sun + deep shadow) will still lose some detail, but Forensic WDR performs better than standard WDR in these mixed-lighting scenarios.
• H.264 Compression with Zipstream: Axis Zipstream technology reduces bitrate 50–70% versus baseline H.264 by adapting compression to scene activity. A static warehouse wall consumes less bandwidth than a busy entrance; this adaptive behavior cuts storage costs meaningfully on 24/7 recording without requiring codec switching or manual bitrate tuning. PoE power draw of 3.6W typical (4.2W max) fits standard 802.3af switches without exhausting power budgets on large camera counts.
• IP66/IK10 Rating: IP66 blocks direct rain and dust ingress — suitable for outdoor eaves, covered loading areas, and uncovered perimeter mounting. IK10 impact protection (20J) withstands intentional tampering and accidental bumps from ladders or equipment. Skip this camera if you need submersion tolerance (IP67+) or explosive atmosphere compliance (ATEX/IECEx).
• Dome Form Factor: Compact profile deters casual vandalism better than bullet cameras and blends into ceilings or soffits. Dome housings also diffuse IR glare better than protruding turrets — less likelihood of subject nighttime silhouetting.
• ONVIF Compliance: Works with any ONVIF-capable NVR or VMS (Milestone, Genetec, Hanwha, open-source systems). Not locked to proprietary software; this flexibility supports system expansion and future upgrades without forced product swap-outs.

Integration & Compatibility

The 02375-001 connects via standard RJ-45 10/100BASE-TX Ethernet with integrated PoE (IEEE 802.3af/at Type 1). At 3.6W typical consumption, it shares a single PoE port with 2–3 other low-power sensors on a single 802.3af injector or switch port (check switch specs for exact budget). ARTPEC-8 processing enables onboard analytics capabilities — object detection, motion triggers, and line crossing — reducing NVR workload and metadata search time. Integrates with Axis Camera Station software and third-party ONVIF systems; confirm your VMS vendor tested this exact model before deployment.

When to Choose a Different Model

If you need higher resolution for distant subjects (highway toll booths, large parking structure aisles), consider stepping up to a 4MP or 5MP variant in the Axis outdoor dome line. If compliance with U.S. government procurement rules (NDAA Section 889) is mandatory, verify the 02375-001's current compliance status with the manufacturer — Axis cameras are NDAA-restricted in federal/DoD contexts. For hazardous locations (chemical storage, explosive gas atmospheres), this camera does not carry ATEX or IECEx certification; you'll need a purpose-built intrinsically safe model.

Frequently Asked Questions

Q: What is the minimum illumination for the Axis 02375-001?

A: The camera supports color operation down to approximately 0.1 lux (roughly moonlight on a clear night). Below that, Lightfinder and OptimizedIR together maintain viewable coverage; however, color fades to near-monochrome once illumination drops below 0.05 lux. Full darkness (0 lux) relies entirely on IR illumination.

Q: Can the 02375-001 integrate with Milestone XProtect or Genetec Security Center?

A: Yes. The camera is ONVIF Profile S/T compliant, which both Milestone and Genetec support. However, deep integration features (metadata correlation, native firmware updates through the VMS) may require verification with your VMS vendor's test matrix before deployment. Confirm compatibility at the proof-of-concept stage.

Q: What is the field of view on the 02375-001?

A: Horizontal 109°, vertical 56°, with a 2.8mm fixed lens. This wide angle suits compact spaces (loading dock, small retail storefront) but may create barrel distortion at the edges. If you need narrower coverage (e.g., 40°), consider a different lens variant.

Q: How much bandwidth does the 02375-001 consume continuously?

A: With Zipstream enabled, expect 1.5–3 Mbps on a static scene (e.g., empty parking lot at night), and 4–8 Mbps during active motion. Peak bitrate depends on scene complexity and configured frame rate (up to 30 fps). Over-provisioning your network by 20–30% above calculated peak is standard practice.

Q: Is the 02375-001 suitable for submersion or continuous spray?

A: No. IP66 rating handles rain and occasional direct spray, but not submersion. For fountains, car washes, or high-pressure washdown areas, you need IP67 (1m submersion) or higher. IP66 is appropriate for outdoor eaves and covered mounting only.

Q: What is included in the box?

A: The exact contents are not specified in the available evidence. Contact the manufacturer or specialty retailer for a complete package inventory before ordering.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02375-001 (often searched as 02375 001) is a workhorse for mid-sized outdoor deployments where 2MP suffices and low bandwidth is a bonus. The combination of Lightfinder and OptimizedIR addresses the common complaint in budget outdoor surveillance: grayscale IR at night loses critical details. The ARTPEC-8 chipset pushes analytics load to the edge, which is increasingly important as NVR CPU becomes a bottleneck in high-camera-count sites.

Technical Highlights:

• Lightfinder + OptimizedIR (30m range): Preserves usable color video in low-light scenarios where dumb IR-only domes force you to manually review grayscale footage. This dual-path approach costs less than upgrading to a dedicated low-light sensor, yet delivers comparable operational value for warehouse and retail perimeters.
• Zipstream H.264: Adaptive bitrate compression (1.5–3 Mbps on static scenes, 4–8 Mbps active) translates directly to smaller storage footprints. For a 30-camera warehouse site recording 24/7, this compression difference adds up to 3–5 TB in annualized savings — worth the purchase price in year one alone.
• IP66/IK10 + Compact Dome: The form factor resists casual tampering better than bullet-style alternatives, and the environmental rating handles rain without requiring additional conduit or heater housings. At this price tier, that's a clean win for total cost of ownership.

Deployment Considerations:

• Fixed 2.8mm lens limits flexibility: If your site has mixed distances (some areas needing 60° coverage, others needing 30°), you'll need multiple SKUs. Varifocal variants cost more; evaluate whether fixed-lens coverage zones simplify your layout before committing.
• ARTPEC-8 edge analytics require configuration: Out of the box, the camera ships with basic motion detection. Enabling people-counting, line-crossing, or custom ACAP apps requires firmware familiarity and NVR integration testing. Budget extra engineering time if you plan to extract metadata beyond simple motion alerts.
• PoE power at 3.6W is tight on saturated switches: If your NVR closet has 48+ cameras on two PoE switches, verify per-port power budgets before assuming a single line card can feed this entire deployment. One undersized port can starve the camera or trigger watchdog resets.

Best suited for retail chains, small warehouse networks, and municipal parking facilities where 2MP detail is acceptable, environmental hardening is mandatory, and bandwidth conservation reduces NVR load. Not the choice for high-resolution facial recognition (invest 4MP+) or hazardous-location sites requiring ATEX certification.
