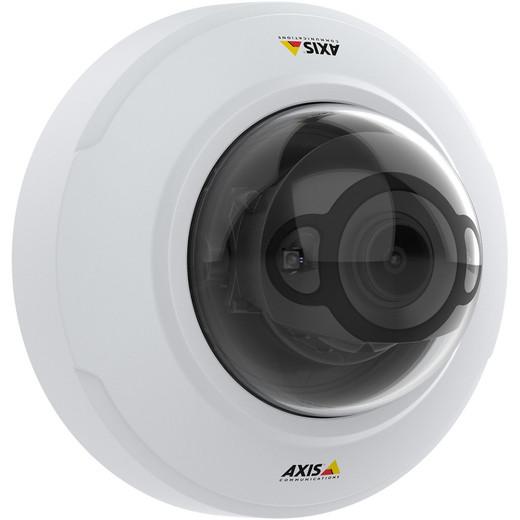

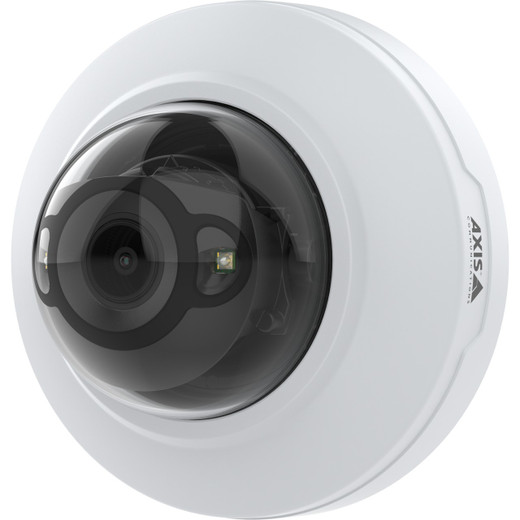

Axis 02113-001 4MP Varifocal Lightfinder Dome IR Camera
Overview
The Axis 02113-001 is a compact 4MP indoor dome designed for low-light surveillance in retail, office, and transit environments. Built on Axis IP cameras core platform, it combines Lightfinder color imaging at 0.18 lux with integrated IR, a motorized 3–6mm varifocal lens, and edge-based deep learning analytics. The unit operates on standard PoE (Class 3), eliminating the need for separate power wiring and reducing installation cost and complexity.
Key Features
- 4MP Resolution (2304×1728) – Captures fine detail across indoor scenes; 30 fps at full resolution supports smooth motion and forensic review without frame skipping on modern recorders.
- Lightfinder Technology at 0.18 lux – Delivers color imagery in near-darkness without excessive noise or loss of detail. This is materially better than conventional sensors that degrade to grayscale or noise-heavy monochrome in low ambient light. For retail and office lobbies with variable or minimal lighting, this reduces reliance on IR and extends usable daylight hours.
- Varifocal Lens (3–6mm, 100–45° FOV) – Remote zoom and autofocus eliminate field-of-view guesswork during installation. Installers can adjust focal length via software after camera placement, shrinking deployment time and rework costs in retrofit scenarios.
- Integrated IR Illumination – Provides fallback lighting for complete darkness; works in tandem with Lightfinder to ensure 24/7 coverage without external IR arrays. Practical for stairwells, loading docks, and emergency corridors where ambient light is genuinely absent.
- Wide Dynamic Range (WDR) – Balances exposure in high-contrast scenes (e.g., retail floors with skylights or adjacent outdoor windows). Preserves detail in both bright and dark regions of the same frame, reducing blown-out highlights or crushed shadows that obscure faces or license plates.
- Edge Deep Learning (on-camera analytics) – Object detection and classification run directly on the camera, not on a central server. This cuts bandwidth, storage, and server CPU load by filtering irrelevant motion events before transmission. Real-time alerts trigger on detected objects (person, vehicle, package) without backend processing latency.
- H.264 Compression with Zipstream – Encodes video efficiently; Zipstream adapts bitrate based on scene complexity, cutting storage and network bandwidth by 50–70% compared to constant-bitrate H.264 in typical indoor scenarios. Matters for 24/7 recording across dozens of cameras.
- PoE (Class 3, max ~13W) – Draws under 13W, so it runs from standard 802.3af switches without power budget strain. No separate 12V or 24V power supply required; single Ethernet cable simplifies cabling and reduces junction points.
- IK08 Vandal Rating – Rated for public-access indoor spaces where accidental or minor intentional impact is a concern (e.g., retail, transit stations). Not submersible or fully explosion-proof, but adequate for most indoor commercial settings.
- Audio Input – Built-in microphone for two-way communication or incident audio documentation. Useful for retail customer service and security incident correlation.
- Secure Boot & Signed Firmware – Cryptographically signed firmware and Secure Boot prevent unauthorized modifications. Axis Edge Vault encrypts stored data and logs, meeting compliance mandates in regulated sectors (finance, healthcare, retail). No firmware backdoors or unsigned code execution.
Integration & Compatibility
The 02113-001 supports ONVIF Profile S, ensuring compatibility with vendor-neutral video management systems (Milestone XProtect, Genetec, Hanwha, etc.). Axis ACAP (Application Custom Application Platform) integration enables third-party edge analytics (crowd detection, heat mapping) if required. PoE delivery simplifies integration with standard network switching; consult PoE power planning guidance for multi-camera installations exceeding switch capacity.
When to Choose a Different Model
If outdoor weathering is required, step up to an outdoor-rated variant in the Axis family with IP66 or IP67 ratings. If you need higher resolution for wide-area identification (e.g., large parking garages or warehouses), consider a 5MP or 8MP variant with a fixed lens. If your environment has constant high illumination and low-light performance is irrelevant, a standard 4MP dome without Lightfinder delivers the same resolution at lower cost. If analytics must run centrally on a VMS server rather than on-camera, Lightfinder edge processing may be unnecessary for your workflow.
Technical Context
Sensor: 1/2.7" CMOS. Operating temperature range 0–45°C suits typical indoor HVAC zones; confirm ambient conditions if the camera is mounted near heat sources (server racks, ceiling plenums). Sustainability note: BFR/CFR-free and PVC-free materials align with corporate ESG targets and customer procurement policies.
Frequently Asked Questions
Q: What's the minimum light level at which the 02113-001 captures useful color video?
A: Lightfinder captures color at 0.18 lux. Below that, the integrated IR activates to maintain coverage. At 0.18 lux (roughly equivalent to a dark parking garage with minimal ambient light), you get full color detail without switching to grayscale or noise-heavy monochrome.
Q: Can I adjust the lens remotely after installation?
A: Yes. The varifocal lens (3–6mm) and autofocus are remotely controllable via the camera's web interface or management software. You can zoom and refocus without physical access, which is a significant time-saver in retrofit deployments or when mounting height varies.
Q: Is the Axis 02113-001 suitable for outdoor use?
A: No. This is an indoor dome. It has no IP66/IP67 weatherproofing and will fail if exposed to direct rain, high humidity, or temperature extremes beyond 0–45°C. Choose an outdoor-rated Axis dome variant if you need weather resistance.
Q: How much bandwidth does the 02113-001 use on a network?
A: Typical bitrate is 2–5 Mbps at 30 fps full resolution, depending on scene complexity and Zipstream adaptation. Edge deep learning and analytics filtering further reduce transmitted data by eliminating motion-only frames and irrelevant events, but the exact bandwidth depends on your VMS configuration and retention policy.
Q: Is NDAA Section 889 compliance relevant to this camera?
A: Axis (a subsidiary of Canon) is not on the Federal Communications Commission (FCC) Entity List and is generally permissible in U.S. federal procurement. However, confirm with your procurement office if you are bidding on federal contracts, as policy can change and exclusions may apply to specific contract vehicles.
Q: Does the camera support two-way audio?
A: The 02113-001 includes a built-in microphone for audio input. Check your VMS or recorder to confirm it supports audio streaming and two-way talk-back; most modern Axis cameras are compatible with two-way audio over ONVIF when paired with supporting software.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02113-001 represents a pragmatic balance between low-light imaging quality and operational simplicity. Lightfinder's 0.18 lux color performance is genuinely class-leading for indoor retail and transit; combined with integrated IR fallback, this camera eliminates common low-light blind spots without requiring dedicated IR arrays or external lighting infrastructure. The varifocal lens and remote autofocus are practical installation aids, especially in retrofit scenarios where exact mounting geometry may vary.
Technical Highlights:
- Lightfinder + IR Combination: 0.18 lux color capture paired with integrated IR means you avoid the cost and complexity of external IR illumination in most indoor spaces. For comparison, conventional 4MP domes without Lightfinder typically drop to noisy monochrome around 0.5–1 lux, requiring supplemental IR to achieve nighttime clarity.
- Edge Deep Learning: On-camera object detection and classification (person, vehicle, package) filter irrelevant motion before transmission, cutting bandwidth and storage by 50–70% in typical installations. This directly reduces backend VMS server load and shrinks multi-camera system TCO.
- Varifocal 3–6mm with Remote Focus: 100° to 45° FOV range covers everything from close-range lobby detail to wider retail-floor monitoring, all adjustable post-installation. Eliminates field-of-view guesswork and rework costs in retrofit or variable-mounting scenarios.
- H.264 + Zipstream: Adaptive bitrate encoding delivers 2–5 Mbps typical consumption, scaling down during static scenes. Combined with edge analytics filtering, multisite installations recording 24/7 see real storage and bandwidth relief without sacrificing retention or image quality.
- IK08 Durability: Suitable for public-access indoor spaces (retail floors, transit hubs, office lobbies) where accidental impact is a design consideration. Not full explosion-proof or submersible, but adequate for most commercial indoor deployments.
Deployment Considerations:
- Indoor-Only Limitation: The 02113-001 is not IP66/IP67 rated and will fail under direct rain or high-humidity outdoor conditions. Confirm your environment is climate-controlled (0–45°C operating range) before specifying this model.
- PoE Power Budget: At ~13W maximum, the 02113-001 fits comfortably on standard 802.3af PoE switches. Multi-camera deployments (8+ units) should confirm switch capacity or migrate to PoE+ infrastructure; this is rarely a blocking issue but worth auditing early.
- Audio Input Only: The built-in microphone is input-only. If two-way audio (camera-to-speaker communication) is required, confirm your VMS supports audio playback or integrate a separate PA system.
- Deep Learning Context Dependency: Edge analytics work best in controlled indoor lighting (retail, office). High-glare or rapidly changing light (skylights, flickering signage) can reduce classification accuracy; test in your specific environment before full rollout.
Best-Fit Deployment Scenarios: Retail surveillance (dressing rooms, checkout areas, stockrooms), office security (lobbies, hallways, stairwells), warehouse entry/exit monitoring, transit hubs, and parking facilities with minimal natural light. The combination of Lightfinder color retention, varifocal lens flexibility, and edge analytics makes the 02113-001 particularly cost-effective for mid-market integrators handling mixed indoor environments where a one-size-fits-all fixed-lens camera would require multiple SKUs.
