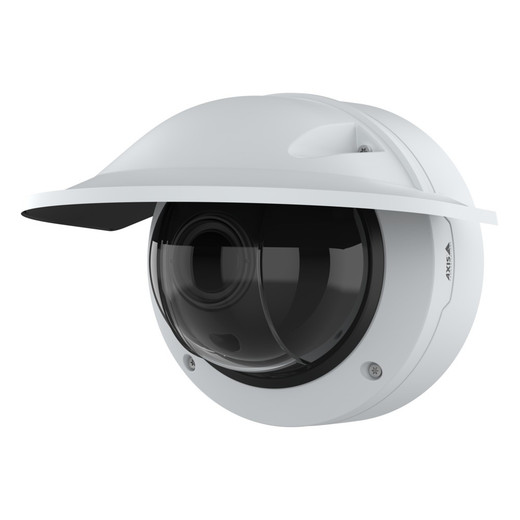

Axis 02971-001 Q3546-LVE 4MP Outdoor AI IR Dome Camera
The Axis 02971-001 (Q3546-LVE) is a purpose-built outdoor surveillance dome combining 4MP resolution with edge-based AI analytics and integrated IR illumination. It targets high-security deployments—perimeter protection, critical infrastructure, and 24/7 monitoring scenarios—where on-camera intelligence and all-weather performance matter more than size or simplicity.
Key Features
- 4MP resolution with 10mm telephoto lens — narrows the field of view compared to standard 2.8mm or 3.6mm lenses, giving you usable identification detail at 80–100 feet rather than 30–40 feet. Trade-off: smaller coverage area per camera, so perimeter deployments need more units, but you get the detail forensics actually require.
- ARTPEC-9 processor with deep learning analytics — runs object detection and classification directly on the camera without sending raw video to a server. Cuts network traffic, reduces recorder CPU load, and triggers alerts in milliseconds. Most valuable if your network or storage is bandwidth-constrained, or if you need real-time threat classification at the edge.
- IR-shielded dome with integrated IR illumination — the dome optics are optimized to eliminate internal reflections that degrade thermal imaging. Delivers usable monochrome video in complete darkness (0 lux) without relying on external IR sources. Limitation: IR-shielded designs cost more and have slightly lower light transmission than clear domes; use standard outdoor domes if you have adequate ambient light or external IR.
- Lightfinder 2.0 technology — sensor-level low-light optimization that reduces noise and preserves detail in twilight or overcast conditions. Measurable benefit if your site has minimal artificial lighting; less relevant for well-lit urban areas.
- Forensic WDR (Wide Dynamic Range) — preserves shadow and highlight detail simultaneously in backlit scenes (e.g., a person entering a building with bright daylight behind them). Essential for legal-grade footage in mixed-lighting environments; overkill if your site has uniform lighting.
- IP66/IP67 environmental sealing with IK10 vandalism rating — IP66 handles rain and dust spray; IP67 adds brief submersion tolerance. IK10 withstands 50-joule impact (equivalent to a sledgehammer). Real benefit: no housing degradation over 3–5 years in harsh outdoor settings. Install behind cages or domes if impact risk is human-intentional.
- PoE powered (802.3af compatible) — draws approximately 13W max, so a standard 90W PoE switch can support 6–7 of these cameras per port group. No separate 12V or 24V supplies to wire. Simplifies installation in remote locations.
- H.265 codec with Zipstream compression — cuts bandwidth and storage 40–50% versus H.264 on the same scene. Real impact: a 24/7 multi-camera perimeter system can shrink from 20TB/month to 10–12TB/month, extending recorder retention from 60 to 120+ days without upgrading hardware.
- Axis Edge Vault — hardware-level cryptographic storage and secure boot. Prevents firmware tampering and protects authentication credentials. Relevant if your organization operates in critical infrastructure or regulated sectors (utilities, transportation, government).
Integration & Compatibility
The 02971-001 supports ONVIF Profile S (and higher), ensuring compatibility with vendor-neutral network video recorders from Milestone, Genetec, Hanwha, and others. Deep learning analytics run natively on the camera via ARTPEC-9; no third-party GPU required. If your site already uses Axis IP cameras, this model integrates with Axis Camera Station or AXIS Companion. Power planning: ensure your PoE switch or injector can supply 13W sustained; gigabit Ethernet recommended for H.265 streaming and analytics metadata.
When to Choose a Different Model
If you need wider coverage area per camera, consider a 2.8mm or 3.6mm variant in the same outdoor outdoor IP cameras family—you'll sacrifice long-range identification for broader perimeter view. If IR illumination is not required and your site has adequate lighting, a standard (non-IR-shielded) 4MP dome reduces cost and complexity. If you need pan-tilt-zoom capability, explore the Q series PTZ models instead.
Frequently Asked Questions
Q: Does the 02971-001 require external IR lighting?
A: No. The integrated IR illuminator and IR-shielded dome design allow the camera to produce monochrome video in complete darkness without external light sources. For color imaging in low light, you would need supplemental white lighting.
Q: What is the maximum IR range on the Q3546-LVE?
A: The integrated IR supports effective illumination to approximately 30 meters (98 feet) in darkness. Distance depends on reflectivity of target surfaces; rough or dark materials reduce effective range.
Q: Is the 02971-001 NDAA Section 889 compliant?
A: That determination depends on your organization's specific procurement policy and the version of the Axis product line. Consult your legal or procurement team and Axis directly for compliance documentation if Section 889 applies to your contract.
Q: Can I wall-mount the Q3546-LVE, or is it ceiling-only?
A: The dome form factor and mounting bracket support both ceiling and wall mounting. Orientation affects the field of view—confirm the 10mm telephoto angle of view suits your wall-mount position before final installation.
Q: What codecs does the 02971-001 support?
A: The camera supports H.265, H.264, and MJPEG. H.265 is recommended for bandwidth and storage efficiency on long-term recordings.
Q: Does the Q3546-LVE work with my existing Milestone or Genetec system?
A: Yes. The camera is ONVIF-compliant and integrates with any ONVIF-compatible VMS. Deep learning analytics are exposed via standard event/notification APIs; check your VMS version for full metadata support.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02971-001 (Q3546-LVE) represents a mature approach to outdoor edge intelligence—not bleeding-edge, but engineered for reliability in the field. The combination of ARTPEC-9 deep learning, 10mm telephoto optics, and IR-shielded dome design solves a specific problem: delivering usable identification footage at distance in any light, without flooding the network or recorder with unnecessary video. If you've been frustrated by generic wide-angle domes that capture plenty of scene but no faces, or by high-bandwidth raw feeds to your NVR, this model addresses both pain points.
Technical Highlights:
- ARTPEC-9 and Zipstream compression: On-camera analytics reduce network traffic to 3–5 Mbps for H.265 streaming and event metadata, versus 10–15 Mbps for uncompressed H.264. A 30-camera deployment saves 150–300 Mbps of network load—real value if your core switch or WAN link is congested.
- IR-shielded dome with integrated illumination: Delivers contrast and detail in 0-lux darkness without external light sources or reflective glare. Most outdoor domes struggle with internal reflections at night; this design eliminates that compromise and enables 24/7 monochrome surveillance without supplemental lighting infrastructure.
- Forensic WDR and Lightfinder 2.0: Together, these preserve shadow detail in backlit or mixed-lighting scenes and reduce noise in low-light conditions. Measurably improves forensic usability—the difference between a face you can identify and one that's washed out or dark.
Deployment Considerations:
- Telephoto trade-off: The 10mm lens is purposeful for identification at distance, but it narrows the per-camera field of view. Perimeter designs must account for more cameras or tighter spacing—calculate horizontal coverage early to avoid late surprises.
- PoE power budget: At ~13W, the 02971-001 is modest, but analytics and H.265 encoding are processor-intensive. If you're stacking multiple analytics rules on the camera, test sustained power draw under load; some edge deployments benefit from PoE++ (802.3bt) for headroom.
- Analytics dependency: ARTPEC-9 deep learning is powerful, but it requires training data and tuning for your specific scene (lighting, object types, clutter). Out-of-box detection may not be production-ready; factor in commissioning time for rule refinement.
This camera earns its place in critical infrastructure and law-enforcement perimeter security, where identification at distance and forensic-grade detail justify the cost. For general-purpose wide-area monitoring or sites with ample lighting and generous coverage tolerance, a standard 2.8mm dome is overkill and cheaper. For sites where nighttime detail and edge intelligence are non-negotiable, the 02971-001 is a solid, proven choice.
