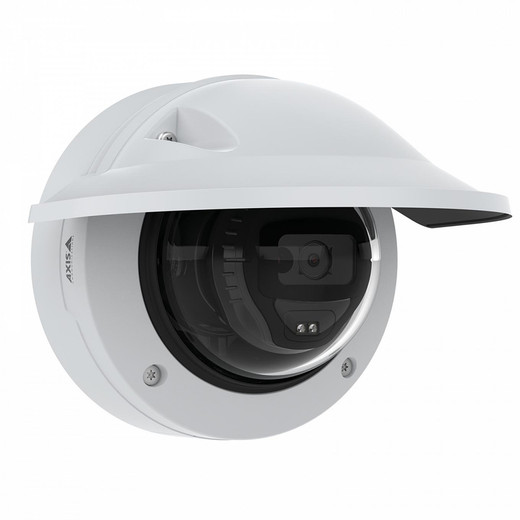

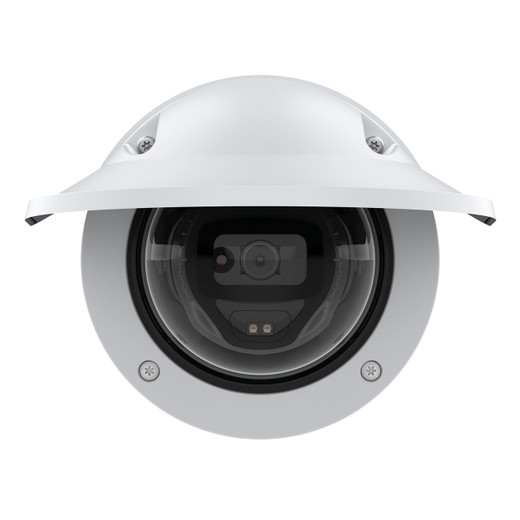

Axis 02371-001 2MP Vandal-Resistant Outdoor Dome IP Camera
Overview
The Axis 02371-001 is a 2MP fixed-lens outdoor dome purpose-built for perimeter and area surveillance where weather and physical abuse are facts of life. This camera combines low-light performance, wide dynamic range capability, and infrared reach into a single compact IP66/IK10-rated package powered entirely by standard PoE (802.3af). The dome form factor and vandal-resistant construction mean it survives in retail parking lots, warehouse yards, transportation hubs, and municipal infrastructure where dome and turret cameras routinely get hit, vibrated, or exposed to temperature swings and salt spray.
Built on Axis's ARTPEC-8 processor, the 02371-001 supports H.264 and H.265 compression via Zipstream technology, which cuts storage consumption 30–50% compared to standard H.264 alone—a meaningful saving when you're recording dozens of cameras 24/7 into an NVR or cloud archive. The combination of Lightfinder for color night vision, Forensic WDR for backlit and mixed-lighting scenes, and OptimizedIR illumination (850nm, 30m+ range) means you do not need to choose between day and night coverage; you get both in one unit.
Key Features
- 2MP Full HD 1080p Resolution: 1920×1080 frame capture delivers sufficient detail for human identification and vehicle plate recognition in most outdoor scenes without the processing or storage overhead of 4MP or higher.
- Lightfinder Low-Light Technology: Produces sharp, saturated color images in twilight and dusk conditions (well below typical <0.5 lux thresholds). Eliminates the need for separate low-light or night-vision camera variants in mixed-lighting deployments.
- Forensic WDR (Wide Dynamic Range): Simultaneously captures detail in both highlight (e.g., sunlit pavement) and shadow areas (e.g., doorway entrance) in a single frame. Eliminates the blown-out or crushed-shadow artifacts that plague standard cameras in uneven outdoor lighting—critical for parking lots and building facades.
- OptimizedIR with 30m+ Illumination Range: Built-in 850nm LED array provides clear surveillance in complete darkness without requiring additional external IR floods. 30+ meters covers most perimeter zones; verify exact range for your site geometry with a mockup deployment.
- H.265 and H.264 Compression via Zipstream: Intelligently reduces bitrate by up to 50% in static or slow-motion scenes while preserving quality in high-motion areas. Directly reduces storage footprint and network bandwidth—important on constrained PoE networks or cloud recording services that charge per gigabyte.
- IP66 and IK10 Durability Ratings: IP66 means complete protection against rain, snow, and high-pressure wash-down (do not submerge). IK10 means the dome withstands repeated heavy impacts (think accidental forklift contact or vandal strikes) without optical or housing failure. These ratings justify the indoor camera price premium for outdoor permanent installations.
- ARTPEC-8 Deep Learning Analytics: Supports edge-based object detection (humans, vehicles) without relying on a separate analytics appliance. Enables rule-based alerts (e.g., loitering, crowd detection) on the camera itself, reducing false alerts sent to a central VMS.
- Axis Edge Vault Cybersecurity: Protects Axis ID credentials and streamlines OAuth 2.0 authorization workflows—reduces manual credential management overhead in multi-camera deployments.
- PoE Power (802.3af Class 3): Peak consumption of 10.4 W and typical draw of 4.8 W means this camera operates off any standard PoE switch port. No separate 12VDC supply line required. Simplifies cabling and reduces power infrastructure cost in retrofit projects.
- 3.1 mm Fixed Lens, F2.0 Aperture: Wide horizontal field of view (approximately 108°) suits general perimeter coverage and pedestrian/vehicle detection zones. F2.0 aperture gathers sufficient light for the Lightfinder system to operate effectively even in near-darkness, complementing the IR fallback.
- Compact Dome Housing: Low-profile form factor mounts flush to ceilings, soffit, or wall boxes, minimizing visual profile in retail or hospitality environments and reducing tampering temptation compared to bulkier bullet cameras.
Integration & Compatibility
The 02371-001 connects via shielded RJ-45 10BASE-T/100BASE-TX, supporting standard Ethernet and PoE delivery on the same cable. It complies with ONVIF Profile S and T, ensuring integration with major VMS platforms (Milestone XProtect, Axis Camera Station, Genetec, Uniview, etc.). Firmware supports RTSP and HTTP streams, custom application integration via AXIS Camera Application Platform (ACAP), and direct cloud connectivity to platforms like AWS Kinesis Video Streams and Azure IoT.
When to Choose a Different Model
If you need higher resolution (4MP, 5MP, or 8MP) for long-distance facial or plate capture, consider a higher-megapixel variant in the Axis outdoor IP camera line. If the 30m IR range is insufficient for your deployment, examine dedicated IR searchlight cameras or dual-sensor panoramic models. If you require motorized zoom for variable coverage areas, look at the Axis PTZ family. For indoor-only retail or office surveillance, this outdoor model is over-engineered; a standard indoor 2MP dome will cost less and draw less power.
Frequently Asked Questions
Q: Is the Axis 02371-001 suitable for direct coastal (salt spray) exposure?
A: IP66 and IK10 ratings indicate weather sealing and impact resistance, but salt spray can corrode unpainted aluminum and stainless steel over 12–24 months without additional protective coatings. If your site is within 500 meters of saltwater, specify stainless hardware and consider conformal coating or additional housing sealant during installation.
Q: What is the actual IR range on the 02371-001?
A: Axis specifies OptimizedIR performance "up to 30 meters or more." Actual range depends on scene reflectance, ambient light, and lens focus. Test the installation with a mock night deployment to confirm coverage of your specific target zones before finalizing mounting locations.
Q: Does the 02371-001 require a separate PoE injector, or will a standard PoE switch port work?
A: At 10.4 W peak and 4.8 W typical consumption, the camera operates directly off IEEE 802.3af PoE (30 W per port). No separate injector or PoE+ switch is required, though PoE+ (60 W per port) is fully supported and may improve margin on long cable runs (>100 meters).
Q: Can I use H.265 compression with older VMS platforms?
A: H.265 streams require compatible decoders on the client and NVR side. Older Milestone, Genetec, or AXIS COMPANION systems may not support H.265 decoding. Before deploying 02371-001 units with H.265 enabled, confirm your VMS and player software version supports H.265 HEVC decoding. H.264 is universally compatible and is recommended if VMS codec support is uncertain.
Q: What is the typical power consumption, and how many 02371-001 units can I run off a single 60W PoE switch?
A: The camera draws approximately 4.8 W typical, 10.4 W peak. A single 60 W PoE switch can support 5–6 cameras (60 W ÷ 10.4 W ≈ 5.8), assuming peak consumption and standard 100-meter cable runs. Cable length beyond 100 meters introduces voltage drop; verify your switch's per-port power budget and consider PoE+ infrastructure if runs exceed 150 meters or if you plan to add future cameras.
Q: Is the 02371-001 NDAA Section 889 compliant?
A: Axis products are not explicitly marketed as NDAA-compliant. If Section 889 compliance is mandatory for your deployment (federal contracts, critical infrastructure), contact Axis or your specialty reseller for formal compliance documentation before purchase.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02371-001 occupies a practical middle ground in outdoor surveillance: it delivers respectable 2MP resolution, proven low-light handling (Lightfinder + OptimizedIR 30m+), and hardened construction (IP66/IK10) without the cost and complexity of higher-megapixel or PTZ platforms. If your deployment is perimeter or area coverage—parking lots, warehouse yards, building facades, transit platforms—rather than long-distance identification, the 02371-001's balanced spec sheet and sub-11W power draw make it a solid fit. The H.265 Zipstream compression is a genuine storage cost reducer, not marketing fluff; cutting bitrate 30–50% in static scenes directly translates to days or weeks of additional retention on fixed storage budgets.
Technical Highlights:
- Lightfinder + Forensic WDR: Saturation color images in sub-0.5 lux conditions (dusk/dawn), plus simultaneous capture of backlit and shadowed detail in mixed-light scenes. Most competitors force a choice; the 02371-001 delivers both, reducing the need for separate low-light or HDR camera variants in the same deployment.
- OptimizedIR 30m+ and 850nm LED: Infrared reach sufficient for most perimeter zones without external searchlights. Verify actual range on your site—reflectance and ambient light matter—but 30+ meters covers standard warehouse and parking lot footprints.
- H.265 Zipstream and ARTPEC-8: Dynamic bitrate reduction (30–50% typical vs. baseline H.264) plus edge-based object analytics (human/vehicle detection) reduce both storage and false-alert overhead. Requires compatible NVR/VMS decoding; confirm H.265 support before broad deployment.
- PoE 802.3af (4.8 W typical, 10.4 W peak): Direct connection to any standard 30W PoE port. No separate power supply, no special cabling. Five to six units per 60W switch at peak. Long cable runs (>150m) or daisy-chaining may require PoE+ validation.
- IP66/IK10 Ratings: Rain, snow, wash-down, and impact-resistant. Suitable for exposed warehouse and retail perimeters; not suitable for direct submersion (requires IP67+) or continuous salt-spray coastal environments without additional protective coatings.
Deployment Considerations:
- H.265 Backward Compatibility: Older VMS platforms (Milestone Harmony, Genetec Config Tool <5.4, some Uniview versions) do not decode H.265. Before enabling Zipstream compression across a fleet, test your specific NVR/player software. H.264 fallback is required if compliance is uncertain.
- IR Range Site Verification: The stated 30m+ is a best-case specification. Test actual coverage with a mockup installation in darkness. Dirty domes, high-reflectance surfaces, and ambient streetlight all affect effective IR range.
- PoE Budget Planning: Peak consumption of 10.4 W is tolerable on any 60W or 90W switch, but if you are stacking 10+ cameras on a single switch loop, confirm per-port power availability. Long cable runs (>100m) introduce resistive loss; consider PoE+ for runs exceeding 150 meters.
- Coastal or High-Salt Exposure: IP66 is about water ingress, not corrosion. Specify marine-grade stainless fasteners and housings, or apply conformal coating if the site is within 500m of salt spray.
Deploy the 02371-001 where area surveillance and low-light performance matter more than long-distance facial or plate recognition. Warehouse yards, retail parking lots, loading docks, and municipal perimeters are its sweet spot. The combination of Lightfinder, Forensic WDR, and OptimizedIR means you genuinely do not need a separate night-vision or low-light variant—just one camera model covering 24/7 mixed-light scenarios.
