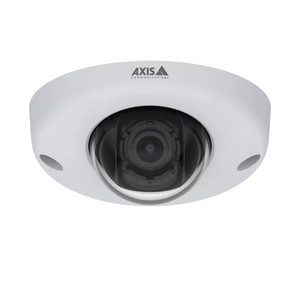

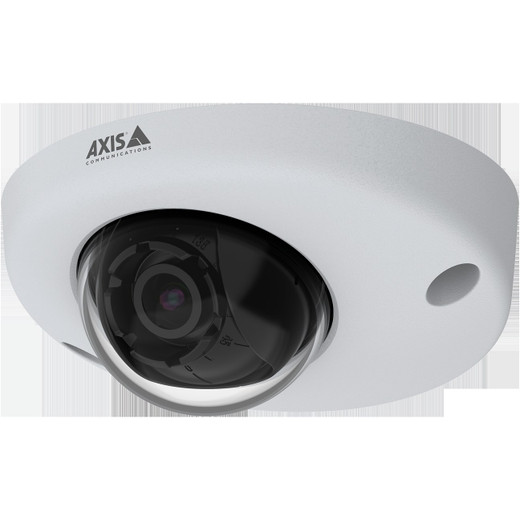

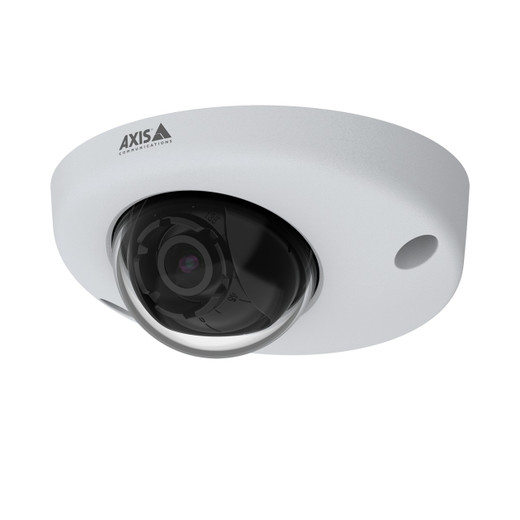

Axis 01933-001 P3925-R 2MP Vandal-Resistant Vehicle Dome Camera

The Axis P3925-R model 01933-001 is engineered for onboard surveillance in buses, trains, emergency vehicles, and commercial fleets where environmental extremes and physical impact are routine. This 2MP dome camera combines low-light imaging, wide dynamic range processing, and robust mechanical protection to deliver usable footage in the rapid lighting transitions and temperature swings that defeat typical fixed-installation cameras.

Key Features

• 2MP resolution (1920×1080): Delivers sufficient detail for facial recognition and license plate capture in vehicle interiors and exteriors without consuming excessive bandwidth—critical for 24/7 onboard recording where storage and network capacity are constrained.
• Lightfinder technology, 0.06 lux minimum illumination: Preserves color and detail in near-darkness without relying on infrared, which can wash out facial features and license plates. Eliminates the need for supplemental lighting in many transit scenarios.
• Forensic WDR (Wide Dynamic Range): Handles rapid transitions between bright sunlight and dark vehicle interiors, or between lit tunnels and unlit roadways. Prevents blown-out highlights on faces and license plates while recovering shadow detail—essential for vehicles moving between outdoor and indoor zones continuously.
• 110° horizontal field of view, 2.8mm fixed lens: Covers a substantial cabin or exterior zone without requiring pan-tilt mechanisms, which add cost and failure points. Wide angle is appropriate for vehicle cabins; narrower lenses force multiple cameras per vehicle.
• IK10 vandal rating: Resists impact damage from thrown objects, intentional strikes, or rough handling in public transit environments. IK10 is the highest mechanical impact rating available—necessary in uncontrolled passenger environments.
• IP66 environmental sealing: Protects against dust, direct water jets, and salt spray corrosion common in coastal fleets or wet climates. Dome design sheds water naturally. IP66 stops short of full submersion (IP67), so avoid underwater applications.
• PoE power (IEEE 802.3af Class 2): Draws under 13W, simplifying vehicle integration—standard PoE switches and cabling suffice without requiring separate 12V supplies or heavy gauge wiring. Reduces vehicle electrical complexity and cost.
• H.264 compression with Zipstream: Adaptive bitrate encoding cuts bandwidth and storage overhead by 50–70% compared to fixed-bitrate H.264, extending recording retention on vehicle-mounted storage without codec upgrade costs.
• Operating temperature range -40 to 55°C (-40 to 131°F): Operates reliably in arctic winters and desert heat without environmental enclosures—eliminates heating/cooling hardware in extreme-climate fleets.
• ACAP support: Allows integration of custom applications (motion detection, occupancy counting, alert logic) without external compute, keeping vehicle systems simple and power-efficient.
• Secure PoE, IEEE 802.1X authentication, signed firmware: Protects against network-based tampering and unauthorized device access—important in shared fleet networks and regulated transportation environments (transit agencies, correctional transport).

Integration and Deployment

The 01933-001 pairs with standard network video recorders and PoE switches compatible with ONVIF (Profile S). Vehicle-mounted NVRs or edge storage devices ingest the stream via Ethernet. Secure boot and firmware signing protect the supply chain in regulated sectors (transit authorities, law enforcement, military logistics).

Mounting options include ceiling domes (standard in buses) or wall/bracket installations in emergency vehicles and cargo compartments. Consult vehicle interior constraints; the dome form factor requires ~4 inches of ceiling clearance.

Consider Axis IP cameras in the same family for fixed-installation scenarios (stations, depots, parking lots); the P3925-R is vehicle-specific and unnecessary for stationary surveillance.

When to Choose a Different Model

If you need 4MP or higher resolution for long-range outdoor identification (parking lot overviews, perimeter fences), evaluate higher-megapixel variants in the Axis portfolio. If your vehicles operate strictly in controlled temperature environments (heated/cooled vehicles in mild climates), the P3925-R's temperature rating may exceed requirements and cost more than necessary. If infrared is mandatory (absolute darkness, covert monitoring), confirm Lightfinder's low-lux performance against your minimum illumination spec before assuming IR-less operation.

Frequently Asked Questions

Q: Does the P3925-R (01933-001) work with Milestone XProtect or Axis Camera Station?

A: Yes. The camera supports ONVIF Profile S, which is compatible with Milestone XProtect and Axis Camera Station. Check with your VMS vendor for certified integration lists, but ONVIF compliance ensures baseline interoperability.

Q: What is the warranty on the 01933-001?

A: Axis standard warranty is typically 3 years from shipment. Confirm the exact term with your supplier, as it may vary by region or sales channel.

Q: Can I use standard PoE+ (802.3at) switches to power the P3925-R?

A: Yes. The camera draws under 13W and operates on Class 2 PoE (802.3af standard power). Standard PoE or PoE+ switches will power it without strain. You do not need PoE++ or high-power supplies.

Q: Does the 01933-001 have audio input or output?

A: The datasheet does not list audio I/O for this model. If two-way audio or microphone input is required, consult alternative models in the Axis vehicle camera line or add a separate audio interface device.

Q: What is the maximum infrared range?

A: The P3925-R does not include infrared LEDs. It relies on Lightfinder technology to operate in low-light scenes. If IR illumination is mandatory, choose a model equipped with OptimizedIR or external IR lighting.

Q: Is the 01933-001 NDAA Section 889 compliant?

A: Axis publishes NDAA compliance information on a case-by-case basis. Contact Axis directly or consult your compliance team for current certification status if this is a requirement.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis P3925-R model 01933-001 is purpose-built for the transportation sector where environmental extremes and regulatory compliance are non-negotiable. Its -40 to 55°C operating range covers arctic winters and desert deployments without supplemental heating or cooling—a real cost and complexity saver in extreme-climate fleets. Compliance with EN50155 (railway), EN45545 (fire safety), and NFPA 130 (transit) standards ensures it meets industry-specific requirements that generic surveillance cameras fail to address.

Technical Highlights:

• Lightfinder at 0.06 lux minimum illumination: Preserves facial color and license plate detail in near-darkness without infrared wash-out. Vehicle interiors shift rapidly between sunlit and shaded zones; this technology handles that dynamic without external lighting, a deployment advantage over fixed-installation domes that require larger apertures or supplemental lighting.
• Forensic WDR processing: Critical in transit. A bus exiting a tunnel into sunlight, or an ambulance moving from street to interior, creates a lighting shift that would blow highlights on a driver's face or wash out a suspect's features on a standard WDR camera. Forensic mode prioritizes face and plate preservation over overall image balance.
• IK10 vandal rating + IP66 sealing: Public transit cabins are hostile environments. IK10 stops intentional strikes; IP66 stops salt spray, cleaning chemicals, and water spray. Combined, they deliver years of reliable uptime without enclosure upgrades or environmental housings.
• H.264 + Zipstream at under 13W PoE draw: Vehicle onboard storage is finite. Zipstream cuts bitrate overhead by 50–70% versus fixed-bitrate encoding, doubling recording retention without requiring larger SSDs or higher-bandwidth network infrastructure on the vehicle.

Deployment Considerations:

• Mounting clearance: Dome form factor requires ~4 inches of unobstructed ceiling or wall space. Some transit vehicles (older buses, rail cars) have low headroom or structural obstacles. Verify clearance during vehicle assessment before ordering multiple units.
• No infrared: Lightfinder is excellent in low-light but not absolute darkness. If your vehicles operate in pitch-black zones (unlit cargo compartments, underground parking), test the camera at your site's minimum illumination before committing. IR-equipped alternatives exist if Lightfinder falls short.
• PoE cable runs: Vehicle installations require industrial-grade Ethernet—standard office CAT6 will fail under vibration and thermal cycling. Use marine-grade or automotive-rated cable to avoid repeat failures in field deployments.

The 01933-001 is the right choice for public transit, emergency services (ambulances, fire apparatus), and regulated cargo transport where compliance, durability, and operational simplicity outweigh raw resolution. It is not the right choice for fixed perimeter surveillance (where higher megapixels and PTZ capability matter more) or for vehicles operating exclusively in controlled, well-lit environments (where cheaper, simpler cameras suffice).

Key Specifications:
Field of View: 110°
Color: White
