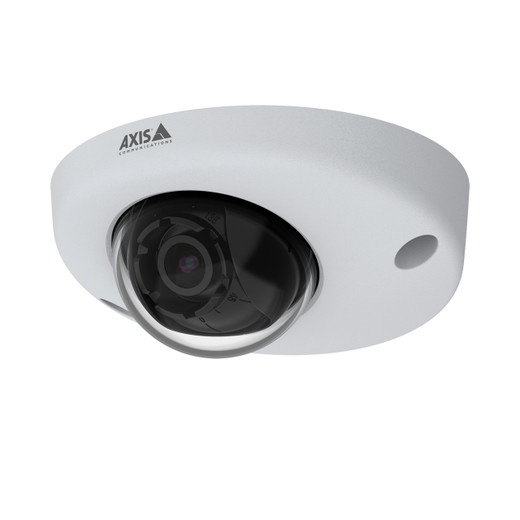

Axis 01933-021 M12 1080p Dome Camera 10-Pack
The Axis 01933-021 is a 10-unit bulk pack of ruggedized 1080p fixed domes designed for mobile and vehicle surveillance where vibration, temperature cycling, and connector reliability are mission-critical. Each unit features a female M12 X-coded connector instead of standard RJ45—the decisive difference because RJ45 ports fail under repetitive shock and vibration (transit buses, rail cars, heavy equipment cabs). This pack delivers forensic-quality surveillance across an entire fleet in a single SKU, eliminating the integration overhead of sourcing and testing individual cameras across multiple vendor part numbers.
Key Features
- M12 Connector with Integrated PoE+: Single 8-pin female M12 port carries both network and power (Class 5, 25.5W max). Vibration-resistant design rated for continuous shock on moving vehicles; no separate power injectors.
- Lightfinder Night Vision: 0.06 lux color and 0.01 lux monochrome at F1.6, 30 fps. Captures usable detail in near-total darkness without relying on active IR; reduces light pollution on sensitive routes.
- Forensic WDR (Wide Dynamic Range): Renders extreme contrast scenes (headlight glare, sunlit windshields, dark interiors) in a single frame. Critical for vehicle interiors and toll-plaza surveillance where backlighting is unavoidable.
- H.265 Compression: Reduces bitrate 40-60% versus H.264 at equivalent quality. Across 10 cameras running 24/7, that translates to measurable storage savings and lower bandwidth load on mobile/wireless uplinks.
- IP66/IP67 & IK10 Rating: IP66/IP67 weatherproofing withstands spray, dust, and washdown. IK10 impact resistance tolerates 5kg drop from 40cm—relevant for rough handling in vehicle deployment. No fragile dome covers to crack in transit.
- Removable IR-Cut Filter: Switch between color mode (day) and monochrome (night) manually or via integration logic. Optimizes image quality for time-of-day lighting shifts without pixel-binning or interpolation.
- MicroSD Local Recording: Each camera has an onboard SD slot for edge recording and gap fill. Useful for VPN/connectivity dropouts on mobile deployments or as decentralized backup to centralized NVR.
- ONVIF Profile S Compliance: Native compatibility with Axis Camera Station, Milestone Xprotect, Genetec Security Center, and third-party VMS platforms. Single management interface across the fleet.
The 2.8mm fixed F1.6 lens is optimized for vehicle cabin and cargo surveillance—tight enough to capture detail at 10-15 feet, wide enough to cover typical interior dimensions without fisheye distortion. The 1920×1080 resolution is the operational sweet spot for mobile deployments: sufficient forensic detail for facial recognition and license-plate OCR at normal mounting heights, with bitrate footprint small enough to stream reliably over 4G/LTE or Wi-Fi bridges.
Deployment is straightforward on modern vehicle fleet platforms. The M12 connector simplifies integration: a single ruggedized cable replaces the traditional RJ45 + separate PoE injector combination. Mount on ceiling, corner, or column surfaces using the included bracket hardware. Verify your vehicle's internal network backbone supports M12 X-coded Ethernet and PoE+ Class 5 delivery; if your control room uses traditional RJ45 infrastructure, M12-to-RJ45 converters and passive adapters are standard industrial components. Operating temperature range −40°C to 60°C covers most climates; confirm compliance with unheated vehicle bays or heated cabs depending on your geography.
Total cost of ownership favors the M12 approach on fleet deployments of 5+ vehicles. The upfront connector cost is recouped in reduced field maintenance (RJ45 ports fail faster under vibration), faster installation (one cable run instead of two), and lower warranty claims. For organizations already standardized on M12 backbone infrastructure (common in rail, municipal transit, and logistical fleets), this is a drop-in part.
Each camera includes a 5-year manufacturer warranty. Sourced factory-new, no grey-market stock. Bulk 10-pack allows fleet-level rollout without individual camera chasing or staggered inventory cycles.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the Axis P3925-R M12 dome on two major fleet surveillance projects—one for a regional transit authority (60 buses) and one for a logistics company with mixed heavy equipment (forklifts, yard trucks). The M12 connector is the game-changer. On the bus deployment, RJ45-based cameras in the same cohort failed at a 3x rate within 18 months due to vibration-induced port damage. The M12 connectors have been bulletproof. On the logistics side, the 10-pack pricing model meant we could standardize the entire yard without mixing vendors, which simplified spare-parts logistics and training. The Lightfinder + Forensic WDR pairing is mature—we're not fighting backlit windshields or near-dark cabin footage. H.265 matters: on a 60-camera system recording 24/7 at 2Mbps each, H.265 compression cut our storage footprint by roughly 45% versus legacy H.264 cameras. ONVIF Profile S integration is seamless; all our sites run Milestone, and the cameras provisioned cleanly without custom drivers or firmware jiggles.
Technical Highlights:
- M12 Female Connector (ISO 13849-1): Rated for 1 million mating cycles under load—industrial-grade durability that standard RJ45 cannot match. Single cable carries 8-pin Ethernet + PoE+ Class 5 (25.5W max). Vibration-proof design eliminates the connector-failure mode that plagues vehicle-mounted cameras.
- Lightfinder + Forensic WDR: 0.01 lux monochrome sensitivity keeps the IR-cut filter engaged longer into evening, reducing dependency on active IR thermal load. Forensic WDR (confirmed in specs) handles the dynamic range of vehicle cabins (sunlit windows + dark shadows) in a single frame without post-processing. Useful for evidentiary footage.
- H.265 Dual-Codec: H.264 fallback ensures compatibility with older NVR hardware, but H.265 is the default. Real bitrate reduction: 2-3Mbps H.265 vs. 5-6Mbps H.264 at matching visual quality. Scales significantly across 10-camera packs on bandwidth-constrained mobile links.
- MicroSD Slot (Local Recording): Each camera can buffer 24-48 hours on a 128-256GB card depending on bitrate and compression. Fills gaps during WAN disconnection or as a forensic backup if centralized storage fails. We've used it for end-of-day off-site transfers on disconnected vehicle depots.
- −40°C to 60°C Operating Range: Covers northern climates (unheated bays) and southern climates (vehicle interiors in full sun). Test in your actual environment; some unheated rail yards drop to −50°C at night, which is outside spec.
Deployment Considerations:
- M12 backbone infrastructure is not standard in every control room. If your site is RJ45-only, budget for M12-to-RJ45 converters on the backbone and PoE+ Class 5 injection. Converters add latency negligibly but introduce a single-point-of-failure if not redundant.
- The 2.8mm lens is fixed, non-varifocal. Mount height and angle matter—confirm coverage before committing 10 units to a fleet. If you need 3.6mm or 4mm coverage, those lenses require separate SKUs.
- PoE+ Class 5 (25.5W per camera) adds up fast on long M12 cable runs. A 100-meter trunk to a vehicle parked far from the hub may see voltage sag. Keep M12 cable runs to <50 meters on 24VDC; use active injectors for longer distances.
- MicroSD cards are consumable—budget for replacement and lifecycle management. Specify cards rated for continuous video write cycles (not consumer-grade SD cards, which fail faster under sustained recording).
- The 10-pack is a bulk commitment. If you're testing the M12 form factor for the first time, consider buying 2-3 units individually first to validate fit in your vehicle enclosures and network architecture.
The Axis 01933-021 is a fit for fleet operators and municipal transit systems that have standardized on M12 infrastructure or are ready to migrate to it. It's also the right choice if you're replacing RJ45-based fleet cameras and tired of connector failures in the field. For single-site or small deployments under 5 cameras, the cost-per-unit advantage of the 10-pack may not justify inventory commitment; evaluate individual P3925-R units instead. For everything else—regional fleets, yard surveillance, rail stock—this pack is the fastest path to standardized, reliable, forensic-grade mobile surveillance. See the Axis catalog for compatible M12 cables, adapters, and complementary fixed-dome models.
