NETGEAR

SKU: GS324TP-200NAS

NETGEAR Switch - GS324TPV2 - Rackmount - Wired - GS324TP-200NAS
- 24 gigabit RJ45 ports deliver dedicated 1000 Mbps per camera or node—no bandwidth sharing.
- Two 1000Base-SFP uplinks extend connectivity via fiber beyond copper's 100-meter limit.
- VLAN, SNMP, CLI, and Web GUI management let you isolate and monitor traffic segments easily.
$514.32 $360.99 Save $153.33

Add to Cart
The item has been added
Free shipping over $499

$514.32 $360.99 Save $153.33

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
NETGEAR

SKU: GS348-100NAS

NETGEAR Switch - GS348 - Wired - Networking / - GS348-100NAS
- 48 x 1 Gbps ports support dense IP camera deployments on a single switch.
- 96 Gbps switching fabric eliminates bottlenecks in high-traffic surveillance networks.
- Unmanaged rackmount design enables zero-config deployment in standard 19-inch racks.
$581.67 $332.99 Save $248.68

Add to Cart
The item has been added
Free shipping over $499

$581.67 $332.99 Save $248.68

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
NETGEAR

SKU: GS524PP-100NAS

NETGEAR Switch - GS524PP-100NAS - Desktop Rack-mountable - Wired
- All 24 ports deliver 802.3at PoE+ (30W each) eliminating per-device power runs.
- 190W total PoE budget supports 15–18 full 30W cameras or mixed lighter PoE loads.
- Unmanaged design requires zero configuration; rack-mounts in 1U or sits on a shelf.
$534.14 $346.99 Save $187.15

Add to Cart
The item has been added
Free shipping over $499

$534.14 $346.99 Save $187.15

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
NETGEAR

SKU: CSM4316-100NES

NETGEAR Switch - M4350-16C - 1U - 16 X 100G - CSM4316-100NES
- 16 × 100G QSFP28 ports deliver 3.2 Tbps aggregate capacity in a single 1U chassis.
- Out-of-band 1G Ethernet management port isolates control-plane traffic from the data fabric.
- USB-C console access enables direct out-of-band troubleshooting when the network is unreachable.
$14,482.74 $9,249.99 Save $5,232.75

Add to Cart
The item has been added
Free shipping over $499

$14,482.74 $9,249.99 Save $5,232.75

Add to cart Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: CSM4316-TAANES

NETGEAR Switch - M4350-16C - 1U - 16 X 100G - CSM4316-Taanes
- All 16x QSFP28 ports run at 100G simultaneously with no oversubscription.
- 1.6 Tbps non-blocking fabric eliminates bottlenecks in GPU cluster and AI workloads.
- Dedicated out-of-band 1G management port isolates config traffic from data-plane load.
$17,379.29 $11,099.99 Save $6,279.30

Add to Cart
The item has been added
Free shipping over $499

$17,379.29 $11,099.99 Save $6,279.30

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: MSM4320-100NES

NETGEAR Switch - M4350-16M4V - 1U - 16X - MSM4320-100NES
- 16x 2.5G PoE++ ports deliver up to 90W each, eliminating injectors for high-draw cameras.
- 405W total PoE budget powers all 16 ports simultaneously—no staged startup required.
- 4x 25G SFP28 uplinks provide 100G aggregate capacity for dense 4K camera aggregation.
$10,137.91 $6,474.99 Save $3,662.92

Add to Cart
The item has been added
Free shipping over $499

$10,137.91 $6,474.99 Save $3,662.92

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: XS512EM-100NAS

NETGEAR Switch - XS512EM - Rackmount - 10GBPS - - XS512EM-100NAS
- All 12 ports run independently at up to 10G, delivering 240 Gbps aggregate throughput.
- Multi-gig auto-negotiation (100M–10G) lets you mix legacy and new hardware on one switch.
- Web GUI, SSH/CLI, and SNMP v1/v2c/v3 support scripted provisioning and VLAN segmentation.
$1,575.07 $971.99 Save $603.08

Add to Cart
The item has been added
Free shipping over $499

$1,575.07 $971.99 Save $603.08

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: SXK30-100NAS

Netgear SXK30-100NAS
- WiFi 6 AX1800 mesh reduces latency for IoT sensors and real-time tracking systems.
- 10G backbone throughput prevents bottlenecks across dense, multi-node deployments.
- Industrial temp rating eliminates HVAC dependency in warehouses and uncontrolled zones.
$467.96 $328.99 Save $138.97

Add to Cart
The item has been added
Free shipping over $499

$467.96 $328.99 Save $138.97

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: SXR30-1DXNAS

Netgear SXR30-1DXNAS 4PT Orbi PRO WIFI 6 AX1800 Router
- WiFi 6 AX1800 delivers up to 1.8 Gbps across 2.4 GHz and 5 GHz bands.
- Four Gigabit Ethernet ports support dedicated wired backhaul, eliminating wireless bottlenecks.
- Rack-mountable (1U/2U) and Orbi PRO mesh-compatible for seamless node replacement or expansion.
$265.17 $184.99 Save $80.18

Add to Cart
The item has been added
Free shipping over $499

$265.17 $184.99 Save $80.18

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: XSM4556-100NAS

NETGEAR THE M4500-48XF8C Switch Provides - XSM4556-100NAS
- 48 SFP28 ports run 1G, 10G, or 25G fiber — no hardware swap needed per speed change.
- 8 dedicated uplink ports isolate spine traffic from east-west compute and NVR flows.
- Non-blocking line-rate throughput eliminates congestion across all 56 active ports.
$23,443.80 $16,057.99 Save $7,385.81

Add to Cart
The item has been added
Free shipping over $499

$23,443.80 $16,057.99 Save $7,385.81

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: RBKE963-100NAS

NETGEAR THE RBKE963 Brings Unprecedented WIFI - RBKE963-100NAS
- Three-node mesh eliminates backhaul single points of failure across distributed sites.
- 802.11ac/n dual-band support ensures compatibility with existing cameras and NVRs.
- Vendor-agnostic Wi-Fi standard integrates with any compliant IP device, no lock-in.
$2,327.57 $1,615.99 Save $711.58

Add to Cart
The item has been added
Free shipping over $499

$2,327.57 $1,615.99 Save $711.58

Add to quote Compare
Compare

Add to Cart The item has been added
NETGEAR

SKU: CM1000-100NAS

NETGEAR Ultra-high Speed Cable Modem - CM1000-100NAS
- DOCSIS 3.1 support delivers gigabit-class bandwidth for high-demand network deployments.
- Single Gigabit Ethernet (RJ45) port connects directly to routers, switches, or NVRs.
- Rated for 24/7 continuous operation, suitable for always-on enterprise installations.
$310.33 $216.99 Save $93.34

Add to Cart
The item has been added
Free shipping over $499

$310.33 $216.99 Save $93.34

Add to cart Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: UTM9S-100NAS

NETGEAR UTM9S-100NAS ProSecure Unified Threat Management
- Delivers 900–905 Mbps firewall throughput for mid-size sites of 50–500 users.
- Two expansion slots add optional Wireless-N or VDSL/ADSL2+ WAN without appliance swap.
- Cloud-based AV engine with 45M+ signatures reduces on-appliance storage overhead.
$520.00 $359.99 Save $160.01

Add to Cart
The item has been added
Free shipping over $499

$520.00 $359.99 Save $160.01

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: WAX210-100NAS

NETGEAR WAX210-100NAS 1PT AX1800 WiFi 6 Access Point
- WiFi 6 AX1800 delivers 1.8 Gbps aggregate over dual-band 2.4 GHz and 5 GHz.
- Single 802.3af PoE port eliminates AC wiring — drops into any PoE switch fabric.
- 4.5" × 4.5" × 1.2" footprint at 0.48 lb mounts to wall or ceiling without reinforcement.
$124.78 $87.99 Save $36.79

Add to Cart
The item has been added
Free shipping over $499

$124.78 $87.99 Save $36.79

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: WAX210PA-100NAS

NETGEAR WAX210PA-100NAS 1PT AX3000 Wifi 6 Ap
- WiFi 6 dual-band delivers 1.8 Gbps combined (600 Mbps @ 2.4 GHz, 1.2 Gbps @ 5 GHz).
- 802.3af PoE at 13W minimum powers the AP directly from any standard PoE switch port.
- Compact 4.5" × 4.5" × 1.2" form factor mounts to ceilings or walls without an adapter.
$140.38 $98.99 Save $41.39

Add to Cart
The item has been added
Free shipping over $499

$140.38 $98.99 Save $41.39

Add to quote Compare
Compare

Out of stock
NETGEAR

SKU: WAX608Y-111NAS

NETGEAR WAX608Y-111NAS WiFi6 Outdoor AP
- WiFi 6 (802.11ax) 4x4 MIMO on 5 GHz handles high-density outdoor deployments without congestion.
- PoE++-powered (802.3bt, 16.1W–27.64W) eliminates dedicated power runs at wall, ceiling, or pole mounts.
- Managed platform enables centralized provisioning and monitoring across multiple APs from one dashboard.
$960.88 $500.99 Save $459.89

Add to Cart
The item has been added
Free shipping over $499

$960.88 $500.99 Save $459.89

Add to quote Compare

Infrastructure

Infrastructure components provide the network and power backbone that supports reliable surveillance and access control systems. Select switches, PoE devices, power supplies, and transmission hardware designed for commercial environments.

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

PoE Planning Guide Get Sizing Help

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

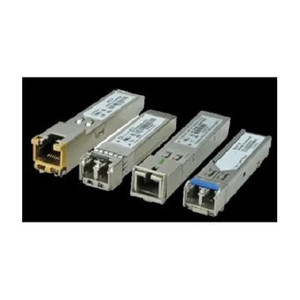

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.
