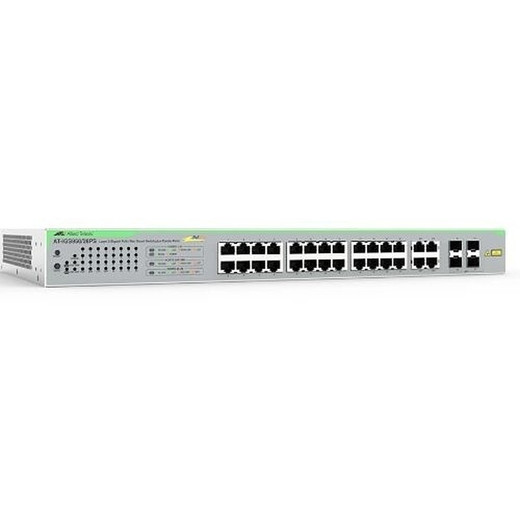

Hanwha HV-IGS950/28PS-910 24-Port PoE+ Gigabit Switch
The Hanwha HV-IGS950/28PS-910 is a 24-port Gigabit Websmart PoE+ managed switch purpose-built for IP surveillance, access control, and enterprise network deployments. With a robust 370W total power budget and full 802.3at PoE+ support across all 24 ports, this switch eliminates the need for separate power injectors and delivers reliable power distribution to cameras, PTZ units, access control readers, and networked devices across medium to large-scale installations. Four dedicated SFP uplink ports provide high-speed backbone connectivity for network redundancy and future scalability.
Key Features
- 24 Gigabit PoE+ Ports: Full 802.3at Power over Ethernet Plus support with 370W aggregate power budget for direct device powering
- 4 x SFP Uplink Ports: High-speed fiber or copper SFP connectivity for backbone redundancy and ring topology support
- Websmart Management: Intuitive web-based management interface for configuration, monitoring, and control without external software or proprietary controllers
- Gigabit Throughput: All 24 ports deliver full 1000 Mbps per-port performance for simultaneous 4K streams and concurrent traffic
- Enterprise-Grade Reliability: Network redundancy support and industrial-grade design for 24/7 surveillance operations
Technical Highlights
This managed switch provides enterprise-class network intelligence in a form factor optimized for security deployments. The combination of 24 PoE+ ports and four SFP uplinks creates a flexible platform capable of supporting both current camera installations and future network expansion. Websmart management capabilities allow IT teams to configure VLANs, QoS policies, and monitoring without external dependencies, reducing operational complexity and total cost of ownership.
Ideal Applications
- Large-scale IP video surveillance systems with 15+ cameras
- Multi-building campuses requiring network backbone redundancy
- Mixed environments combining cameras, access control, and wireless access points
- Enterprise deployments with managed network requirements
- Critical infrastructure and high-availability security networks
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HV-IGS950/28PS-910 addresses a common challenge in security infrastructure: delivering adequate power and bandwidth to distributed endpoints without architectural compromises. The 370W power budget supports approximately 15–20 high-power PoE+ cameras depending on model power draw, making it suitable for medium campuses. The four SFP uplinks are critical for enterprise deployments; they enable ring topology configurations that eliminate single points of failure and support gigabit backhaul to core switches or NVRs.
Websmart management strikes a practical middle ground—simpler than full L3 management platforms, yet more capable than unmanaged switches. For organizations standardizing on Hanwha surveillance platforms, this switch provides tight integration with camera management workflows while maintaining vendor-neutral Ethernet standards for mixed-device environments.
