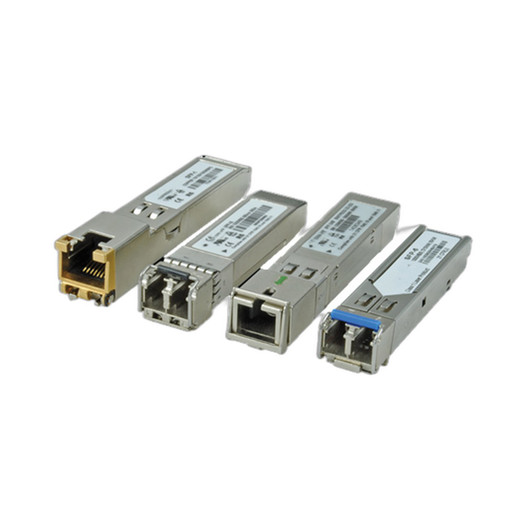

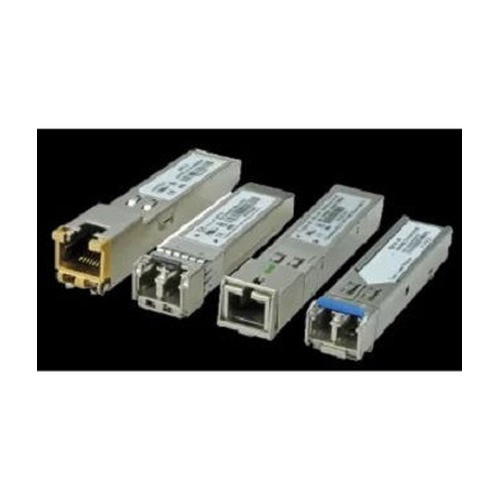

Hanwha SFP-FSCS120-B Fiber Optic SFP Module

Hanwha SFP-FSCS120-B Fiber Optic SFP Module

The Hanwha SFP-FSCS120-B is a Small Form-Factor Pluggable (SFP) fiber optic module designed for managed switches, unmanaged switches, and media converters in IP surveillance and enterprise network deployments. This single-channel fiber transceiver delivers reliable long-distance connectivity with 100Mbps Fast Ethernet performance, making it ideal for extending network reach across challenging installations.

Key Features

• 100Mbps Fast Ethernet Performance: Delivers consistent 100Mbps data rates suitable for surveillance video transmission and network management traffic
• Extended Reach to 20km: 1550nm wavelength enables long-distance fiber runs up to 20 kilometers, reducing the need for intermediate switching infrastructure
• SC Optical Connectors: Industry-standard SC connectors provide robust, low-loss connections with excellent mating stability
• Wide Operating Temperature Range: Functions reliably from -40°C to +75°C, accommodating both outdoor and temperature-extreme environments
• Multi-Device Compatibility: Works seamlessly with managed switches, unmanaged switches, and fiber media converters

Technical Specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 100Mbps
• Optical Wavelength: 1550nm
• Maximum Transmission Distance: 20km
• Connector Type: SC optical
• Operating Temperature: -40°C to +75°C

Applications

The SFP-FSCS120-B is suited for:

• IP surveillance network backbone connections
• Long-distance outdoor camera deployments
• Industrial and enterprise fiber network extensions
• Remote site connectivity where copper cabling is impractical
• Hybrid network infrastructure combining fiber and copper segments

Eden Phillips

Perspective based on aggregated and affiliated engineering team experience.

The SFP-FSCS120-B represents a cost-effective entry point for organizations requiring fiber optic connectivity without full-duplex or higher-speed requirements. The 1550nm wavelength selection optimizes performance over longer distances while maintaining backward compatibility with standard single-mode fiber plant. For surveillance deployments, the 20km reach eliminates intermediate switch placement, simplifying topology design and reducing total cost of ownership.

The wide temperature range ensures outdoor reliability, particularly valuable in climates experiencing extreme seasonal variations. Ensure your switch infrastructure supports SFP modules with compatible wavelength and speed specifications before deployment.
