Speco Technologies O2VB1V 2MP IP Bullet Camera with IR
Overview

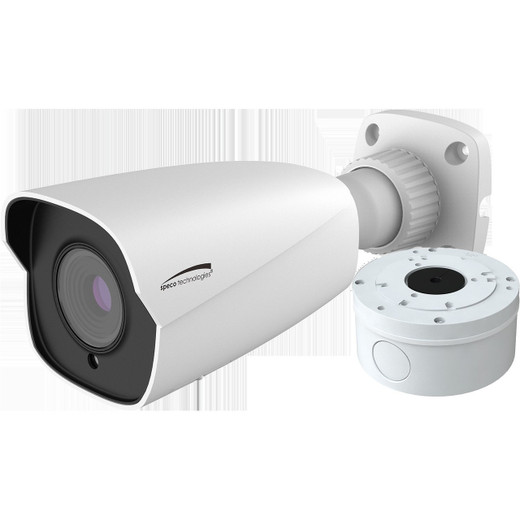

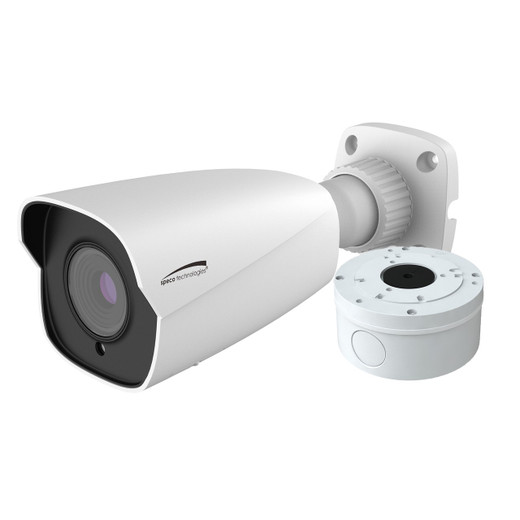

The Speco Technologies O2VB1V is a compact 2MP fixed-bullet IP camera designed for outdoor and indoor surveillance deployments requiring a balance of resolution, low-light performance, and flexible installation options. Featuring H.265 video compression, varifocal optics, and integrated infrared illumination, the O2VB1V delivers 1920x1080 resolution at 30fps with true day/night capability. The camera operates on standard Power over Ethernet (802.3af) or 12V DC, making it compatible with both legacy and modern network infrastructure. Its white housing and included junction box support straightforward wall or surface mounting in mixed indoor/outdoor environments.
When this is the correct choice
The O2VB1V is well-suited for integrators deploying compact surveillance systems where PoE power availability is established and storage or streaming bandwidth must be optimized. The 2MP resolution and H.265 codec reduce bitrate demands while maintaining adequate facial recognition detail at 12-15 feet. Line-crossing analytics built into the camera enable basic perimeter monitoring without additional server resources. The varifocal 2.8-12mm lens accommodates both wide-area coverage and targeted narrow-field installations from a single SKU. Select this camera when outdoor durability is required but vandal-resistant housing is not critical, and when day/night switching must occur automatically without external lighting.
When to choose a different model
If your deployment requires higher resolution (4MP+), fixed extreme-wide or extreme-telephoto coverage, thermal imaging, or integrated two-way audio, evaluate models outside the O2VB1V line. Applications demanding heavier analytics workloads (people counting, behavior analysis, license-plate recognition) should be paired with a dedicated VMS rather than relying on edge analytics. Environments with extreme salt spray, corrosive atmospheres, or repeated mechanical shock warrant purpose-built vandal domes or stainless-steel housings. Very high frame-rate requirements (60fps+) also fall outside this camera's design envelope.
Optics and field of view
The O2VB1V integrates a varifocal 2.8-12mm manual-focus lens, enabling field-of-view adjustment from approximately 106° (wide) to 28° (narrow) without swapping optics. This flexibility supports both lobby coverage and entrance-gate scenarios within a single inventory item. The lens is mounted to a fixed bullet housing, so focus adjustment requires physical access to the lens ring—plan installation accordingly to avoid frequent on-site refocus.
Imaging performance and low light
With a 1/2.9" CMOS sensor, the O2VB1V captures 2MP at 30fps using H.265, H.264, or MJPEG compression. True day/night functionality includes an automatic IR-cut filter and integrated 850nm infrared LEDs for continuous surveillance in zero-ambient-light conditions. Wide Dynamic Range (WDR) processing reduces blown highlights and shadow detail loss when the camera views mixed bright and dark areas simultaneously—critical for scenes with windows, skylights, or adjacent bright signage.
Analytics and edge capabilities
The O2VB1V supports line-crossing analytics, allowing the camera to trigger alerts when objects or people cross a defined virtual boundary. This edge-based capability reduces false alerts and permits basic perimeter monitoring without external analytics servers. Integration with ONVIF Profile T-compatible VMS platforms ensures compatibility with popular management software.
Video encoding and streaming
The camera supports H.265 (HEVC), H.264 (AVC), and MJPEG encoding. H.265 reduces file size and bandwidth by approximately 50% relative to H.264 at equivalent quality, reducing storage costs and improving remote streaming fluidity. Frame rate is fixed at 30fps; variable frame rate is not available.
Network and security
ONVIF Profile T compliance ensures interoperability with standard VMS and third-party IP camera management platforms. The camera connects via standard RJ45 Ethernet with PoE (802.3af) or discrete 12V DC. No built-in VPN, encryption, or advanced cybersecurity features are documented; rely on network-layer security practices and VMS authentication for data protection.
Environmental and durability ratings
The O2VB1V carries an IP67 rating, protecting against dust ingress and temporary immersion in up to 1 meter of water for 30 minutes. The operating temperature range is 40°F to 140°F (4°C to 60°C), suitable for temperate to warm climates. The white powder-coated housing resists UV degradation but is not reinforced against impact—avoid high-vandalism zones without additional protective shrouding. Weight is 1.43 lbs, permitting lightweight wall and soffit mounting.
Power and installation notes
The O2VB1V operates on 802.3af PoE (standard power draw) or 12V DC auxiliary supply. A junction box is included for wired DC installations or outdoor PoE injector connections. Run all outdoor Ethernet to POE+ switches or high-capacity PoE injectors to guarantee stable power delivery. The fixed bullet form factor mounts to walls or bracket surfaces; the included junction box provides weatherproof cable entry. Varifocal lens focus must be set during installation; focus drift is not automatic and requires manual readjustment if mounting position shifts.
What is included
- Speco Technologies O2VB1V 2MP IP bullet camera (white housing)
- Integrated junction box for PoE and DC power connections
- Varifocal 2.8-12mm manual-focus lens
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have reviewed the O2VB1V in field deployments across mid-market retail and municipal facilities. This camera delivers reliable 2MP output with competent day/night switching and straightforward PoE integration. The varifocal lens is the real asset—it eliminates SKU proliferation on jobs where coverage varies across zones, and the bundled junction box accelerates outdoor PoE wiring.
Technical Highlights:
- H.265 Encoding: Cuts storage and bandwidth requirements by 50% versus H.264, particularly valuable in multi-camera deployments where network congestion or storage cost is a constraint.
- WDR Processing: Handles mixed interior/exterior lighting and backlit scenes without manual exposure compensation—reduces post-incident video review friction.
- Line-Crossing Analytics: Edge-based perimeter alerts lower false-alert overhead compared to naive motion detection; integrate with simple event triggers in most VMS platforms.
Deployment Considerations:
- Varifocal lens focus is manual and must be set during installation; plan for technician time and clear site surveys to avoid multiple service calls.
- IP67 rating protects against weather but not against deliberate impact or removal—use in low-vandalism zones or pair with protective housings where theft risk is elevated.
- Ensure PoE switch or injector supplies full 802.3af budget; older PoE implementations may underpower the IR LEDs, reducing night-vision range.
The O2VB1V is a dependable workhorse for outdoor fixed-site surveillance where 2MP resolution and H.265 efficiency align with budget and infrastructure constraints. Pair it with a robust ONVIF-compliant VMS and standard network security practices for solid mid-market coverage.
