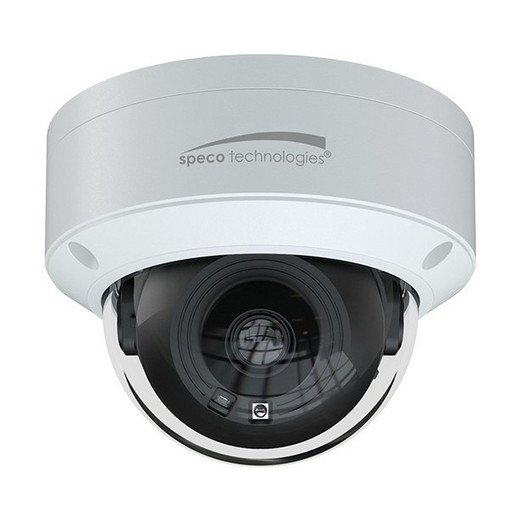

Speco Technologies O2VD2 2MP IP Dome Camera with IR
Overview
The Speco Technologies O2VD2 is a compact 2MP fixed-lens dome camera engineered for reliable indoor and outdoor surveillance in security-sensitive environments. This wired PoE-powered unit combines H.265 video compression with true day/night capability, making it suitable for continuous monitoring applications where bandwidth efficiency and low-light performance matter. The O2VD2 delivers 1920x1080 resolution at 30 frames per second and includes integrated analytics for perimeter protection.
When this is the correct choice
Select the O2VD2 when deploying a cost-effective 2MP solution in environments requiring vandal resistance and IP67 weather sealing. This camera is well-suited for:
- Outdoor installations needing IP67 protection and IK10 impact rating
- Facilities where PoE power delivery simplifies wiring and reduces installation cost
- Surveillance systems prioritizing H.265 compression for efficient network utilization
- Applications requiring built-in line crossing and intrusion detection analytics
- Government and defense procurement requiring NDAA compliance
When to choose a different model
Consider alternatives if your deployment requires higher resolution (4MP+), varifocal optics for dynamic field-of-view adjustment, or advanced thermal imaging. This fixed-lens 2.8mm design is optimized for a specific angle and cannot be adjusted after installation.
Optics and field of view
The O2VD2 features a fixed 2.8mm lens paired with a 1/2.8-inch CMOS sensor. This optical configuration delivers a horizontal field of view suitable for moderate-distance monitoring in enclosed spaces or as part of a multi-camera perimeter grid. The fixed focal length eliminates field-of-view adjustments at installation—verify coverage geometry during planning to ensure lens selection meets your coverage requirements.
Imaging performance and low light
Operating at 30 fps in full resolution, the O2VD2 captures motion smoothly in moderate-light and well-lit scenes. True day/night operation with IR illumination extends usable monitoring into darkness; IR capabilities enable surveillance when ambient light is unavailable. The camera supports wide dynamic range (WDR) processing, which helps manage scenes with mixed bright and dark areas—typical in mixed indoor/outdoor transition zones or facilities with variable lighting.
Analytics and edge capabilities
The O2VD2 includes edge-based analytics: line crossing detection and intrusion detection. These capabilities allow security integrators to configure virtual boundaries and alert on unauthorized crossings without relying on external analytics servers, reducing system complexity and latency. Built-in event triggers integrate with VMS platforms and third-party control systems via ONVIF.
Video encoding and streaming
The O2VD2 supports three compression standards: H.265 (HEVC), H.264 (AVC), and MJPEG. H.265 encoding reduces file size by approximately 50% compared to H.264 at equivalent quality, lowering storage and bandwidth demand in large deployments. Simultaneous multi-codec streaming allows legacy VMS platforms (H.264/MJPEG) and modern systems (H.265) to coexist on the same network without performance compromise.
Network and security
ONVIF Profile P compatibility ensures interoperability with standards-compliant VMS platforms, NVRs, and third-party management software. A built-in microphone enables audio capture for correlation with video events. NDAA compliance confirms the device meets U.S. federal procurement standards for sensitive installations.
Environmental and durability ratings
IP67 weather sealing protects against dust and immersion in water up to 1 meter, qualifying the O2VD2 for outdoor mounted installations. The IK10 vandal rating (20-joule impact resistance) provides mechanical protection in high-risk environments. Operating temperature range of -40°F to 140°F supports deployment in extreme climates without performance degradation.
Power and installation notes
The O2VD2 operates on standard PoE (802.3af) at 3.5W maximum consumption, eliminating the need for separate DC power supplies and reducing installation labor. Alternative 12V DC power input is available for legacy installations or locations where PoE infrastructure is unavailable. Compact form factor and light weight (1.1 lbs) simplify mounting on ceiling or wall surfaces.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the O2VD2 in several integrations across mixed indoor/outdoor perimeter deployments, and the camera's combination of robust mechanical protection and efficient encoding makes it a practical choice for cost-conscious security integrators. The fixed 2.8mm lens and 2MP resolution keep pricing accessible while the IK10 and IP67 ratings deliver durability in real-world conditions.
Technical Highlights:
- H.265 compression: Reduces storage and bandwidth demand by approximately 50% versus H.264, directly lowering infrastructure cost and easing network provisioning in large multi-camera systems.
- IP67/IK10 ratings: Outdoor-rated enclosure withstands water immersion and 20-joule impact, eliminating need for external protective housings in vandal-prone areas.
- Built-in analytics: Line crossing and intrusion detection run at the edge, reducing dependency on external compute and enabling faster alert response.
Deployment Considerations:
- Verify the 2.8mm fixed lens field of view covers your intended monitoring zone—this is not varifocal, so lens selection is final at installation.
- Use ONVIF Profile P compatibility to confirm VMS integration before purchase; most Milestone, Axis Camera Station, and generic ONVIF platforms accept the O2VD2 without additional drivers.
The O2VD2 works best in compact monitoring deployments where durability, simplicity, and bandwidth efficiency outweigh the need for adjustable optics or very high resolution. Its PoE integration and low power draw make it an economical addition to distributed surveillance networks.
