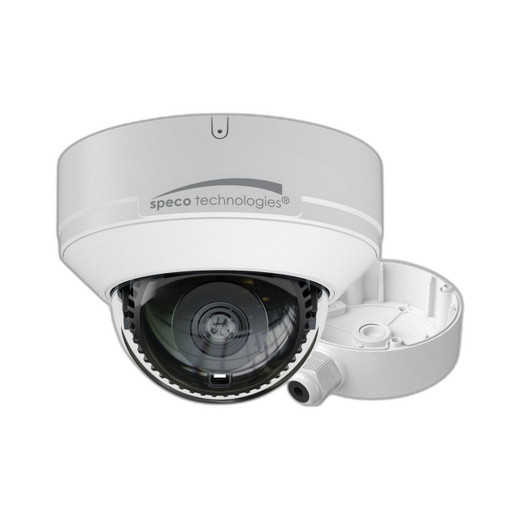

Speco Technologies O4D9 4MP H.265 Dome Camera with IR
Overview
The Speco O4D9 is a compact 4MP fixed-dome camera engineered for outdoor and mixed indoor/outdoor surveillance where environmental durability and edge-based analytics matter. It delivers 2592×1520 resolution at 30 fps using H.265 compression—which cuts bandwidth consumption roughly in half versus H.264, a meaningful advantage when deploying 24/7 recording across multiple sites or bandwidth-limited networks. The O4D9 combines IP67 environmental sealing (rain and dust resistant) with IK10 vandal resistance, making it suitable for perimeter, parking, and high-exposure installations where impact and weather exposure are real concerns.
Key Features
- 4MP resolution (2592×1520): Sufficient pixel density for facial detail and license plate recognition at typical 15–30 meter deployment distances. Maintains 30 fps across all resolutions and codec modes for smooth motion capture and forensic review.
- H.265 primary compression: Achieves ~50% bandwidth reduction versus H.264 at equivalent quality. Multi-codec fallback (H.264, MJPEG) ensures compatibility with older VMS platforms without transcoding overhead on the NVR.
- IP67 rating: Full dust protection and temporary submersion tolerance—suitable for direct rainfall and spray environments. Not rated for prolonged underwater deployment.
- IK10 vandal resistance: Withstands 20 joule impact (equivalent to a 5 kg mass dropped from 40 cm). Protective dome cover reduces risk of lens tampering and provides visual deterrent.
- 100 ft infrared range: True day/night operation via 850nm LED array. Infrared activates automatically in low-light scenes; does not require manual switching. Paired with 1/3" CMOS sensor and wide dynamic range (WDR) to handle backlit scenes (doorways, windows, perimeter edges with mixed sun and shadow).
- Fixed 2.8mm lens: Delivers mid-range horizontal field of view appropriate for corridors, parking areas, and general perimeter monitoring. Fixed focus eliminates drift and reduces maintenance—trade-off is no zoom capability.
- Line-crossing and face detection: Edge-based AI analytics trigger alerts without external servers or GPU acceleration. Reduces false alarms and enables local recording rules (e.g., record only when line crossed at night). Integrates with enterprise VMS platforms via ONVIF for additional correlation.
- ONVIF Profile G certification: Ensures interoperability with IP cameras management platforms including Milestone XProtect, Genetec Security Center, and third-party integrations. Communicates via standard Ethernet; leverages existing network infrastructure and security controls.
- PoE power: Draws under 13W via standard 802.3af PoE (single pair or higher). No separate power supply needed; simplifies installation and reduces cable runs.
- Dual mounting: Designed for ceiling and wall installation. Compact dome form factor suits aesthetically sensitive environments (retail, offices, hospitality) where bullet or turret cameras may not be acceptable.
When This Camera Is the Right Choice
The O4D9 is well-suited for general-purpose outdoor or mixed-use surveillance where environmental sealing and impact resistance are required. Its IK10 rating and sealed junction box protect against weather and physical contact. The 4MP resolution and H.265 compression balance bandwidth efficiency with sufficient detail for facial recognition and object classification. Edge-based line-crossing and face detection reduce false alarms and enable proactive alerting without external servers. ONVIF Profile G compliance ensures integration with enterprise VMS platforms without proprietary licensing or integration delays.
Select the O4D9 for parking structures, building perimeters, loading docks, and general outdoor corridors where a fixed mid-range field of view and night-vision capability meet requirements.
When to Choose a Different Model
If you require panoramic or multi-sensor coverage, 8MP+ resolution, PTZ capability, or thermal imaging, the O4D9 is not optimal. For installations with severe physical abuse risk (e.g., high-traffic retail or aggressive impact environments), confirm IK10 meets your impact threshold before committing. If your network lacks PoE infrastructure and 12VDC distribution is unavailable or impractical, evaluate power availability and infrastructure cost before purchase. For very-long-range applications (beyond 50 meters) requiring zoom or detail extraction, a higher-megapixel variant or zoom lens in the outdoor IP cameras family may be necessary.
Video Encoding and Network
Multi-codec support—H.265, H.264, and MJPEG—accommodates legacy and modern VMS deployments. H.265 is the primary codec; simultaneous multi-bitrate streaming allows high-quality recording while serving lower-bitrate live view feeds to mobile or web clients. Reduces storage and transmission load on the NVR, particularly important in multi-camera environments or sites with limited bandwidth.
Integration and Compatibility
ONVIF Profile G certification ensures interoperability with standards-based VMS, NVR, and third-party integrations. The O4D9 communicates over standard Ethernet, leveraging existing network infrastructure and enterprise security controls. Integrates with network video recorders and video management systems that support ONVIF discovery and streaming protocols.
Environmental Performance
IP67 rating protects against rain, dust, and temporary water immersion. Operating temperature range spans outdoor seasonal variation. True Wide Dynamic Range (WDR) handles high-contrast scenes—backlit doorways, windows, and perimeters with mixed sun and shadow—maintaining detail in both bright and dark regions of the frame. The combination of 100 ft IR range and WDR ensures continuous 24-hour surveillance without blind spots due to lighting transitions.
Frequently Asked Questions
Q: What is the actual field of view of the O4D9?
A: The fixed 2.8mm lens delivers a horizontal field of view appropriate for mid-range surveillance in corridors, parking areas, and perimeter monitoring. Exact FOV depends on sensor size (1/3" CMOS); consult the manufacturer datasheet for precise horizontal and vertical angles if you need to match specific coverage requirements.
Q: Can the O4D9 integrate with Milestone XProtect or Genetec Security Center?
A: Yes. ONVIF Profile G certification ensures compatibility with standards-based VMS platforms including Milestone XProtect and Genetec Security Center. No proprietary drivers required; integration uses standard ONVIF discovery and RTSP streaming protocols.
Q: Does the O4D9 require a separate power supply?
A: No. The camera draws under 13W via standard 802.3af PoE, so it operates on a single Ethernet cable without a separate power injector or 12VDC supply. Verify your PoE switch has sufficient available power budget for all connected cameras.
Q: What is the maximum infrared range?
A: The O4D9 provides 100 ft (approximately 30 meters) of infrared illumination using 850nm LEDs. Infrared activates automatically in low-light scenes; range decreases if the scene contains reflective surfaces or dust that scatter the IR beam.
Q: Is the O4D9 suitable for exterior wall mounting?
A: Yes. The camera is designed for both ceiling and wall installation. IP67 rating and sealed junction box protect against rain and direct spray. Confirm mounting hardware and brackets are specified for outdoor use and rated for local wind load requirements.
Q: What codecs does the O4D9 support?
A: The O4D9 supports H.265 (primary), H.264, and MJPEG. Multi-codec operation allows legacy VMS platforms to receive H.264 or MJPEG streams while modern systems benefit from H.265 bandwidth savings. Simultaneous multi-bitrate streaming is supported.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco O4D9 is a no-frills performer for integrators managing outdoor surveillance on a realistic budget. The H.265 codec alone saves you money on storage and bandwidth—roughly 50% reduction versus H.264—which compounds quickly when you're deploying dozens of cameras. The IK10 rating and IP67 sealing are genuine; this camera will handle rain, dust, and careless installation without excuses. That matters when you're responsible for uptime in parking structures or building perimeters.
Technical Highlights:
- H.265 compression: Cuts storage requirements in half compared to H.264 at equivalent quality. On a 24/7 multi-camera recorder, that translates to real retention time gain or smaller NVR hardware footprint.
- 100 ft IR range with WDR: Day/night operation without manual codec switching. The wide dynamic range handles backlit scenes—doorways, windows, parking lot edges—so you don't lose detail in high-contrast transitions.
- IK10 + IP67: The combination means weather and physical contact won't take this camera offline. Sealed junction box protects internal connectors from corrosion; no exposed terminals to degrade in rain or salt spray.
- Edge-based line-crossing and face detection: Local AI means you trigger alerts and recording rules without external servers. Reduces false alarms and network load; alerts fire on the camera itself via ONVIF webhooks or local GPIO.
- ONVIF Profile G: Works with Milestone, Genetec, and any standards-compliant VMS. No proprietary integration tax; discovery and authentication happen over standard ONVIF protocols.
Deployment Considerations:
- Fixed 2.8mm lens limits you to mid-range coverage. If you need to zoom or monitor at 50+ meters, plan for a higher-megapixel variant or varifocal lens in the same family. The O4D9 is not a zoom solution.
- PoE draws under 13W, so you won't strain a shared switch. But on a fully populated 48-port PoE switch, watch the total budget—48 cameras at 13W each is 624W, and many budget switches max out at 375–500W total.
- IP67 protects against rain and dust, but not prolonged submersion. If you're installing near water features or in flood-prone areas, confirm water ingress tolerance with the vendor or use an IP68-rated variant if available.
The O4D9 is a good fit for parking structures, building perimeters, loading docks, and general outdoor corridors where environmental durability and bandwidth efficiency are non-negotiable. Don't pick it if you need zoom, panoramic coverage, or thermal imaging. For straightforward perimeter surveillance with edge analytics, this is a solid, no-nonsense choice.
