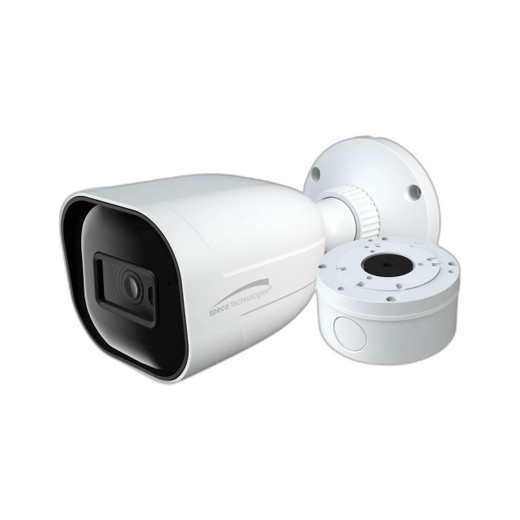

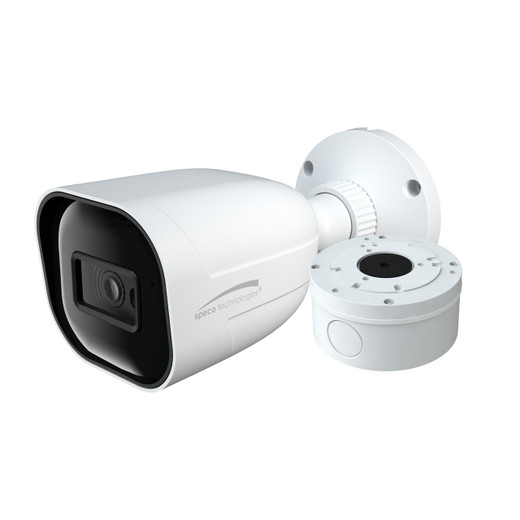

Speco Technologies O4VB2 4MP H.265 Outdoor Bullet Camera
Overview
The Speco O4VB2 is a fixed 4MP network bullet camera engineered for outdoor perimeter surveillance where reliable imaging across variable lighting is the priority. Built on H.265 compression architecture, this camera delivers approximately 50% bitrate reduction compared to H.264 at equivalent quality—a meaningful advantage when recording 24/7 across multi-camera deployments and managing storage on fixed budgets. The 2.8mm fixed lens provides a wide horizontal field of view suitable for broad perimeter coverage on institutional and commercial properties. NDAA compliance positions this unit for government and federal procurement pipelines, while the white finish integrates discreetly into outdoor institutional environments.
Key Features
- 4MP Resolution (2688 × 1520): Delivers sufficient detail for event verification and subject identification at typical outdoor surveillance distances without the bandwidth overhead of 5MP or higher—appropriate for general perimeter work where facial recognition or license-plate capture at range is not the mission.
- H.265 (HEVC) Compression: Cuts storage consumption roughly in half versus H.264 at the same image quality. On a 24/7 recorder with 8 or more cameras, this translates to weeks of additional retention or lower-cost NVR hardware.
- Wide Dynamic Range (WDR): Maintains shadow and highlight detail in high-contrast outdoor scenes—backlit windows, vehicle headlights, reflective surfaces. Prevents blown-out bright areas and crushed shadows, enabling forensically useful video in mixed lighting.
- Integrated IR (850nm): Extends operation into complete darkness without relying on ambient light. Enables 24/7 monitoring regardless of time of day or weather obscuration. Infrared does not trigger light-sensitive intrusion detectors.
- PoE+ (802.3at) Power: Draws under 13W, fitting comfortably within standard PoE+ switch budgets. No separate power supplies, conduit runs, or UPS coordination required—one Ethernet cable handles both data and power. Simplifies cabling in outdoor pole or eave installations.
- Fixed 2.8mm Lens: Provides a wide horizontal coverage angle optimized for general perimeter sweeps. Fixed focus eliminates drift and reduces field maintenance touchpoints, making it suitable for unattended outdoor mounting.
- ONVIF Profile S Compatibility: Integrates with third-party Video Management Systems (VMS) platforms—Milestone XProtect, Genetec, Hanwha, open-architecture recorders—without vendor lock-in. Motion detection and ROI configuration can be managed within the VMS or on the camera itself.
- NDAA Section 889 Compliant: Positions the O4VB2 for federal and state procurement where Chinese component restrictions apply. Broadens qualification for campus, municipal, and defense-adjacent facilities.
When this is the right choice
The O4VB2 fits outdoor installations where fixed wide-angle coverage is the requirement and H.265 bitrate efficiency is a priority. Multi-camera perimeter systems on budget—apartment complexes, small municipal facilities, educational campuses, commercial parking areas—benefit from the bitrate profile and standardized IP connectivity. Environments with moderate IR illumination needs and typical weathering exposure are ideal. If you need varifocal zoom, extreme vandalism protection (IK ratings above IK08), or edge analytics on-camera, evaluate alternative models in the Speco outdoor IP camera line.
Integration and compatibility
The O4VB2 supports ONVIF Profile S, enabling plug-and-play integration into vendor-neutral surveillance systems. Motion detection and region-of-interest (ROI) configuration reduce unnecessary storage overhead by prioritizing relevant scene areas. Integration with an analytics-capable VMS allows post-deployment addition of sophisticated object detection or behavior analysis without requiring a camera upgrade. NVRs with H.265 playback support will maximize the bitrate savings delivered by this codec.
Optics, field of view, and low-light performance
The 2.8mm fixed lens delivers a horizontal field of view adequate for general perimeter surveillance at moderate distances. Fixed focus eliminates focus drift and maintenance. WDR processing maintains usable detail in backlit and high-contrast scenes common to outdoor environments. Integrated 850nm infrared extends operation into low-light and nighttime conditions, enabling continuous monitoring without manual iris adjustment or reliance on ambient illumination. The combination of WDR and IR ensures usable imagery across dawn, dusk, and full darkness without external lighting.
Video compression and streaming efficiency
H.265 is the primary codec, delivering material bitrate reductions—roughly 40–60% depending on scene complexity—compared to H.264 at equivalent perceptual quality. This efficiency directly reduces storage costs, NVR processor load, and network utilization. On bandwidth-constrained sites or multi-site deployments relying on limited WAN connectivity, H.265 payback materializes quickly. Dual-stream capability allows configuration of high-quality primary streams for archival and lower-bitrate streams for real-time monitoring, further optimizing storage and network resources.
Environmental robustness and installation
The O4VB2 is rated for outdoor exposure with weather-resistant construction suitable for rain, dust, and moderate temperature swing. The white finish supports aesthetic integration in institutional environments. Standard bullet form factor enables straightforward mounting on poles, wall brackets, or eave hardware. PoE+ power eliminates the need for separate conduit or power runs, simplifying installation logistics.
Frequently Asked Questions
Q: Is the O4VB2 NDAA Section 889 compliant?
A: Yes. The O4VB2 carries NDAA compliance, qualifying it for federal and state procurement where Chinese component restrictions apply.
Q: What is the infrared range on the O4VB2?
A: The O4VB2 features integrated 850nm infrared. Exact range is not specified in available documentation; contact the manufacturer or your integrator for specific IR throw distance relevant to your deployment distance.
Q: Will the O4VB2 work with my Milestone XProtect VMS?
A: Yes. The O4VB2 supports ONVIF Profile S, enabling integration with Milestone XProtect and other third-party VMS platforms without proprietary drivers or appliances.
Q: Can I wall-mount the O4VB2?
A: Yes. The bullet form factor supports wall bracket mounting. Standard mounting hardware and templates are available from the integrator or installer.
Q: What's the maximum power draw of the O4VB2?
A: The O4VB2 draws under 13W via PoE+ (802.3at), well within standard switch budgets and eliminating the need for separate power supplies or UPS planning.
Q: Does the O4VB2 have onboard storage?
A: No. The O4VB2 is a network camera designed to stream video to an external NVR or VMS. It does not include microSD or onboard recording capacity.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O4VB2 is a straightforward perimeter camera—no surprises, no overengineering. It's built around H.265 efficiency and broad WDR, which means you're not fighting the codec or the lighting on every frame. If you're deploying 8 or more cameras across a campus or multi-building site, the bitrate savings from H.265 alone will pay for a better NVR or extend your retention window without bumping hardware spend. The NDAA compliance is the other key lever—institutional buyers appreciate it as a procurement qualifier, and it removes a clause from the RFQ.
Technical Highlights:
- H.265 bitrate reduction: Roughly 50% compared to H.264 at equivalent quality. On 24/7 multi-camera recording, this materializes as weeks of extra retention or lower NVR specs. Real money on large deployments.
- WDR + 850nm IR combination: Handles high-contrast outdoor scenes without manual iris adjustment and extends operation into full darkness. Typical outdoor perimeter coverage works without supplementary lighting—saves cost and avoids triggering motion-sensor alarm systems.
- Fixed 2.8mm lens: No focus drift, no maintenance touchpoints on a pole mount. If your coverage footprint is broad and stable, this lens choice cuts deployment complexity versus varifocal alternatives.
- PoE+ power draw under 13W: Standard 802.3at switch port handles power and data. Pole-mounted outdoor installations simplify to a single Ethernet run—no separate 12VDC or 24VAC conduit.
Deployment Considerations:
- Fixed lens means no zoom or focus adjustment post-installation. Get the mounting height and angle right in the field—varifocal would give you adjustment slack, but you're trading that flexibility for simplicity and lower cost.
- H.265 requires NVR or VMS support for both recording and playback. If you're upgrading an older Milestone or Genetec installation still locked on H.264-only encoders, confirm codec support before specifying this model.
- ONVIF Profile S is broad compatibility, but edge analytics (people counting, loitering detection) live on the VMS side, not the camera. If you need deep-learning detection at the edge, evaluate other models in the Speco lineup.
The O4VB2 is the sensible choice for institutional and commercial perimeter work where wide-angle, fixed coverage and codec efficiency matter more than zoom or on-camera smarts. Campus security, municipal parking, warehouse exterior—these are the O4VB2's home turf.
