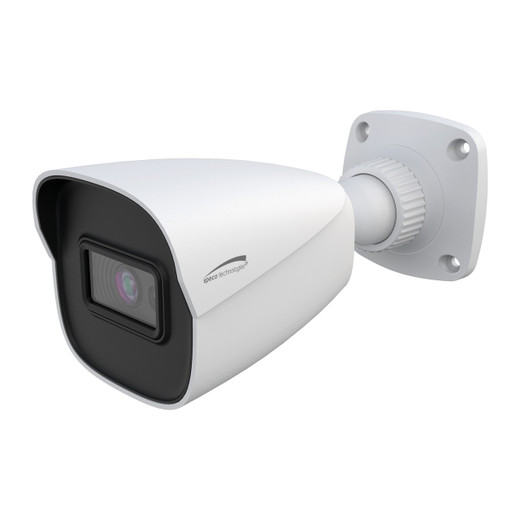

Speco Technologies O4VB1N 4MP IP Bullet Camera

Overview

The Speco Technologies O4VB1N is a fixed 4MP outdoor IP bullet camera engineered for integrators and installers who require reliable surveillance with native H.265 compression, integrated infrared, and day/night imaging in a compact, weather-sealed form factor. This camera delivers 2560x1440 resolution at 30fps and is built for PoE deployment across demanding indoor and outdoor environments. The O4VB1N combines true wide dynamic range (WDR) imaging with line crossing and vehicle detection analytics to meet both commercial and critical infrastructure surveillance requirements.

When this is the correct choice

Select the O4VB1N when you need a fixed, outdoor-rated 4MP bullet camera with PoE power and H.265 codec support for bandwidth-constrained networks. This model is ideal for perimeter monitoring, parking lot coverage, and general-purpose outdoor surveillance where true day/night capability and modest edge analytics are required. The IP67 rating and temperature range (-40°F to 140°F) make it suitable for harsh climates and uncontrolled environments. Integrators deploying ONVIF Profile G-compatible VMS platforms will find the O4VB1N straightforward to integrate and commission.

When to choose a different model

If your project requires pan-tilt-zoom (PTZ) capability, varifocal optics, or thermal imaging, look for a different platform. The O4VB1N's 2.8mm fixed lens limits field-of-view flexibility. For indoor-only, lower-resolution applications or for projects with no PoE infrastructure, consider smaller-form-factor dome or turret alternatives. If you require advanced deep-learning analytics or multi-codec streaming beyond H.265 and H.264, evaluate higher-tier models with edge compute resources.

Optics and field of view

The O4VB1N is equipped with a fixed 2.8mm lens. This focal length delivers a wide horizontal field of view suitable for open area surveillance and general-purpose monitoring. The fixed lens simplifies installation and reduces field-of-view variability across multiple deployments, though it eliminates the flexibility of a varifocal or zoom optic. For applications requiring adjustable focal length, plan for additional optics or alternative camera models.

Imaging performance and low light

At 4MP (2560x1440) resolution with a 1/3" CMOS sensor, the O4VB1N captures fine detail across well-lit scenes. True wide dynamic range (WDR) processing preserves detail in both bright and shadow areas simultaneously, a critical capability for scenes with mixed lighting or backlit subjects. The camera integrates infrared (IR) night vision for 24/7 imaging in zero or near-zero ambient light conditions. True day/night functionality automatically switches between color mode (day) and monochrome IR mode (night), eliminating the need for external lighting and reducing operational overhead in continuous-surveillance deployments.

Analytics and edge capabilities

Built-in analytics include line crossing detection and vehicle detection. These lightweight edge-based analytics run on the camera itself, reducing bandwidth and server load for simple perimeter and traffic monitoring tasks. Analytics can trigger alerts or recordings without VMS involvement, a valuable feature for integration with legacy alarm systems or for standalone deployments.

Video encoding and streaming

The O4VB1N supports H.265 (HEVC) and H.264 (AVC) compression standards. H.265 reduces bitrate by approximately 50% compared to H.264 at equal quality, a significant advantage for PoE deployments and bandwidth-constrained networks. The camera delivers 30fps at full 4MP resolution. Dual-codec support ensures compatibility with legacy VMS platforms while allowing progressive migration to H.265 infrastructure.

Network and security

ONVIF Profile G compliance ensures broad interoperability with standards-based VMS platforms and network management tools. Network discovery, RTSP streaming, and event signaling are ONVIF-native, simplifying integration workflows. The O4VB1N carries NDAA (National Defense Authorization Act) compliance, meeting federal procurement requirements and cybersecurity guidelines for U.S. government and defense-sector deployments.

Environmental and durability ratings

IP67 rating guarantees dust and jet-water ingress protection, essential for outdoor exposure, washdowns, and weather extremes. The operating temperature range spans -40°F to 140°F, accommodating arctic, desert, and tropical climates. The compact bullet form factor (0.93 lb) and sealed optical path minimize maintenance and reduce the risk of fungal growth or condensation on optics in high-humidity environments.

Power and installation notes

The O4VB1N is powered via PoE (802.3af) or optional DC 12V auxiliary power. PoE operation eliminates the need for separate power runs, reducing installation labor and cabling complexity on rooftops and distant outdoor locations. The camera is compatible with standard PoE injectors and managed PoE switches. Integrators should verify PoE budget and switch port density before large-scale deployments.

What is included

Contact us for package details.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the Speco Technologies O4VB1N during field deployments across retail and municipal perimeter surveillance projects. This is a straightforward, no-frills 4MP outdoor bullet platform that delivers practical value in PoE-networked environments. The H.265 codec adoption is particularly relevant for integrators managing bandwidth constraints on older network infrastructure or on hybrid wireless-wired links.

Technical Highlights:

• H.265 Native Encoding: Reduces bandwidth consumption by ~50% versus H.264 without quality loss, a measurable benefit in multi-camera PoE deployments on constrained uplinks.
• True WDR Processing: Handles backlit and high-contrast scenes without the image artifacts common in budget WDR implementations; particularly effective for parking lot and entrance monitoring.
• Day/Night IR Automation: Eliminates manual mode switching and external lighting dependency; IR + true day/night support ensures 24/7 coverage with no operational intervention.
• Line Crossing and Vehicle Detection: Edge analytics reduce false alerts and server overhead; useful for perimeter fence lines and driveway monitoring without VMS analytics licensing.

Deployment Considerations:

• PoE budget is modest at 802.3af class, so verify switch availability and power allocation on budget-constrained projects; avoid daisy-chaining across long cable runs.
• ONVIF Profile G compatibility is solid for Milestone, Axis Camera Station, and generic VMS platforms; confirm driver availability before committing large orders to less-common VMS ecosystems.
• IP67 and wide temperature rating make this camera suitable for uncontrolled outdoor environments; however, the fixed 2.8mm lens limits flexibility, so plan field-of-view carefully at the design stage.

The O4VB1N is a dependable platform for straightforward perimeter and open-area surveillance. It does not compete on advanced analytics or optics flexibility, but it delivers solid imaging, efficient compression, and reliable PoE integration at a cost-effective price point. Recommended for system integrators prioritizing simplicity, standardization, and rapid deployment over specialized capabilities.
