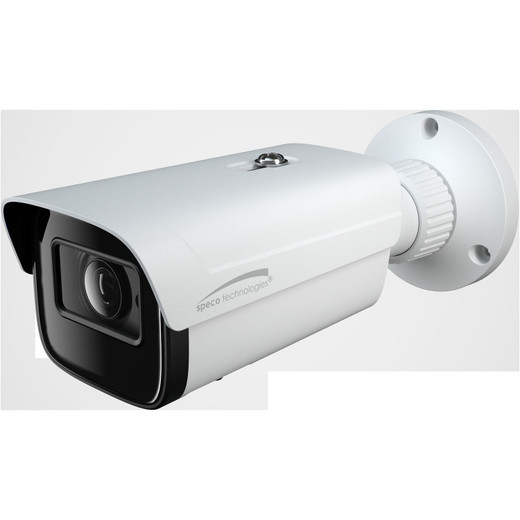

Speco Technologies O4VB2M 4MP H.265 Bullet Camera
Overview

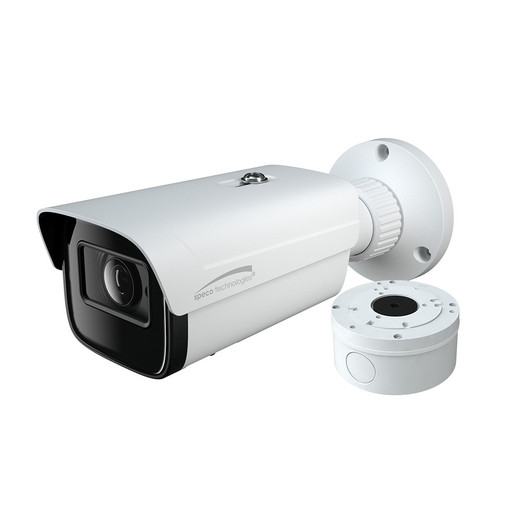

The Speco O4VB2M is a 4MP outdoor bullet camera built around a motorized 2.8-12mm varifocal lens and H.265 compression, designed for perimeter surveillance where variable focal length reduces the need to stock multiple camera SKUs. The motorized optics let you adjust field of view and focus remotely after the camera is mounted, cutting site visits during commissioning. It ships with an included weatherproof junction box, eliminating the cost of secondary enclosures. This model is NDAA-compliant, making it suitable for federal, state, and municipal procurement frameworks.
Key Features
- Motorized 2.8-12mm varifocal lens: Delivers 107.3° horizontal field of view at 2.8mm wide angle and 30.5° at 12mm telephoto. Remote zoom and focus adjustment means you can fine-tune framing after mounting without returning to the site—a real time-saver on multi-camera deployments where target distances may shift during final positioning.
- 4MP (2688 × 1520) at 30 fps: Sufficient resolution for facial recognition and license plate capture at mid-to-long range (roughly 20–80 feet depending on lighting and lens focal length). The frame rate supports smooth video review and motion-based alert triggering.
- H.265 (HEVC) compression: Reduces bandwidth and storage footprint roughly 40–60% compared to H.264 at equivalent quality. On a 24/7 multi-camera system, this translates to measurable savings in switch uplink costs and recorder storage—particularly valuable on bandwidth-constrained sites.
- PoE+ power (802.3at): Draws sufficient current to operate the motorized lens actuators via a single Ethernet run. No separate power supply required, simplifying wiring and reducing failure points on the camera itself.
- Wide Dynamic Range (WDR): Corrects exposure imbalance when the scene includes bright and dark areas simultaneously—such as monitoring a loading dock exit backlit by daylight or a parking area with uneven artificial lighting. Prevents washed-out or crushed detail in mixed-light scenarios.
- Integrated IR illumination with mechanical day/night shutter: Enables reliable operation as ambient light drops. The switchable IR mode plus mechanical shutter maintains usable imagery in total darkness without relying on external strobes or supplementary lighting, extending useful surveillance hours year-round.
When to Specify This Model
Choose the O4VB2M when site surveys show uncertain distance-to-target requirements or when monitoring zones span multiple focal lengths. Integrators commonly specify this camera for facility perimeter loops where one camera can cover several fixed-lens configurations. The included junction box eliminates secondary weatherproofing costs, and NDAA compliance simplifies procurement on government-backed projects. The motorized lens is especially valuable in retrofit work, where mounting height or viewing angle may not be finalized until the camera is physically in position.
For applications requiring ultra-wide angles below 2.8mm, or deployments demanding pan-tilt-zoom (PTZ) capability, evaluate alternative outdoor IP camera models. If your facility power budget is severely constrained, verify PoE+ availability on your switch before specifying the O4VB2M; confirm actual power draw with your distributor. For indoor-only, low-vandalism environments, consider fixed-dome alternatives to reduce installed cost.
Integration and Compatibility
The O4VB2M supports standard ONVIF Profile S and T integration, enabling deployment with most major VMS platforms. Edge-based motion detection and video metadata features depend on your specific VMS integration—consult current firmware documentation and your management platform's ONVIF support matrix before designing your analytics workflow. H.265 decoding must be supported by your recording appliance; confirm codec compatibility with your NVR or storage system during architecture review.
Physical Specifications
The O4VB2M is rated IP66 (dust and water ingress protection) and IK10 (vandal-resistant), making it suitable for exposed outdoor mounting. Integrated mounting brackets support wall and ceiling installation. Consult PoE switch planning guidelines to ensure your infrastructure can supply PoE+ to the number of cameras you intend to deploy, particularly if other high-power devices share the same power budget.
Frequently Asked Questions
Q: Is the Speco O4VB2M NDAA Section 889 compliant?
A: Yes. The O4VB2M is NDAA-compliant and meets Made-in-USA or approved-vendor requirements for federal, state, and municipal procurement frameworks.
Q: What is the maximum infrared range on the O4VB2M?
A: Consult the current datasheet for exact IR throw distance. Effective range depends on scene reflectivity and lens focal length. At 2.8mm wide angle, IR coverage is broader but shorter-distance; at 12mm telephoto, range extends but coverage narrows.
Q: Can I adjust the lens zoom and focus remotely after the camera is mounted?
A: Yes. The motorized 2.8-12mm lens supports remote focus and zoom adjustment through your VMS or camera management interface, eliminating site visits for framing adjustments.
Q: Does the O4VB2M work with Milestone XProtect or other standard VMS platforms?
A: The O4VB2M supports ONVIF Profile S and T. Verify integration with your specific VMS version before deployment. Contact your VMS vendor or integrator to confirm current codec and metadata support.
Q: What power consumption should I plan for?
A: The O4VB2M is rated for PoE+ operation. Exact peak power draw varies with motorized lens activity and IR use. Consult technical documentation and account for worst-case power in your switch capacity planning.
Q: Can the O4VB2M be wall-mounted and ceiling-mounted?
A: Yes. The camera includes mounting brackets supporting both wall and ceiling installation. Choose mounting orientation based on your target zone and desired field of view angle.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco O4VB2M hits a practical middle ground for outdoor perimeter surveillance: it gives you varifocal optics without forcing you to stock three different fixed-lens SKUs, and the motorized focus means you're not scrambling back to the site if the target distance changes during final positioning. H.265 compression is a real win on bandwidth-limited sites—expect 40–60% storage reduction compared to H.264, which matters when you're recording 24/7 across a dozen cameras. The included junction box is a small detail that saves money and installation complexity.
Technical Highlights:
- Motorized 2.8-12mm lens: 107.3° wide angle to 30.5° telephoto without swapping hardware. Remote adjustment cuts commissioning travel.
- H.265 compression at 4MP 30fps: Cuts bandwidth and storage footprint roughly 40–60% versus H.264—measurable savings on multi-camera 24/7 deployments.
- PoE+ power: Sufficient current for motorized lens actuators on a single Ethernet cable. No separate supply means fewer failure points and simpler wiring.
- WDR + mechanical IR shutter: Handles mixed-lighting scenes (backlit exits, uneven parking areas) and delivers usable video in darkness without external strobes.
Deployment Considerations:
- The motorized lens is a strength for uncertain focal lengths, but if your targets are all at a fixed distance, a comparable fixed-lens camera may save cost.
- H.265 decoding must be supported by your NVR or storage appliance—verify codec compatibility in your architecture review. Not all older VMS platforms handle HEVC smoothly.
- PoE+ power draw varies with motor activity and IR use. Plan peak consumption in your switch budget, especially if you're deploying 8+ cameras on a single device.
The O4VB2M is the right call for facility perimeter loops where mounting height or viewing angle isn't locked down until installation, or where NDAA compliance is a procurement requirement. Skip it if you need PTZ capability, sub-2.8mm ultra-wide coverage, or if your power budget is already maxed. Otherwise, the varifocal flexibility and compression efficiency justify the slightly higher per-unit cost on medium-to-large deployments.
