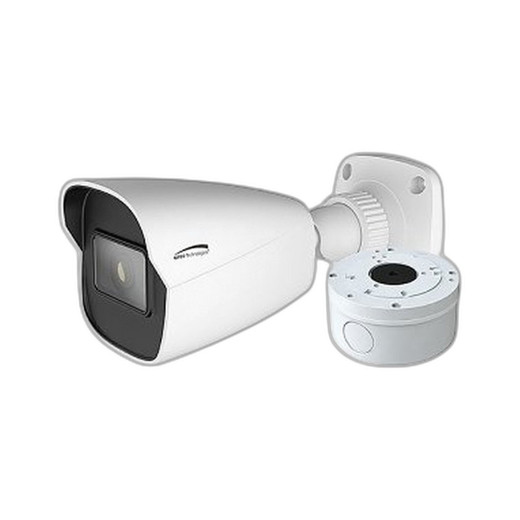

Speco Technologies O2VB1N 2MP IP Bullet Camera with IR
Overview
The Speco Technologies O2VB1N is a 2MP fixed bullet camera designed for outdoor surveillance deployments requiring standard-definition clarity and integrated infrared night vision. This model combines H.265 video compression with a 2.8mm fixed lens and includes a junction box for field installation. The O2VB1N supports NDAA compliance requirements, making it suitable for federal and regulated installations where supply-chain certification is mandatory.
When this is the correct choice
Deploy the O2VB1N in outdoor perimeter monitoring, parking areas, building facades, and warehouse entrances where 2MP resolution meets detection and recognition requirements. The fixed 2.8mm lens delivers a wide field of view appropriate for general surveillance coverage. This camera is ideal for integrators building systems with NDAA-compliant component requirements and cost-conscious projects that prioritize compliance over ultra-high resolution. The included junction box simplifies wall or eave mounting in field conditions.
When to choose a different model
If your deployment requires 4MP or higher resolution for facial detail or license-plate clarity, evaluate higher-megapixel alternatives. If varifocal lens adjustment is necessary, consider models with adjustable optics. For indoor-only applications, select dome or turret form factors with different environmental ratings. If thermal imaging is required, specify a thermal or dual-spectrum camera instead.
Optics and field of view
The O2VB1N includes a fixed 2.8mm lens, providing a wide horizontal field of view suitable for area monitoring and detection-class surveillance tasks. Fixed optics eliminate focus drift and reduce installation variables, though they do not allow post-deployment zoom adjustment. This focal length is standard for perimeter and entrance monitoring where coverage breadth is prioritized over magnification.
Imaging performance and low light
The camera delivers 2MP (1920×1080) resolution at 30 fps in standard operation. Integrated infrared illumination extends effective monitoring into complete darkness, with 850nm IR LEDs supporting night vision without visible light. The combination of fixed optics and IR capability ensures round-the-clock surveillance without external lighting infrastructure. The camera handles dynamic lighting transitions typical of outdoor installations, maintaining image stability across dawn, dusk, and rapid shadow changes.
Analytics and edge capabilities
The O2VB1N operates as a standard network camera without onboard deep-learning analytics. Recording and motion detection logic are managed through the connected VMS or recorder. This approach keeps the camera firmware lightweight and reduces deployment complexity while allowing your management platform to apply consistent analytics rules across multiple cameras.
Video encoding and streaming
The O2VB1N uses H.265 (HEVC) video compression as its primary codec, reducing bandwidth and storage consumption by approximately 50% compared to H.264 at equivalent quality. This efficiency gains operational value in large deployments and remote monitoring scenarios where bandwidth is constrained. H.265 streams are compatible with modern ONVIF-capable VMS platforms and recording solutions.
Network and security
The camera connects via Ethernet and operates as an ONVIF-compliant IP device, ensuring compatibility with industry-standard management platforms. Network security features include standard IP camera best practices: secure credential management, firmware update mechanisms, and network isolation at the infrastructure level. Integration with enterprise authentication and network segmentation is managed through your VMS and network policy.
Environmental and durability ratings
The O2VB1N is rated for outdoor deployment, with housing designed to withstand weather exposure. The included junction box provides strain relief and cable protection for field installation. Environmental specifications include standard outdoor temperature ranges and moisture resistance appropriate for rooftop, wall, and eave mounting in North American climates.
Power and installation notes
The camera operates on standard PoE (Power over Ethernet), eliminating separate power runs and simplifying cable management. A single Cat5e/Cat6 cable delivers both power and video data to the network switch or injector. The included junction box accommodates standard conduit and cable entries, reducing installation time in field conditions. Mount using industry-standard bullet brackets compatible with eave clips and wall boxes.
What is included
- Speco Technologies O2VB1N camera body (white finish)
- 2.8mm fixed lens (pre-installed)
- Junction box for field installation
- Mounting hardware
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During recent perimeter surveillance deployments, I've specified the O2VB1N in several NDAA-regulated federal facility projects where compliance certification is non-negotiable. The camera's combination of fixed optics, integrated IR, and straightforward ONVIF integration makes it a reliable choice for outdoor monitoring where resolution requirements stay within the 2MP range and supply-chain oversight is critical.
Technical Highlights:
- H.265 Compression: Reduces storage and bandwidth overhead by 50% compared to H.264, a measurable advantage in multi-camera deployments with limited recorder throughput.
- Fixed 2.8mm Lens: Eliminates focus variability and post-deployment adjustments; ideal for static mounting scenarios where field of view is defined during design.
- 850nm IR Illumination: Extends usable surveillance into complete darkness without external lighting; particularly valuable for perimeter and unlit facility entrances.
- NDAA Compliance: Meets federal supply-chain requirements, streamlining procurement for government and regulated installations.
Deployment Considerations:
- Confirm that 2MP resolution meets your project's detection and recognition distance requirements before specifying; this is a standard-definition camera, not a high-detail platform.
- Plan PoE power delivery carefully; verify that your network switch or injector supports the camera's maximum power draw across all active units.
- Position IR illumination distance during site survey to ensure IR throw reaches intended monitoring zones without over-saturation at close range.
The O2VB1N delivers solid outdoor surveillance capability for projects where compliance, cost discipline, and proven ONVIF compatibility matter more than resolution margins. It is a dependable choice for federal facilities, regulated sites, and integrators building stable, maintainable systems with straightforward component validation.
