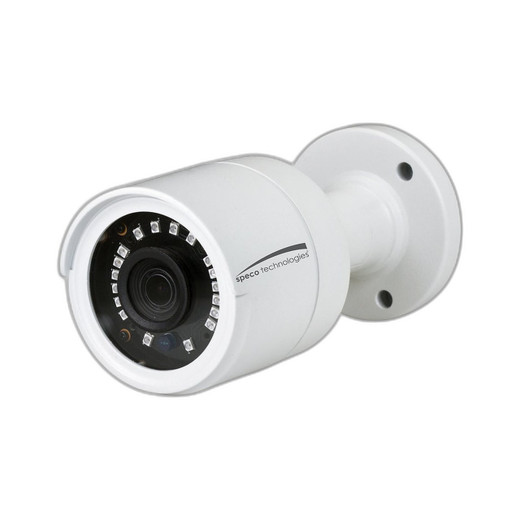

Speco Technologies O2VLB7 2MP IP Bullet Camera
Overview
The Speco Technologies O2VLB7 is a compact 2MP IP bullet camera engineered for outdoor and perimeter surveillance applications. Built with a 1/2.7" CMOS sensor, this camera delivers 1920×1080 resolution at 30fps, providing clear detail capture for monitoring building entrances, parking areas, and facility boundaries. The O2VLB7 combines infrared night vision capability with weather-sealed construction, making it suitable for continuous day-and-night monitoring in demanding environments.
When this is the correct choice
Select the O2VLB7 when you need a straightforward, cost-effective outdoor bullet camera with proven reliability. This model is ideal for integrators building perimeter security systems, parking lot surveillance, or facility entrance monitoring where 2MP resolution is sufficient and a fixed 2.8mm lens meets coverage requirements. The included junction box accelerates installation in new builds or retrofit projects. Choose this camera for systems requiring ONVIF Profile S compatibility and standard H.265/H.264 streaming.
When to choose a different model
If your application demands higher resolution (4MP, 5MP, or greater), motorized zoom capability, advanced video analytics beyond motion detection, or facial recognition performance, evaluate higher-resolution models. For indoor-only deployments without environmental exposure, a compact dome or turret form factor may provide better aesthetic integration. If your power infrastructure cannot support PoE or requires DC-only operation, confirm power availability before specifying the O2VLB7.
Optics and field of view
The O2VLB7 features a fixed 2.8mm lens, delivering a moderate field of view suitable for mid-range distance monitoring (typical 50–80 feet depending on scene lighting and required detail level). The 2.8mm focal length is a standard choice for general-purpose outdoor surveillance, balancing wide coverage with adequate object recognition at typical mounting heights (8–15 feet). No motorized focus or zoom; field of view is static after installation.
Imaging performance and low light
Equipped with true day/night capability, the O2VLB7 automatically switches between color operation and infrared (IR) mode as ambient light decreases. The integrated IR emitter supports night vision without requiring auxiliary lighting, enabling 24/7 surveillance. Day/Night operation is mechanical (IR cut filter) with automatic switching. The camera operates across a wide temperature range of -40°F to 131°F, accommodating both northern climates and direct sun exposure without image degradation.
Analytics and edge capabilities
The O2VLB7 includes motion detection analytics, enabling rule-based alerts and recording triggers. Motion detection runs on the edge device, reducing bandwidth consumption and simplifying system logic. No advanced video analytics (object classification, crowd counting, face detection) are integrated; the camera is optimized for traditional motion-triggered surveillance workflows.
Video encoding and streaming
Dual codec support (H.265 and H.264) ensures compatibility with modern and legacy VMS platforms. H.265 encoding reduces bandwidth and storage requirements by approximately 50% compared to H.264 at equivalent quality. Frame rate is fixed at 30fps, suitable for smooth motion playback and forensic review. Configurable bitrate and resolution allow fine-tuning for network conditions.
Network and security
ONVIF Profile S compatibility guarantees interoperability with standards-based VMS and NVR systems. Wired connectivity via Ethernet (RJ45) provides stable, latency-free streaming. Secure configuration and firmware updates follow ONVIF standards. No mention of 802.1X, TPM, or advanced cryptographic features; assume standard HTTP/HTTPS security.
Environmental and durability ratings
IP66 rating confirms dust and water jet protection, allowing outdoor wall or soffit mounting without additional weatherproof enclosures. The camera withstands sustained rain, dust storms, and spray-down cleaning. White polymer housing resists UV degradation and blends with light-colored building facades. No IK (impact) rating is specified; the camera is not designed for high-vandalism environments.
Power and installation notes
The O2VLB7 supports dual power input: Power over Ethernet (PoE, 802.3af standard) or DC 12V auxiliary supply. Power consumption is rated at 7W, well within standard PoE budgets. The included junction box simplifies field wiring, housing connections for PoE injectors, 12V supplies, or direct network switches. Mount the camera on a wall, soffit, or corner bracket using the integral M4 threaded mounting points. No adjustable brackets included; use third-party mounting hardware for articulation.
What is included
- Speco O2VLB7 IP bullet camera (white)
- Integral junction box for field wiring connections
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've integrated the Speco O2VLB7 into several mid-scale facility surveillance projects, and it consistently delivers reliable outdoor monitoring without unnecessary complexity. The included junction box is a practical detail that reduces field assembly time and wiring errors on retrofit jobs where neatness matters. For integrators building standardized perimeter packages, the O2VLB7 represents solid value when paired with a mainstream ONVIF-compatible NVR.
Technical Highlights:
- 2MP @ 1920×1080, 30fps: Adequate resolution and frame rate for general-purpose outdoor surveillance; sufficient detail for license plate and facial recognition at 15–25 feet.
- H.265 codec: Reduces bandwidth footprint, critical when deploying multiple cameras over limited WAN links or cellular backup connections.
- Dual power (PoE + 12V DC): Flexibility to integrate with existing infrastructure; PoE is cleaner for new installations, 12V DC option suits retrofit projects with separate power runs.
- IP66 weatherproofing: No enclosure or secondary housing required; direct outdoor mounting without degradation.
Deployment Considerations:
- Confirm fixed 2.8mm lens FOV covers your intended monitoring distance; no motorized adjustment available after mounting.
- Verify PoE power budget: at 7W consumption, multiple cameras can share a single 60W PoE switch injector without overload, simplifying backbone infrastructure.
- Test motion detection sensitivity in your lighting environment during commissioning; IR backscatter and shadows can generate false triggers in cluttered outdoor scenes.
For straightforward outdoor surveillance without premium feature complexity, the O2VLB7 is a dependable choice. Its ONVIF compatibility ensures long-term system flexibility, and the included junction box reflects thoughtful design for field technicians. Pair it with a Milestone, Axis Camera Station, or equivalent ONVIF NVR for a complete, futureproof installation.
