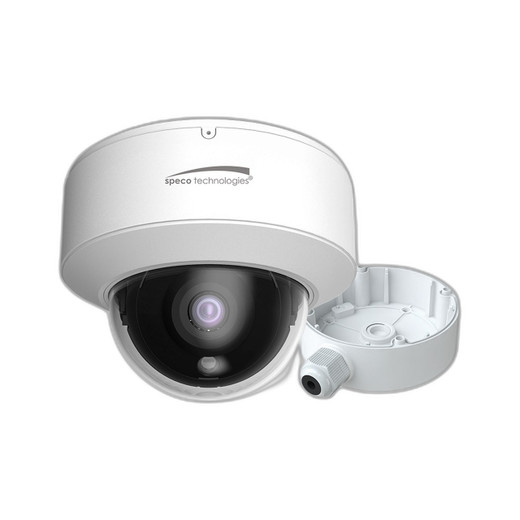

Speco Technologies O8VD2 8MP IP Dome Camera with H.265
Overview
The Speco Technologies O8VD2 is a compact 8MP fixed dome camera engineered for network-based surveillance in mixed indoor and outdoor environments. Built on a 1/2.8" CMOS sensor and supporting H.265, H.264, and MJPEG compression, the O8VD2 delivers 3840×2160 resolution at 20 fps with true day/night capability and integrated infrared illumination. This camera combines IP67 weatherproofing with IK10 vandal resistance, making it suitable for exposed mounting locations. PoE (802.3af) or DC 12V power options simplify installation, while ONVIF Profile T compatibility ensures broad VMS integration. NDAA compliance addresses federal procurement requirements for integrators and government buyers.
When this is the correct choice
Select the O8VD2 when you need cost-effective 8MP coverage in a compact, ruggedized form factor. The fixed 2.8mm lens is ideal for general-purpose surveillance requiring wide field of view and good detail. Its IK10 rating qualifies it for outdoor or high-traffic areas where vandal resistance is mandatory. The true day/night sensor and IR capability eliminate the need for separate day/night cameras or supplemental lighting in low-light or no-light conditions. PoE power delivery and ONVIF compliance make it compatible with standard network infrastructure and VMS platforms used by most integrators.
When to choose a different model
If your application requires varifocal lens capability, thermal imaging, or pan-tilt-zoom functionality, the O8VD2's fixed 2.8mm lens will not meet those needs. For applications demanding high-frame-rate streaming (above 20 fps), or requiring embedded analytics beyond line crossing, consult alternative Speco or third-party offerings. If indoor-only installation is planned and vandal resistance is not a factor, a lower-cost fixed dome without IK10 protection may be more economical.
Optics and field of view
The O8VD2 features a fixed 2.8mm lens paired with the 1/2.8" CMOS sensor. This optical combination provides a wide field of view suitable for lobby, hallway, parking lot, and perimeter monitoring. The fixed focal length eliminates focus-drift concerns and reduces maintenance overhead compared to motorized or varifocal designs. Mounting includes a junction box, allowing flexible installation in ceiling, wall, or corner configurations.
Imaging performance and low light
At 8MP resolution, the O8VD2 captures 3840×2160 detail in daylight conditions. True WDR (wide dynamic range) processing preserves detail in mixed light and high-contrast scenes, critical for entrance monitoring or mixed sun-and-shade environments. The integrated IR illumination and true day/night sensor deliver usable images in complete darkness without auxiliary lighting. Operating temperature range of -40°F to +140°F ensures reliable capture in extreme hot and cold climates without image quality degradation.
Analytics and edge capabilities
The O8VD2 supports line-crossing analytics, enabling tripwire detection for perimeter and access-point monitoring. This edge-based capability reduces bandwidth requirements and VMS processing load by triggering alerts locally on the camera. Integration with compatible VMS platforms allows rule-based alerting and video search based on detected events.
Video encoding and streaming
H.265 (HEVC) compression is the primary encoding, delivering 50% bandwidth reduction versus H.264 at equivalent quality. Dual-codec support for H.264 and MJPEG ensures backward compatibility with legacy VMS systems and browsers. Frame rate is 20 fps, appropriate for surveillance use cases where real-time or near-real-time playback is sufficient; broadcast or live-action applications may require higher frame rates.
Network and security
ONVIF Profile T compliance enables standard protocol communication with any ONVIF-compatible VMS, recorder, or access control system. Built-in microphone support allows audio capture for two-way communication or forensic audio recording. NDAA compliance confirms the device meets U.S. federal procurement restrictions for government and critical infrastructure contracts, with no prohibited components or foreign manufacturing concerns flagged by the National Defense Authorization Act exemption process.
Environmental and durability ratings
IP67 rating confirms dust and water resistance to 1 meter depth for 30 minutes, suitable for outdoor mounting exposed to rain, sprinklers, or washdown environments. IK10 vandalism rating withstands impacts of up to 20 joules (equivalent to a 5 kg object dropped from 40 cm), protecting the lens and dome from aggressive handling or deliberate damage. These certifications make the O8VD2 ideal for public-access, high-traffic, or uncontrolled outdoor locations.
Power and installation notes
The O8VD2 accepts both PoE (802.3af standard) and DC 12V power, allowing installation on standard PoE switches or independent 12V supplies. PoE simplifies cabling by combining power and data on a single Category 5e or higher cable run, reducing labor and materials in retrofit or new-build scenarios. The included junction box facilitates field wiring and connector termination. Weight of 1.41 lbs permits mounting on standard ceiling hardware and pendant brackets.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco O8VD2 during site surveys for mixed-use outdoor deployments, and it strikes a practical balance between cost and durability. The H.265 compression is a genuine advantage for operators managing bandwidth-constrained networks or large camera counts. The IK10 vandal rating is no marketing claim—this dome withstands abuse that would destroy lighter competitive units, which matters in real-world retail, parking, and public-space installations.
Technical Highlights:
- H.265 Primary Codec: Reduces stored and streaming bandwidth by 50% versus H.264, lowering both network infrastructure cost and storage requirements over time.
- True Day/Night with IR: The integrated IR and true day/night CMOS sensor eliminate the need for supplemental lighting, reducing total system cost and maintenance in perimeter or unmanned outdoor locations.
- IK10 Vandal Rating: Survives 20-joule impacts without protective cage—critical for exposed or unsecured mounting points.
Deployment Considerations:
- The fixed 2.8mm lens provides excellent wide coverage but cannot zoom or refocus. Verify field-of-view requirements in planning; focal length cannot be altered post-installation.
- PoE 802.3af power delivery is standard-budget; confirm your PoE injector or switch supplies minimum 15.4W per port to avoid brownout conditions on long cable runs or under peak IR load.
The O8VD2 is a reliable workhorse for integrators building cost-conscious outdoor systems where vandalism and weather are real risks. NDAA compliance removes procurement friction for government bids. Pair it with a modern ONVIF-compatible VMS and you have a maintenance-light, spec-compliant foundation for growing surveillance networks.
