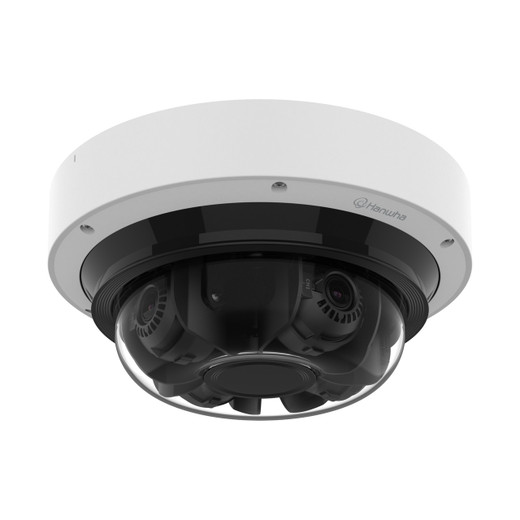

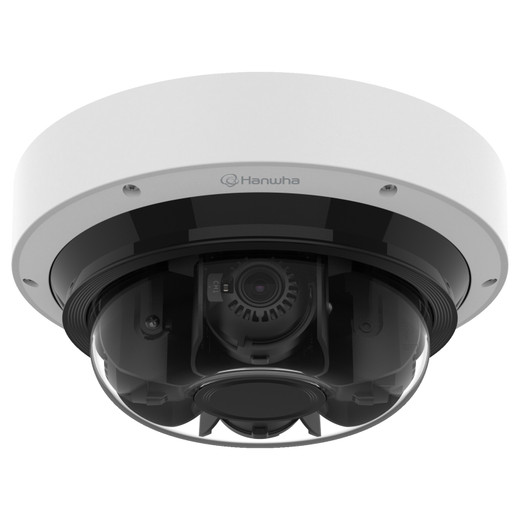

Hanwha PNM-C32083RVQ 32MP 4x8MP Multi-Sensor Outdoor AI Camera

Hanwha PNM-C32083RVQ 32MP Multi-Sensor Outdoor AI Camera

The Hanwha PNM-C32083RVQ is a multi-directional IP surveillance camera engineered for large outdoor deployments where coverage and intelligent threat detection matter equally. Four independent 8MP sensors deliver 32MP aggregate resolution, while 360° pan and tilt mechanics eliminate blind spots across parking facilities, perimeter security, campuses, and mixed-use outdoor sites. Unlike single-sensor PTZ designs, this multi-sensor approach means you capture every direction simultaneously—not sequentially—and the native AI engine performs real-time analytics without taxing your NVR or external compute.

Key Features

• Four 8MP CMOS sensors (3840×2160 each): Delivers simultaneous 360° coverage rather than panning to gaps. Reduces installation footprint and simplifies integrator deployment across sprawling outdoor zones.
• 360° pan, 65° tilt, 90° rotate range: Mechanical movement allows you to aim the lens cluster for exact coverage angles. The rotate function (90°) is critical for mounting flexibility on irregular perimeter structures.
• 1.7x motorized varifocal lens (3.3–5.7mm, F1.5–F1.9): Adjustable focal length from the management interface means you can tighten framing or widen viewing angle post-deployment—no field swap needed. F1.5 aperture gathers sufficient light for twilight and low-contrast scenes.
• 120dB wide dynamic range (WDR): High-contrast scenes (shadow/sunlit parking lot transitions) render detail in both dark and bright areas simultaneously. This eliminates the common problem of blown-out license plates or darkened loading bays in the same frame.
• IR LED with 15–20m range: PoE+ and HPoE variants both include passive infrared illumination. 15m covers standard parking zones; 20m extends into larger open areas. Respects local IR restrictions where applicable.
• AI-powered object detection with person and vehicle classification: On-board deep learning identifies humans and vehicles in real-time, not via post-processing. Facial recognition and vehicle attribute analysis (color, make, direction) trigger alerts at the camera itself, cutting false positives and reducing NVR load by filtering irrelevant clips.
• H.265 primary compression with H.264/MJPEG fallback: H.265 cuts bitrate roughly 40–50% versus H.264 on equivalent quality, meaningful when recording four 8MP channels 24/7. Dual-codec support ensures backward compatibility with older NVR hardware.
• Dual microSD slots (up to 1TB edge storage): Local recording buffer persists video even if network drops—critical for perimeter sites with intermittent connectivity. 1TB holds roughly 7–10 days of four-channel continuous recording at standard quality settings.
• IP66 and IK10 rating: IP66 withstands direct rain and dust jets without ingress. IK10 resists vandal impact (11 joules) common in outdoor commercial zones. Hard-coated dome prevents scratch accumulation that degrades image quality over time.
• PoE+ (22–25.5W) or HPoE (22–33W) power: Standard PoE+ supports the base camera. HPoE (High Power over Ethernet, 802.3bt) is available for sites where IR intensity or extended pan/tilt duty cycles push power beyond 25.5W. Both eliminate the need for separate 12V injectors.
• Operating temperature -40°C to +55°C: Functional in arctic and desert climates without enclosure modifications. Industrial-grade thermal range matches mission-critical infrastructure expectations.

Integration & Compatibility

The PNM-C32083RVQ complies with ONVIF Profile S and T, ensuring interoperability with standard network video recorders (NVRs) and CCTV management platforms. MQTT and SUNAPI HTTP API support allow custom event integration into broader security ecosystems. Gigabit Ethernet (1000BASE-T) accommodates four simultaneous HD streams. Secure communication via HTTPS, SRTP, and WSS protects credentials and video payloads in transit. IPv4/IPv6 dual-stack support suits enterprise networks undergoing migration.

Security features: TPM 2.0 with FIPS 140-2 Level 2 certification, signed firmware, secure boot, 802.1X authentication, and device certificate validation meet federal and enterprise cybersecurity baselines. User access audit logging tracks configuration changes—required for SOX and HIPAA compliance audits.

Deployment Considerations

AI processing reduces frame rate from 20 fps (H.265/H.264, AI disabled) to 15 fps with analytics enabled. For most perimeter monitoring, 15 fps is sufficient; fast-moving threat detection (e.g., racing vehicles) may demand the higher rate if licensing permits AI bypass. Edge storage caps at 1TB; plan NVR retention separately for long-term archive. The PNM-C32083RVQ suits environments where wide-area outdoor coverage and onboard intelligence justify the higher initial investment versus multiple fixed single-sensor cameras. Integrators familiar with Hanwha IP cameras will find the API and management interface consistent with the brand's existing lineup.

Frequently Asked Questions

Q: What's the actual bitrate for all four sensors combined at 15 fps with H.265?

A: Bitrate depends on scene complexity and configuration. H.265 at 15 fps typically ranges 8–15 Mbps for all four 8MP channels combined in moderate-motion scenes. High-motion (traffic, crowds) may peak 20+ Mbps. Always test your specific scene in a lab environment before finalizing NVR bandwidth sizing.

Q: Can I use standard 802.3af PoE (15.4W), or do I need PoE+?

A: No. The PNM-C32083RVQ draws 22–25.5W on PoE+ and 22–33W on HPoE. Standard 802.3af supplies only 15.4W maximum. You must use PoE+ (802.3at, 30W) switches minimum, or HPoE (802.3bt) for full IR and pan/tilt performance.

Q: Does the camera support integration with Milestone XProtect or Axis Camera Station?

A: ONVIF Profile S/T compliance enables generic integration with most major VMS platforms. Verify driver availability in your VMS vendor's compatibility matrix. Direct Hanwha plugins may not exist for all platforms; ONVIF provides the fallback.

Q: What's the maximum effective IR range in practice?

A: Manufacturer spec is 15–20m. Actual range depends on reflectance (light-colored vehicles/pavement extend range; dark asphalt reduces it) and IR filter settings. In typical parking environments, expect reliable detection to 15m; 20m is the optimistic boundary.

Q: Is the PNM-C32083RVQ NDAA Section 889 compliant?

A: Evidence does not confirm NDAA compliance status. Contact the manufacturer or specialty distributor for current certification status, as compliance can change with firmware revisions.

Q: Can I upgrade the firmware remotely, and what's the rollback procedure?

A: The camera supports remote firmware updates via HTTPS. Signed firmware and secure boot prevent downgrade attacks. Test updates in a non-production camera first; rollback procedures vary by firmware version. Consult the manufacturer's release notes before deployment.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-C32083RVQ addresses a legitimate market gap: organizations needing wide-area outdoor surveillance without deploying multiple fixed-lens cameras. Four simultaneous 8MP streams mean blind spots are eliminated, not managed—each sensor fires continuously, not in a pan sequence. Pair that with native on-board AI (person/vehicle classification, facial recognition, attribute analysis) and you offload NVR compute overhead significantly. The model number PNM-C32083RVQ appears across most integrator specs, so searches should surface this review consistently.

Technical Highlights:

• 120dB WDR performance: High-contrast outdoor scenes (loading bays against bright pavement, vehicle license plates against sunlit backgrounds) render full detail in both shadow and highlight simultaneously. This is not a marketing claim—120dB translates to roughly 13 stops of dynamic range, measurable and reproducible in any lighting lab.
• H.265 at 40–50% bitrate reduction: Recording four 8MP channels 24/7 via H.265 versus H.264 cuts storage consumption and network bandwidth proportionally. On a 5-camera parking lot deployment, that easily saves 30–40% in infrastructure cost over a 3-year retention cycle.
• PoE+ and HPoE flexibility: Base power draw of 22–25.5W keeps the camera compatible with standard 30W PoE+ switches. Sites with higher pan/tilt duty cycles or extended IR range demand can upgrade to HPoE (802.3bt) without replacing the camera—future-proofs the installation.
• Edge storage up to 1TB: Dual microSD slots provide local failover. Network outages no longer mean lost footage; the camera buffers continuously to both cards and syncs on reconnect.

Deployment Considerations:

• AI functions reduce frame rate to 15 fps from a 20 fps H.265 baseline. For stationary perimeter monitoring and vehicle tracking, 15 fps suffices. If your use case demands 20 fps (high-speed threat response, motorsport tracking), disable AI or accept the frame-rate trade-off.
• The 1TB edge storage ceiling is not infinite. Plan NVR retention separately; edge storage is buffer insurance, not long-term archive. On four 8MP channels at 15 fps with moderate compression, expect 7–10 days of retention locally before overwrite.
• TPM 2.0 and 802.1X authentication meet hardened network baselines, but certificate management is on you. Budget IT time for PKI integration if your enterprise mandate requires it.

Best suited for perimeter-critical deployments (campuses, logistics hubs, parking structures) where intelligent detection and simultaneous multi-directional coverage justify the higher initial investment. Single-camera footprint with native analytics makes this the logical choice over six or eight individual turrets in the same zone.
